UU8-TW18Talkies-Walkies 3D

Talkies-Walkies 500m 3D 3D Walkie-talkies 500m TW18series Booklet: 105 (W) x 148 (H) mm MODE D’EMPLOI INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES MANUALE DI ISTRUZIONI BEDIENUNGSANLEITUNG GEBRUIKSAANWIJZING NÁVOD K POUŽITÍ INSTRUKTIONER INSTRUKCJA OBSŁUGI HASZNÁLATI ÚTMUTATÓ TW18seriesIM2244_365_V04.indd 1TW18seriesIM2244_365_V04.indd 114/6/2024 11:27 AM14/6/2024 11:27 AM DÉBALLAGE DE L’APPAREIL Lors du déballage, assurez-vous que les pièces suivantes soient incluses : 2 x Talkie-Walkies / 1 x mode d’emploi ATTENTION : Les éléments d’emballage tels que films plastiques, rubans adhésifs, étiquettes et rubans de fixation métalliques ne font pas partie de ce jouet et doivent être enlevés par raison de sécurité avant toute utilisation par un enfant. INFORMATIONS CONCERNANT LES PILES IMPORTANTES RÈGLES DE SÉCURITÉ Chaque talkie-walkie fonctionne avec 3 piles alcaline de 1.5V de type AAA / LR03 (piles non incluses). 1. Le compartiment à pile se trouve à l’arrière du talkie-walkie. Avant d’insérer les piles, enlever tout d’abord le clip ceinture situé sur le compartiment à pile. Pour cela, tirer la languette du clip et glisser ce dernier vers le haut pour l’enlever. 2. A l’aide d’un tournevis, ouvrir le couvercle du compartiment à pile. 3. Insérer les 3 piles de type AAA/LR03, en observant la polarité indiquée au fond du compartiment, et selon le schéma illustré ci-contre. 4. Fermer le compartiment à pile, resserrer la vis et remettre le clip ceinture. DESCRIPTION DU PRODUIT 1. Bouton TALK pour parler 2. Microphone 3. Interrupteur marche/arrêt 4. Clip de ceinture 5. Compartiment à pile ATTENTION : D’importantes interférences électromagnétiques ou des décharges électrostatiques peuvent provoquer un dysfonctionnement ou une perte de données. Si l’appareil ne fonctionne pas correctement, réinitialisez l’unité ou enlevez puis remettez les piles. Ne pas recharger les piles non rechargeables. Retirer les accumulateurs du jeu avant de les recharger. Ne charger les accumulateurs que sous la surveillance d’un adulte. Ne pas mélanger différents types de piles ou accumulateurs, ou des piles et accumulateurs neufs et usagés. Les piles et accumulateurs doivent être mis en place en respectant la polarité. Les piles et accumulateurs usagés doivent être enlevés du jouet. Les bornes d’une pile ou d’un accumulateur ne doivent pas être mises en court-circuit. Ne pas jeter les piles au feu. Retirer les piles en cas de non utilisation prolongée. Ce jeu doit être alimenté avec les piles spécifiées seulement. Les batteries ne doivent jamais être exposées à une source de chaleur excessive, par exemple la lumière du soleil ou un feu. N’utiliser que des piles de type identique ou équivalent à celles recommandées. Précautions d’emploi • Garder une distance minimale autour de l’appareil pour une aération suffisante. • Il convient de ne pas obstruer les ouvertures d’aération par des objets tels que journaux, nappes, rideaux, etc. • Il convient de ne pas placer sur l’appareil des sources de flammes nues, telles que des bougies allumées. • Les piles doivent être jetées de façon conforme. Les déposer dans des bacs de collecte prévus afin de protéger l’environnement. • L’appareil est destiné à être utilisé sous un climat tempéré et/ou tropical. • L’appareil ne doit pas être exposé aux égouttements ou éclaboussures. Aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil. Avertissements: • Danger d’explosion si la batterie est mal remplacée. Veillez à ne la remplacer qu’avec une batterie identique ou équivalente. • Les piles doivent être jetées de façon conforme. Les déposer dans des bacs de collecte prévus afin de protéger l’environnement. • le remplacement d’une pile par un type incorrect qui peut neutraliser (par exemple, dans le cas de certains types de piles au lithium) ; • l’élimination d’une pile dans le feu ou dans un four chaud, ou l’écrasement ou le découpage mécanique d’une pile, qui peut entraîner une explosion ; • laisser une batterie dans un environnement à température extrêmement élevée qui peut entraîner une explosion ou la fuite d’un liquide ou d’un gaz inflammable ; et • une batterie soumise à une pression d’air extrêmement basse qui peut entraîner une explosion ou la fuite d’un liquide ou d’un gaz inflammable. • Pour limiter l’exposition aux fréquences radio quand vous utilisez votre talkie-walkie, tenez votre appareil au moins à 5 cm (2 pouces) de votre visage. • N’utilisez jamais votre talkie-walkie à l’extérieur pendant un orage. • N’utilisez jamais votre talkie-walkie sous la pluie. • Si votre talkie-walkie est très mouillé, éteignez–le et enlevez le bloc-pile. Séchez le compartiment à piles et laissez ouvert quelques heures. N’utilisez pas le talkie-walkie avant qu’il soit parfaitement sec. • Ne pas laisser le talkie-walkie à la portée de jeunes enfants. • Les batteries ne doivent jamais être exposées à une source de chaleur excessive, par exemple la lumière du soleil ou un feu. • L’appareil est conforme aux spécifications RF d’utilisation près de votre corps. Gardez à une distance de 2.5 cm de votre corps. Vérifiez que les accessoires de l’appareil, par exemple un étui de rangement ou un boîtier, ne comportent pas de parties métalliques. Maintenez l’appareil éloigné de votre corps pour respecter la distance exigée. • La puissance de transmission maximale est inférieure à 20mW. Voir page 2 pour le schéma détaillé du talkie-walkie : 23 FRANÇAIS 1.5V AAA/LR03 1.5V AAA/LR03 1.5V AAA/LR03 TW18seriesIM2244_365_V04.indd 3TW18seriesIM2244_365_V04.indd 314/6/2024 11:27 AM14/6/2024 11:27 AM DÉCLARATION DE CONFORMITÉ SIMPLIFIÉE UE Lexibook® S.A. 6 avenue des Andes Bâtiment 11 91940 Les Ulis France Désignation : Talkies-walkies Référence / type : TW18series Fréquences de fonctionnement : Canal 1 : 446.00625MHz; Canal 2 : 446.05625MHz Puissance émise: < 10mW Le soussigné, Lexibook Limited, déclare que l’équipement radioélectrique du type TW18series est conforme à la dire…

Text truncated - open the document above for the full version.

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Product Name: Talkies-Walkies 3D FCC ID: UU8-TW18 2.911(d)(7) USA Designated Agent for Service of Process We, [Lexibook America] (“the applicant”) designate [Lexibook America] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Lexibook America USA Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States FRN Number: 0036338390 Contact Name: Terry Tang Telephone No: 212 583 4920 Email: [email protected] Applicant Company name: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Grantee FRN Number: 0036338390 FCC Grantee Code: UU8 Contact Name: Terry Tang Telephone No: 212 583 4920 Email: [email protected] Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States 2.911 (d)(7)USA Agent v1.5 Signature: Title: Managing Director Signature: Title: Managing Director Date: 20 th December 2024 Date: 20 th December 2024 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against- national-security-threats-to-the-communications-supply-chain-through-the

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Product Name: Talkies-Walkies 3D FCC ID: UU8-TW18 Model(s): TW18DINO, TW18UNI 2.911(d)(5)(ii) Applicant filing We, Lexibook America (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified on the “Covered List” NOTE 1 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Date: 2024/12/31 Name: Terry Tang Title: Managing Director Company: Lexibook America NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Product Name: Talkies-Walkies 3D FCC ID: UU8-TW18 Model(s): TW18DINO, TW18UNI 2.911(d)(5)(i) Equipment Type We, Lexibook America (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Date: December 31, 2024 Name: Terry Tang Title: Managing Director Company: Lexibook America NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Letter of Authorization Company name: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Product Name: Talkies-Walkies 3D FCC ID: UU8-TW18 Model(s): TW18DINO, TW18UNI Product Description: Talkies-Walkies 3D We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/12/31 Name: Terry Tang Title: Managing Director Company: Lexibook America

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/12/31 Subject; Request for Confidentiality FCC ID: UU8-TW18 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Terry Tang Title: Managing Director

Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Date: 2024/12/31 Dear Sir/Madam, We, Lexibook America, Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and outer housing are different for these model: Product name: Talkies-Walkies 3D Model no.: TW18DINO, TW18UNI Sincerely, Name/Title： Terry Tang / Managing Director Company: Lexibook America Address: C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Phone: 212 583 4920 Fax: 212 583 4929 E-Mail: [email protected]

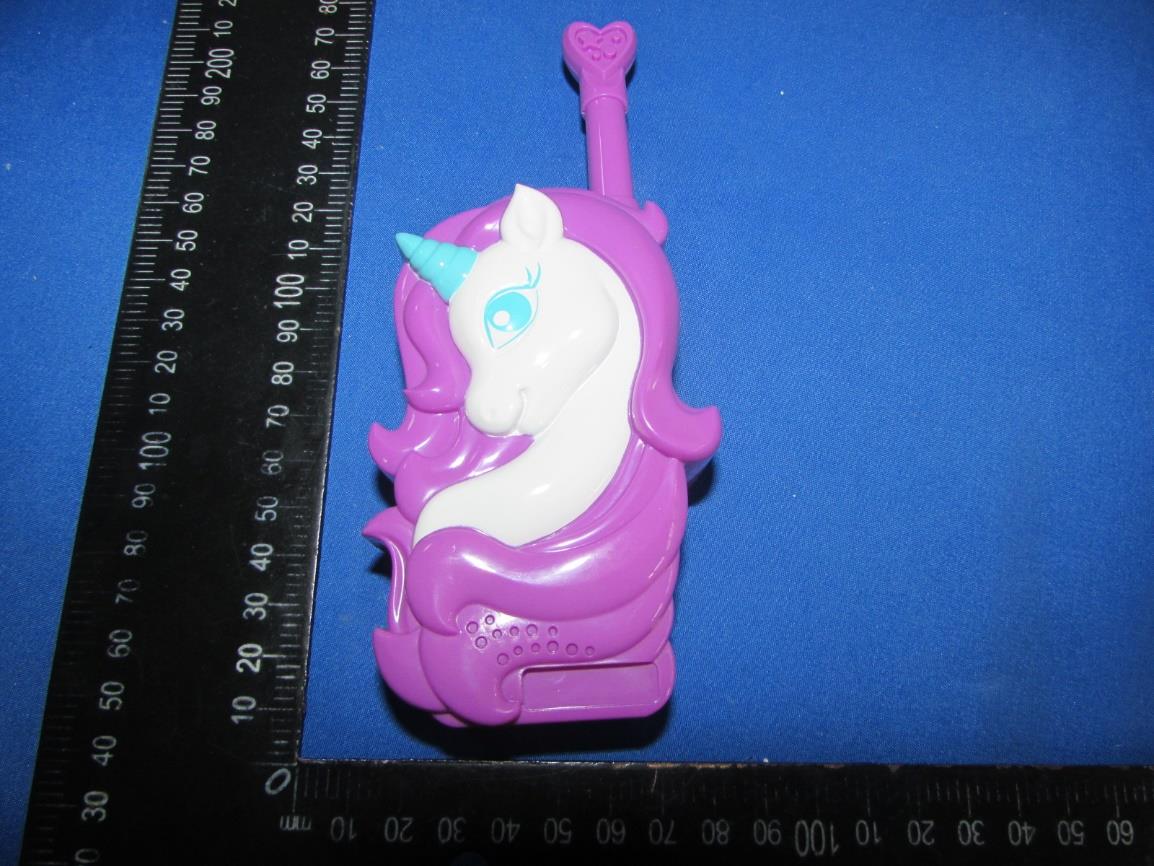

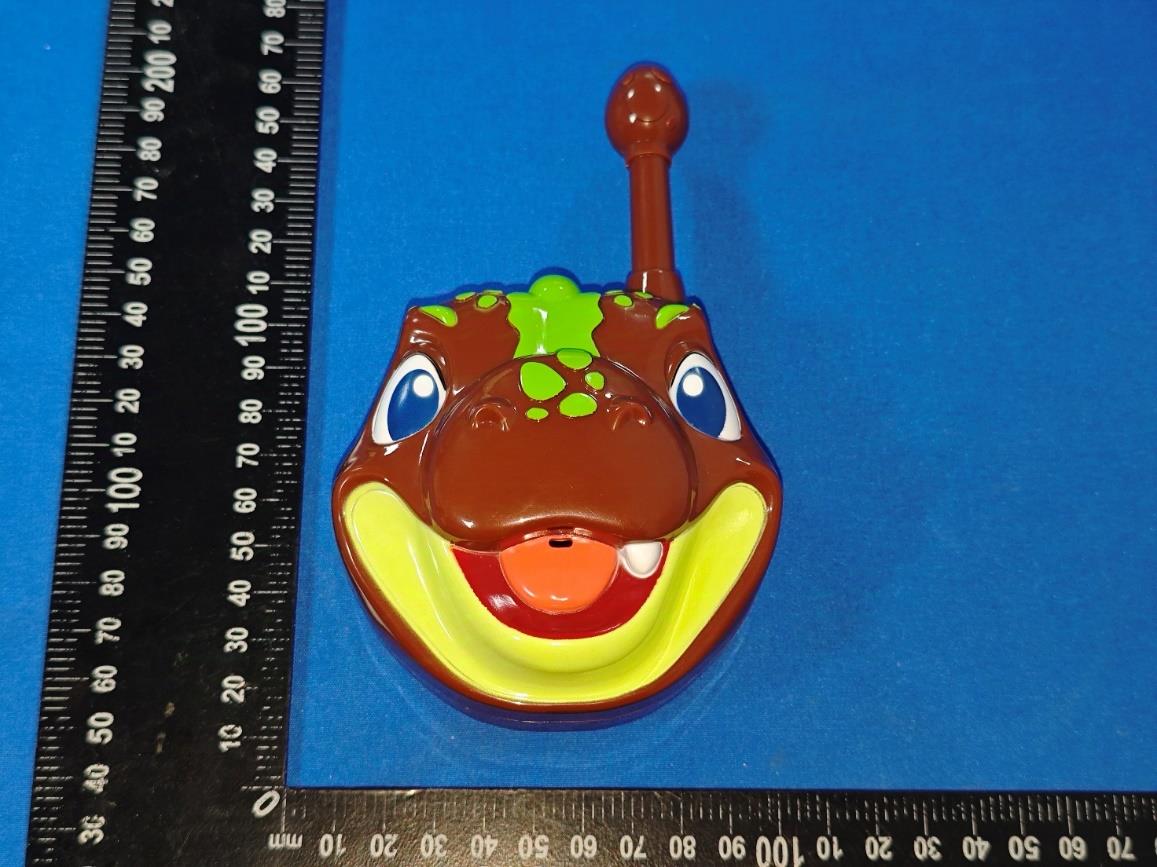

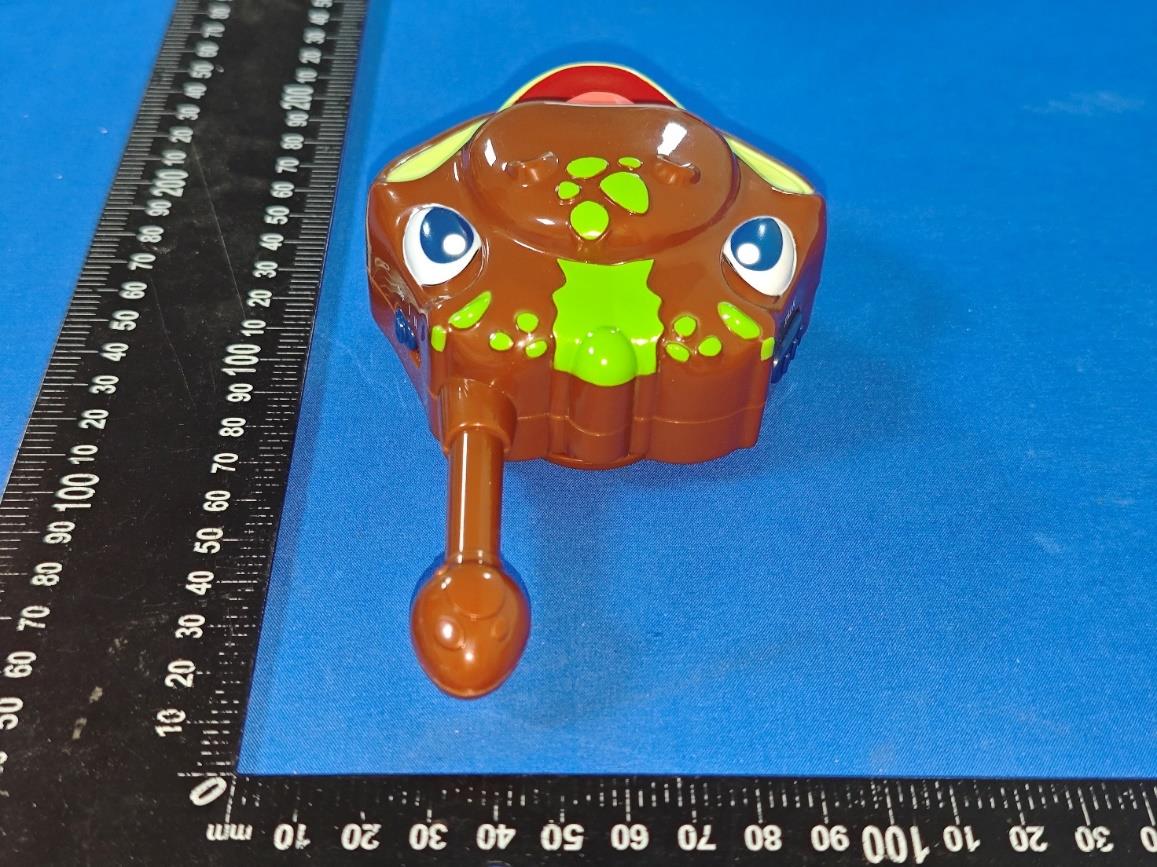

FCC ID:UU8-TW18 Page 1 of 7 External Photographs of EUT TW18DINO Fig.1 Fig.2 FCC ID:UU8-TW18 Page 2 of 7 Fig.3 Fig.4 FCC ID:UU8-TW18 Page 3 of 7 Fig.5 Fig.6 FCC ID:UU8-TW18 Page 4 of 7 Fig.7 TW18UNI Fig.1 FCC ID:UU8-TW18 Page 5 of 7 Fig.2 Fig.3 FCC ID:UU8-TW18 Page 6 of 7 Fig.4 Fig.5 FCC ID:UU8-TW18 Page 7 of 7 Fig.6

Label Location FCC ID: UU8-TW18

FCC ID:UU8-TW18 Page 1 of 5 Internal Photographs of EUT TW18DINO Fig.1 Fig.2 FCC ID:UU8-TW18 Page 2 of 5 Fig.3 Fig.4 Antenna FCC ID:UU8-TW18 Page 3 of 5 Fig.5 TW18UNI Fig.1 FCC ID:UU8-TW18 Page 4 of 5 Fig.2 Fig.3 FCC ID:UU8-TW18 Page 5 of 5 Fig.4 Fig.5 Antenna

Page 1 of 45 SAR Test Report Report No.: AGC15705241107FH01 PRODUCT DESIGNATION : Talkies-Walkies 3D BRAND NAME : LEXIBOOK MODEL NAME : TW18DINO, TW18UNI APPLICANT : Lexibook America DATE OF ISSUE : Jan. 20, 2025 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093 IEEE Std C95.1 ™-2005 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC15705241107FH01 Page 2 of 45 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 20, 2025 Valid Initial Release Report No.: AGC15705241107FH01 Page 3 of 45 Test Report Applicant Name Lexibook America Applicant Address C/O Pramex International 1251 Avenue of the Americas, 3rd FI., New York, New York 10020, United States Manufacturer Name Lexibook America Manufacturer Address C/O Pramex International 1251 Avenue of the Americas, 3rd FI., New York, New York 10020, United States Factory Name Lexibook America Factory Address C/O Pramex International 1251 Avenue of the Americas, 3rd FI., New York, New York 10020, United States Product Designation Talkies-Walkies 3D Brand Name LEXIBOOK Test Model TW18DINO Series Model TW18UNI Declaration of Difference All the same except model name and outer housing EUT Voltage DC 4.5V Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093 IEEE Std C95.1 ™-2005 Date of receipt of test item Nov. 13, 2024 Test Date Dec. 07, 2024 to Jan. 14, 2025 Report Template AGCRT- US -PTT/SAR (2021-04-20) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Jan. 20, 2025 Reviewed By Calvin Liu (Reviewer) Jan. 20, 2025 Approved By Angela Li (Authorized Officer) Jan. 20, 2025 Report No.: AGC15705241107FH01 Page 4 of 45 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ..................................................................................................................... 7 3.1. THE DASY5 SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS.................... 7 3.2. DASY5 E-FIELD PROBE .............................................................................................................................. 8 3.3. DATA ACQUISITION ELECTRONICS DESCRIPTION ............................................................................................. 8 3.4. ROBOT ....................................................................................................................................................... 9 3.5. LIGHT BEAM UNIT ....................................................................................................................................... 9 3.6. DEVICE HOLDER ....................................................................................................................................... 10 3.7. MEASUREMENT SERVER ............................................................................................................................ 10 3.8. PHANTOM ............................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE .......................................................................................................... 12 4.1. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................... 12 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 13 5. TISSUE SIMULATING LIQUID ..................................................................................................................... 15 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 15 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 15 5.3. TISSUE CALIBRATION RESULT ..................................................................................................................... 16 6. SAR SYSTEM CHECK PROCEDURE ......................................................................................................... 17 6.1. SAR SYSTEM CHECK PROCEDURES ........................................................................................................... 17 7. EUT TEST POSITION ................................................................................................................................... 19 7.1. BODY WORN POSITION .............................................................................................................................. 19 8. SAR EXPOSURE LIMITS ............................................................................................................................ 20 9. TEST FACILITY ........................................................................................................................................... 21 10. TEST EQUIPMENT LIST ........................................................................................................................... 22 11. MEASUREMENT UNCERTAINTY .............................................................................................................. 23 12. POWER MEASUREMENT .......................................................................................................................... 27 13. TEST RESULTS ................................................................…

Text truncated - open the document above for the full version.

This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 1 of 27 TEST REPORT Report Number : TZ0035241107FRF19 Product Name : Talkies-Walkies 3D Model/Type reference : TW18DINO, TW18UNI FCC ID : UU8-TW18 Prepared for : Lexibook America C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 95 Subpart B, ANSI C63.26-2015 Date of Test : 2024-11-12 ~ 2024-11-24 Date of Issue : 2024-11-25 Prepared by : Lena Wen (File administrators) Reviewed by : Max Zhang (Technique principal) Approved by : Andy Zhang (General Manager) Report No.: TZ0035241107FRF19 Page 2 of 27 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2024-11-25 Valid Initial release Report No.: TZ0035241107FRF19 Page 3 of 27 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. Description of Test Facility .................................................................................................... 5 1.5. Statement of the Measurement Uncertainty ......................................................................... 5 1.6. Measurement Uncertainty ...................................................................................................... 6 1.7. Description of Test Modes ..................................................................................................... 6 1.8. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Related Submittal (s) / Grant (s) .................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. Special Accessories ............................................................................................................... 8 3.3. Block Diagram/Schematics .................................................................................................... 8 3.4. Equipment Modifications ....................................................................................................... 8 3.5. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. T E S T R E S U L T .................................................................... 10 5.1. Frequency Stability ............................................................................................................... 10 5.2. Bandwidth .............................................................................................................................. 12 5.3. Transmitter Power................................................................................................................. 14 5.4. Modulation Characteristics .................................................................................................. 16 5.5. Unwanted Emissions ............................................................................................................ 19 5.6. Antenna Requirements ......................................................................................................... 25 6. L I S T O F M E A S U R I N G E Q U I P M E N T S ....................................... 26 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 27 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T ................................. 27 9. I N T E R I O R P H O T O G R A P H S O F T H E E U T .................................. 27 Report No.: TZ0035241107FRF19 Page 4 of 27 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : Lexibook America Address : C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States Manufacturer : Lexibook America Address : C/O Pramex International 1251 Avenue of the Americas, 3rd Fl., New York, New York 10020, United States 1.2. Description of Device (EUT) Product Name : Talkies-Walkies 3D Trade Mark : LEXIBOOK Model Number : TW18DINO, TW18UNI Model Declaration : All the same except for the model name and outer h…

Text truncated - open the document above for the full version.

Page 1 of 18 CALIBRATION DATA PROBE CALIBRATION DATA Page 2 of 18 Page 3 of 18 Page 4 of 18 Page 5 of 18 Page 6 of 18 Page 7 of 18 Page 8 of 18 Page 9 of 18 Page 10 of 18 DAE CALIBRATION DATA Page 11 of 18 Page 12 of 18 Page 13 of 18 DIPOLE CALIBRATION DATA Page 14 of 18 Page 15 of 18 Page 16 of 18 Page 17 of 18 Page 18 of 18

FCC ID:UU8-TW18 Page 1 of 1 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
