UU8-WB400TXWeather Station

Atmosphere Station WB400 Mode d’emploi – Instruction manual Instrucciones 2 MODE ATMOSPHERE STATION A 1 2 36479581011 12 13 3 1.5V AAA OR LR03 1.5V AAA OR LR03 B C 1 1 12 13 14 15 16 17 2 3 4 18 2 11 10 9 8 7 6 5 4 3 4 English WELL-BEING STATIONS – YOUR SOURCE OF COMFORT With Lexibook, take care of you and the world around you! To answer the need for pleasure, harmony and serenity, Lexibook has developed a range of Well-Being stations, designed to improve your well-being, day after day. Are you in a ideal comfort zone? The Lexibook Well-being stations are advanced weather stations. They provide essential information on the conditions of the room you are in, interpreting them with stylish and easy icons. Our weather stations also help to improve your daily comfort thanks to their integrated functions: soothing atmosphere, soft lights, relaxing music and sound effects, humidifier.... Reliable and user-friendly, they will naturally find their place in your home with their pure, harmonious design. Electronic Candle Clock – WB100 Thanks to its detachable candle, this stylish clock will create a soft and romantic atmosphere in your bedroom. The indoor temperature display allows you to monitor the room’s conditions. Atmosphere projector Well-Being Station – WB400 This advanced weather station will create a relaxing atmosphere in your home and improve your comfort. Select a theme according to your mood and let your mind wander thanks to the soothing lights and sound effects. Humidifier Weather Station – SM2000 Take control over your environment with this advanced weather station and its integrated humidifier. The humidity rate in your room is too low? The humidifier is turned on automatically to maintain excellent conditions and keep you inside the ideal comfort zone. Humidifier Radio Clock – RL2000 Sleep peacefully and wake up fresh and ready to the sound of the radio. The weather station indicates that the room is too dry? Turn on the humidifier before going to bed and fall asleep in a ideal comfort zone. 5 English INSTALLATION PRODUCT DESCRIPTION Unpacking the device When unpacking, ensure that the following elements are included: 1 x main unit 1 x sensor 1 x AC/DC adaptor 1 x instruction manual WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded. Main unit description Refer to image A 1. Light display area 2. LCD screen 3. MODE MODE key 4. UP key 5. DOWN key 6. EARTH key 7. WATER key Main unit LCD description Refer to image B 1. Comfort zone icons 2. Clock (AM/PM) 3. DST (Daylight Saving Time) icon 4. Snooze icon 5. Alarm icon 6. Timer icon 7. Indoor temperature/humidity indicator 8. Indoor temperature °C/°F 9. Temperature icon 10. Outdoor temperature °C/°F 8. AIR key 9. FIRE key 10. SNOOZE / BACKLIGHT rubber feet Under the unit 11. RESET key Back of the unit 12. Speaker 13. AC Adapter 11. Outdoor temperature/humidity indicator 12. Animated weather forecast icons 13. Music / light display icons 14. Month and day 15. Indoor humidity (%) 16. Humidity icon 17. Remote sensor channel number 18. Outdoor humidity (%) 6 English Remote sensor description Refer to image C 1. LED indicator At the back and inside the battery compartment 2. Wall mount hole 3. CHANNEL selector switch (channel 1, 2 or 3) 4. TX key: Press this button and the sensor will send the temperature and humidity readings to the main unit. (For manufacturer setup.) GETTING STARTED Remote sensor 1. Using a screwdriver, open the battery compartment located at the back of the remote sensor. 2. Insert 2 x LR03/AAA 1,5V (3V ) type batteries (not included) according to the polarity. 3. Close the battery compartment and tighten the screws. Main unit 1. Open the battery compartment located at the bottom of the main unit. 2. Insert 3 x LR6/AA 1,5V (4,5V ) type batteries (not included) observing the polarity indicated at the bottom of the battery compartment, and as per the diagram shown opposite. The batteries are a back-up power source. 3. Close the battery compartment. 4. Plug the AC / DC adapter into the socket at the back of the unit and insert the plug into a wall socket. Note: • If the main unit’s LCD screen becomes dim when you are not plugged into mains power, your batteries are low and need to be changed. • Only use the adapter supplied with the WB400. Do not use other adapter. • The socket-outlet shall be installed near the equipment and shall be easily accessible. Automatic synchronization of the main unit and the remote sensor 1. After the batteries have been inserted in the main unit, the synchronization is launched automatically and runs for approximately 3 minutes. 2. Within these 3 minutes, the main unit (receiver) picks up the temperature and humidity signals from the remote sensor and displays the readings. 7 English CHANNEL SELECTION The WB400 comes with 1 remote sensor. The sensor’s default channel is channel 1 and does not need to be changed. The channel function allows you to use up to 3 additional sensors. The main unit can identify each remote sensor thanks to their assigned channel (channel 1, 2 or 3). If you have 1 or 2 additional sensors, you can place them in a different location in your house such as in a bedroom. Your main unit can collect the temperature and humidity data of up to 3 remote sensors. Adding a sensor 1. Set the sensor to an unused channel by sliding the CHANNEL selector switch in the sensor’s battery compartment to the desired number. 2. In normal mode (idle screen) on the main unit, press MODE 4 times to go to the outdoor temperature section. 3. If the main unit does not display the readings after 3 minutes, in normal mode (the full display of all readings), press MODE 4 times so that only the outdoor temperature section is displayed. Press and hold MODE for 2 or 3 seconds to synchronize manually the remote sensor and the main unit. flashes while it is searching for the sensor signal. You can also press the TX swit…

Text truncated - open the document above for the full version.

Oscillator [32.768] kHz RF power amplifier and Modulator Oscillator [433.92] MHz 433.92 MHz Filter

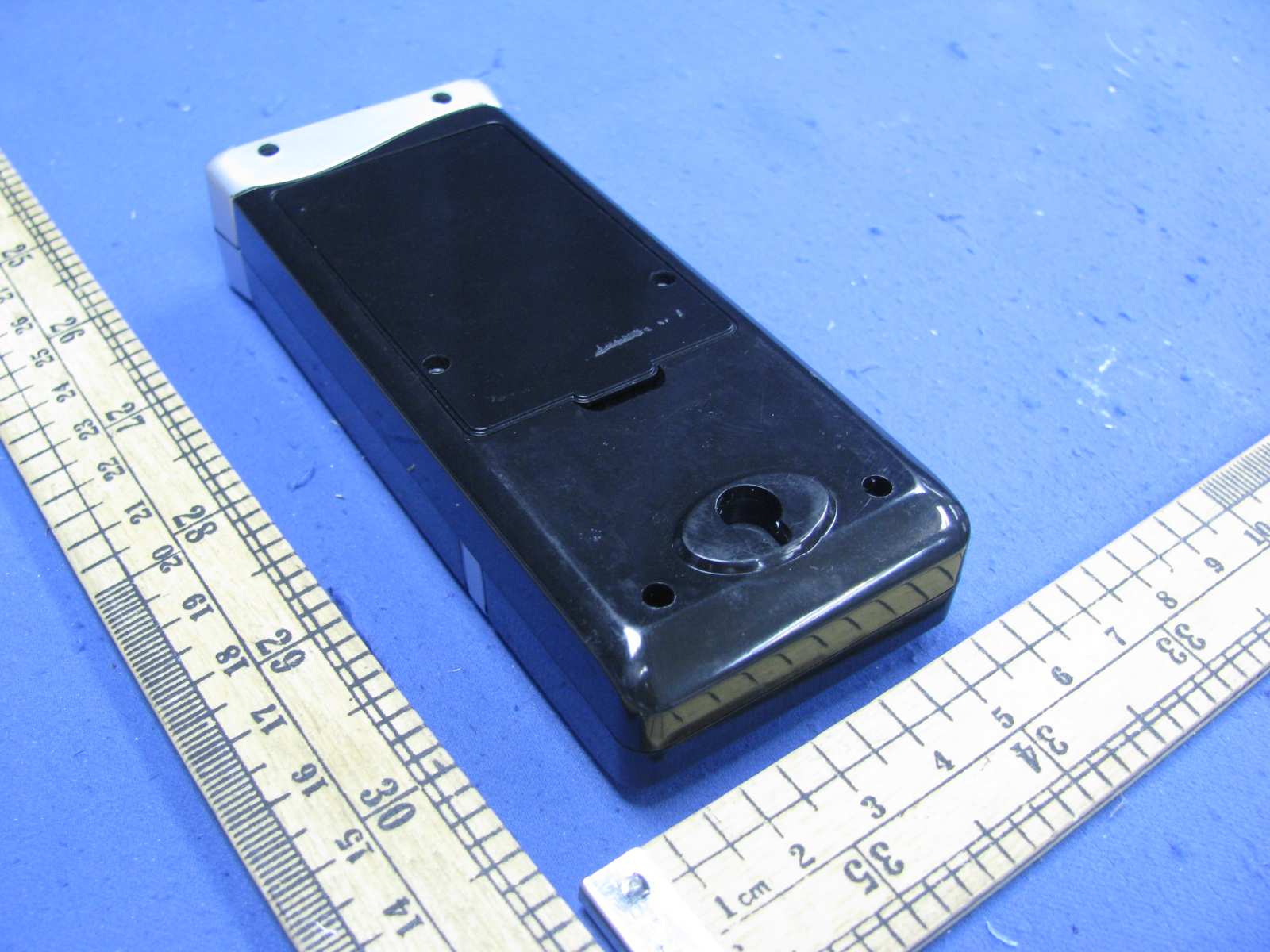

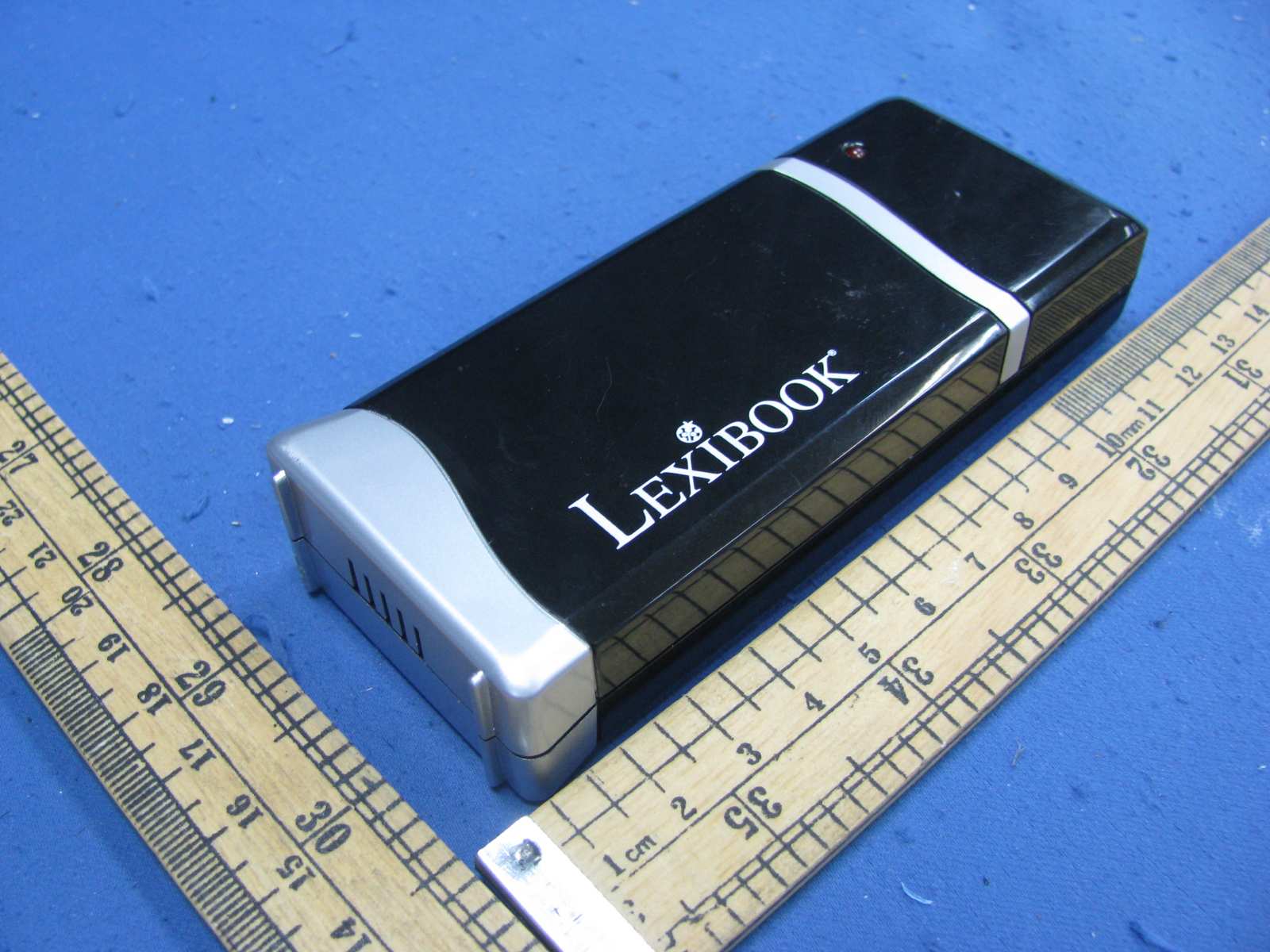

External Photos

Label Location and Artwork

Internal Photos

Technical description Component Function Symbol Antenna Signal Transmission(433.92MHz) ANT Filter Reduce the noise signal L4, C2, L2, C12 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q2 Oscillator Generate the Frequency signal(433.92MHz) X1,Q1 MCU Convert the signal to code IC1 The different channels have different control codes, but with the same operating frequency. Type of antenna: PCB, Integral Antenna Type of modulation: ASK modulation

C6 20PF C7 20PF IC1 ST_N400TX COM5 KIN3 KIN2 KIN1 BZ RH RT RR CX NC NC NC NC NC NC NC NC NC DATA NC NC NC NC NC NC N0 NC NC NC NC NC NC NC NC C3 104 C4 104 C5 104 C8 102 C12 8PF Q2 R25 R7 27R C11 105 R6 1M C10 5PF C9 102 C3 102 C6 2PF C8 22PF R5 68R Q1 R25 X1 433 MHz 7 100PF R4 1M + DC 3.0V

Ref 0 dBm 1 PK MAXH A Att 10 dB * Center 433.92 MHzSpan 1 MHz100 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -19.53 dBm 433.924000000 MHz 2 Delta 2 [T1 ] -20.59 dB -290.000000000 kHz 3 Delta 3 [T1 ] -20.33 dB 240.000000000 kHz D1 -39.53 dBm Date: 2.JUL.2010 20:58:33
