UUM10157V10Vu Qube Remote Control

Installation and Operating Manual Made in the USA TM Mobile Satellite TV Antenna With FastFind Remote Vu Qube V10_04 2 1. INTRODUCTION and BACKGROUND................................................ 3 2. COMPENT OVERVIEW and SPECIFICATIONS................................. 4 3. FCC USER’S INFORMATION....................................................5 3. INSTALLATION .............................................................................. 6-8 4. OPERATION ....................................................................................... 9 6. TROUBLESHOOTING ........................................................................ 10 7. MAINTENANCE .................................................................................. 10 8. LIMITED WARRANTY ........................................................................ 10 Vu Qube V10_04 3 Introduction Congratulations on your purchase of the Vu Qube V10. The Vu Qube V10 is equipped with a FastFind remote enabling you to quickly position the Vu Qube antenna from inside your vehicle. The Vu Qube V10 is compatible with any service provider such as DIRECTV ®, DISH Network ® or Bell ExpressVu. This manual includes a: • Brief background on satellite television • Components overview • Installation diagrams and instructions • Operating Instructions Technical Support Phone: (866) 802-2228 Email: [email protected] Web: www.vuqube.com Background Satellites used for television signals are 22,300 miles (37,000 km) above the earth’s equator. The purpose of the Vu Qube is to acquire the signal traveling that great distance and transmit the signal to your digital receiver in your vehicle so you can watch TV anywhere you park. Satellite television, like other communications relayed by satellite, starts with a transmitting antenna located at an uplink facility on Earth. The uplink dish is pointed toward a specific satellite and the uplinked signals are transmitted. The signal transmitted to the satellite is within a specific frequency range and is received by one of the transponders tuned to that frequency range aboard that satellite. The transponder then transmits the signals back to Earth but at a different frequency band (to avoid interference with the uplink signal). The leg of the signal path from the satellite to the receiving Earth station, in this case the Vu Qube, is called the downlink. The downlinked satellite signal, quite weak after traveling the great distance is received by the Vu Qube antenna, which reflects the weak signal to a focal point that gets transferred to a feedhorn. The receiving antenna must have a clear view, without obstruction, of the southern sky to maximize signal acquired. This signal is then amplified and converted by the LNBf (Low-noise block converter feed) to a signal that is sent via a co-axial cable to the receiver. Once the signal is transmitted from the Vu Qube to your receiver, you can enjoy all of your programming in your vehicle just like at home! A Quick Reference guide is included with Operating Instructions & Elevation information that we suggest you keep with the Vu Qube Controller or near your Satellite TV receiver. The Satellite Broadcast Market is changing and expanding. The information in this manual was accurate at the time of printing. If the Vu Qube does not operate as shown in this manual, please call Wallace Technologies at 1-866-802-2228 or email us at [email protected] . Vu Qube V10_04 4 Vu Qube V10 Component Overview Manual Quick Reference Guide Vu Qube Antenna Vu Qube FastFind Remote RG6 Coaxial Cable (20’) Mounting Kit (Purchased Separately) Kit shown is Model Number 31100 ***You will need to supply your own fasteners to attach a Vu Qube bracket to your vehicle. Depending on the Cab material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T anchors may be used, and should always be used in combination with compatible sealant to environmentally seal the holes after installation.*** Items needed to watch TV Satellite TV service Satellite TV receiver Television Tools needed for installation Drill and drill bits Tape measure Screw drivers and Wrenches Adhesive sealant (compatible with vehicle material) Fasteners to secure Components and wiring SPECIFICATIONS Height: 17.5” Width: 16” Weight: 10.5 lbs Range: US/Southern Canada Compatibility: DirecTV, Dish Network, Bell ExpressVu, Free-to-air receivers Operating Temp: May experience difficulty positioning antenna when temperatures are below 0°F Vu Qube V10_04 5 FCC User Information Main Components Vu Qube V10 Antenna Vu Qube V10 Remote Part #: VQV10 FCC ID: UUM10156V10 IC: 6873A -10156V10 This devise complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This devise must not cause harmful interference, and 2) This devise must accept interference received including interference that may cause undesired operation. Part #: VQV10R FCC ID: UUM10157V10 IC: 6873A -10157V10 This devise complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This devise must not cause harmful interference, and 2) This devise must accept interference received including interference that may cause undesired operation. The Vu Qube V10 and Vu Qube V10 remote have been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to corre…

Text truncated - open the document above for the full version.

CONFIDENTIAL

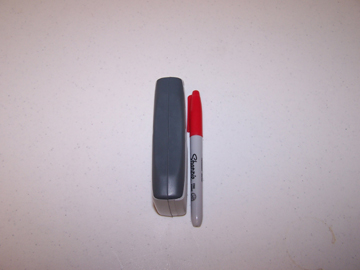

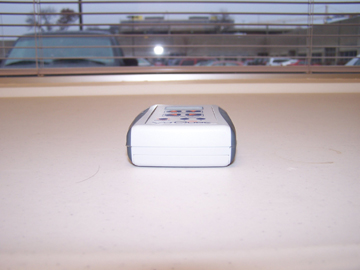

Vu Qube Remote Front Vu Qube Remote Back Vu Qube Remote Side 1 Vu Qube Remote Side 2 Vu Qube Remote Side 3 Vu Qube Remote Side 4

Revised Labels Model: VQV10R Wallace Technologies Wallace Technologies

Wallace Vu Qube Remote –Board Back View 1 Wallace Vu Qube Remote – Board Back View 2 Wallace Vu Qube Remote Internal – Front View 1 Wallace Vu Qube Remote Internal – Front View 2 Wallace Vu Qube Remote Internal – Front View 3

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 TEST RESULT SUMMARY FCC Part 15 Subpart C Section 15.247 Industry Canada RSS-210 Issue 6 MANUFACTURER'S NAME Wallace Technologies NAME OF EQUIPMENT Vu Qube, Mobile Satellite TV Antenna Wireless Remote MODEL NUMBER(S) TESTED VQV10R MANUFACTURER'S ADDRESS PO Box 49128 Blaine MN 55449 TEST REPORT NUMBER WC606426.1 Rev A TEST DATE(S) 15 - 29 November 2006 According to testing performed at TÜV SÜD America Inc, the above mentioned unit is in compliance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 15 Subpart C Section 15.247 and IC RSS-210 Issue 6 It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 15 Subpart C Section 15.247 “Operation within the bands 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz; General requirements.” and IC RSS-210 Issue 6 “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” Date: 18 January 2007 Location: Taylors Falls MN Tom Swanson Joel Schneider USA EMC Technician Sr. EMC Engineer Not Transferable TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 EMC TEST REPORT Test Report File No. : WC606426.1 Rev A Date of issue: 18 January 2007 Model / Serial No(s) Tested : VQV10R Product Type : Vu Qube, Mobile Satellite TV Antenna Wireless Remote Applicant : Wallace Technologies Manufacturer : Wallace Technologies License holder : Wallace Technologies Address : PO Box 49128 Blaine MN 55449 Test Result : „ Positive † Negative Test Project Number References : WC606426.1 Rev A Total pages including Appendices : 41 TÜV SÜD AMERICA Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD AMERICA Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC606426.1 Rev A1 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 41 19 December 2006 Initial Release A 41 18 January 2007 Revisions include: ƒ TRS and Page 1: Corrected model number ƒ Page 6: Revised output power. D I R E C T O R Y 4 Documentation Page(s) Directory 2 Test Regulations, Environmental conditions, Power supply 3 Test Results: FCC IC 6 dB Bandwidth 15.247(a)(2) RSS-210 A8.1(2) 4 Maximum peak output power 15.247(b)(3) RSS-210 A8.4(4) 5 Spurious Emissions 15.247(d) RSS-210 A8.5 6 Power Spectral Density 15.247(e) RSS-210 A8.2(2) 7 Test area diagram(s) 8 - 9 Test setup photo(s) 10 - 11 Test Operation Mode, Configuration of the device under test 12 Deviations From Standard, General Remarks, Summary 13 Appendix A Test Data: FCC IC 6 dB Bandwidth 15.247(a)(2) RSS-210 A8.1(2) 15 - 17 Maximum peak output power 15.247(b)(3) RSS-210 A8.4(4) 18, 22 Spurious Emissions 15.247(d) RSS-210 A8.5 18 - 28 Power Spectral Density 15.247(e) RSS-210 A8.2(2) 29 - 31 Appendix B Constructional Data Form & Block Diagram 32 - 39 Appendix C Measurement Protocol 40 - 41 Sign Explanations: † - not applicable „ - applicable Test Report WC606426.1 Rev A2 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 EMC TEST REGULATIONS: The tests were performed according to the following regulations : † - EN 50081-1 / 1991 † - EN 55014-2: 1997 + Amendment A1: 2001 - Category __ † - EN 55024: 1998 + Amendments A1: 2001 + A2: 2003 † - EN 60601-1-2: 2001 † - EN 61000-6-1: 2001 † - EN 61000-6-2: 2001 † - EN 61326: 1997 + Amendments A1: 1998 + A2: 2001 + A3: 2003 † - EN 61800-3: 1996 + Amendment A11: 2000 † - ETS 300 683: 1997 † - ETS 300 683: 1997 † - ETSI EN 301 489-3 V1.4.1: 2002 † - EN 300 220-3 V1.1.1 † - EN 300 330-2 V1.1.1 † - FCC Part 15 Subpart C Section 15.207 † - FCC Part 15 Subpart C Section 15.209 „ - FCC Part 15 Subpart C Section 15.247 † - FCC Part 15 Subpart C Section 15.249 „ - IC RSS-210 Issue 6 † - IC RSS-Gen Issue 1 † - IC RSS-Gen Issue 1 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 20 °C Atmospheric pressure : 97 kPa Relative Humidity : 24 - 45 % POWER SUPPLY UTILIZED Power supply system : 3 VDC Test Report WC606426.1 Rev A3 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 6 dB Bandwidth FCC 15.247(a)(2), IC RSS-210 A8.1(2) Test summary The requirements are: „ - MET † - NOT MET The minimum 6 dB bandwidth = 518 kHz on the low channel Test location „ - Wild River Lab Large Test Site (Open Area Test Site) † - Wild River Lab Small Test Site (Open Area Test Site) Test equipment TUV ID Model Number Manufacturer Description Serial…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Small Test Site (STS) EUT 180 270 90 0 60 Hz 50 Hz Turntable is 1.2 meters in diameter Enlarged View of Shelter (4 meters square) STS Building Shelter 3 meter antenna 10 meter antenna 30 meter antenna Turntable Control Cable Ground Screen (34 meters long x 12 meters wide) 8 meters WC606426.1Page 8 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA WC606426.1Page 9 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 Test-setup photo(s): Radiated emissions WC606426.1Page 10 of 41 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298Rev. 122006 Test-setup photo(s): Radiated emissions WC606426.1Page 11 of 41
