UUM433AWIRELESS ANTENNA POSITIONING DEVICE

DRAFT 05-20-10 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com 20963 REV A Digital TV Solutions for Mobile Markets ® Portable Satellite TV Antenna Model VQ1 Operating Instructions Part Number VQ1000 DRAFT 05-20-10 Page 1 DRAFT 05-20-10 DIRECTV ® is a registered trademark of DIRECTV, Inc. Dish Network ® is an official trademark of Echostar Communications Corporation. IMPORTANT! The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your VuQube does not operate as outlined in this manual please call King Controls at (800) 982-9920 or visit our website at www.kingcontrols.com. Please read this entire manual before using your VuQube. TABLE OF CONTENTS SectionContentsPage 1. OVERVIEW AND CONNECTIONS .....................................................2-3 2. OPERATION ........................................................................................4-5 3. AUTOMATIC SATELLITE SWITCHING FOR DISH...........................6-11 4. ELEVATION MAPS ..........................................................................12-15 5. TROUBLESHOOTING ..........................................................................16 6. SECURITY BRACKET ..........................................................................17 7. MAINTENANCE ....................................................................................18 8. FCC USER INFORMATION..................................................................19 9. LIMITED WARRANTY ..........................................................................20 Page 2 DRAFT 05-20-10 Congratulations on your purchase of the ultra-portable VuQube Satellite TV Antenna VQ1000. The VQ1000 is equipped with a wireless remote control to allow quick, one person positioning of the antenna while monitoring the signal meter screen on your TV. SECTION 1 OVERVIEW AND CONNECTIONS REMOTE CONTROL The VQ1000 comes with the following items (Fig. 1): 1. Antenna Unit 2. Remote Control (Fig. 2) 3. 50’ Coax Cable You will also need: 4. Items sold separately: • TV • Receiver • Satellite TV Subscription Service Fig. 2 Page 3 DRAFT 05-20-10 Fig. 1 1. Place the VuQube on a stable surface with a clear view of the southern sky. Point the handle to the north (this will speed up search time). 2. Connect coax cable from the VuQube to the SATELLITE IN port on the receiver. 3. Go to OPERATION on page 4. POSITION AND CONNECT THE VUQUBE Note: Hand tighten coax connections. DO NOT USE A WRENCH. Make sure to connect coax to SATELLITE IN on the set top box. Do not allow the coax cable to become bent or kinked. Do not leave the coax cable where it can be tripped on or run over by a vehicle. Satellite TV subscription service also required. Page 4 DRAFT 05-20-10 SATELLITE ACQUISITION 1. Determine your elevation from the appropriate map in Section 4 ELEVATION MAPS, or by entering your current location’s zip code in the satellite receiver prior to navigating to the signal meter screen (see receiver’s owner’s manual). 2. Follow the instructions in your receiver’s owner’s manual and navigate to the signal meter screen. Select the appropriate transponder: DISH Network ® = 11 DIRECTV ® = 19 2. Press and hold POWER until remote turns ON. The remote will display the antenna’s current elevation. 3. Use the UP and DOWN arrows to match the antenna’s elevation (on the remote) to the elevation you determined from the map or your receiver. 4. Watch the signal meter screen on the TV. Use the LEFT and RIGHT arrows to rotate the antenna and watch for signal strength to appear on the screen. IMPORTANT: STEP 4. You must watch the TV for signal strength while rotating the antenna in step 4. See your receiver’s owner’s manual to determine how to display the signal meter screen on your TV. When pressing the left and right arrows, the remote will continuously beep with a short pause in between: beep - beep - beep... If the unit reaches its rotational limit in either direction, the remote will display REVERSE DIRECTION and beep rapidly: beep beep beep... Press other arrow to reverse rotation. IMPORTANT: For satellite acquisition, there must be a clear “line of sight” to the southern sky. Mountains, buildings, trees, telephone poles, etc. can all block the satellite signal from reaching the dish. Note: Pressing and releasing buttons on the remote control will produce an electronic click. SECTION 2 OPERATION Page 5 DRAFT 05-20-10 5. When signal strength appears, stop rotating the antenna. Use the up, down, left and right arrows as necessary to maximize the satellite signal. 6. Press POWER until the remote turns off (approximately 1 second). The remote turns off automatically if no buttons are pressed for 90 seconds. 7. Exit the Signal Meter Screen to view your programming. Enjoy! STORE / RECALL You can STOREup to 4 satellite positions using the STORE/RECALL feature. 1. Lock onto a satellite using the procedure for SATELLITE ACQUISITION. 2. Press and hold the 1 button for more than 2.5 seconds. The number “1” will illuminate and the display will show P1. (When button is released, display will go back to elevation.) 3. Repeat for up to 3 more satellites using the 2, 3, and 4 buttons. 4. To RECALLa stored position, press the desired button 1, 2, 3, or 4 for less than 2.5 seconds. The corresponding number of the recalled location will light up while switching, as well as the switching indicator. The antenna will move to the recalled position. Note: It may take a few minutes to download programming from the satellite. If you move the VuQube you will have to re-acquire the satellite. Follow the directions on page 4-5. Note: When recalling a stored position, if you hold the button for more than 2.5 seconds, the current position will be stored rather than a previous position being recalled. To cancel moving to a stored position, press any of the arrow buttons. If you move the VuQube you will…

Text truncated - open the document above for the full version.

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) Block Diagram

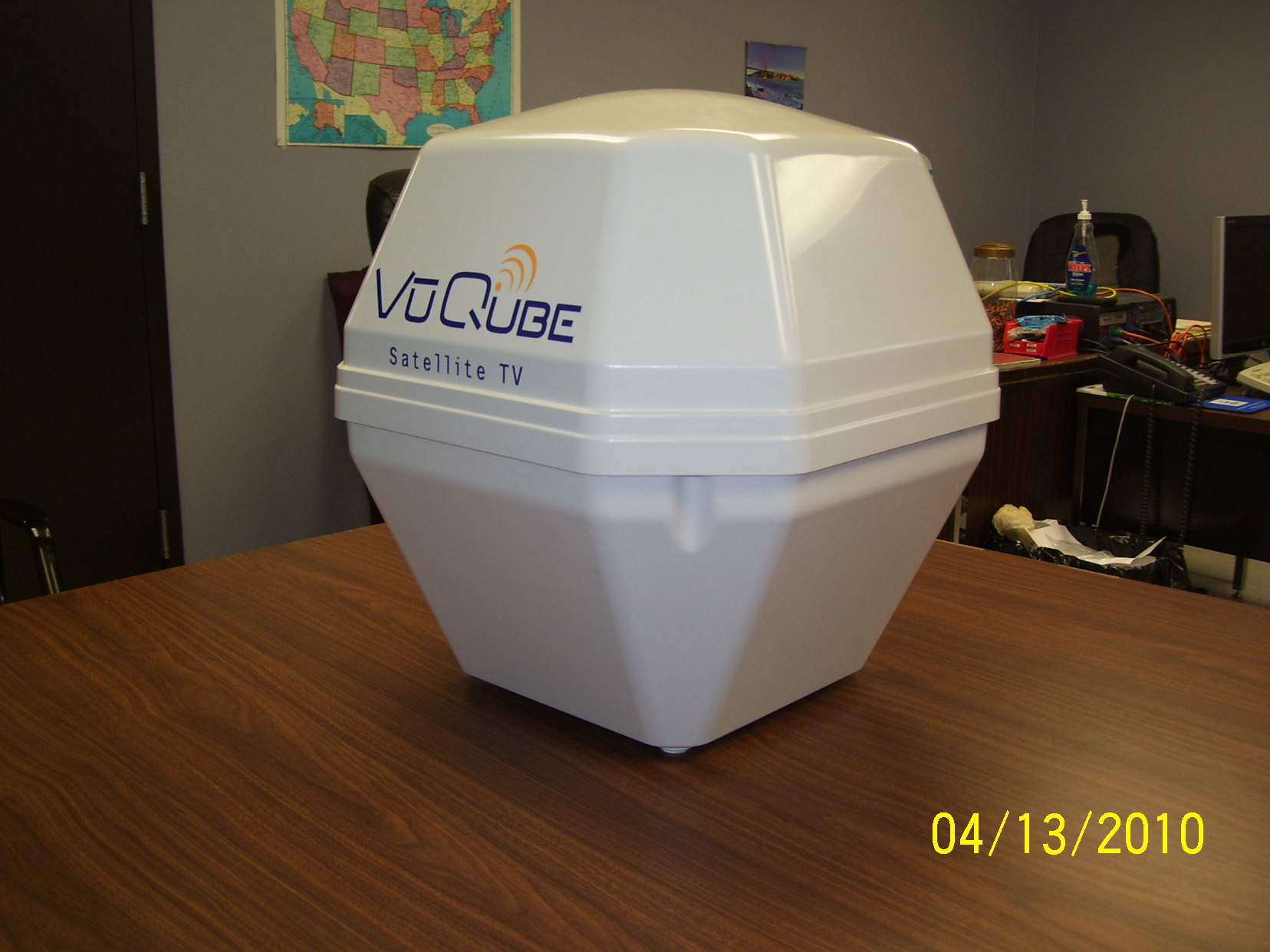

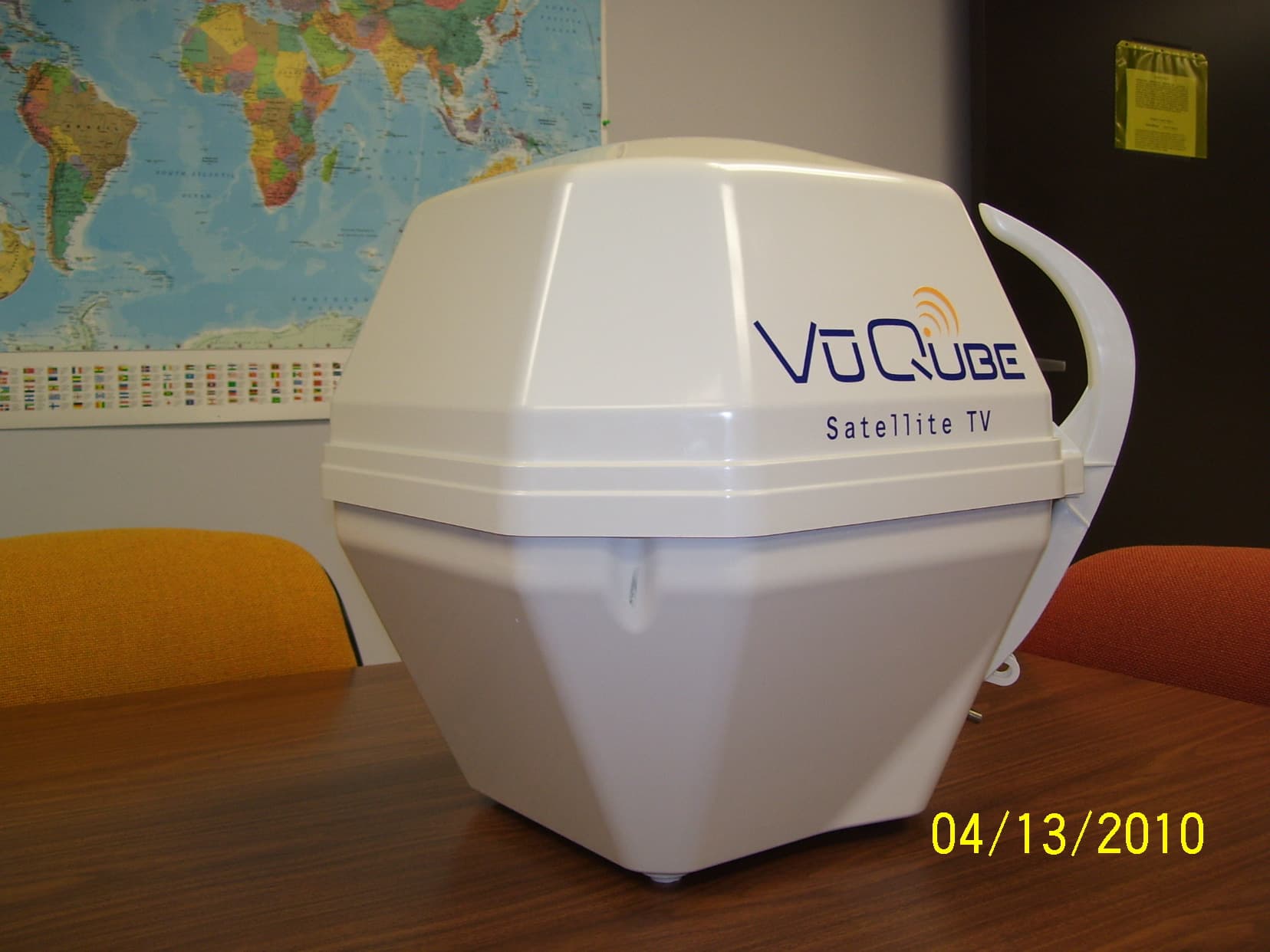

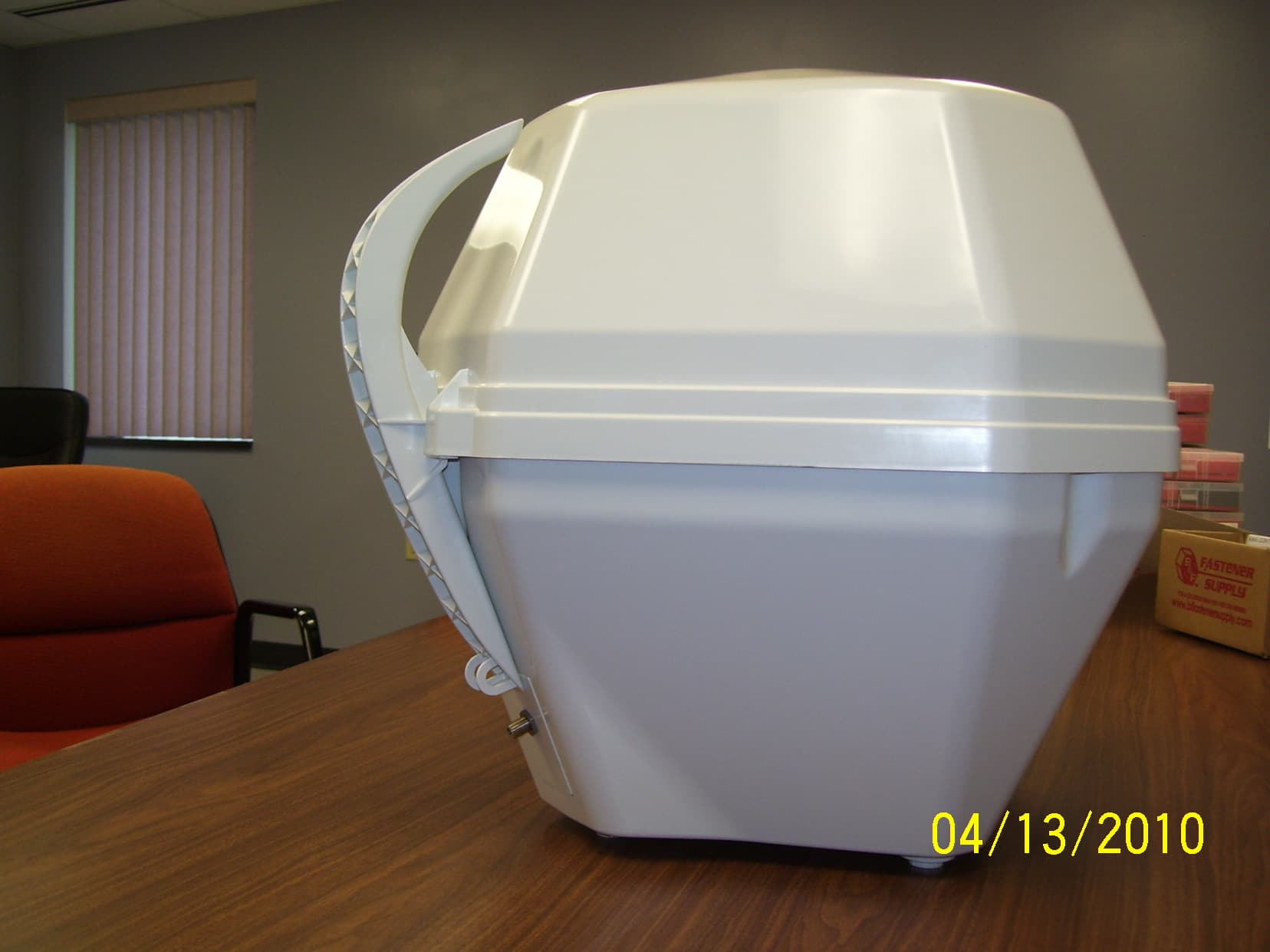

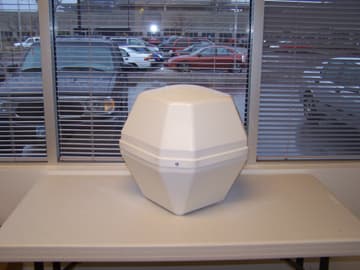

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) External Photos International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) External Photos

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base Unit) Label and Location KING CONTROLS Serial #: XX-XXXX Model: VQ1 FCC ID: UUM433A IC: 6873A-433A This devise complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This devise must not cause harmful interference, and 2) This devise must accept interference received including interference that may cause undesired operation.

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) Internal Photos International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) Internal Photos International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) PC Board Component Side Internal Photos Loop Antenna International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) PC Board Solder Side Internal Photos

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) Operational Description The Main Board contains a microcontroller that interfaces with a radio IC over an SPI bus and a dual motor control IC over digital lines. The radio IC Receives messages from the remote which are read by the microcontroller and acted upon. The actions could include incremental motion of azimuth or elevation motors (jogging) or direct motion to a previously stored position. The main board has power conditioning circuits to draw separate power for the microcontroller and the motor drive from the LNB power source provided by the satellite receiver. The board is always powered as long as the LNB is being powered by the receiver.

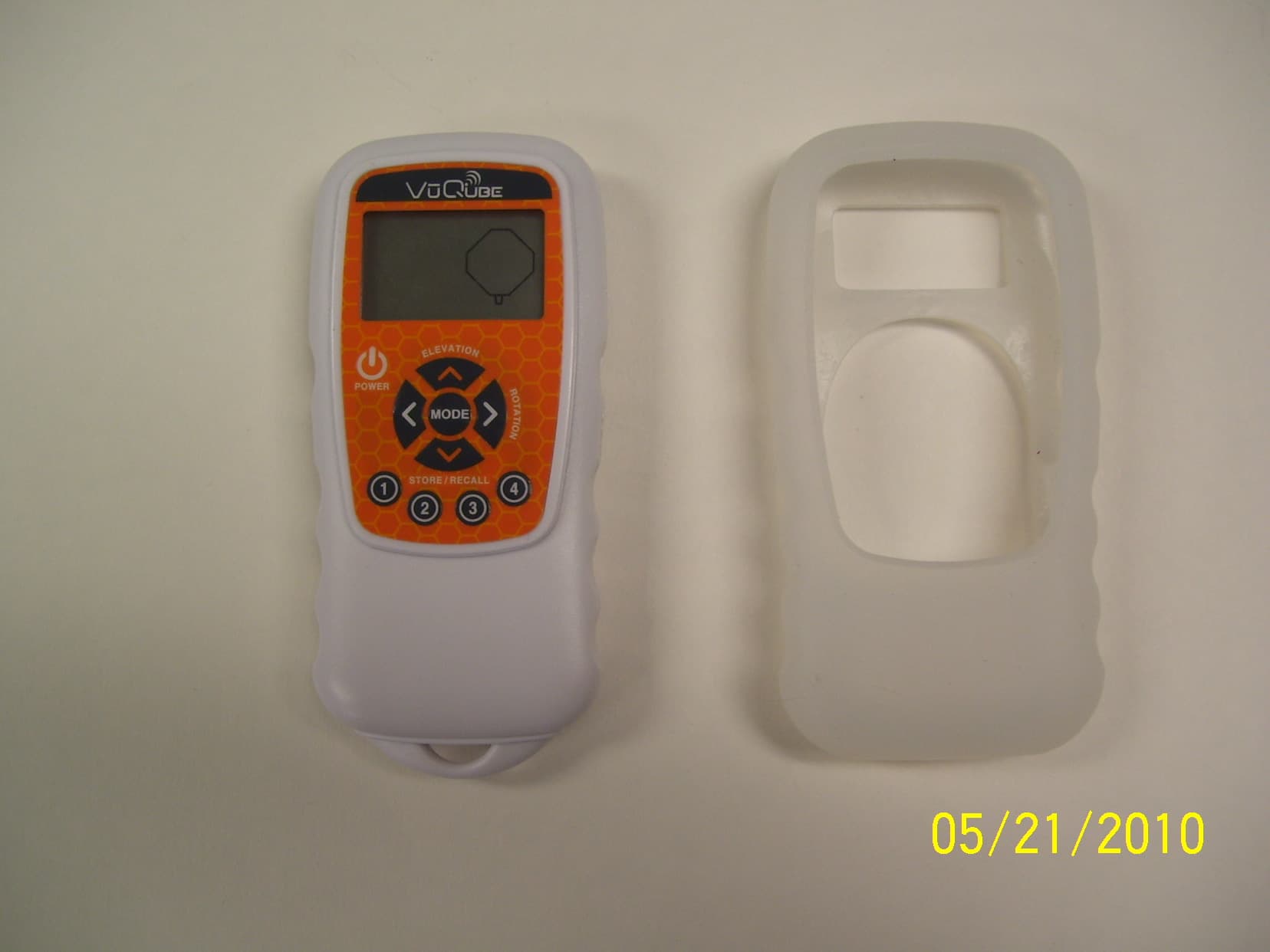

Electronic Controlled Systems, Inc. dba King Contro ls, Inc. Model: VQ1 Bill of Materials 04-092101-01 REMOTE MAIN PCB SMT ASS'Y 1 10-092101-00 REMOTE MAIN PCB 1 11-140000-62 0603 C.R. 1/16W 5% 0 OHM 1 R23 11-241002-61 0603 M.R. 1/16W 1% 10K 1 R11 11-241053-61 0603 C.R 1/16W 1% 105K 1 R10 11-244990-61 0603 M.F.R. 1/16W 1% 499 OHM 1 R7 11-291004-61 0603 M.F.RES 1/10W 1% 1M 1 R1 11-291503-61 0603 M.F.R. 1/10W 1% 150K 2 R8-9 11-292202-61 0603 C.R. 1/10W 1% 22K 16 R2-6,12,14-22,25 15-016104-93 0603 C.C X7R 16V 10% 0.1UF 3 C1,2,5 15-050103-93 0603 C.C X7R 50V 10% 0.01UF 1 C7 15-050181-92 0603 C.C. NPO 50V 5% 180PF 1 C22 15-050220-92 0603 C.C NPO 50V 5% 22PF 2 C20-21 15-050270-92 0603 C.C NPO 50V 5% 27PF 2 C12-13 15-050330-92 0603 C.C NPO 50V 5% 33PF 3 C8,15,19 15-050332-93 0603 C.C X7R 50V 10% 3.3NF 1 C14 15-050332-93 0603 C.C X7R 50V 10% 3.3NF 1 C14 15-050399-95 0603 C.C NPO 50V ±0.1PF 3.9PF 1 C9 15-050472-93 0603 C.C X7R 50V 10% 4700PF 1 C16 15-050479-95 0603 C.C NPO 50V ±0.1PF 4.7PF 1 C11 15-050689-95 0603 C.C NPO 50V ±0.1PF 6.8PF 1 C10 18-006680-63 B TAN.CAP 6.3V 10% 68UF 1 C3 18-010220-23 A TAN.CAP 10V 10% 22UF 1 C4 22-020046-00 ZEN. DIODE SCHOTTKY 40V 1A SMB (MBRS140TR) 1 D3 22-060001-11 TRANS. 9014C SOT23 SMT 1 Q2 22-080023-00 MOSFET N-CH 20V 3A SOT23 (IRL ML2502TRPBF) 1 Q1 23-100218-30 IC PIC16F946 1 U1 23-100219-30 NRF905 QFN32L/5X5 1 U3 23-200066-30 IC STEP-UP VOLTAGE LM2621MM 1 U2 25-050029-00 INDUCTOR 6.8UH 1.2A SMT 1 L1 26-060029-00 CRYSTAL ABLS-16MHZ-B2-T 1 X1 04-092102-01 REMOTE MAIN PCB FINAL ASS'Y 1 04-092101-01 REMOTE MAIN PCB SMT ASS'Y 26-050015-00 SPEAKER SH09C03YA ∮ 9X4.0MM 1 SP 28-070057-00 12 PINS CONNECTOR MALE 1 28-100118-00 ZEBRA CONN.: (VUQUBE) 1 34-092101-00 LCD 1 1 of 4 Electronic Controlled Systems, Inc. dba King Contro ls, Inc. Model: VQ1 Bill of Materials 60-004171-06 S/T SCREW:1.7X6MM PA "+" 4 70-092104-90 LCD HOLDER PMMA CLEAR 1 72-092101-00 BATTERY CONTACT 2 81-092101-00 LCD BACK LIGHT 1 04-092103-01 REMOTE MEMBRANE SWITCH ASS'Y 1 1002464 CAP, CERAMIC, 0.1UF, 25V, X7R, 0603 C1,C2,C3 1002434 DIODE, ARRAY TVS, LOW CAPACITANCE,SRV05-4 D1,D2,D3 1015410 CONNECTOR, FFC ZIF, TOP CONTACT, 1MM PITCH, RA, SMT, 12 pin J1 1015409 CONNECTOR, FEMALE, 0.05IN PITCH, 6X2, LOW PR OFILE, SMT J2 08-092101-01 REMOTE HOUSING ASS'Y 1 04-092102-01 REMOTE MAIN PCB FINAL ASS'Y 04-092104-01 REMOTE TOUCH PCB FINAL ASS'Y 1 20936 MEMBRANE SWITCH 1 70-092101-90 TOP PANEL ABS WHITE 1 70-092102-90 BACK PANEL ABS WHITE 1 70-092103-90 BATTER DOOR ABS WHITE 1 70-092103-90 BATTER DOOR ABS WHITE 1 70-092106-90 RUBBER CLEAR 1 72-092102-00 BATTERY CONTACT +VE 1 72-092103-00 BATTERY CONTACT -VE 1 72-912203-01 BATTERY CONTACT FOR +-VE 1 83-000027-00 BATTERY 1.5V AA (LR6/AM-3) 2 04-092105-01 MAIN PCB SMT ASS'Y 1 10-092103-00 MAIN PCB 1 11-100100-82 2512 1W 5% 10 OHM 1 R43 11-120000-32 1206 C.R. 1/4W 5% 0 OHM 2 R23,28 11-140000-62 0603 C.R. 1/16W 5% 0 OHM 2 R34,41 11-190121-62 C.R 0603 1/10W 5% 120 OHM 2 R6,37 11-291001-61 0603 M.F.R 1/10W 1% 1K 1 R39 11-241002-61 0603 M.R. 1/16W 1% 10K 7 R2-5,8,45,46 11-241003-61 0603 C.R 1/16W 1% 100K 1 R36 11-292001-61 0603 M.F.R. 1/10W 1% 2K 1 R40 11-245603-61 0603 C.R. 1/16W 1% 560K 1 R35 11-291004-61 0603 M.F.RES 1/10W 1% 1M 1 R11 11-292202-61 0603 C.R. 1/10W 1% 22K 2 R1,9 11-295491-61 0603 M.F.R. 1/10W 1% 5.49K 1 R38 15-016104-93 0603 C.C X7R 16V 10% 0.1UF 9 C1,4,22,24-27,36 2 of 4 Electronic Controlled Systems, Inc. dba King Contro ls, Inc. Model: VQ1 Bill of Materials 15-016103-93 0603 C.C X7R 16V 10% 0.01UF 1 C42 15-050220-92 0603 C.C NPO 50V 5% 22PF 2 C16-17 15-016225-C3 0603 C.C X5R 16V 10% 2.2UF 1 C41 15-050332-93 0603 C.C X7R 50V 10% 3.3NF 1 C14 15-050103-93 0603 C.C X7R 50V 10% 0.01UF 1 C7 15-050181-92 0603 C.C. NPO 50V 5% 180PF 1 C2 15-050270-92 0603 C.C NPO 50V 5% 27PF 2 C12-13 15-050330-92 0603 C.C NPO 50V 5% 33PF 2 C8,18 15-050472-93 0603 C.C X7R 50V 10% 4700PF 1 C6 15-050399-95 0603 C.C NPO 50V ±0.1PF 3.9PF 1 C3 15-050689-95 0603 C.C NPO 50V ±0.1PF 6.8PF 1 C10 15-050479-95 0603 C.C NPO 50V ±0.1PF 4.7PF 1 C11 18-010479-23 A TAN.CAP 10V 10% 4.7UF 1 C38 18-016220-93 D TAN.CAP 16V 10% 22UF 2 C39-40 18-025101-93 D TAN.CAP 25V 10% 100UF 3 C9,43-44 18-025470-93 D TAN.CAP 25V 10% 4.7UF 1 C5 18-025470-93 D TAN.CAP 25V 10% 4.7UF 1 C5 22-020046-00 ZEN. DIODE SCHOTTKY 40V 1A SMB (MBRS140TR) 1 D4 22-010033-00 RECTI. DIODE 2A 100V SMB MURA210T3 2 D5,6 22-030096-00 0805 SMT LED GREEN 1 D7 22-030097-00 0805 SMT LED RED 1 D1 23-100218-30 IC PIC16F946 1 U1 23-100219-30 NRF905 QFN32L/5X5 1 U3 23-200082-30 IC LP2985IM5X-3.3/NOPB SOT23-5 1 U9 23-200083-30 IC LM2575S-ADJ/NOPB TO-263 1 U2 23-200084-30 IC MPC17531AEV 700MA 20-VMFP SMT 1 U5 23-200085-30 IC LMV358/NOPB SO-8 2 U7-8 25-050030-00 INDUCTOR 470UF 0.85A SMT 1 L1 25-050031-00 INDUCTOR 56NH 1A SMT (1008) 2 L8-9 26-060029-00 CRYSTAL ABLS-16MHZ-B2-T 1 U4 33-200022-00 POLYSWITCH 1.0A 30V SMD 1 F1 04-092106-01 MAIN PCB FINAL ASS'Y 1 04-092105-01 MAIN PCB SMT ASS'Y 17-025102-54 E.CAP 25V 20% 1000UF 10X17MM 1 C48 28-070059-00 8(2X4) PINS CONNECTOR MALE 1 J1 28-070060-00 6 PINS CONNECTOR RJ-11 1 J2 28-070061-00 CONNECTOR F JACK R/A 2 J12-13 3 of 4 Electronic Controlled Systems, Inc. dba King Contro ls, Inc. Model: VQ1 Bill of Materials 28-070062-00 10(2X5) PINS CONN. MALE W/LATCH/EJECTOR 1 J7 28-070063-00 10 PINS CONN. MALE W/LOCKING RAMP 1 J9 28-070064-00 4 PINS CONN. MALE 2 J5-6 4 of 4

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 Transmitter Electrical Schematic

TEST REPORT #190110D STANDARD: FCC PART 15 SUBPART C--INTENTIONAL RADIATORS SECTION 15. 231 PERIODIC OPERATION IN THE BAND 40.66 – 40.70 MHZ AND ABOVE 70 MHZ EQUIPMENT TESTED: ELECTRONIC CONTROLLED SYSTEMS, INC. dba KING CONTROLS, INC. FCC ID: UUM433A MODEL: VQ1 TEST DATE: 19 JANUARY, 2010 INTERNATIONAL CERTIFICATION SERVICES, INC. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 CERT NO: 2055:01 CERT NO: 2055:01CERT NO: 2055:01 CERT NO: 2055:01 INTERNATIONAL CERTIFICATION SERVICES, INC. Prepared for: Test agent: Test location: Prepared by: . Electronic Controlled Systems, Inc. dba King Controls, Inc. 11200 Hampshire Avenue South Bloomington, MN 55438 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 International Certification Services represents to the client that testing is done in accordance with standard procedures applicable and that reported test results are accurate within generally accepted commercial ranges of accuracy. This report only applies to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. International Certification Services shall have no liability for any deductions, inferences or generalizations drawn by the client or others from this report. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. INTERNATIONAL CERTIFICATION SERVICES, INC. 1.0 TEST SUMMARY TEST REPORT : #190110D COMPANY: AGENT: International Certification Services, Inc. PHONE: 320-864-4444 TEST DATE: EQUIPMENT UNDER TEST: GENERAL TEST SUMMARY: VERIFICATION / CERTIFICATION STATUS: MODIFICATIONS NECESSARY: TESTED BY WRITTEN BY Steve Wendlandt Duane R. Bagdons Electronic Controlled Systems, Inc. dba King Controls, Inc. 19 January, 2010 Mobile Satellite TV Antenna Model: VQ1 The testing was performed at International Certification Services, Inc. at 1100 Falcon Ave, Glencoe, MN 55336 The Electronic Controlled Systems, Inc. dba King Controls, Inc. Mobile Satellite TV Antenna Model:VQ1 was found to be in compliance with the FCC Part 15 Subpart C, Section 15.231 requirements. None INTERNATIONAL CERTIFICATION SERVICES, INC. Applicable Standards 47 CFR Ch.1 (10-01-09 Edition) FCC Part 15 Radio Frequency Devices Subpart C Intentional Radiators Section 15.231 Periodic Operation in the band 40.66 – 40.70 Mhz, and above 70 Mhz. 2.1 Referenced Standards ANSI C63.4-2003 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 Khz to 40 Ghz. 2.2 Equipment Units Tested The equipment tested was a 433 Mhz transmitter that is part of the Electronic Controlled Systems, Inc. Mobile Satellite TV Antenna Model: VQ1. There are two members of this VQ1 family: 1) VQ1000 (with handle) and 2) V10 (with NO handle). The Model: VQ1 contains a wireless device that is operated in the 433 Mhz frequency spectrum. There is no external antenna for the wireless feature of this model. The VQ1 (Base Station) gets its DC power from a HOST device such as a satellite receiver. There is no connection to any public mains circuitry on the device itself. 2.3 Equipment and Cable Configuration See photo of the EUT test configuration setup in Attachment A 2.4 List of Test Equipment Measurement cable losses, and antenna correction factors are included in the data sheets. The Resolution BW was set at 1 Mhz and the Video BW was set at 1 Hz with a Span of 0 Hz to perform the correct average detected measurements over 1000 Mhz. 2.5 Units of Measurement. All measurements were taken in dBuV/m with the antenna located at 3 meters distance from the EUT. Frequency measurements are recorded in Mhz Test Equipment Spectrum Analyzer Preamp Preamp Log Periodic Antenna (200-1000 MHz) Horn Antenna (1-18 Ghz) Model Hewlett-Packard 8566B P0012 P0013 Nextec EMCO 3146 EMCO 3115 S/N 2747A05211 1726A00666 378 9111-3280 2334 Calibration Date 08/12/09 11/16/09 05/27/09 06/22/09 06/23/09 INTERNATIONAL CERTIFICATION SERVICES, INC. 2.6 Location of Test Site The open area test site (OATS) measurement facility used to collect the data was International Certification Services, Inc. at 1100 Falcon Ave in Glencoe, MN 55336. This site has been certified to be in spec of the normalized site attenuation per ANSI C63.4- 2003. 2.7 Measurement Procedures The antenna was placed at a distance of 3 meters from the EUT. The EUT was set on an insulating table in the OATS site and rotated through 360 degrees to determine the worst case EUT orientation. The antenna was then positioned vertical and horizontal to determine which antenna polarity orientation was worst case. Then certification data was recorded at all the transmitter frequencies from the fundamental to the 10 th harmonic at an antenna height variation of from 1-4 meters. The worst case orientation was found to be at 270 degrees with the antenna in Vertical Polarity and at a height of 1 meter. 2.8 Reporting Measurement Data See data sheets and plots in Attachment B. 2.9 Radiated Emissions Data The frequency and amplitude of the tuned frequency of the EUT along with the frequencies and amplitudes of the harmonics up to the 10 th harmonic are reported in the data sheets in Attachment B. This information is plotted against the limit of section 15.231 of FCC Part 15 subpart C. Both Horizontal and Vertical antenna polarities as well as antenna heights of 1 to 4 meters were observed but all maximum signal strengths occurred in the Horizontal antenna polarity and at…

Text truncated - open the document above for the full version.

International Certification Services, Inc. Electronic Controlled Systems, Inc., dba King Controls, Inc. Model: VQ1 (Base unit) Test Set Up Photos
