UUYDT001DataTrace MPRF

1 of 27 pages Preliminary DataTrace ® RF (DTRF) Operator’s Manual 2 of 27 pages INTRODUCTION Compliance Information Any modifications to this product may violate the rules of the Federal Communications Commission and make operation of the product unlawful. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this equipment must be installed to provide a separation distance of at least 8 inches (20cm) from all persons. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. 3. This device is susceptible to electrostatic discharge (ESD) and surge phenomenon. The FCC identification number is FCC ID: UUYDT001 The Industry Canada identification number is IC: 6891A-DT001 3 of 27 pages NOTICE OF COPYRIGHT 1985-2007 MESA LABORATORIES, INC. All rights reserved. This publication contains proprietary information which is protected by copyright. No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language or computer language, or transmitted in any form whatsoever without the prior written consent of MESA LABORATORIES, INC. NOTICE OF TRADEMARK DataTrace TEMP and DataTrace are registered trademarks of MESA LABORATORIES, INC. DataTrace MICROPACK, DataTrace RF, MICROPACK, MICROPACK III, MICROPACK RF, MPIII, MP-RF, DataTrace FLATPACK, FLATPACK, LOTEMP AND HITEMP are trademarks of MESA LABORATORIES, INC. All other brand names and product names used in this manual are Trademarks, Registered Trademarks, Service Marks, or Trade Names of their respective holders. 4 of 27 pages DataTrace ® RF SYSTEM OPERATOR’S MANUAL Mesa Laboratories, Inc. provides this manual as a customer aid in the use of the DataTrace ® RF System. Mesa Labs may make improvements and/or changes in the product(s) and/or the program(s) described in this manual at any time and without notice. While every reasonable effort is made to eliminate and/or correct errors, this publication could contain technical inaccuracies or typographical errors. As a result, changes are periodically made to the information contained in this manual; such changes will be incorporated in subsequent editions of this publication. In addition, these changes will be described in an enhancement file that may be included with the current version of the software. Suggestions for changes from users are appreciated. Mesa Labs may use or distribute any of the information supplied by others in any way it believes appropriate without incurring any obligations whatsoever. Copyright MESA LABORATORIES, INC. 1985-2007 All rights reserved 5 of 27 pages WARRANTIES MESA LABORATORIES, INC. (MESA LABS) EXPRESSLY WARRANTS THE DataTrace ® EQUIPMENT MANUFACTURED BY IT AS SET FORTH HEREIN. MESA LABS MAKES NO OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED. NO WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. IN ADDITION, THE FOLLOWING SHALL CONSTITUTE THE EXCLUSIVE REMEDIES OF BUYER FOR ANY BREACH BY MESA LABS OF ITS WARRANTIES HEREUNDER. A. MATERIAL AND WORKMANSHIP: MESA LABS warrants that all equipment manufactured by MESA LABS shall be free from defects in material and workmanship, under normal use and service, for a period of twelve (12) months, except the Tracer batteries and the Humidity Sensors which are warranted for 90 days from date of shipment. If any part of the equipment is returned within this time and found by MESA LABS to be defective in workmanship or material, it will be replaced or repaired, free of charge and returned F.O.B. your plant. Any equipment or part thereof so replaced or repaired shall be warranted by MESA LABS for the remainder of the original warranty period. All replacements or repairs necessitated by inadequate preventative maintenance, or by normal wear and usage, or deterioration under unsuitable environmental conditions shall be at Buyer’s expense. Buyer will pay normal DataTrace service charge for evaluation of returned equipment not found to be defective. MESA LABS shall not be obligated to pay any charges incurred by Buyer except as may be agreed upon in writing in advance by MESA LABS. B. SYSTEM PERFORMANCE: MESA LABS warrants that the DataTrace ® System will meet the specifications as defined in the literature and agrees to correct any equipment which Buyer can demonstrate does not meet the applicable specifications, provided written notice is given to MESA LABS within 12 months from date of shipment of the System. Software manufactured by MESA LABS is warranted per the respective software license. This warranty is void in the event of influencing deficiencies, including but not limited to, incomplete or inaccurate process data s…

Text truncated - open the document above for the full version.

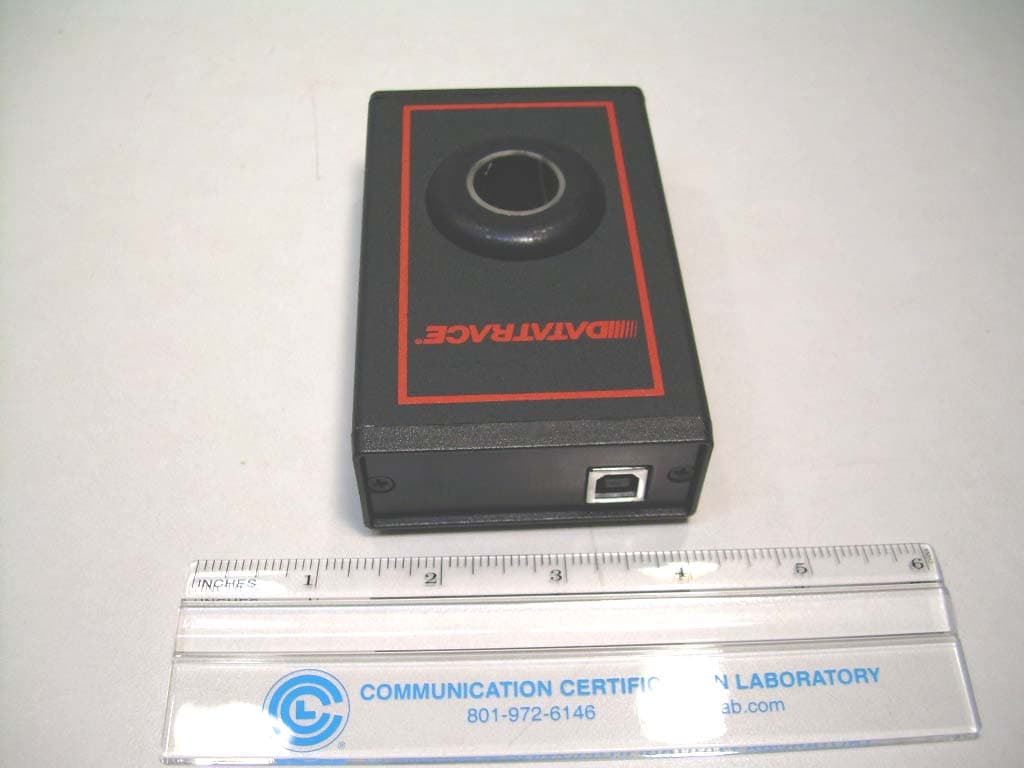

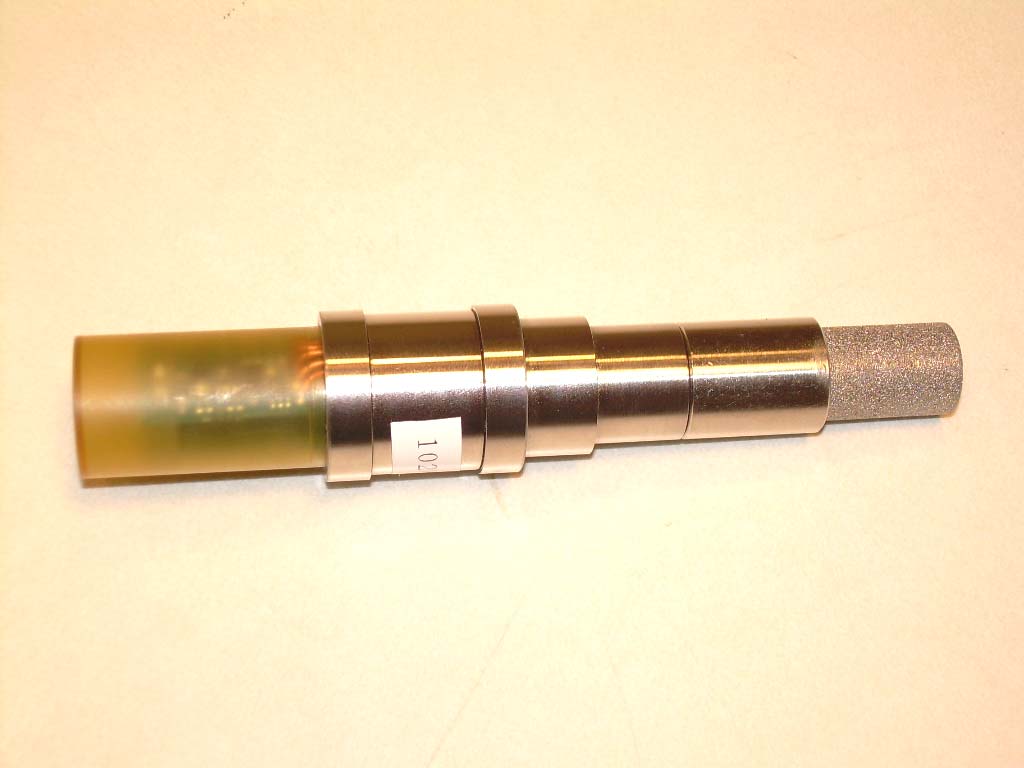

Front View of the MPRF-H Back View of the MPRF-H View of the MPRF-L

The following is the label for FCC ID: UUYDT001 and, Inductry Canada IC:6891A-DT001 The following is a picture of the two devices that will be labeled with above FCC ID

View of the Component Side of the MPRF-H PCB View of the Component Side of the MPRF-H PCB with Mirror Removed View of the Trace Side of the MPRF-H PCB View of the Transceiver PCB

RF Exposure The MPE distance will be calculated for the worst case of 100% transmitter duty cycle, transmitter power of 4 dBm ( 3.162 mW), and 3.3 dBi (2.14) antenna gain. For an isotropic radiator, the surface area of a sphere can be used to determine the area over which the transceiver energy is radiated. The surface area of a sphere = 4*π*radius 2 In the case where there is an antenna gain, the worst case energy density is increased by the antenna gain. In this case, the exposure level can be calculated as follows: Exposure Level (mW/cm 2 ) = (P*C*G)/( 4*π*D 2 ) P (Transmitter output power) = 2.512 mW G (Antenna gain) = 2.14 D (Distance) = 20 cm C (Duty cycle) = 1 For this transmitter: Exposure Level (mW/cm 2 ) = (2.512*1*2.14)/( 4*π*20 2 ) = 0.0011 mW/cm 2 It should be noted that the above calculations are based on absolute worst-case scenarios that will not occur in normal use. The actual duty cycle is never more than 2%.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: MPRF-H and MPRF-L FCC ID: UUYDT001 Test Specifications: FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8444 Applicant: Mesa Laboratories, Inc. 12100 W. 6 th Ave Lakewood, CO 80228 Dates of Test: December 11 - 13, 2006 Issue Date: December 27, 2006 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 2 of 55 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Mesa Laboratories, Inc. - Manufacturer: Mesa Laboratories, Inc. - Brand Name: Mesa Laboratories - Model Number: MPRF-H and MPRF-L - FCC ID Number: UUYDT001 On this 27 th day of December 2006, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 3 of 55 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION.................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........8 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS...........................17 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.....18 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................32 APPENDIX 2 PHOTOGRAPHS.........................................41 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 4 of 55 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Mesa Laboratories, Inc. 12100 W. 6 th Ave. Lakewood, CO 80228 Contact Name: Preston Graves Title: Director of R & D 1.2 Manufacturer: Company Name: Mesa Laboratories, Inc. 12100 W. 6 th Ave. Lakewood, CO 80228 Contact Name: Preston Graves Title: Director of R & D COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 5 of 55 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Mesa Laboratories, Inc. Model Name or Number: MPRF-H and MPRF-L Serial Number: None Options Fitted: N/A 2.2 Description of EUT: 2.1 Identification of EUT: Brand Name: Mesa Laboratories Model Number: MPRF-H and MPRF-L Serial Number: None Country of Manufacture: U.S.A. 2.2 Description of EUT: The MPRF-H and MPRF-L is a data logging system for use in industrial processes that can deliver real time data for analysis. The system consists of a host, the MPRF-H, and data loggers, the MPRF-L. The MPRF-L can measure parameters such as pressure or temperature and send the data to the MPRF-H via the Zigbee radio. Communication between the MPRF-H and MPRF-L is accomplished using a Zigbee transceiver in each unit. The same transceiver PCB is used in both units. The MPRF-H can be used to program the MPRF-L and transfers collected data to a computer via the USB port. The MPRF-L is powered by a lithium 3.6 V battery and the MPRF-H receives power from the computer USB port. The MPRF-H has an external 3.3 dBi monopole antenna with a reverse SMA connector. The antenna of the MPRF-L is etched into the PCB. This report covers the Zigbee transceiver subject to FCC Part 15, Subpart C, Paragraph 247. The Zigbee transceiver uses 15 channels in the 2400 to 2483.5 MHz band. Below is a table of the channel frequencies. Channel # Frequency (MHz) Channel # Frequency (MHz) Channel # Frequency (MHz) 0 2405.4 5 2430.7 10 2456.1 1 2410.5 6 2435.7 11 2461.2 2 2415.5 7 2440.7 12 2466.4 3 2420.6 8 2445.9 13 2471.4 4 2425.6 9 2451.1 14 2476.6 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 6 of 55 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number FCC ID Number Description Name of Interface Ports / Interface Cables BN: Mesa Laboratories MN: MPRF-H (Note 1) UUYDT001 Data Logger Host See Section 2.4 BN: Mesa Laboratories MN: MPRF-L (Note 1) UUYDT001 Data Logger and Sensor See Section 2.4 BN: Dell MN: Inspiron 1300 DoC Laptop Computer USB/USB cables (Note 2 & 3) Modem/Modular Phone Cord BN: MicroInnovations MN: PD905P DoC Mouse USB/USB cable BN: Toshiba MN: 2020 None PBX Line/Modular Phone Cord Note: (1) EUT. (2) Interface port connected to EUT (See Section 2.4) (3) Mouse cable permanently attached. The support equipment listed above was not modified in order to achieve compliance with this standard. 2.4 Interface Ports on EUT: MPRF-H Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length USB 1 USB Cable/1 meter Antenna 1 Direct connection to Reverse SMA connector of antenna MPRF-L There are no interface ports on the MPRF-L. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8444 FCC ID#: UUYDT001 Page 7 of 55 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Preston Graves Title: Director of R &…

Text truncated - open the document above for the full version.
