UV3-SFT81Multifunctional thermometer

5 GB/IE/NI List of pictograms used .....................................Page 6 Introduction ...........................................................Page 8 Intended use ..........................................................Page 8 Parts description.....................................................Page 10 Scope of delivery ...................................................Page 11 Technical data .......................................................Page 11 Safety notes ...........................................................Page 14 Safety instructions for batteries .............................Page 17 Initial use .................................................................Page 18 Inserting / Replacing batteries ...............................Page 19 Changing basic settings ....................................Page 20 Activating / deactivating the key tone ........Page 22 What you should know before taking a measurement ......................................Page 23 Taking a measurement .....................................Page 24 Measuring body temperature from the forehead ..........................................................Page 25 Measuring body temperature from the ear .........Page 27 Measuring object temperatures ............................Page 30 Displaying saved measured values ......................Page 32 Transferring measured values .......................Page 33 Transferring via Bluetooth ® low energy technology .................................................Page 33 Restoring the device to its factory settings .....................................................Page 35 Cleaning and care ...............................................Page 36 Storage ....................................................................Page 37 Troubleshooting ...................................................Page 38 Disposal ...................................................................Page 39 Warranty / Service ..............................................Page 40 338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 5338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 526.05.20 10:5526.05.20 10:55 6 GB/IE/NI List of pictograms used Warning of risks of injury or health hazards Safety note related to possible damage to the device / components Safety notes Instructions Observe instructions for use Storage & Transport Permissible storage and transport temperature and humidity Operating Permissible operating temperature and humidity Permissible storage, transport and operating air pressure Manufacturer Applied part, type BF Serial number 0598 This product fulfils the requirements of the applicable European and national directives. 338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 6338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 626.05.20 10:5526.05.20 10:55 7 GB/IE/NI List of pictograms used Improper disposal of batteries can harm the environment! IP22 Protected against solid foreign objects, 12.5 mm in diameter and larger and against dripping water if the housing is inclined by up to 15 °. b a Dispose of the packaging and the multi- function thermometer in an environmentally friendly manner! Data transfer via Bluetooth ® low energy technology Measuring body temperature from the ear Measuring body temperature from the forehead Measuring object temperatures Stores up to measurements 30 Memory: 30 measurements Batteries included Batteries included 338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 7338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 726.05.20 10:5526.05.20 10:55 8 GB/IE/NI Multifunctional thermometer Introduction Please make yourself familiar with the mul- ti-function thermometer before preparing it for use or using it for the first time. Please carefully read the following instructions for use and the important safety notes. Failure to observe the notes may result in personal injury or property dam- age. The product must only be used as described in these instructions for use and for the specified fields of application. Keep these instructions for use in a safe place. If you pass the multi-function thermometer on to anyone else, please ensure that you also pass on all the documentation. Intended use This multi-function thermometer is exclusively intended for measuring the temperature of the forehead, ear and objects. You can quickly and easily determine body temperature or the temperature of an object by using it. Values are saved automatically. The multi- function thermometer is suitable for taking measure- ments at home. Only use the device for the purpose it was intended for and in the manner described in these instructions for use. Any improper use could prove to be 338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 8338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 826.05.20 10:5526.05.20 10:55 9 GB/IE/NI dangerous! The manufacturer is not liable for damage caused by improper or incorrect use. The device meets the requirements of the Medical Devices Directive 93/42/EEC, the Medical Devices Act, ASTM E 1965 - 98, the European standard EN 12470-5: Clinical Thermometers – Part 5: Perfor- mance of infrared ear thermometers (with maximum device) and the European standard EN 60601-1-2 (in accordance with CISPR 11, IEC 61000-4-2, IEC 61000-4-3) and is subject to special precautions with respect to electromagnetic compatibility. Please note that portable and mobile RF communication devices may interfere with this device. The accuracy of this multi-function thermometer has been thoroughly tested and was developed with re- gard to a long utilizable service life. If the device is used in medicine, technical inspections using the suita- ble equipment are to be carried out. Precise informa- tion on how to test the accuracy of the device can be requested from our service address. We hereby affirm this produ…

Text truncated - open the document above for the full version.

Label Label location

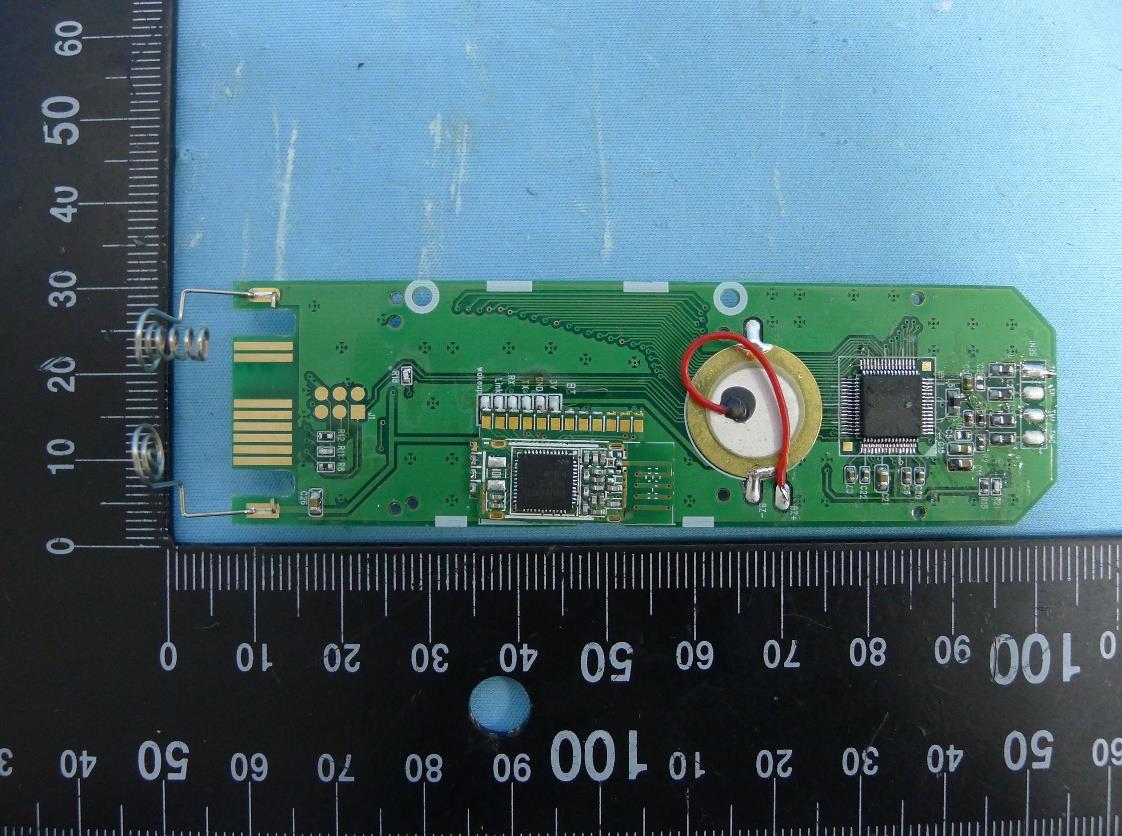

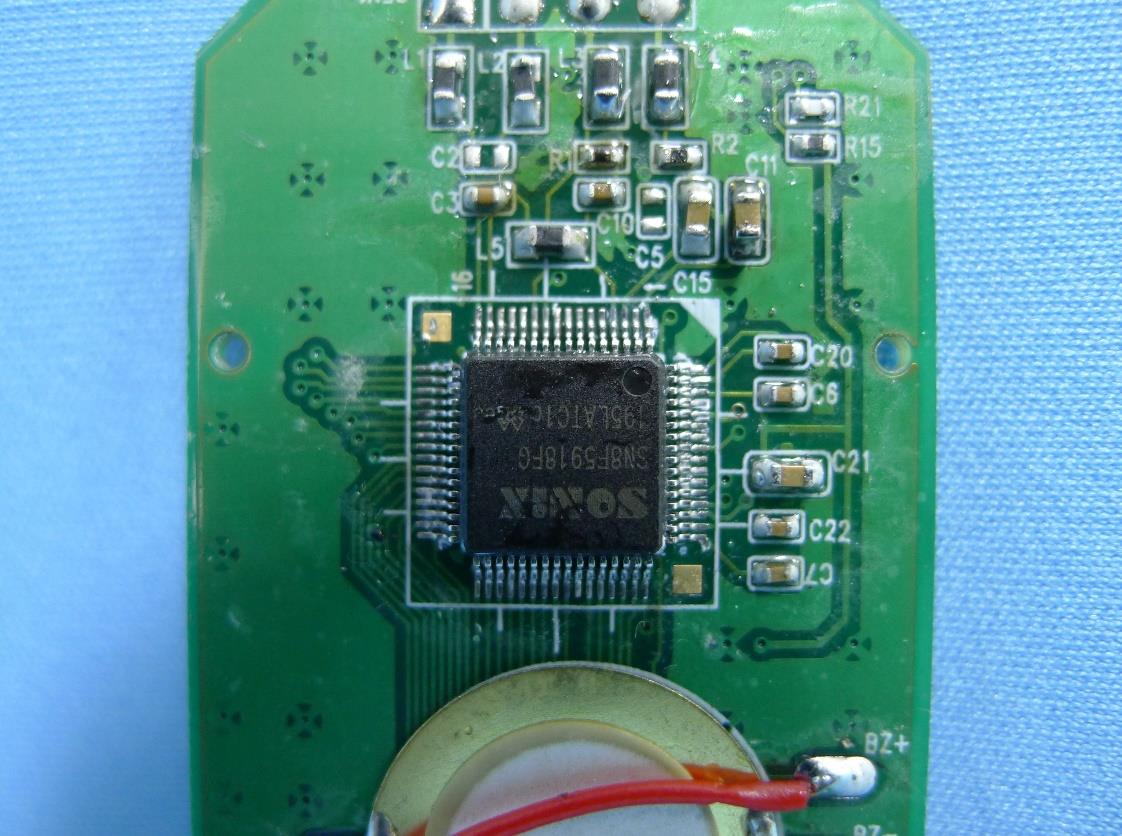

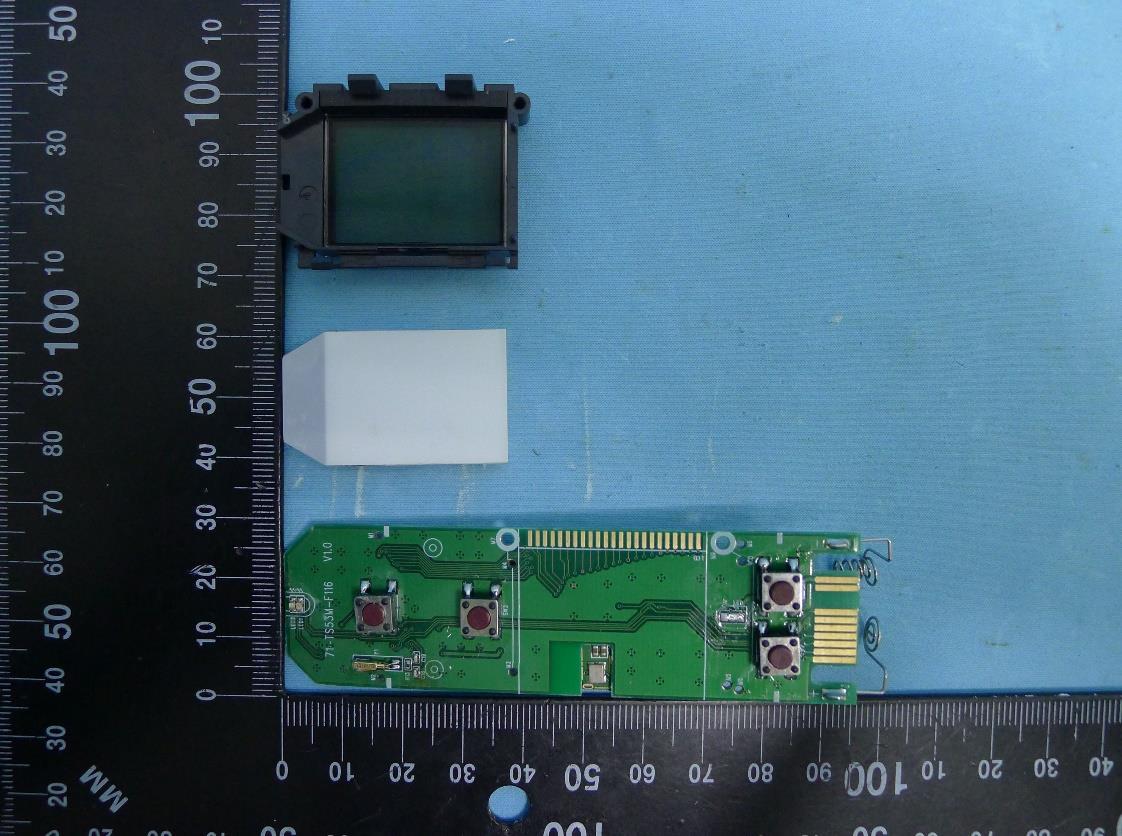

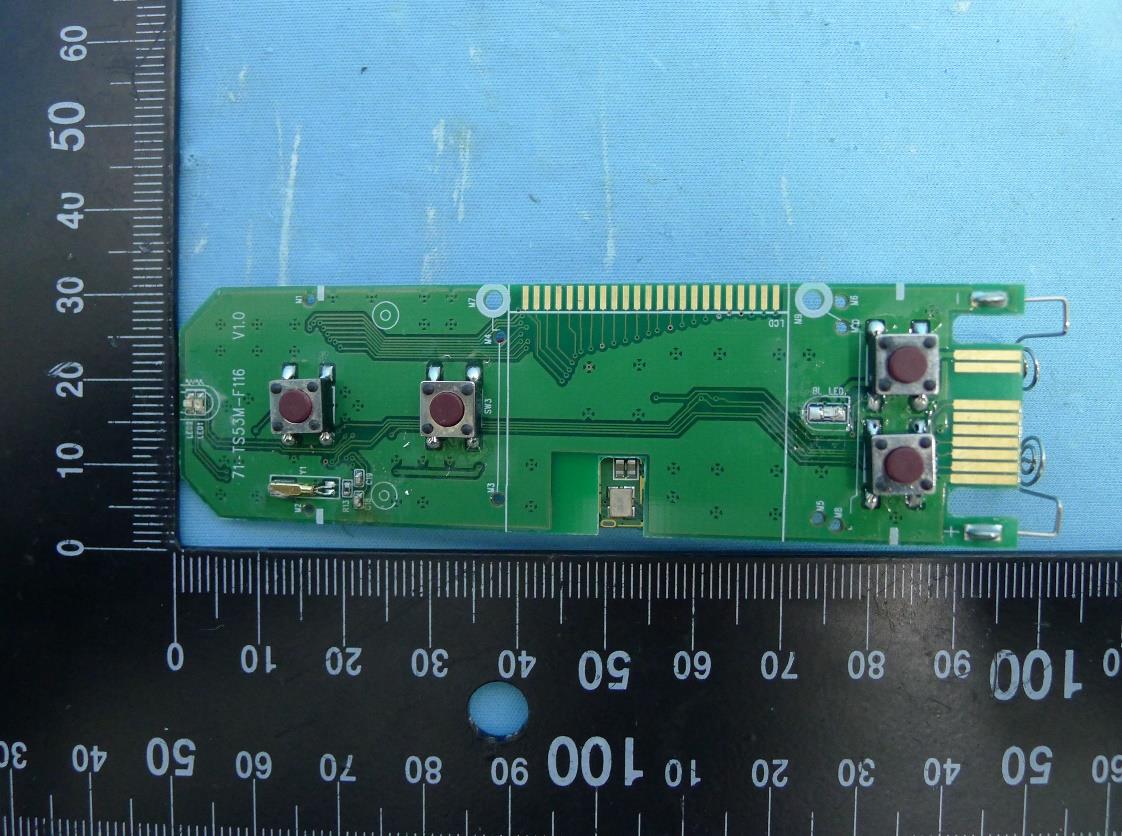

Report No.: 2005TW8602-U2 Product: Multifunctional thermometer Brand Name: Beurer Model Number: SFT81 1 of 4 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2005TW8602-U2 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2005TW8602-U2 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2005TW8602-U2 4 of 4 (7) EUT Photo

05 MRT Technology (Taiwan) Co., Ltd Report No.: 2005TW8602-U3 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-07-17 Web: www.mrt-cert.com FCC ID: UV3-SFT81 Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: UV3-SFT81 APPLICANT: AViTA Corporation Application Type: Certification Product: Multifunctional thermometer Model No.: SFT81 Trademark: N/A FCC Rule Part(s): Part 2.1093 (Portable) Test Procedure(s): KDB 447498 D01v06 Test Date: May 21 ~ June 8, 2020 Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2005TW8602-U3 FCC ID: UV3-SFT81 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date Note 2005TW8602-U3 1.0 Original Report 2020-07-17 Report No.: 2005TW8602-U3 FCC ID: UV3-SFT81 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description No. Manufacturer Part No. Antenna Type Peak Gain 1 N/A N/A PCB 1.22 dBi Product Name Multifunctional thermometer Model No. SFT81 Trademark N/A Supports Radios Spec. Bluetooth V4.2 Bluetooth Specification V4.2 LE Operating Frequency 2402~2480MHz Type of modulation GFSK Report No.: 2005TW8602-U3 FCC ID: UV3-SFT81 Page Number: 4 of 6 2. RF Exposure Evaluation 2.1. FCC Limits According to FCC KDB 447498 Section 4.3 - General SAR test exclusion guidance For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz 2. Power and distance are rounded to the nearest mW and mm before calculation 3. The result is rounded to one decimal place for comparison 4.The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. 2.2. IC Limits Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. For controlled use devices where the 8 W/kg for 1 gram of tissue applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 5. For limb-worn devices where the 10 gram value applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 2.5. If the operating frequency of the device is between two frequencies located in Table 1, linear interpolation shall be applied for the applicable separation distance. For test separation distance less than 5 mm, the exemption limits for a separation distance of 5 mm can be applied to determine if a routine evaluation is required. Report No.: 2005TW8602-U3 FCC ID: UV3-SFT81 Page Number: 5 of 6 Frequency (MHz) Exemption Limits (mW) At separation distance of ≤5 mm At separation distance of 10 mm At separation distance of 15 mm At separation distance of 20 mm At separation distance of 25 mm 300 71 mW 101 mW 132 mW 162 mW 193 mW 450 52 mW 70 mW 88 mW 106 mW 123 mW 835 17 mW 30 mW 42 mW 55 mW 67 mW 1900 7 mW 10 mW 18 mW 34 mW 60 mW 2450 4 mW 7 mW 15 mW 30 mW 52 mW 3500 2 mW 6 mW 16 mW 32 mW 55 mW 5800 1 mW 6 mW 15 mW 27 mW 41 mW Frequency (MHz) At separation distance of 30 mm At separation distance of 35 mm At separation distance of 40 mm At separation distance of 45 mm At separation distance of ≥50 mm ≤300 223 mW 254 mW 284 mW 315 mW 345 mW 450 141 mW 159 mW 177 mW 195 mW 213 mW 835 80 mW 92 mW 105 mW 117 mW 130 mW 1900 99 mW 153 mW 225 mW 316 mW 431 mW 2450 83 mW 123 mW 173 mW 235 mW 309 mW 3500 86 mW 124 mW 170 mW 225 mW 290 mW 5800 56 mW 71 mW 85 mW 97 mW 106 mW Table 1: SAR evaluation – Exemption limits for routine evaluation based on frequency and separation distance. Report No.: 2005TW8602-U3 FCC ID: UV3-SFT81 Page Number: 6 of 6 2.3. Test Result of RF Exposure Evaluation Mode Frequency Band (MHz) Output Power (dBm) Output Power (mW) Test Exclusion Threshold (mW) BLE 2402~2480 -2.5 0.56 10 So, this device can complies the SAR test exclusion. The End

MRT Technology (Taiwan) Co., Ltd Report No.: 2005TW8602-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-07-17 Web: www.mrt-cert.com FCC ID: UV3-SFT81 Page Number: 1 of 50 FCC ID: UV3-SFT81 APPLICANT: AViTA Corporation Application Type: Certification Product: Multifunctional thermometer Model No.: SFT81 Trademark: N/A FCC Classification: (DTS) Digital Transmission System FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v05r02 Received Date: May 19, 2020 Test Date: May 21 ~ June 8, 2020 MEASUREMENT REPORT FCC PART 15.247 Bluetooth V4.2 LE The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Tested By : ( Peter Syu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2005TW8602-U2 FCC ID: UV3-SFT81 Page Number: 2 of 50 Revision History Report No. Version Description Issue Date Note 2005TW8602-U2 1.0 Original Report 2020-07-17 Report No.: 2005TW8602-U2 FCC ID: UV3-SFT81 Page Number: 3 of 50 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Standard .................................................................. 8 2.3. Test Mode ............................................................................................................................. 8 2.4. Operation Frequency / Channel List ...................................................................................... 9 2.5. Test Configuration ............................................................................................................... 10 2.6. Test Software ...................................................................................................................... 10 2.7. EMI Suppression Device(s)/Modifications ........................................................................... 10 2.8. Labeling Requirements ....................................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .......................................................................................................... 11 3.2. AC Line Conducted Emissions ............................................................................................ 11 3.3. Radiated Emissions ............................................................................................................ 12 4. ANTENNA REQUIREMENTS ................................................................................................ 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 15 7. TEST RESULT ...................................................................................................................... 16 7.1. Summary ............................................................................................................................. 16 7.2. 6dB Bandwidth Measurement ............................................................................................. 17 7.2.1. Test Limit ......................................................................................................................... 17 7.2.2. Test Procedure used ....................................................................................................... 17 7.2.3. Test Setting ..................................................................................................................... 17 7.2.4. Test Setup ....................................................................................................................... 17 7.2.5. Test Result ...................................................................................................................... 18 7.3. Output Power Measurement ................................................................................................ 19 7.3.1. Test Limit ......................................................................................................................... 19 7.3.2. Test Procedure Used ....................................................................................................... 19 7.3.3. Test Setting ..................................................................................................................... 19 7.3.4. Test Setup ....................................................................................................................... 19 7.3.5. Test Result of Output Power ............................................................................................ 20 7.4. Po…

Text truncated - open the document above for the full version.

Report No.: 2005TW8602-U2 Product: Multifunctional thermometer Brand Name: N/A Model Number: SFT81 1 of 2 Test Photograph Test Mode: Mode 1 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 1 Description: Radiated Emission Test Setup for above 1GHz Report No.: 2005TW8602-U2 2 of 2 Test Mode: Mode 1 Description: Conducted Emission Test Setup
