FCC Regulations: zThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. zThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. zThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. zThe antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

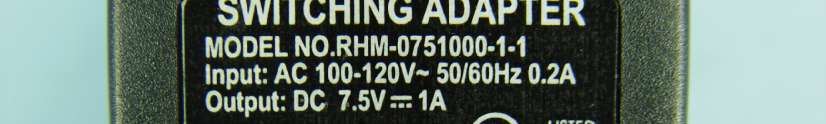

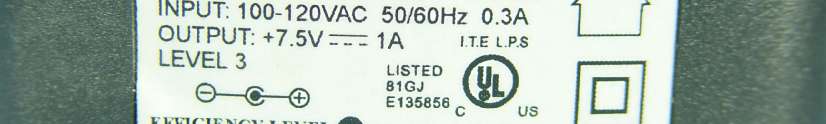

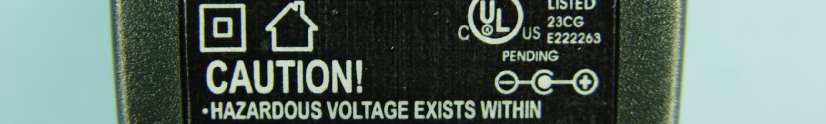

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: UVA-FON2200 Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: UVA-FON2200 Report No.: RF951215L04 OPERATIONAL DESCRIPTION This device is a La Fonera which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna are Dipole antenna with R-SMA antenna connector and PIFA antenna without connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: UVA-FON2200 Report No: SA951215L04 1 RF EXPOSURE REPORT REPORT NO.: SA951215L04 MODEL NO.: FON2200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Fon Technology S.L. ADDRESS: Avenida de Bruselas, num 7, Planta 3, Alcobendas, Madrid 28108, Spain ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: UVA-FON2200 Report No: SA951215L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: UVA-FON2200 Report No: SA951215L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: UVA-FON2200 Report No: SA951215L04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna gain: 1.8dBi: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 72.277 0.022 1.0 6 2437 70.795 0.021 1.0 11 2462 51.050 0.015 1.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 89.950 0.027 1.0 6 2437 90.365 0.027 1.0 11 2462 89.743 0.027 1.0

Report No.: RF951215L04 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951215L04 MODEL NO.: FON2200 RECEIVED: Dec. 15, 2006 TESTED: Dec. 18, 2006 ~ Jan. 05, 2007 ISSUED: Jan. 05, 2007 APPLICANT: Fon Technology S.L. ADDRESS: Avenida de Bruselas, num 7, Planta 3, Alcobendas, Madrid 28108, Spain ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951215L04 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION.......................................................................................................4 2 SUMMARY OF TEST RESULTS...............................................................................5 2.1 MEASUREMENT UNCERTAINTY.............................................................................5 3 GENERAL INFORMATION........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..........................................................................6 3.2 DESCRIPTION OF TEST MODES............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................11 3.4 DESCRIPTION OF SUPPORT UNITS.....................................................................11 4 TEST TYPES AND RESULTS.................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT...........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................12 4.1.2 TEST INSTRUMENTS.............................................................................................12 4.1.3 TEST PROCEDURES.............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD....................................................................13 4.1.5 TEST SETUP..........................................................................................................14 4.1.6 EUT OPERATING CONDITIONS............................................................................14 4.1.7 TEST RESULTS......................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT................................................................27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..............................................27 4.2.2 TEST INSTRUMENTS.............................................................................................28 4.2.3 TEST PROCEDURES.............................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD....................................................................29 4.2.5 TEST SETUP..........................................................................................................30 4.2.6 EUT OPERATING CONDITIONS............................................................................30 4.2.7 TEST RESULTS......................................................................................................31 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.....................................................45 4.3.2 TEST INSTRUMENTS.............................................................................................45 4.3.3 TEST PROCEDURE................................................................................................46 4.3.4 DEVIATION FROM TEST STANDARD....................................................................46 4.3.5 TEST SETUP..........................................................................................................46 4.3.6 EUT OPERATING CONDITIONS............................................................................46 4.3.7 TEST RESULTS......................................................................................................47 4.4 MAXIMUM PEAK OUTPUT POWER.......................................................................53 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........................53 4.4.2 TEST INSTRUMENTS.............................................................................................53 4.4.3 TEST PROCEDURES.............................................................................................54 4.4.4 DEVIATION FROM TEST STANDARD....................................................................54 4.4.5 TEST SETUP..........................................................................................................54 4.4.6 EUT OPERATING CONDITIONS............................................................................54 4.4.7 TEST RESULTS......................................................................................................55 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................................56 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT................................56 4.5.2 TEST INSTRUMENTS.............................................................................................56 4.5.3 TEST PROCEDURE......................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Test Mode A) 2 CONDUCTED EMISSION TEST (Test Mode B) 3 RADIATED EMISSION TEST (Test Mode A) 4 RADIATED EMISSION TEST (Test Mode B)
