UVAFON2501WLAN AP

Quick Installation Guide EN Guide d’Installation Rapide FR Installationsanleitung DE Guía de Instalación Rápida ES Fonera Quick Installation Guide EN 1. Connect your Fonera to the internet. Please note the Fonera is not a stand-alone device, and it must be connected to your existing modem/router to work. Plug in your Fonera. Then, take the orange cable. Connect one end of it to the orange socket on your Fonera, and connect the other end to your modem. 3. Configure your Fonera. Open any browser (e.g. Firefox) Type: http://fonera in the address bar to access your Fonera. Alternatively, you can type your Fonera’s IP address (http://192.168.10.1) Enter the default password: admin. Now you can view and modify the technical aspects of your Fonera. WHAT’S IN THE BOX? - 1 Fonera - 1 Ethernet cable - 1 Power supply - 2 Stickers 2. Connect your Fonera to your computer or laptop. Select the MyPlace WiFi signal from your network preferences. Enter the password printed on your Fonera (same as WPA key) Don’t have WiFi? Then, take an ethernet cable and connect one end to your Fonera and the other to your computer or laptop. FCC CE statement: https://www.fon.com/images/media/common/FCC_CE.pdf http://fonera 1. Open any web browser (Firefox, Internet Explorer, Safari, ...) 2. Type http://register.fon.com in the address bar. 3. Then, enter the MAC and PIN CODE numbers found on the device. Follow the steps on your screen. Guide d’Installation Rapide FR Déclaration de conformité FCC CE : https://www.fon.com/images/media/common/FCC_CE.pdf 1. Connectez votre Fonera à internet. Vérifiez que la Fonera est bien connectée à votre modem/box haut débit. Branchez l’alimentation électrique de la Fonera. En effet, la Fonera ne remplace pas votre modem/box haut débit. Par la suite, connectez une extrémité du câble orange fournit à votre Fonera (prise orange) et l’autre à votre modem. 3. Configurez et enregistrez votre Fonera. Ouvrez un navegateur internet (Firefox) Tapez : http://fonera dans la barre d’addresse afin d’accéder à la console de gestion de la Fonera. Vous pouvez également taper l’adresse IP de votre Fonera (http://192.168.10.1). Entrez le mot de passe par défault : admin. 9ouV Souvez Paintenant voir et PoGičer OeV aVSeFtV teFKniTueV Ge votre Fonera QUE CONTIENT LA BOITE? - 1 Fonera - 1 Câble Ethernet - 1 Alimentation électrique - 2 Autocollants 2. Connectez la Fonera à votre ordinateur.. &KerFKez et V«OeFtionnez SarPi voV r«Veaux :iFi G«teFt«V Oe VignaO aSSeO« 0\3OaFe (ntrez Oe Pot Ge SaVVe Tui eVt inVFrit VouV votre Fonera (ForreVSonG ¢ Oa FO« :3$) 9ouV næavez touMourV SaV Ge :iFi " 3uiV FonneFtez\ un F¤EOe (tKernet &onneFtez une extr«Pit« ¢ votre Fonera et Oæautre ¢ votre orGinateur Ge Eureau ou SortaEOe http://fonera 1. Ouvrez un navigateur internet (Firefox, Internet Explorer, Safari...) 2. Dans la barre d’adresse, tapez http://register.fon.com. 3. Puis, saisissez l’adresse MAC et le PIN CODE se trouvant sur la Fonera. Enfin, veuillez suivre les étapes décrites sur votre écran. Guía de Instalación Rápida ES 1. Conecta tu Fonera a internet. $Veg¼rate Tue Oa Fonera eVt£ FoneFtaGa aO routerPoGeP Ge tu SroveeGor Ge aFFeVo a internet /a Fonera 6iPSO no VuVtitu\e aO routerPoGeP &oneFta eO enFKufe Ge tu Fonera a Oa reG eO«FtriFa &oneFta un extrePo GeO FaEOe naranMa aO Suerto etKernet naranMa de tu Fonera \ eO otro a tu PodeP  router 3. Configura y registra tu Fonera. $Ere un navegador (eMePSOo Firefox) 7eFOea KttSfonera en Oa Earra de direFFioneV Sara aFFeder Oa FonVoOa de geVtiμn de Oa Fonera 7aPEi«n SuedeV teFOear Oa direFFiμn ,3 de tu Fonera (KttS) ,ntroduFe Oa FontraVe³a Sor defeFto admin $Kora SuedeV ver \ modičFar OoV aVSeFtoV t«FniFoV de tu Fonera - 1 Fonera - 1 Cable ethernet - 1 Fuente de alimentación - 2 Pegatinas 2. Conecta la Fonera a tu ordenador o portátil. Selecciona la señal WiFi MyPlace en tus preferencias de red. Introduce la contraseña impresa en tu Fonera (la misma que la WPA key). ¿No tienes WiFi? Conecta un cable ethernet y al otro extremo tu ordenador o portátil. Declaración FCC CE: https://www.fon.com/images/media/common/FCC_CE.pdf http://fonera 1. Abre cualquier explorador (Firefox, Internet Explorer, Safari...) 2. Escribe http://register.fon.com en la barra de direcciones. 3. Después, introduce los dígitos de la MAC y el PIN CODE que están en la Fonera. Sigue los pasos que aparecen en la pantalla QUÉ HAY EN LA CAJA? Installationsanleitung DE 1. Verbinden Sie Ihre Fonera mit dem Bitte beachten Sie das die Fonera an Ihr bestehendes Modem / Router Stecken Sie das Fonera Netzteil ein. Dann nehmen Sie das orangefarbene Kabel und verbinden Sie ein Ende mit Ihrer Fonera (Orangene-Buchse) und das andere mit Ihrem Modem. .RQčJXULHUHQXQGUHJLVWULHUHQ6LH,KU)RQHUD Öffnen Sie einen beliebigen Browser. (z.B. Firefox) *eEen 6ie KttSfonera in die $dreVVOeiVte ein um auf die Fonera.onVoOe zuzugreifen $Oternativ N ̧nnen 6ie auFK die ,3$dreVVe ,Krer Fonera eingeEen KttS Geben Sie das Standard-Passwort admin ein. 6ie N ̧nnen nun die teFKniVFKen $VSeNte ,KreV Fonera VeKen und aE¦ndern - 1 Fonera - 1 Ethernet Kabel - 1 Netzteil - 2 Aufkleber 2. Verbinden Sie Ihre Fonera Simpl mit Ihrem Computer oder Laptop. Wählen Sie das MyPlace WLAN Signal von Ihren Netzwerk- Einstellungen aus. Geben Sie das Kennwort ein das auf Ihrer Fonera aufgedruckt ist (das selbe wie der WPA-Schlüssel). Haben Sie kein WLAN? Dann nehmen Sie ein Ethernet-Kabel und verbinden Sie ein Ende mit Ihrer Fonera und das andere mit Ihrem Computer oder Laptop. FCC CE Kennzeichnung: https://www.fon.com/images/media/common/FCC_CE.pdf http://fonera WAS IST IN DER BOX ENTHALTEN? 1. Öffnen Sie einen Web-Browser (Firefox, Internet Explorer, Safari, ...) 2. Typ http://register.fon.com in der Adresszeile. 3. Geben Sie dann die MAC- und PIN CODE ein, die sich auf der Rückseite den Fonera befinden. Befolgen Sie die Schritte auf Ihrem Bildschirm. fon.com www.fon.com FCC statement Federal…

Text truncated - open the document above for the full version.

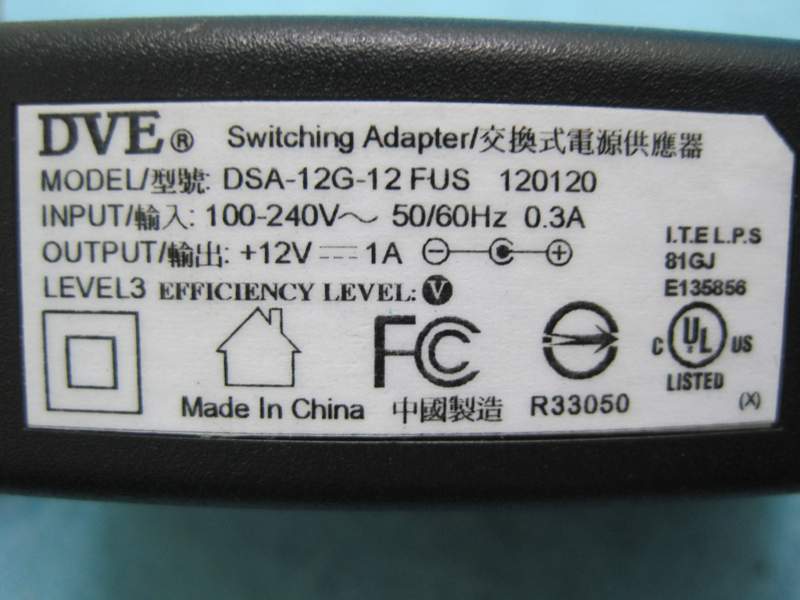

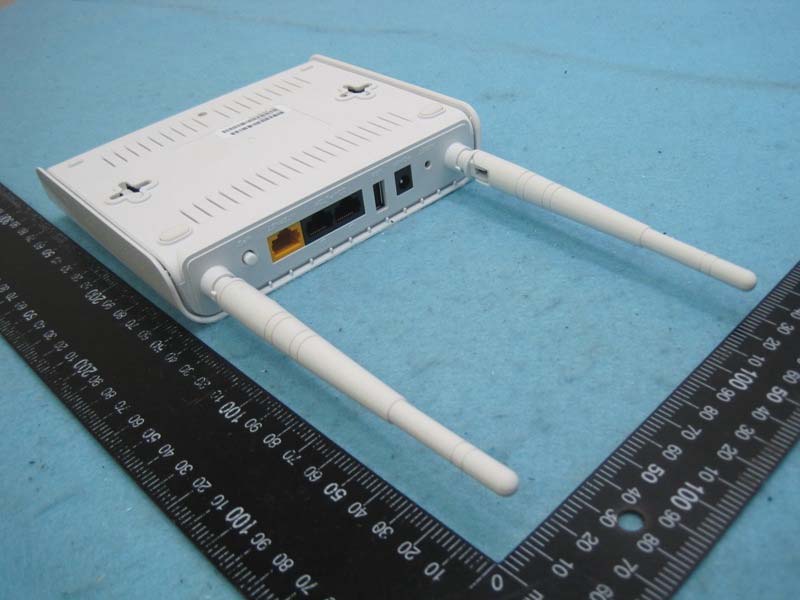

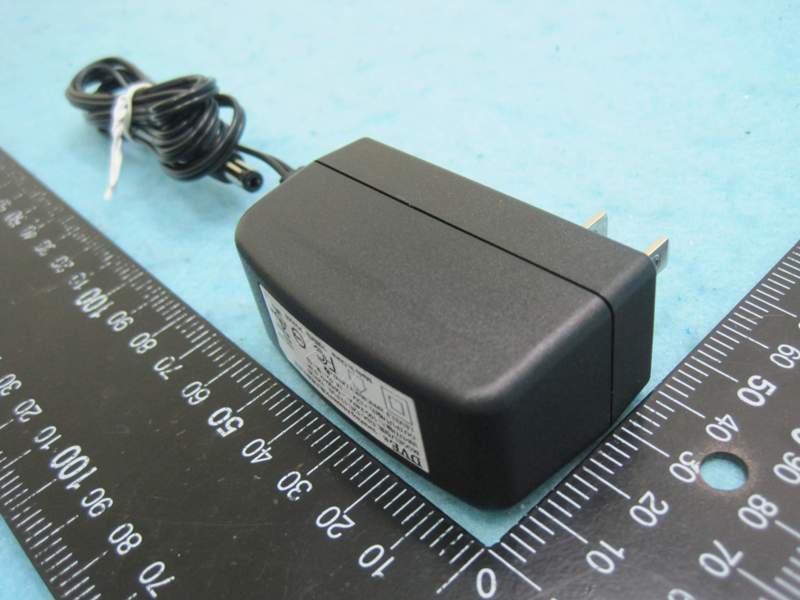

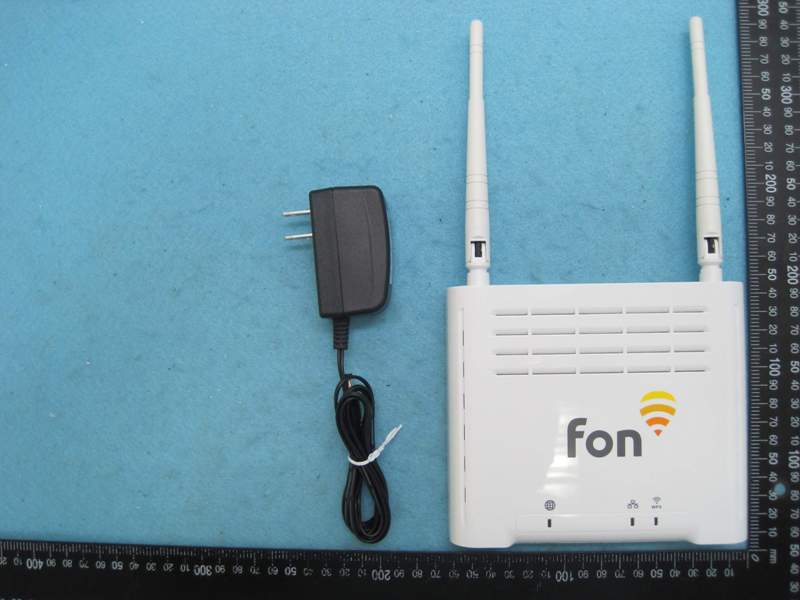

Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 APPENDIX A. Photographs of EUT Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 Adpater Brand: DVE Model: DSA-12G-12 FUS 120120 Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085

Label Size: 59.6mm x 41mm Label Location

Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 APPENDIX A. Photographs of EUT Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085 Report No.:341843-01 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-3-656-9065 ISSUED DATE : Aug. 07, 2013 FAX : 886-3-656-9085

Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a: 16.82 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.26 2.1184 16.8207 48.0918 0.020278 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n HT40: 22.11 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.26 2.1184 22.1050 162.3678 0.068462 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g: 20.68 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.26 2.1184 20.6759 116.8388 0.049265 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.068462 / 1 + 0.049265 / 1 = 0.117727, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : D1 of D3 Appendix D. Co-location Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 56% Test Engineer David Tseng Configurations 2.4G + 5G Horizontal Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Fon US Inc. Applicant Address 39 Wooster St, 3rd Floor New York, NY 10013 FCC ID UVAFON2501 Manufacturer’s company Fon US Inc. Manufacturer Address 39 Wooster St, 3rd Floor New York, NY 10013 Product Name Fonera Accel Brand Name FON Model No. FON2501B Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Apr. 18, 2013 Final Test Date May 23, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR341843-01AA Report Format Version: 01 Page No. : i of ii FCC ID: UVAFON2501 Issued Date : Aug. 07, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ............................................................................................................................ 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................. 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna .......................................................................................................................................................................6 3.4. Table for Carrier Frequencies...............................................................................................................................................................7 3.5. Table for Test Modes............................................................................................................................................................................8 3.6. Table for Testing Locations.................................................................................................................................................................10 3.7. Table for Supporting Units ..................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting.....................................................................................................................................11 3.9. EUT Operation during Test ..................................................................................................................................................................11 3.10. Duty Cycle ........................................................................................................................................................................................12 3.11. Test Configurations ............................................................................................................................................................................16 4. TEST RESULT ....................................................................................................................................................... 18 4.1. AC Power Line Conducted Emissions Measurement..........................................................................................................................18 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................22 4.3. Power Spectral Density Measurement ...............................................................................................................................................25 4.4. 6dB Spectrum Bandwidth Measurement ...........................................................................................................................................33 4.5. Radiated Emissions Measurement.....................................................................................................................................................40 4.6. Emissions Measurement ....................................................................................................................................................................66 4.7. Chain Requirements .........................................................................................................................................................................90 5. LIST OF MEASURING EQUIPMENTS....................................................................................................................... 91 6. TEST LOCATION ................................................................................................................................................. 93 APPENDIX A. PHOTOGRAPHS OF EUT .............................................................…

Text truncated - open the document above for the full version.

Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : B4 of B5 Test Configuration: 30MHz~1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR341843-01 FCC ID: UVAFON2501 Page No. : B5 of B5 Test Configuration: Above 1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW
