UVAFON2415802.11N, Audio, Wireless LAN, AP Router

Fon US Inc.
802.11N, Audio, Wireless LAN, AP Router - FCC ID UVAFON2415 - Fon US Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 27, 2014
Application Purpose
Original Equipment
Date of Application
Jan 27, 2014
Equipment Note
802.11N, Audio, Wireless LAN, AP Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Fon US Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

โ†—
โ†—

Cover Letter(s)

โ†—
โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

RF Exposure Info

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EN 300328 V1.8.1 (2012-06) EN 301 489-1 V1.9.2 (2011-09) EN 301 489-17 V2.2.1 (2012-09)

Users Manual

1 2 Wel come 2 Wel come Go to http://r egister .f on.com or Download the Fonera Setup App 3 Go to http://r egister .f on.com or Download the Fonera Setup App 3 4 Router Setup 4 Router Setup 5 1. Connect the orange cable to your modem and the other end to orange socket. Wait for the top ring to turn green. 5 1. Connect the orange cable to your modem and the other end to orange socket. Wait for the top ring to turn green. 6 2. Look under your Gramofon. Locat e the WPA key for MyPlace. 7 3. Manage your Gramofon and get access to advance features. To log into the management portal, open a browser and type http://f onera into the URL eld. Alternativel y, you can enter the IP address http://192.168.10.1. When prompted, enter the passwor d โ€œadminโ€. WPS Coupling 8

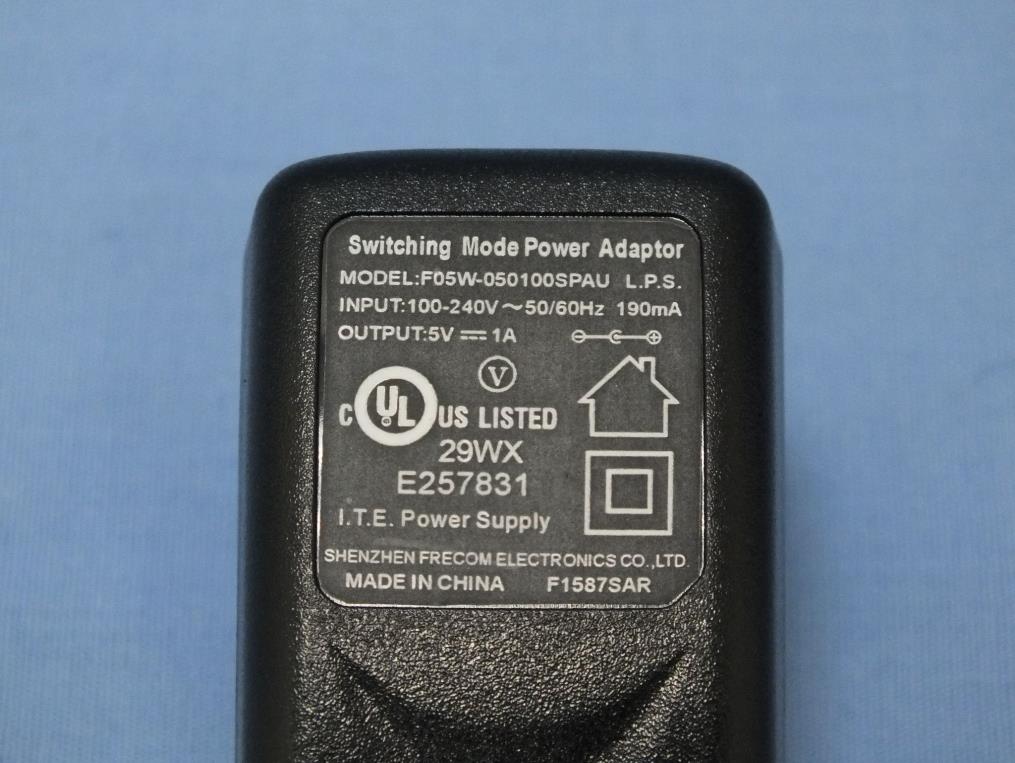

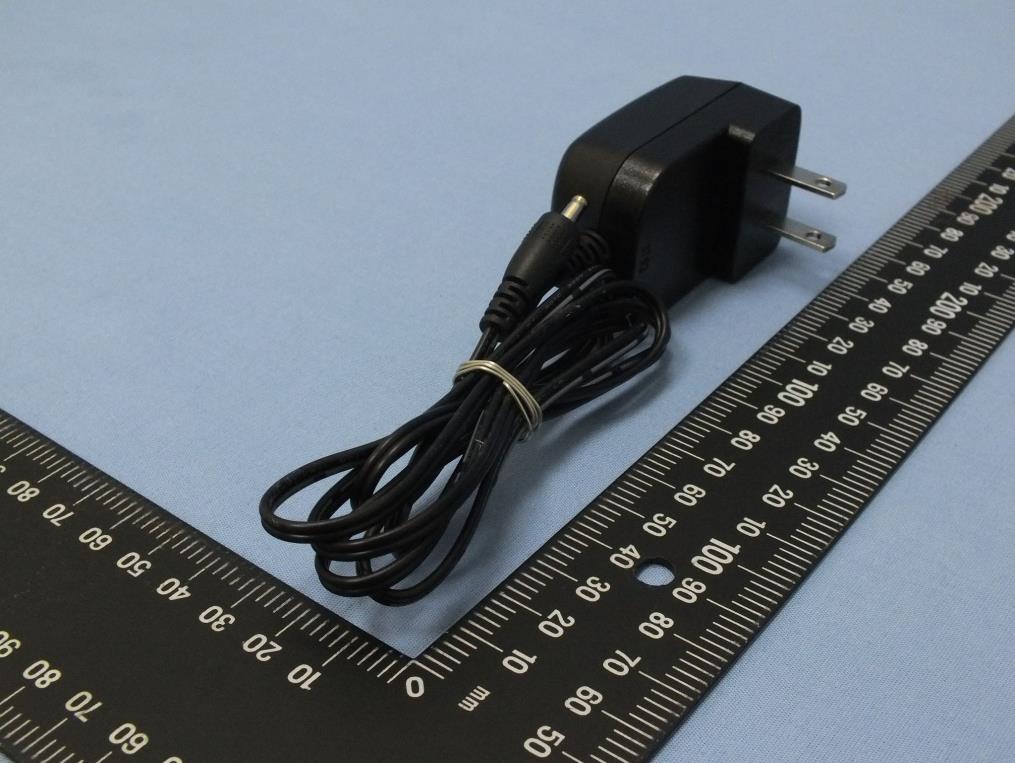

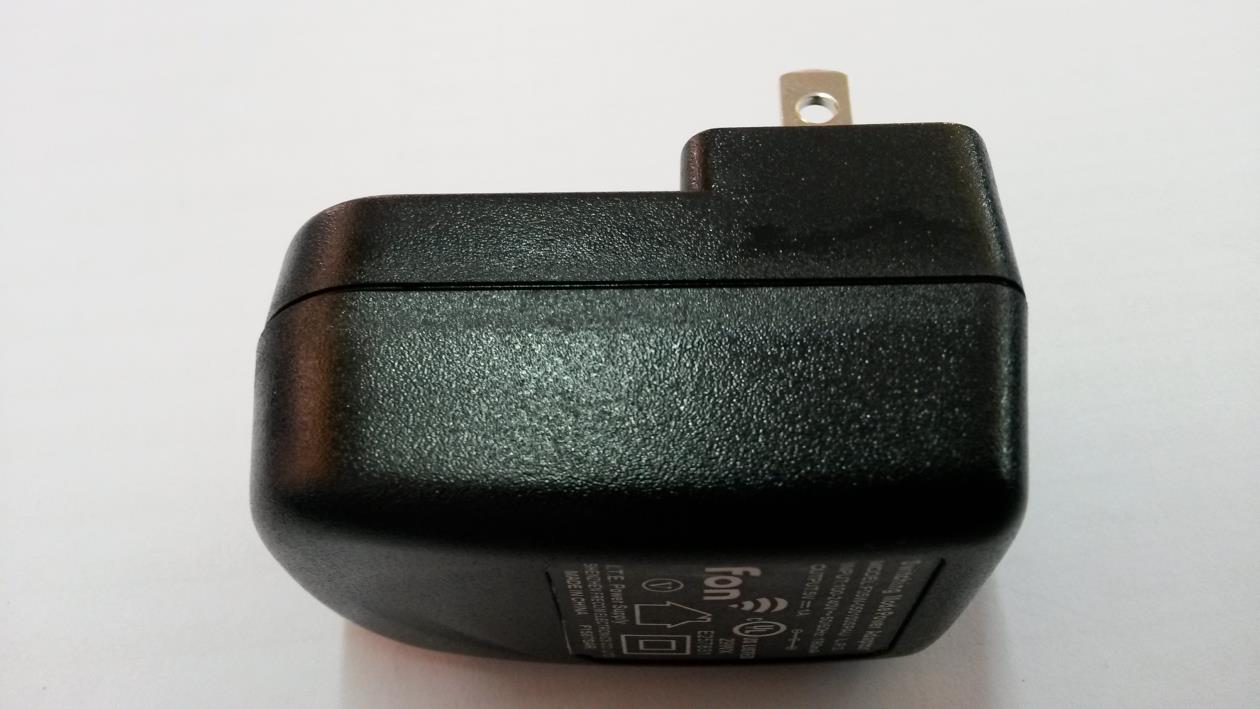

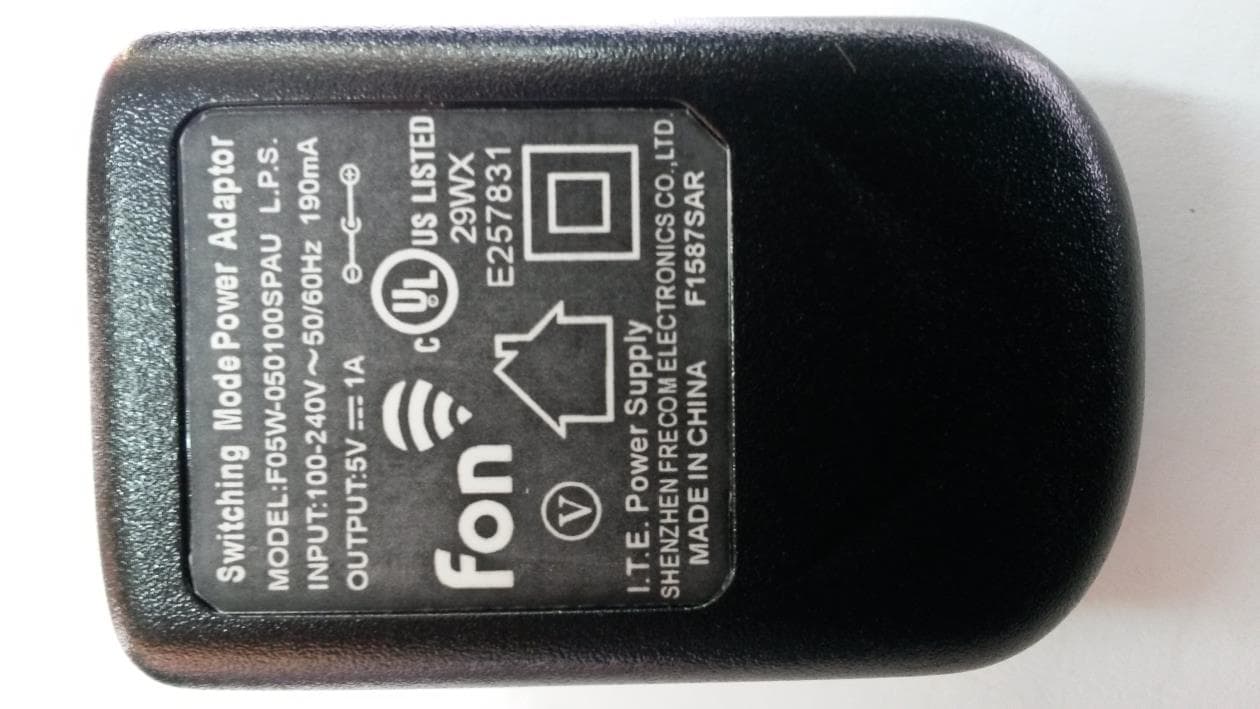

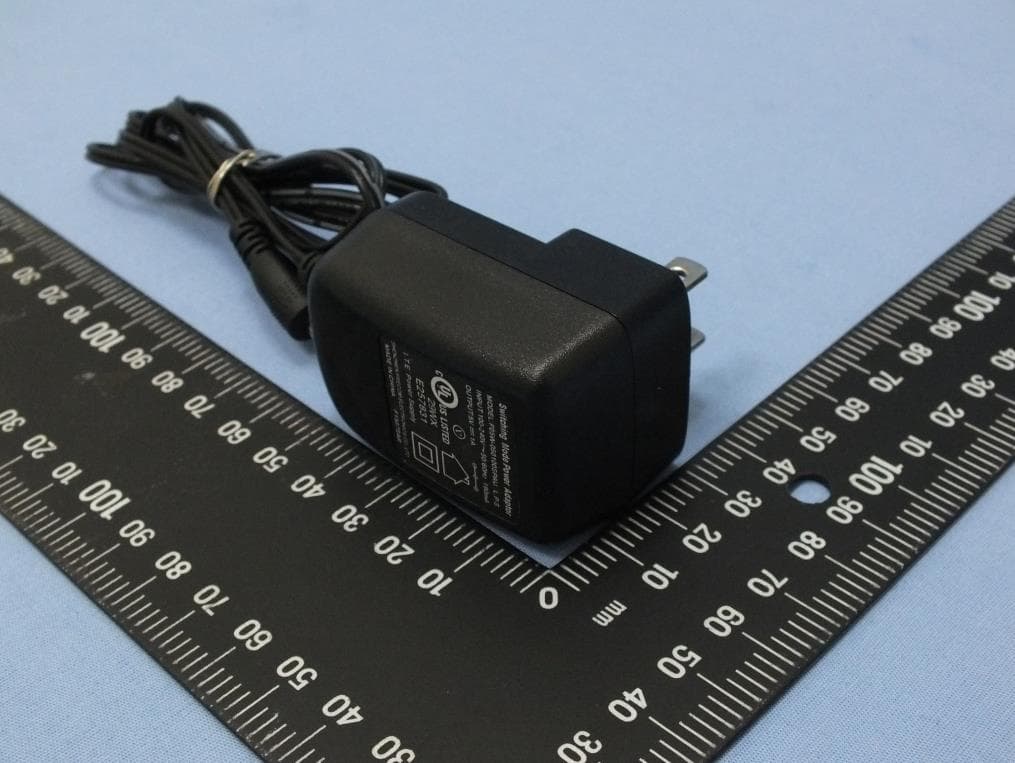

External Photos

Project No.: EP3N1401 Page No. : 1 of 14 Photographs of EUT Project No.: EP3N1401 Page No. : 2 of 14 Project No.: EP3N1401 Page No. : 3 of 14 Project No.: EP3N1401 Page No. : 4 of 14 Project No.: EP3N1401 Page No. : 5 of 14

ID Label/Location Info

ๆ—ฅๆœŸ ็”ขๅ“ๆฉŸ็จฎ ็”ขๅ“ๆ–™่™Ÿ ๅฎขๆˆถๅ็จฑ ็”ณ่ซ‹่€… ่จญ่จˆ่€… ๅ‚™่จป Av: ็‰ˆๆœฌ ็ขบ่ช็ฐฝๅ Jasmine FON Ariel FON 2415 2013/12/17 Device label (ๅค–ๅฐ+่‡ชๅฐ) Note: MyPlace font: Adobe Caslon Pro The content of MyPlace /Model/MAC/S/N Font: Arial (WPA key) / Model / Pin code / Mac/S/N Font:Adobe Caslon Pro Italic The content of Pin code : Arial Italic Label Location

Internal Photos

Project No.: EP3N1401 Page No. : 6 of 14 Project No.: EP3N1401 Page No. : 7 of 14 Project No.: EP3N1401 Page No. : 8 of 14 Project No.: EP3N1401 Page No. : 9 of 14 Project No.: EP3N1401 Page No. : 10 of 14 Project No.: EP3N1401 Page No. : 11 of 14 Project No.: EP3N1401 Page No. : 12 of 14 Project No.: EP3N1401 Page No. : 13 of 14 Project No.: EP3N1401 Page No. : 14 of 14

Operational Description

FCC ID: Channel frequency Channel 1 2 3 4 5 6 7 8 9 10 11 3 4 5 6 7 8 9 Oscillating frequency (MHz) Antenna type AR9341 2412~2462 25 PCB 2447 2422 Operational Description UVAFON2415 The device is a Wireless router which operates at 2.4GHz band and supports IEEE 802.11 b / g / HT20 / HT40 operation modes. The device has a WPS button to link up with other wireless devicse more easily. RF main chip Frequency range (MHz) DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM Modulation type 2452 2457 2437 2442 ModeFrequency (MHz) 2412 2417 2437 2442 2462 2452 2427 2432 11b 11g 11n HT20 2447 11n HT40 2422 2427 2432 P 1 / 1

RF Exposure Info

Report No.: FA3N1401 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : UVAFON2415 Equipment : 802.11N, Audio, Wireless LAN, AP Router Model No. : FON2415 Brand Name : FON Applicant : FON US Inc. Address : 39 Wooster St, 3rd Floor New York United States 10013 Standard : 47 CFR FCC Part 2.1091 Received Date : Nov. 14, 2013 Tested Date : Jan. 08 ~ Jan. 16, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA3N1401 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA3N1401 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA3N1401 Rev. 01 Initial issue Jan. 23, 2014 Report No.: FA3N1401 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR ยง2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.43 0 20 0.044 1 Report No.: FA3N1401 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-2-2601-1640 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] โ•โ•ENDโ•โ•

Test Report

Report No.: FR3N1401 Page : 1 of 64 Report Version: Rev. 01 FCC Test Report FCC ID : UVAFON2415 Equipment : 802.11N, Audio, Wireless LAN, AP Router Model No. : FON2415 Brand Name : FON Applicant : FON US Inc. Address : 39 Wooster St, 3rd Floor New York United States 10013 Standard : 47 CFR FCC Part 15.247 Received Date : Nov. 14, 2013 Tested Date : Jan. 08 ~ Jan. 16, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR3N1401 Page : 2 of 64 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 6dB and Occupied Bandwidth .............................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 23 3.6 Emissions in non-restricted frequency bands ...................................................................................... 51 4 TEST LABORATORY INFORMATION ............................................................................................... 64 Report No.: FR3N1401 Page : 3 of 64 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR3N1401 Rev. 01 Initial issue Jan. 23, 2014 Report No.: FR3N1401 Page : 4 of 64 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.156MHz 50.90 (Margin -4.79dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2390.00MHz 72.99 (Margin -1.01dB) - PK Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11b: 21.49 11g: 27.30 HT20: 26.63 HT40: 22.32 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR3N1401 Page : 5 of 64 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector Remarks 1 PCB 0 UFL --- 1.1.3 EUT Operational Condition Powr Supply Type 5Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC adapter Brand Name: SHENZHEN FRECOM ELECTRONICS Co., LTD Model Name: FF05W-050100SPAU Power Rating: I/P: 100-240Vac, 50-60Hz, 190mA O/P: 5Vdc, 1A Power Line: 1.2m non-shielded without core Note: The adapter has 2 types label. Please refer to EUT photo. Report No.: FR3N1401 Page : 6 of 64 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool ART2-GUI, Version: 2.3 Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11b 100.00% 0.00 11g 98.35% 0.07 HT20 โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR3N1401 Page: : 1 of 2 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR3N1401 Page: : 2 of 2 Report Version: Rev. 01 Radiated Emission Test

Contact Information

Applicant

Borja Osorio(IT Manager)
[email protected]0034912917600Fax: 0034912917688

Technical Contact

International Certification Corp.Gary Chang
[email protected]886-3-271-8628

No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, ยท Taiwan

Non-Technical Contact

International Certification Corp.Wendy Liao
[email protected]886-3-271-8629

Test Firm

International Certification Corp.Fu-Cheng Chuang
[email protected]886-3-271-8666Fax: 886-3-318-0155

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz540.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes.
