UVD-7M6XSAndroid MID

Size:80X120mm User Manual of Android MID MD7081 Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference. Table of Contents Important Safety Instructions....................................................... 2 Connectors................................................................................. 4 User Operations.......................................................................... 5 1. Boot and shutdown .............................................................. 5 2. Screen of opening and closing ............................................5 3. Home menu .........................................................................6 4. Application......................................................................... 6 5. Music................................................................................. 7 6. Settings............................................................................. 7 Specification.............................................................................10 1 Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Unplug this apparatus during lighting storms or when unused for long periods of time. 13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14）Only use attachments/accessories specified provided by the manufacturer, the product is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable 15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc. 16) No naked flame sources, such as lighted candles, should be placed on the apparatus. 17) Attention should be drawn to the environmental aspects of battery disposal. 18) The use of apparatus in moderate climate. 2 3 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. WARNING: Never place heavy or sharp objects on the LCD panel or frame. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: The excessive sound pressure from earphones and headphones can cause hearing loss. The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. CAUTION: When the apparatus was in electrostatic circumstance, it may be malfunction and need to reset by user. The USB memory stick should be plug in the unit directly. USB extension cable should not be used to avoid failing of data transferring and interference caused. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. 4 Connectors 1 2 3 4 5 6 7 8 9 10 11 12 1. Front Camera 2. LCD Display+Touch Panel 3. Power 4. Vol+ / Vol- 5. Back Camera 6. Reset 7. Earphone 8. USB 9. HDMI 10. Mic 11. TF-Card 12. DC IN 5V 5 User Operations 1. Boot and shutdown Boot After long pressing 4 seconds for the power button, you can see the boot logo. The system is access into screen locking status after opening. Shutdow 1 .Long press the power button, then will popup the "Power off " options. 2. Click “OK”button to shutdown . 2. Screen of opening and closing It will be closed during the screen idling. 1.After idling period of time,screen will be automatically closed to save the battery. 2. In the screen opening condition,press the power button, the screen can immediately shutdown.Opening in screen closed condition. If screen is in the closed position,you can long press power button to activate the screen. Enter locked condition after opening it, press "lock" icon and slide right for unlocking. 3. Home menu The home menu screen will show the common application. You can use the application short cut and customize your home menu interface . and press the application icon can directly run the application. 6 4 . Application 1.Choose to visit the application. 2. If you want to quit the application menu , press the return icon to a page or press home icon to directly returns home menu. 4.1 Install Applications (1) Install the apk file in external mass storage device by AppInstaller. (2) Download and install various applications in Android market or local app market. 4.2 Uninstall Applications Enter Settings application, select Apps->All…

Text truncated - open the document above for the full version.

Shen Zhen MTC Co., LTD FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameShen Zhen MTC Co., LTD Address31-32/F A Xing He Shi Ji Bldg, 3069 Cai Tian Road CityShenzhen CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:UVD-7M6SX to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents) ExhibitDescription VOperational Descriptionexplaining the functioning of the block diagram VBlock Diagramsshowing the systematic building blocks of the EUT VSchematics Diagramsshowing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2013-11-12M.Koop (authorized) Manager

Shen Zhen MTC Co., LTD

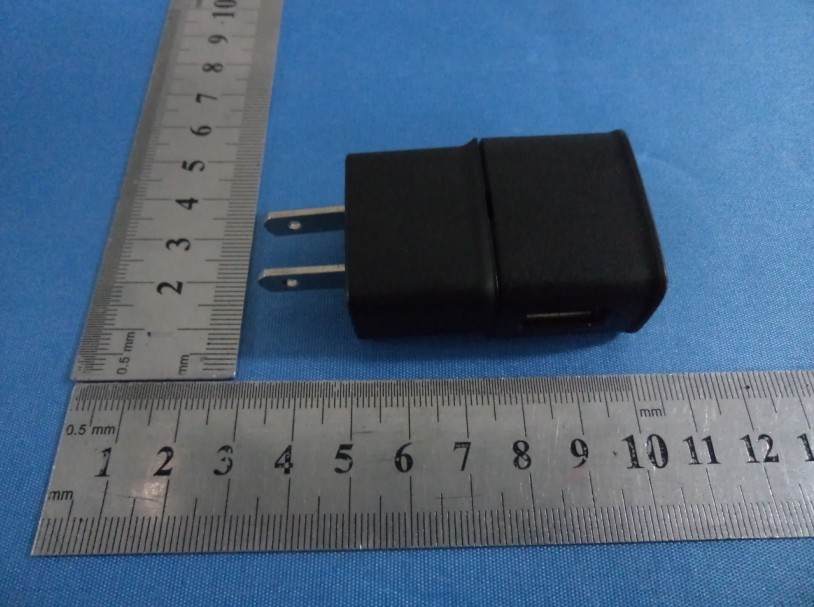

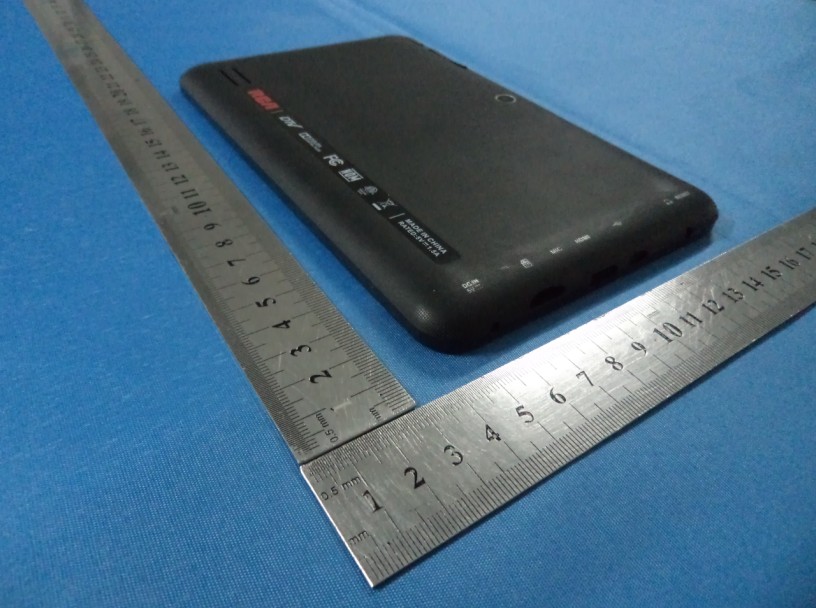

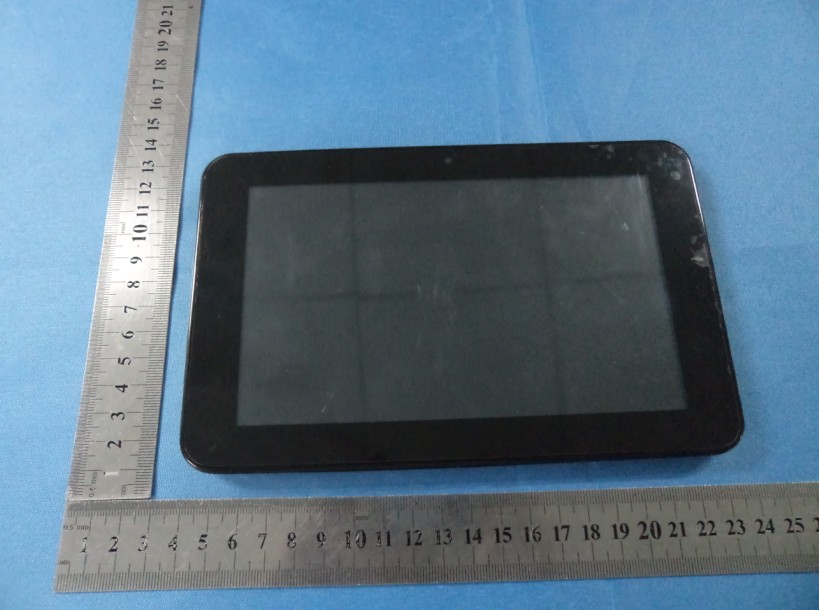

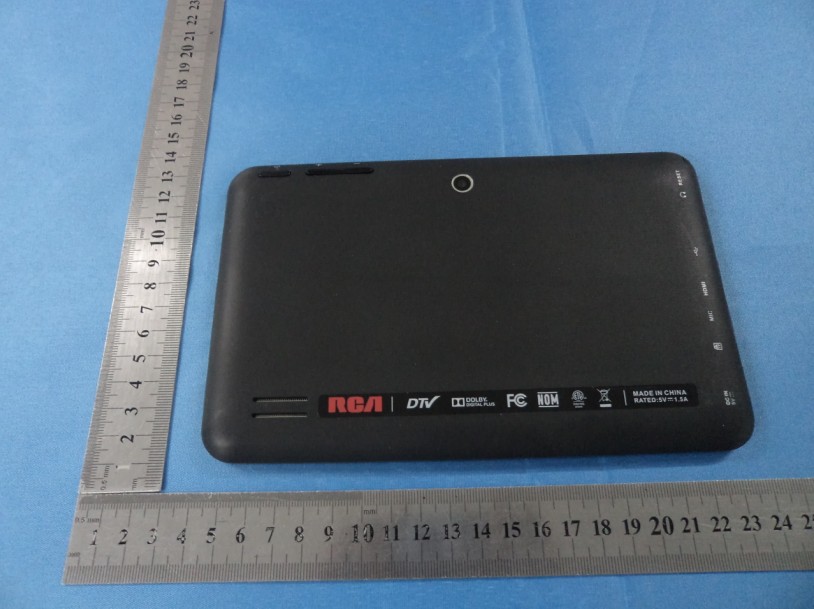

EUT EXTERNAL PHOTOGRAPHS EUT – Whole View EUT-Front View EUT-Rear View EUT-Side View EUT-Side View EUT- USB、HDMI 、Audio Port View EUT –Adapter View

FCC ID Label Location FCC ID Label Location

EUT INTERNAL PHOTOGRAPHS EUT –Uncovered View Antenna location EUT– PCB View EUT– PCB View EUT– PCB View EUT– PCB View EUT –WIFI Module View EUT–Touch Screen View EUT–Battery View

Test Report of FCC CFR 47 Part 15 Subpart B On Behalf of Shen Zhen MTC Co., LTD FCC ID: UVD-7M6XS Product Description: Android MID Test Model No.: MD7081 Supplementary Model: MD7***(* can from 0 to 9), DAA730R, DAA738R Brand Name: AMTC, RCA Prepared for: Shen Zhen MTC Co., LTD 31-32/F A Xing He Shi Ji Bldg, 3069 Cai Tian Road, Shenzhen, P.R. China Prepared by: Bontek Compliance Testing Laboratory Co., Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT13IR327E-2 Issue Date: October 22, 2013 Test Date: September 29~Octorber 20, 2013 Tested by: Reviewed by: Lion Cai Owen.Yang Approved by: Kendy Wang Report No.: BCT13IR327E-1 Page 2 of 24 FCC ID: UVD-7M6XS TABLE OF CONTENTS 1. GENERAL INFORMATION........................................................................................................................ 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 3 1.2 TEST STANDARDS ................................................................................................................................... 4 1.3 TEST FACILITY ........................................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION ........................................................................................................... 4 2.1 EUT CONFIGURATION ............................................................................................................................. 5 2.2 SUPPORT EQUIPMENTS ........................................................................................................................... 5 2.3 GENERAL TEST PROCEDURES ................................................................................................................. 5 2.4 MEASUREMENT UNCERTAINTY ................................................................................................................. 5 2.5 LIST OF MEASURING EQUIPMENTS USED .................................................................................................. 6 3. SUMMARY OF TEST RESULTS ............................................................................................................... 7 4. TEST OF AC POWER LINE CONDUCTED EMISSION ........................................................................... 7 4.1 LIMIT OF AC POWER LINE CONDUCTED EMISSION .................................................................................... 7 4.2 EUT SETUP ............................................................................................................................................ 7 4.3 INSTRUMENT SETUP ................................................................................................................................ 8 4.4 TEST PROCEDURE .................................................................................................................................. 8 4.5 TEST RESULT ......................................................................................................................................... 8 5 - RADIATED DISTURBANCES ................................................................................................................ 15 5.1 LIMIT OF RADIATED DISTURBANCES ....................................................................................................... 15 5.2 EUT SETUP .......................................................................................................................................... 15 5.3 TEST RECEIVER SETUP ......................................................................................................................... 16 5.4 TEST PROCEDURE ................................................................................................................................ 16 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................. 16 5.6 RADIATED EMISSIONS TEST RESULT ...................................................................................................... 16 Report No.: BCT13IR327E-1 Page 3 of 24 FCC ID: UVD-7M6XS 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Shen Zhen MTC Co., LTD Address of Applicant: 31-32/F A Xing He Shi Ji Bldg, 3069 Cai Tian Road, Shenzhen, P.R. China Manufacturer: Shen Zhen MTC Co., LTD Address of Manufacturer: 31-32/F A Xing He Shi Ji Bldg, 3069 Cai Tian Road, Shenzhen, P.R. China General Description of E.U.T Items Description EUT Description: Android MID Trade Name: AMTC, RCA Test Model No.: MD7081 Supplementary Model: MD7***(* can from 0 to 9), DAA730R, DAA738R Power Supply: Input: 5VDC 1.5A from AC/DC adapter Adapter Information: Model:DC050200130 Input: AC 100-240V 50/60Hz 0.3A Output: 5VDC 2.0A Remark: * The test data gathered are from the production sample provided by the manufacturer. * Supplementary models have the same circuit, but with different appearance Report No.: BCT13IR327E-1 Page 4 of 24 FCC ID: UVD-7M6XS 1.2 Test Standards The report of EUT is prepared in accordance with FCC Rules and Regulations Part 15 Subpart B 2006 The objective of the manufacturer is to demonstrate compliance with the described above standards. 1.3 Test Facility All measurement required was performed at laboratory of Bontek Compliance Testing Laboratory Ltd at 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China. The test facility is recognized, certified, or accredited by the following organizations: FCC – Registration No.: 338263 BONTEK COMPLIANCE TESTING LABORATORY LTD. EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registrati…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Conducted Emission Conducted Emission Radiated Emission 30MHz To 1G Radiated Emission 30MHz To 1GHz Radiated Emission 30MHz To 1G Radiated Emission 0.15M Hz to 30M Hz Radiated Emission Above 1GHz
