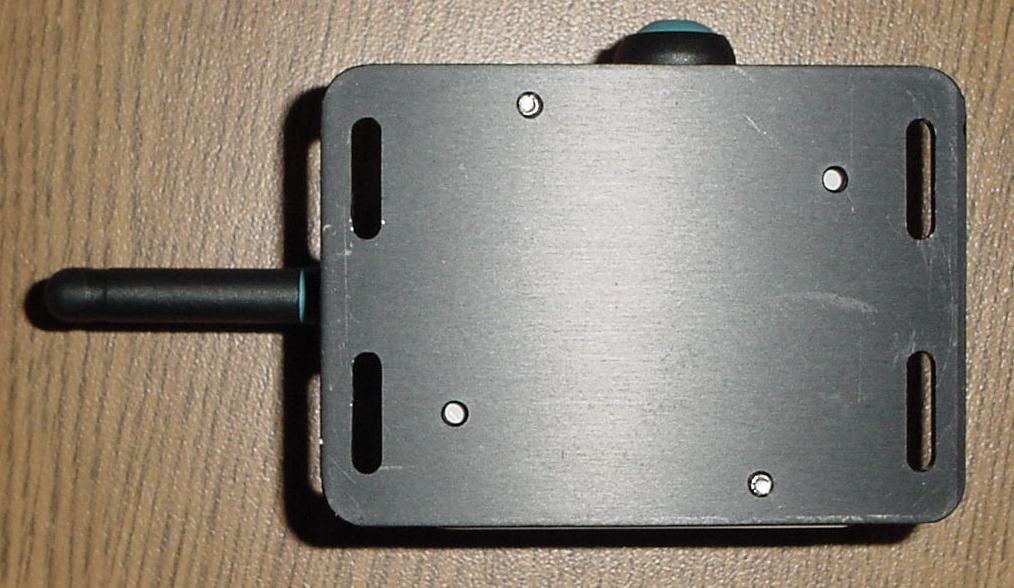

UVS-WV1PWireless Sensor/Monitor

1 1 IOM00024-06 9470 Meridian Way West Chester, Ohio 45069 Phone: 513-874-3195 Fax: 513-874-3269 www.ventekllc.com Universal Wireless Transmitter Quick Setup Sheet WV1P/WV2P Page 1 of 2 Wireless That Makes Perfect Sense Transmitting Frequency: WV1P: 418 MHz: no license required WV2P: 433 MHz: no license required Environmental Classification: NEMA 4X Battery: 3.6V lithium battery (AA) Battery Life: 2-5 years Temperature Range: -25 o C to 70 o C (-13 o F to 158 o F) Range: 600 feet (1) Transmission Rate: 10 to 17 seconds (random) Parts List: Quantity Part 1 Universal Wireless Transmitter 2 1” x 2” Dual-Lock Strips 4 #6 x 1” Self-Drilling Screws Description: VenTek’s WV1P/WV2P Universal Wireless Transmitter is a low-power self-configuring device with a 600 ft (1) range and will configure itself to work with any VenTek V-Bus sensor. The transmitter sends data from the sensor at random intervals between 10 and 17 seconds. It remains turned off until a V-Bus sensor is plugged in. The expected average battery life is 2-5 years, depending on the sensor being used. Mounting: Install the transmitter away from metal objects such as steel beams, catwalks and shelving. Such objects may interfere with the transmission signals. The preferred mounting surface is non-metallic. If the mounting surface is metallic, the receiver should be in front of the Universal Wireless Transmitter (See VenTek document TIPS1 for more information). Option 1: Attach transmitter to mounting surface using the provided Dual-Lock Strips. Option 2: Attach transmitter to mounting surface using the provided #6 x 1” self-drilling screws. Option 3: Attach transmitter to mounting surface using an optional Mag-Mount Universal Mounting Bracket (P/N# UMB-S2N) - not shown. (1) Typical line-of-site transmitter range. VenTek recommends that a site survey should be conducted to find the best locations for transmitters and receivers. 2 2 IOM00024-06 9470 Meridian Way West Chester, Ohio 45069 Phone: 513-874-3195 Fax: 513-874-3269 www.ventekllc.com Universal Wireless Transmitter Quick Setup Sheet WV1P/WV2P Page 2 of 2 Wireless That Makes Perfect Sense Monitor Setup: 1. Connect the WV1P/WV2P Universal Wireless Transmitter to a VenTek V-Bus Sensor and tighten securely. This connection powers the wireless monitor system. Disconnect sensor to turn monitor off. 2. Press the transmitter’s service button to configure it to the sensor’s specifications. 3. When the monitor system is active, the LED on the sensor will flash every 10 to 17 seconds. Pressing the service button will immediately flash the LED to indicate the functionality of the monitor. e-Guard OPC Data Manager - Quick Sensor Setup: 1. Start e-Guard OPC Data Manager (consult installation instructions if software is not already installed). 2. Click the Server Settings menu, then Device Registration in the upper left corner. 3. Press the transmitter’s service button to register the sensor. Its serial number will appear in the SN column with default values appearing in the other columns (serial numbers are listed sequentially). 4. Modify e-Guard software settings as desired: Column Default Value Permissible Entries Topic Sensor serial no. Alphanumeric characters (25 max; blanks and dashes ok) representing sensor name Active Yes Yes = e-Guard OPC Data Manager publishes sensor data No = e-Guard OPC Data Manager does not publish sensor data Dashboard Yes Yes = Sensor data is logged in the database No = Sensor data is not logged in the database ShowTile Yes Yes = Sensor data is displayed on a tile in the e-Guard Dashboard No = Sensor data is not displayed in the e-Guard Dashboard Baseline 0 Integer value (6 digits max) representing the baseline measurement value for the specific sensor (example: Motor A normally runs at 45ºC; enter “45” for the baseline value). Appears as a reference in the e-Guard Dashboard. TransmitFrequency 12 DO NOT CHANGE – this value is used to calculate sensor efficiency SaveInterval 1 Integer value between 0 and 32,767 specifying the data logging interval for the VenTek Sensor Database in minutes. A zero (0) value will log every data packet. 5. Close the Registered Devices window when finished. The window will close automatically after 1 minute of inactivity. 6. Leave e-Guard OPC Data Manager running to continue data logging. Close the program to end. 7. Refer to the Quick Setup Sheet that came with your sensor for further setup instructions. Wireless Communication Conditions of Use: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by VenTek, LLC for compliance could void the user's authority to operate the equipment. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device has been designed to operate with the antennas listed below, and having a maximum gain of 2 dBi. Antennas not included in this list or having a gain greater than 2 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Approved Antennas: ANT1N44RM; ANT1N44SM (included) FCC Information: FCC ID: UVS-WV1P IC: 6886A-WV1P

________________________________________________________________________ 9470 Meridian Way, West Chester, OH 45069 PH: (513) 874-3195 FAX: (513) 874-3269 DLS Electronics, 2-19-2008 Dear Bill Stumpf, The e-Guard product that we are having DLS Electronics test, is primarily used in industrial applications and is installed by trained professionals at the installed facility, this would include engineers, technicians and maintenance personal. The up keep and maintenance are also provided on site by appropriate maintenance department. This product is also professionally integrated by System integrators and onsite Information Technology departments. This product under the existing instruction set is not provided to non commercial or industrial applications. It is not intended to be sold in any application that can not have professional installation. Regards, Robert B. Fitzpatrick Robert B. Fitzpatrick Director of Engineering

FCC ID: UVS-WV1P D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for VenTek, LLC, Inc., a e-Guard Tilt Sensor Transmitter, Model Number: WV1P, with a FCC ID: UVS-WV1P for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231(e). Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/sr

Request for Confidentiality Date: March 4, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: UVS-WV1P Pursuant to 47 CFR Section 0.459 VenTek, LLC understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Technical Product Description • The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. VenTek, LLC understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory

Letter of Agency Date: March 4, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that VenTek, LLC authorizes to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, FCC Labeling Requirements and Information Date: March 4, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: UVS-WV1P The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Modification Letter Date: March 4, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: UVS-WV1P Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Manufacturer’s Letter Date: March 4, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: UVS-WV1P To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory

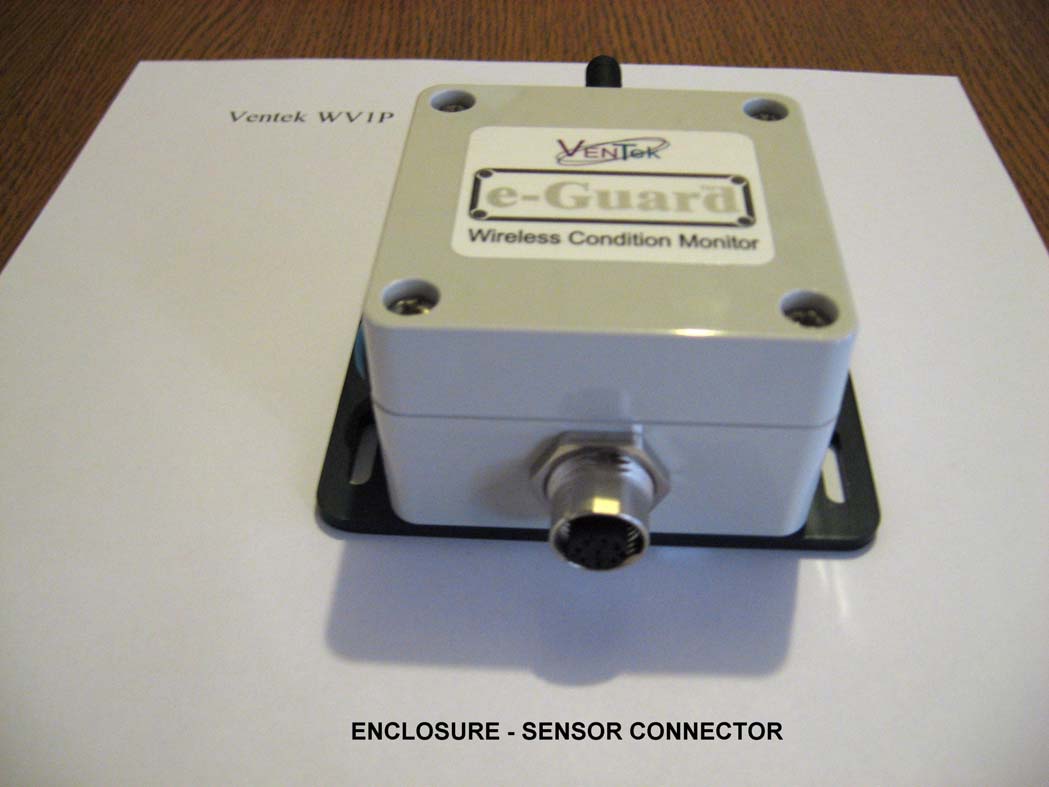

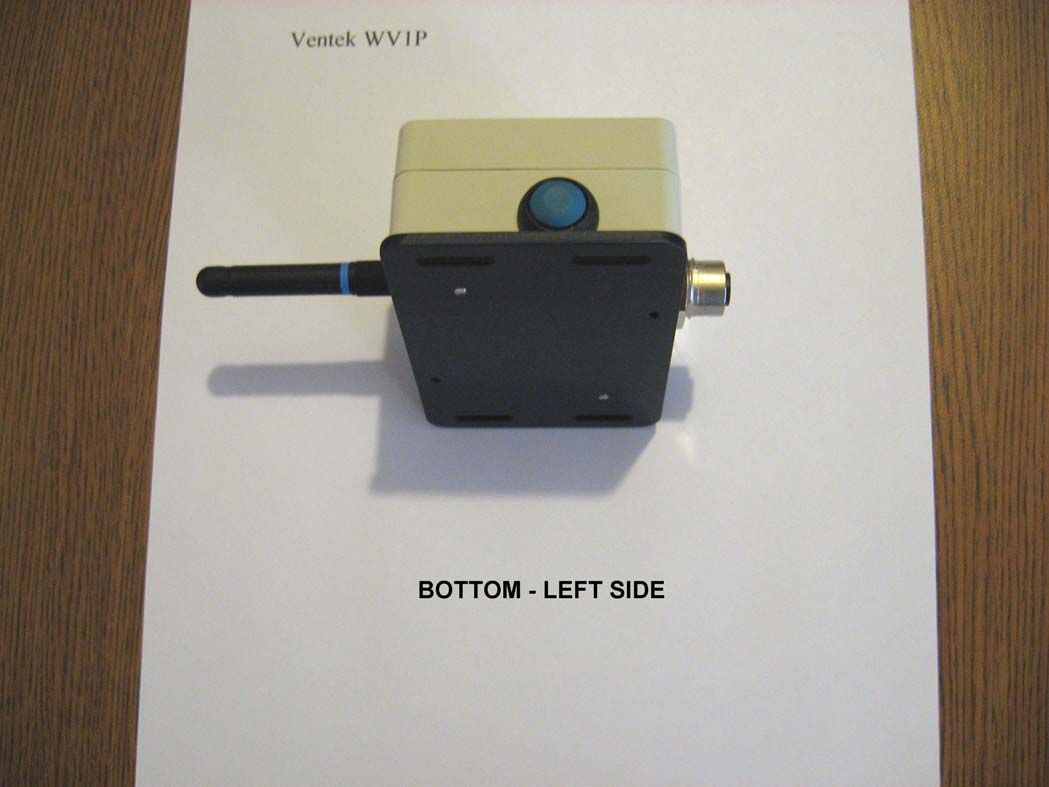

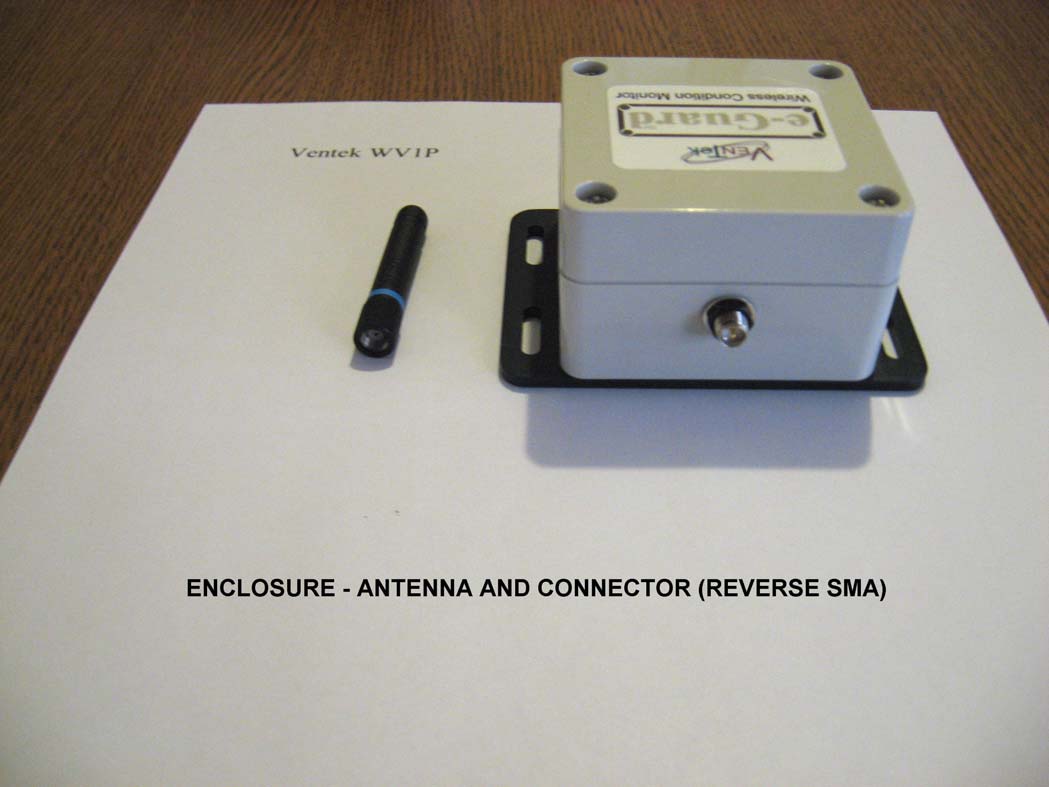

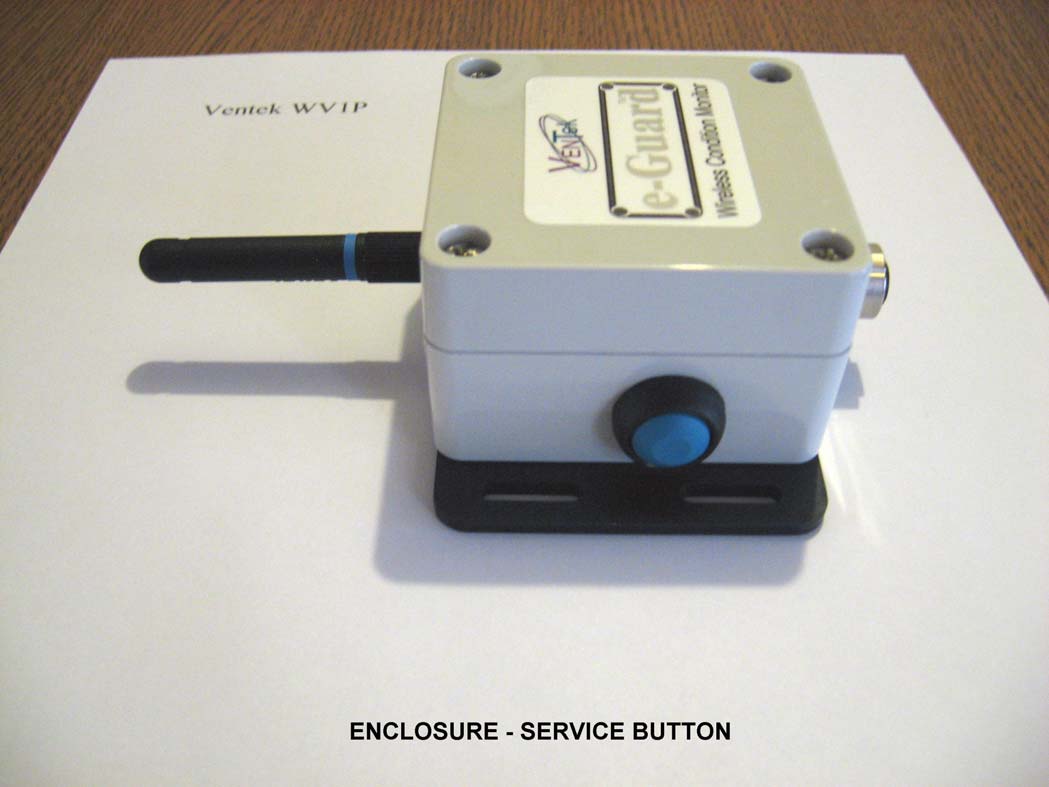

VENTEK WV1P

Drawn By: Date Rev. Description ECN# By: Check EN T V ek .75 15 3 2 1 9 14 16 16 11 4 8 7 18 17 17 BOARD ASSEMBLY EA00169 18 MOUNTING PLATE, ALUMINUM W/BLACKSCREWM12 SOCKET ADAPTER DAUGHTER 1 15 FW00025 WASHER, NEOPRENE (INSIDE) 00 FS00142 WV1PS MM00717 08/28/07 1 08/28/07 1 NUT, BRASS, BLACK OXIDE COATING 16 FN00022 ALUMINUM UNTHREADED ROUND 9470 Meridian Way Ph: (513) 874-3195 WAS ORIGINATED BY, AND IS THE EXCLUSIVE PROPERTY OFONLY AND IS NOT AN AUTHORIZATION -OR- LICENSE TO MAKEOTHERS. ALL DRAWINGS MUST BE RETURNED TO VENTEKCOPIED IN ANY FORM WITHOUT THE EXPRESS WRITTEN PER- DO NOT SCALE DRAWINGS RBF DWN. DATE NAME CHECKED DATE DATESTATUS DRAWING NO. REV PRELIMINARY DESCRIPTION RBS 2 SIZE A VENTEK LLC. IT IS FURNISHED FOR VENDOR INFORMATIONTHIS CONSTRUCTION OR TO FURNISH THIS INFORMATION TOON DEMAND. THIS DRAWING IS NOT TO BE REPRODUCED ORMISSION OF VENTEK LLC. MOUNTING PLATE SCREWS, AND BATTERY NOT SHOWN IN DETAIL PC. NO. QTY VENTEK PART # ASSEMBLY FS00136 #6-32 x 1/4" Lg. PAN HEAD PHILLIPS S.S.SPACER West Chester, OH 45069 Fax: (513) 874-3269 THE DESIGN AND DISCLOSURE CONTAINED IN THIS DRAWING = ±0.003 RADIO BOARD ASSEMBLY, INSIDE NEOPRENE & BRASS WASHER, ALUM. SPACER, BILL OF MATERIAL 1 2 3 1 1 IS SERIES, ISR3SAD-1 WASHER, STAR, GALV. (OUTSIDE) EA00161 FW00030 1 e-GUARD 418 MHz TRANSMITTER ENCLOSURE, POLYCARBONATE, ASSEMBLY APEM, PUSHBUTTON SWITCH ASSY, MACHINED MM00696 5 1 6 7 1 1 1/4 WAVE 418 MHz MINI STRAIGHTSELF-DRILLING MOUNTING SCREW FS00117 8 4 ML00023FW00027 LABEL, OUTSIDE COVERWASHER, BRASS (INSIDE) 9 10 11 4 1 EA00170 RADIO TRANSMITTER BOARD ANTENNA ANT1N44SM #6-20 x 1" Lg. PAN HEAD PHILLIPS S.S. ANNODIZED COATING 12 13 1 ML00067 LABEL, FCC 2 FM00021-2 DUAL LOCK FASTENER 14 1 11 1 EM00203 MM00697 AA BATTERY UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES: - ANGLES ±0° 30' - DECIMALS .XX = ±0.01 .XXX = ±0.005 -COAXIALITY NOTES: #6-19 x 5/8" Lg. PLASTITE PHILLIPS S.S.SCREW 13 10 5 12 10 10 10 6 .8 1.0 .5

VENTEK WV1P

PS00055-00 9470 Meridian Way West Chester, Ohio 45069 Phone: 513-874-3195 Fax: 513-874-3269 www.ventekllc.com Mini Monopole Antenna 418 MHz Ideas Today ............Products Tomorrow

1250 Peterson Dr., Wheeling, IL 60090 Page -1 of 39- Company: VenTek, LLC Model Tested: WV1P Report Number: 13930 FCC Rules and Regulations / Intentional Radiators Periodic operational in the 40.66-40.70 MHz Band and above 70 MHz. Part 15, Subpart C, Section 15.231 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: e-Guard Tilt Sensor Kind of Equipment: Wireless Sensor/Monitor Test Configuration: Standalone (Tested at 3.6 vdc) Model Number(s): WV1P Model(s) Tested: WV1P Serial Number(s): Test Date of Tests: January 2 & 3, 2007, December 20, 2007 & March 10, 2008 Test Conducted For: VenTek, LLC 9470 Meridian Way West Chester, IL 45069 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983-2007 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report or any portion their of, may not be reproduced or modified in any form without the expressed written consent of D.L.S. Electronic Systems, Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -2 of 39- Company: VenTek, LLC Model Tested: WV1P Report Number: 13930 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 1250 Peterson Dr., Wheeling, IL 60090 Page -3 of 39- Company: VenTek, LLC Model Tested: WV1P Report Number: 13930 TABLE OF CONTENTS i. Cover Page .............................................................................................................................. 1 ii. Signature Page ........................................................................................................................ 2 iii. Table of Contents ................................................................................................................ 3 iv. NVLAP Certificate of Accreditation ..................................................................................4 1.0 Summary of Test Report ..................................................................................................... 5 2.0 Introduction.........................................................................................................................5 3.0 Object ..................................................................................................................................5 4.0 Test Set-Up .........................................................................................................................6 5.0 Test Equipment ...................................................................................................................7 6.0 Ambient Measurements ...................................................................................................... 8 7.0 Description of Test Sample.................................................................................................9 8.0 Additional Description of Test Sample.............................................................................10 9.0 Photo Information and Test Set-Up ..................................................................................11 10.0 Radiated Photos Taken During Testing ............................................................................12 11.0 Results of Tests ................................................................................................................. 14 12.0 Conclusion ........................................................................................................................14 TABLE 1 – EQUIPMENT LIST .................................................................................................. 15 Appendix A – Electric Field Radiated Emissions Test.................................................................20 1.0 Pulsed Operation (Duty Cycle Correction Factor)............................................................21 1.0 Graph(s) taken of the Pulsed Operation (DCCF).............................................................. 22 2.0 Graph(s) taken of the Transmit Duration Emissions ........................................................ 29 2.0 Bandwidths ....................................................................................................................... 32 2.0 Graph(s) taken of the 20 dB Bandwidth Emissions.......................................................... 33 3.0 Restricted Bands ............................................................................................................... 35 4.0 Field Strength of Fundamental and Spurious Emissions ................................................. 36 4.0 Graph(s) taken of the Fundamental, Spurious Emissions and Restricted Bands ..............37 1250 Peterson Dr., Wheeling, IL 60090 Page -4 of 39- Company: VenTek, LLC Model Tested: WV1P Report Number: 13930 1250 Peterson Dr., Wheeling, IL 60090 Page -5 of 39- Company: VenTek, LLC Model Tested: WV1P Report Number: 13930 1.0 SUMMARY OF TEST REPORT It was found that the e-Guard Tilt Sensor, Model Number(s) WV1P, meets the radio interference radiated emission requirements of the FCC ''Rules and Regulations'', Part 15, Subpart C, Section 15.231 for periodic operational in the 40.66-40.70 MHz Band and above 70 MHz. The AC Power Line conducted emissions test was not required because the e-Guard Tilt Sensor is powered from a D.C. power source. It does not have a line cord to plug into the A.C. power line. 2.0 INTRODUCTION On January 2 & 3, 2007, December 20, 2007 & March 10, 2008, a series of radio frequency interference measurements was performed on e-Guard Tilt Sensor, Model Number(s) WV1P, Serial Number: Test. The tests were performed according to the procedures of the FCC as stated in the ''Methods of Measurement of Radio-Noise Emissions for Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz'' found in the American National S…
