UVZXT1100XT1100 Rugged Tablet PC

Rugged Tablet PC-XT1100 User Manual Ver 1.0 XT1100 User Manual Table of Contents Preface ................................................................ i CE Conformity Statement .............................................. i FCC Compliance Statement ........................................... ii Copyright Statement ...................................................iii Safety Instructions ..................................................v Rugged and Ready to Go ...........................................1 Symbols Used in this Manual ...........................................1 Product Features.........................................................1 Exploring the XT1100....................................................2 Front View.............................................................2 Left View ..............................................................3 Right View .............................................................3 Rear View..............................................................4 Getting Started ......................................................5 Inserting the Battery ....................................................5 Connecting the Power...................................................5 Inserting a Memory Card ................................................6 Inserting a PC Card ......................................................7 Making Connections .....................................................8 Connecting to a Monitor.............................................8 Connecting USB Devices .............................................8 Connection to a Network............................................9 Connecting to a Telephone Line ...................................9 Connecting Headphones.............................................9 Connecting a Microphone ......................................... 10 Turning On .............................................................. 10 Controlling the XT1100................................................ 11 Using the Touch Screen ........................................... 11 Using the Control Panel Buttons ................................. 12 Using the On-Screen Keyboard ................................... 13 Configuring the Function Buttons................................ 14 XT1100 User Manual Adjusting Screen Brightness ...................................... 14 Adjusting the Volume.............................................. 14 Wireless Connections............................................. 15 RaLink Wireless Utility ................................................ 15 Link Status Screen.................................................. 16 Site Survey Screen ................................................. 16 Statistics Screen .................................................... 16 Advanced Screen ................................................... 17 QoS Screen .......................................................... 18 About Screen ........................................................ 18 Windows Basics .................................................... 19 General Use............................................................. 19 The Start Menu ..................................................... 19 Creating User Accounts............................................ 19 Logging Off .......................................................... 20 Turning Your XT1100 Off .......................................... 20 Programs and Applications ........................................... 20 Running Programs and Applications ............................. 20 Installing Software ................................................. 21 Uninstalling Software .............................................. 21 File Management....................................................... 22 Searching for Files ................................................. 22 Copying Files ........................................................ 22 Renaming Files...................................................... 22 Deleting Files ....................................................... 23 Advanced Settings................................................. 25 Configuring Pointer Device Settings ................................ 25 Devices Screen...................................................... 25 Hardware Screen ................................................... 26 Settings Screen ..................................................... 26 Advanced Screen ................................................... 27 General Screen ..................................................... 28 Windows Screen .................................................... 28 XT1100 User Manual Calibration Screen ................................................. 29 Status Screen ....................................................... 30 About Screen ........................................................ 30 Specifications ...................................................... 31 XT1100 User Manual XT1100 User Manual i Preface CE Conformity Statement This product is compliant with the Electromagnetic Compatibility Directive 89/336/EEC and the Low Voltage Direc- tive 73/23/EEC of the European Union. This product meets the following technical standards: • EN 55022 — "Information Technology Equipment — Radio Disturbance Characteristics — Limits and Methods of Measurement." • EN 55024 — "Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement." • EN 61000-3-2 — "Electromagnetic Compatibility - Part 3: Limits - Section 2: Limits for Harmonic Current Emissions (Equipment Input Current Up to and Including 16 A Per Phase)." • EN 61000-3-3 — "Electromagnetic Compatibility - Part 3: Limits - Section 3: Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment With Rated Current Up to and Including 16 A." • EN 60950 — "Safety of Information Technology Equipment." EN 55022 emiss…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: ACA Digital Corporation Address: 17F, No. 866-7, Zhongzheng Rd. City: Zhonghe City, Taipei County 235 Country: Taiwan, R.O.C. Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28, Xing-Ai Rd. City: Neihu, Taipei 114 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: XT1100 Tablet PC Type designation: XT1100 Trademark: ACA Digital on our behalf. Date: 2006/12/13 City: Taipei Name: Arthur Dai Signature:

Request for non-disclosure RF_501_02 ACA Digital Corporation 17F, No. 866-7, Zhongzheng Rd. Zhonghe City, Taipei County 235 Taiwan, R.O.C. To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: UVZXT1100) Reference number: XT1100 Date: 2006/11/20 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), ACA Digital Corporation hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( UVZXT1100) a. Schematic diagrams b. Operational description Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. ACA Digital Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Arthur Dai PA Manager ACA Digital Corporation

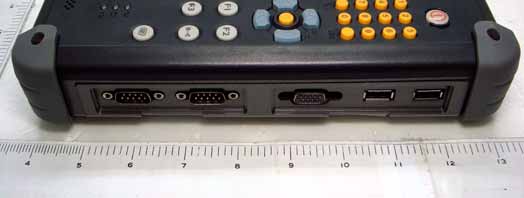

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 1 of 22 FCC Test Report: FI06111402-A Appendix A. Photographs of EUT 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 2 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 3 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 4 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 5 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 6 of 22 FCC Test Report: FI06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 7 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 8 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 9 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 10 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 11 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 12 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 13 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 14 of 22 FCC Test Report: FI06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 15 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 16 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 17 of 22 FCC Test Report: FI06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 18 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 19 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 20 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 21 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 22 of 22 FCC Test Report: FI06111402-A 06111402-A 06111402-A

1.1. Test Result of RF Exposure Evaluation . Product: XT1100 Rugged Tablet PC . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.3 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: April. 09, 2007 Temperature: 23 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 20.79 0.041 06 2437 20.19 0.035 11 2462 20.90 0.042 Modulation Standard: IEEE 802.11g Test Date: April. 09, 2007 Temperature: 23 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 19.97 0.034 06 2437 20.78 0.040 11 2462 20.56 0.038 The MPE is calculated as 0.042 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 1 of 55 FCC Test Report: FI06111402-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : ACA Digital Corporation Address : 17F, No.866-7, ZhongZhen Rd. Zhonghe City, Taipei County, Taiwan, R.O.C Equipment : XT1100 Rugged Tablet PC Model No. : XT1100 FCC ID : UVZXT1100 Trade Name : ACA Digital Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 2 of 55 FCC Test Report: FI06111402-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode & Test Software ........................................................................................................ 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 Measurement Uncertainty .......................................................................................................... 9 2.8 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit..................................................................................................................................12 4.2 Test Procedures.......................................................................................................................12 4.3 Typical Test Setup ...................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................16 5. Test of Radiated Emission ...............................................................................................................17 5.1 Test Limit..................................................................................................................................17 5.2 Test Procedures.......................................................................................................................18 5.3 Typical Test Setup ....................................................................................................................19 5.4 Measurement equipment ......................................................................................................... 19 5.5 Test Result and Data................................................................................................................20 5.6 Test Photographs .....................................................................................................................36 6. 6dB Bandwidth Measurement Data .................................................................................................37 6.1 Test Limit ..................................................................................................................................37 6.2 Test Procedures .......................................................................................................................37 6.3 Test Setup Layout ....................................................................................................................37 6.4 Measurement equipment ......................................................................................................... 37 6.5 Test Result and Data................................................................................................................37 7. Maximum Peak Output Power .........................................................................................................41 7.1 Test Limit ...........................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 16 of 55 FCC Test Report: FI06111402-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 20, 2007 36 of 55 FCC Test Report: FI06111402-A 5.6 Test Photographs Front View Rear View
