UZ77528LFARFID Module LF-ID1

© 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. WA9905/WA9906 -RFID MODULES HF-KR3-2S/LF-ID1 INSTALLATION SHEET Important: All Approval and safety information is outlined in the ‘WORKABOUTPRO4 Regulatory & Warranty Guide – part number 8000296 provided with each WORKABOUTPRO4. Warning: The WORKABOUTPRO4 with the RFID option must not be held closer than 20 cm from the rest of the body. This product must not be used in a holster or on a belt-clip. © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. 1. Product Description Easily installable expansion modules for the WORKABOUT PRO 4 allow you to customise this hand-held to meet your specific mobile computing requirements. This chapter outlines how to install the RFID Module HF/LF. The RFID MODULE HF-KR3-2S (WA9905) or RFID MODULE LF-ID1 (WA9906) kits are composed of 7 parts: A. PCB ASSY MODULE HF-KR3-2S or PCB ASSY MODULE LF-ID1 B. PLASTIC MULTIPURPOSE ENDCAP C. RUBBER PCB GUIDE D. STOPPER BRACKET E. USB CABLE F. LABEL CE/FCC/IC FOR WORKABOUTPRO4 G. INSTRUCTION SHEET WAP4 HF/LF RFID MODULE A B C D E G F © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. 2. Product Installation Before installing a module in the WORKABOUT PRO 4, all power sources must be turned off. • Remove the batteries. If your unit is using AC power, disconnect it. With the power shut down, you can install the RFID Module HF/LF. • Connect the USB cable on the RFID Module. • Slide the RFID Module in the PCB guide. © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. Make sure you slide HF PCB only in the bottom slot of the PCB guide LF PCB • Adding SAM cards (optional): • Insert one or two SAM cards in their sockets: Unlock 1 or 2 SAM sockets Put 1 or 2 SAM cards and lock them • Slide the PCB guide in the Multi purpose End Cap. • Slide and Screw the stopper into the Multi purpose EndCap. © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. • Remove existing End cap at the top of the WORKABOUT PRO 4. • Connect the USB cable to USB connector. • Assemble and Screw the new RFID Endcap • Before Replacing battery, Stick the right CE/FCC/IC Label in the location following: IF the model number of WorkAboutPro4 is 7528XHF or LF put this label: IF the model number of WorkAboutPro4 is 7528XPHF or LF put this label: MODEL: 7528XHF CONTAINS APPROVED RADIO MODULE MODEL: 21-148603-0B CONTAINS FCC ID: UZ7211486030B & UZ77528HFA CONTAINS IC: 109AN-211486030B & 109AN-7528HFA © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. For detailed instructions, pleased refer to the WORKABOUT PRO 4 Hand-Held Computer User Guide. MODEL: 7528XPHF CONTAINS APPROVED RADIO MODULES MODELS: 21-148603-0B &7528P CONTAINS FCC ID: UZ7211486030B & UZ77528PA & UZ77528HFA CONTAINS IC: 109AN-211486030B & 109AN-7528PA & 109AN-7528HFA © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. 3. Software installation: • Copy and install the two latest CAB file named ““WAP 4 HF.CAB” or “LF Tools.CAB” and “RFID Driver_WAP 4_WM65_HF_KRX_2S.CAB” or “RFID Driver_WAP 4_WM65_LF_ID1.CAB” © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. • After installation, select “HF Demo” or LF Demo” in Program File folder, the connection panel opens: • To read the ID of a TAG, press the Read ID Button or Scan Button. Put the TAG in front of the antenna. Select TAG type © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. 4. Reading area: This area depends on the TAG type, TAG packaging, Tag position and environment (metallic or not). RFID MODULE HF-KR3-2S/LF-ID1 RFID Regulatory information Reading Area Tag © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 80073681.A MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are…

Text truncated - open the document above for the full version.

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.motorolasolutions.com February 23, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: Letter of Authorization To the Commission: Please be advised that I have designated Nicolas Fornier of Motorola Solutions Inc. as the person responsible for this project and to sign the 731 form. Any and all acts carried out by Nicolas Fornier of Motorola Solutions Inc., on the matters relating to all processes required in the FCC approval, and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the following product: FCC ID: UZ77528HFA FCC ID: UZ77528LFA If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory Engineering 631-738-5134 [email protected]

Motorola Solutions One Motorola plaza Holtsville, New York 14 February 2014 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Acknowledgment of FCC Modular approval requirements FCC ID : UZ77528LFA To Whom It May Concern: The RFID Module LF-ID1 includes 2 parts: The main board and antenna board. The RFID module is a complete read/write radio transmitter with its buffered /modulation data input. The antenna is a loop of 72 turns and his dimension are about 25X40 mm. This module is only mounted in a Multipurpose End Cap and plugged on the 7528 terminal via an expansion port. The RFID Module LF-ID1 only uses the USB interface and the 5V power supply. Modular approval requirement Yes No i) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly;  ii) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal;  iii) The module must contain power supply regulation on the module;  iv) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b);  v) The module must demonstrate compliance in a stand-alone configuration;  vi) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements);  vii) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements;  viii) The module must comply with RF exposure requirements. For any transmitters intended for use in portable devices, SAR compliance must be demonstrated to be independent of the host device. See KDB Publication 447498 as a guide to determine if a transmitter can be tested without being limited to a host device. If SAR compliance can only be demonstrated in specific host types or platforms, then the module type must be “limited.”  i. The radio elements aren’t directly overlaid by a metal cover. The RFID module LF-ID1 is directly connected to the Top of terminal using a JST cable. v. The radio module is tested in the host Sincerely, Nicolas FORNIER Motorola Solutions

Motorola Solutions One Motorola plaza Holtsville, New York 10 Feb. 14, 2014 EMITECH GRAND SUD BP 25 145 rue du Massacan 34741 VENDARGUES CEDEX Téléphone : 04 67 87 11 02 Télécopie : 04 67 70 94 55 Subject: RADIO Test of the RFID MODULE LF-ID1 Applicant: Motorola Solutions Model: WA9906 FCC ID: UZ77528LFA IC ID: 109AN-7528LFA The 125 KHz RFID module LF-ID1 consists of an RFID IDTRONICS reader, an interface PCB and a wire wound antenna. The module is plugged into the internal expansion port of the WORKABOUT PRO4 Handheld Computer. The WORKABOUT PRO4 with integrated LF-ID1 is a colour mobile computer. The product is a mobile device and must not be held closer than 20 cm from the rest of the body and must not be used in a holster or on a belt-clip. It also has a Lithium Ion polymer rechargeable battery pack, WLAN, Bluetooth and WWAN radios (7528XPLF only) and is supplied with AC/DC adaptor. The RFID module has to pass the limited Modular approval for FCC and Canadian rules. This module will be approved for use when installed in the following WORKABOUT PRO4 Handheld Computer models: Model: 7528XLF - in co- transmission with Bluetooth module and WLAN Model: 7528XPLF in co- transmission with Bluetooth module, WLAN and WWAN. The following radio modules used in the configurations are already approved: Model: 21-148603-0B - FCC ID: UZ7211486030B and IC: 109AN-211486030B Model: 7528P - FCC ID: UZ77528PA and IC:109AN-7528PA Please feel free to contact me if you need further information. Regards, Nicolas Fornier Motorola Solutions

Motorola Solutions One Motorola plaza Holtsville, New York 25 March, 2014 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: Confidentiality Request regarding application for certification of FCC ID: UZ77528LFA. Applicant: Motorola Solutions Product: RFID Module LF-ID1 Model: WA9906 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram WA9906 BlkDia.pdf Schematics WA9906 Schem.pdf Operational Description WA9906 Opdes.pdf Parts List WA9906 Partslst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application, for a period of 180 days, as outlined below: Exhibit Type File Name External Photos WA9906 ExtPho.pdf Internal Photos WA9906 IntPho.pdf Test Setup Photos WA9906 Tsup.pdf User’s Manual WA9906 UserMan.pdf Sincerely, Nicolas FORNIER Motorola solutions

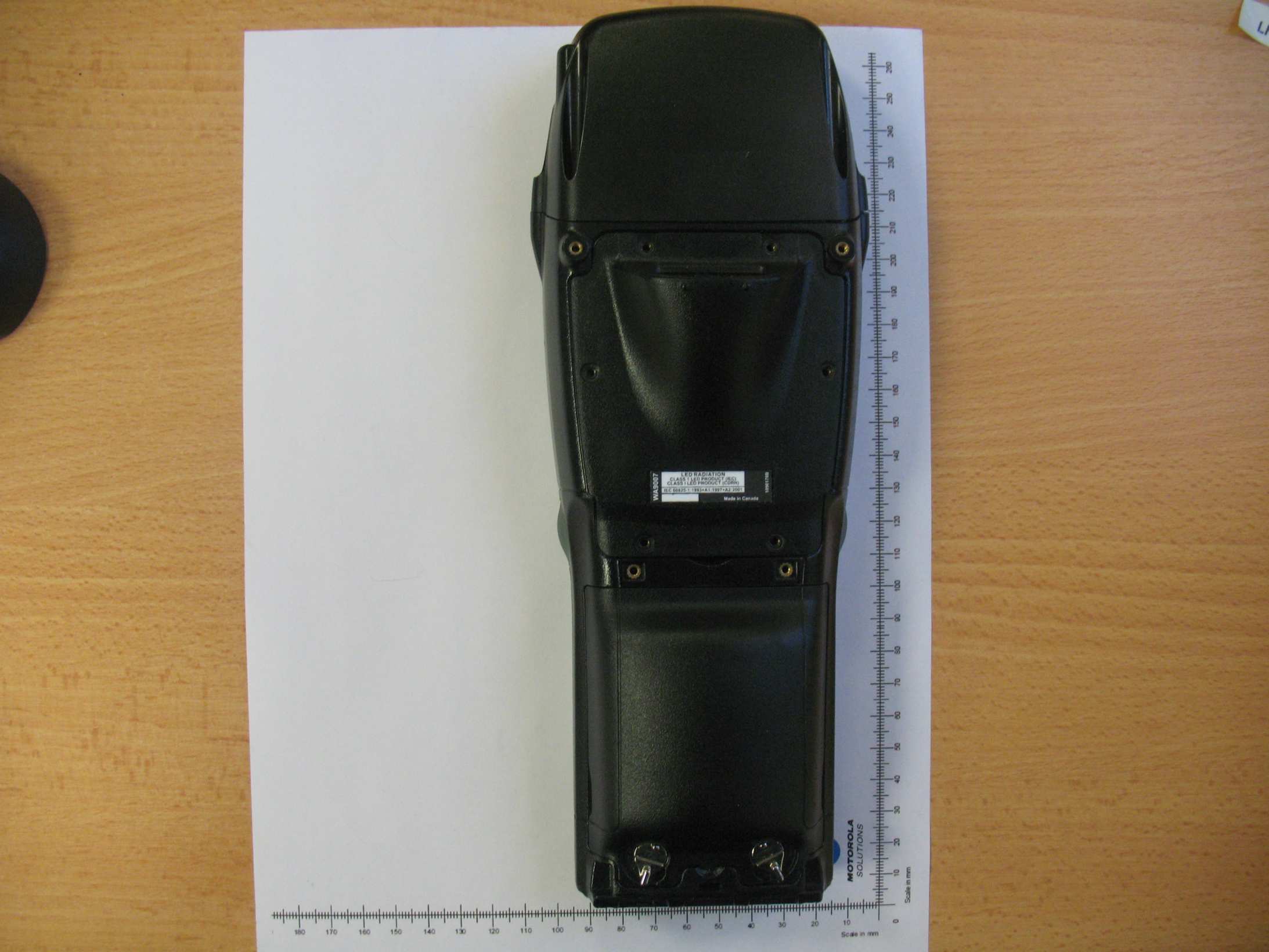

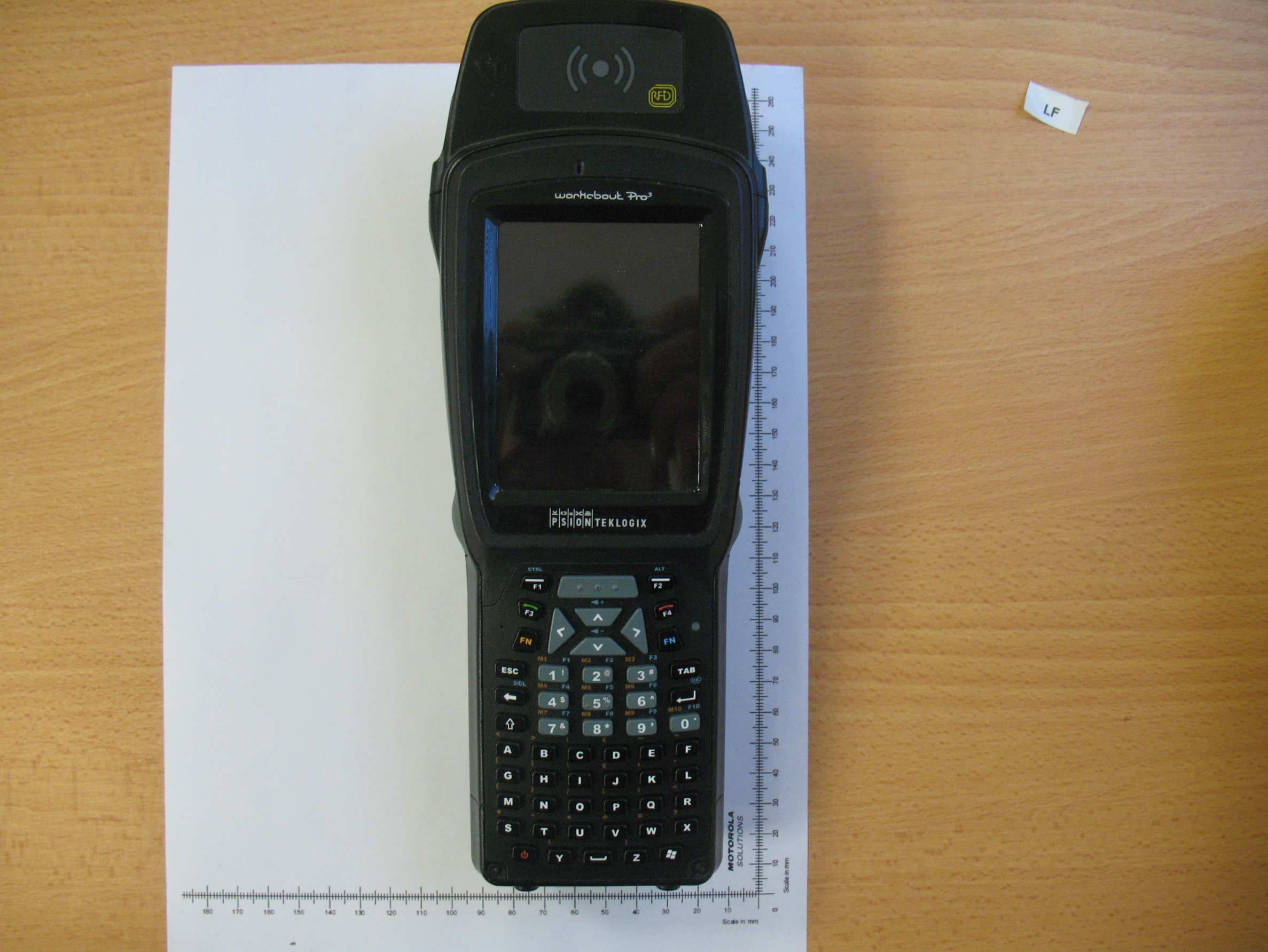

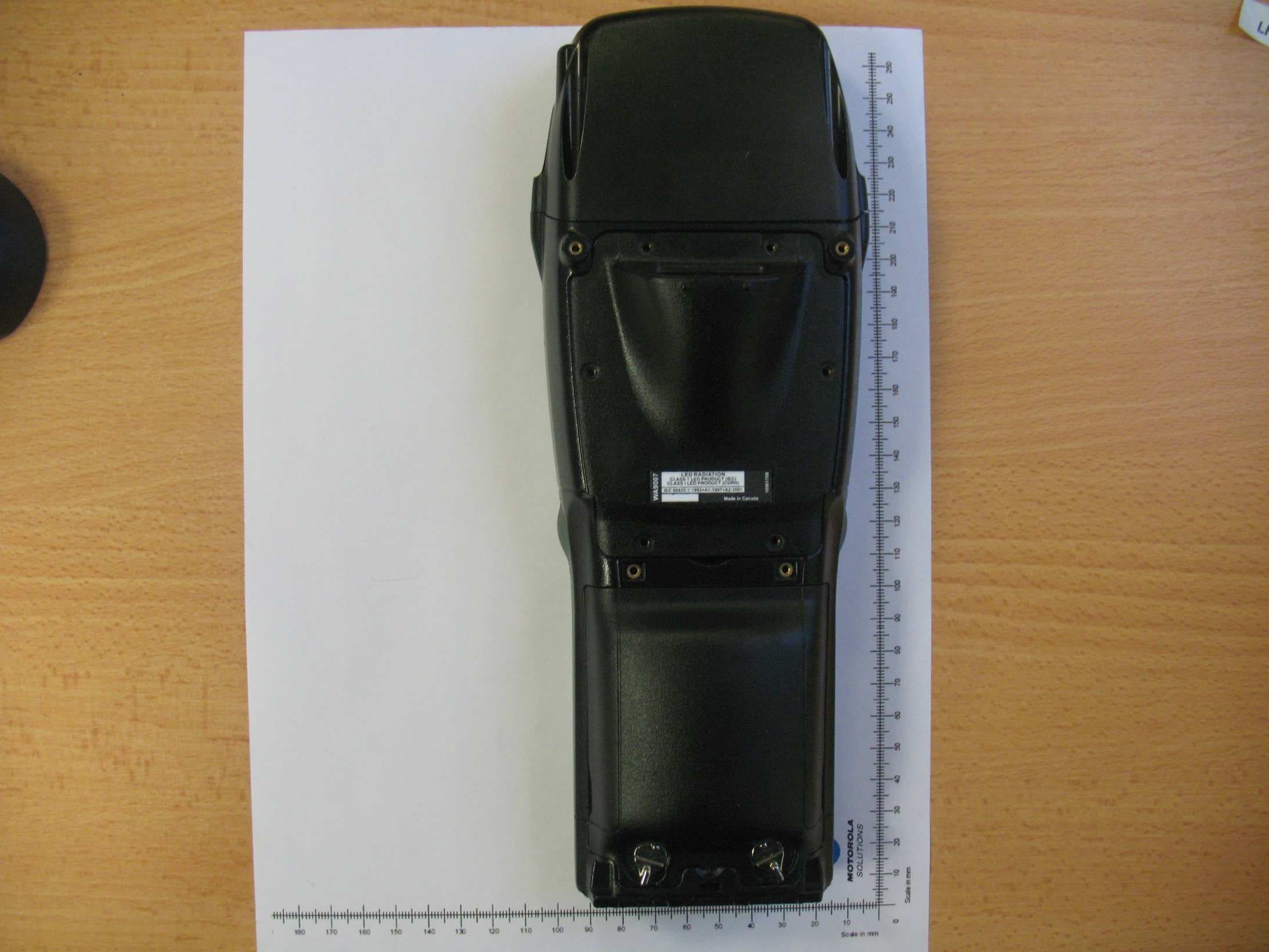

RFID MODULE LF-ID1- M/N: WA9906 End Cap Assembly: Top View Side View WORKABOUTPRO4 + RFID Module HF-KR3-2S Assembly: TOP VIEW BOTTOM VIEW

© 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. . WA9906 -RFID MODULE LF-ID1 INSTALLATION INSTRUCTION 1. Serial number codification MMSLLYWWxxxxZZ Model Identifier Location Identifier Year of manufacture Identifier Week of manufacture Identifier Incremental serial number (Sub-) Assembly Identifier Build Revision (Optional) 2. Label for RFID Module LF-ID1 © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. . 3. Label for 7528 terminal a. WWAN European variant: b. WWAN American variant: c. WIFI variant: © 2014 Motorola Solutions, Inc. All Rights Reserved. February 12, 2014 MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.. . Label dimensions: 1. Installation procedure 1. Label area for RFID Module LD-ID1 label COMPANY HEADQUARTERS SUPPORT SERVICES Motorola Solutions, Inc. Contact the Motorola Solutions Global Customer Support at: 1301 E. Algonquin Rd. http://www.motorolasolutions.com/support. Schaumburg, IL 60196-1078, U.S.A. http://www.motorolasolutions.com . 2. Label area for RFID Module LF-ID1 label into 7528 terminal: Label is located under battery.

RFID Module LF-ID1- M/N: WA9906 LF OEM: TOP VIEW BOTTOM VIEW Interface PCB: TOP VIEW WITHOUT LF OEM TOP VIEW WITH LF OEM BOTTOM VIEW Antenna PCB: TOP VIEW BOTTOM VIEW PCB Assembly: SIDE VIEW Plastic parts: RFID Module Assembly:

 Siège Social : Emitech ‐ 3, rue des Coudriers ‐ CAP 78 ‐ ZA de l’Observatoire ‐78180 MONTIGNY LE BX ‐France Siret : 344 545 645 00022 ‐ Tél. : 33 (0)1 30 57 55 55 ‐ Fax : 33 (0)1 30 43 74 48 ‐ E‐mail : [email protected] ‐ URL : www.emitech.fr S.A. au capital de 1 560 000 € ‐ R.C.S. VERSAILLES 344 545 645 ‐ APE 7112B R041-13-104897-16A - DM / CBU RADIO TEST REPORT According to the standard(s): FCC part 15 Subpart C RSS-Gen _ Issue 3, December 2010 OET Bulletin 65 (1997), RSS 102 (2010) Equipment under test: WORKABOUT PRO V4 7528XLF WORKABOUT PRO V4 7528XPLF (RFID MODULE LF-ID1) FCC ID: UZ77528LFA IC ID: 109AN-7528LFA Company: MOTOROLA SOLUTIONS Diffusion: Mr BONNEFOY (Company: MOTOROLA SOLUTIONS) Number of pages: 31 including 1 annex Ed. Date Modified page(s) Written by Name Visa Technical verification Quality approval Name Visa 0 10 Mar. 14 Creation David MONTAULON Olivier HEYER Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. R041-13-104897-16A Ed.0 PAGE: 2  NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : WORKABOUT PRO V4 7528XLF WORKABOUT PRO V4 7528XPLF (RFID MODULE LF-ID1) Serial number : None Part number : WA9906 (RFID module) FCC ID: UZ77528LFA IC ID: 109AN-7528LFA Software Version : None MANUFACTURER’S NAME : MOTOROLA SOLUTIONS APPLICANT’S ADDRESS: Company : MOTOROLA SOLUTIONS Address : Parc de la Duranne 135 rue René DESCARTES BP 421000 13591 AIX EN PROVENCE Cedex 3 FRANCE Person(s) present during the tests : Mr FORNIER Responsible : Mr BONNEFOY DATE(S) OF TESTS : From January 17 th to February 20 th of 2014 TESTS LOCATION(S) : EMITECH MONTPELLIER laboratory in VENDARGUES (34) - FRANCE Open area test site in SALINELLES (30) - FRANCE FCC Test Firm Registration Number: 954701 IC Filling number : 4379C-1 TESTS SUPERVISOR(S) : None TESTS OPERATOR(S) : David MONTAULON R041-13-104897-16A Ed.0 PAGE: 3  CONTENTS 1. INTRODUCTION ..................................................................................................................................... 4 2. REFERENCE DOCUMENT(S) ................................................................................................................ 4 3. EQUIPMENT UNDER TEST CONFIGURATION .................................................................................... 4 4. EQUIPMENT UNDER TEST CONFIGURATION SCHEME .................................................................... 6 5. SUMMARY OF TEST RESULTS ............................................................................................................ 7 6. CONDUCTED EMISSIONS – SECTION 15.207, RSS-GEN §7.2.4 ........................................................ 8 7. UNWANTED RADIATED EMISSIONS – SECTION 15.209, RSS-GEN TABLE 5 ................................ 11 ANNEX: PHOTOGRAPH(S) .......................................................................................................................... 25 R041-13-104897-16A Ed.0 PAGE: 4  1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment WORKABOUT PRO V4: 7528XLF & 7528XPLF (denominated hereafter E.U.T.: equipment under test) according to document(s) listed below. 2. REFERENCE DOCUMENT(S) FCC Part 15 Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commission Part 15 – Radio frequency devices Subpart C – Intentional Radiators ANSI C 63.4:2003 American National Standard for Methods of measurement of Radio- Noise from low-voltage. Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-Gen: 2010 Exigences générales et information relatives à la certification Issue 3, December 2010 du matériel de radiocommunication 3. EQUIPMENT UNDER TEST CONFIGURATION Equipment under test (E.U.T.) description: The 125kHz RFID MODULE LF-ID1 consists of an RFID IDTRONICS reader, an interface PCB and a wire wound antenna. The module is plugged into the internal expansion port of the WORKABOUT PRO4 Handheld Computer. The WORKABOUT PRO4 with integrated LF-ID1 is a colour mobile computer. The product is a mobile device and must not be held closer than 20 cm from the rest of the body and must not be used in a holster or on a belt-clip. It also has a Lithium Ion polymer rechargeable battery pack, WLAN, Bluetooth and WWAN radios (7528XPLF only) and is supplied with an AC/DC adaptor. The RFID module has to pass Limited Modular approval for FCC and Canadian rules. This module will be approved for use when installed in the following WORKABOUT PRO4 Handheld Computer models 7528XLF & 7528XPLF: RFID MODULE LF-ID1 Applicant: Motorola Solutions Model: WA9906 FCC ID: UZ77528LFA IC ID: 109AN-7528LFA R041-13-104897-16A Ed.0 PAGE: 5  Model: 7528XLF - in co- transmission with Bluetooth module and WLAN  Permanent transmitter emission with a loop coil antenna:  Integral antenna, dedicated antenna supplied with the equipment  Frequency range used by E.U.T.: 125kHz (RFID), 2400-2483.5MHz (Wifi and Bluetooth)  Tested frequency: 125kHz (RFID)  Equipment: multi frequency  Total channel available: 1 (For RFID module)  Power supply: 110Vac/60Hz with AC adaptor Model: 7528XPLF in co- transmission with Bluetooth module, WLAN and WWAN.  Permanent transmitter emission with a loop coil antenna:  Integral antenna, dedicated antenna supplied with the equipment  Frequency range used by E.U.T.: 125kHz (RFID), 2400-2483.5MHz (Wifi and Bluetooth) GSM 850, DCS1900.  Tested frequency: 125kHz (RFID)  Equipment: multi frequency  Total channel available: 1 (For RFID module)  Power supply: 110Vac/60Hz with AC adaptor The following radio modules used in the configurations are already approved: Model: 21-148603-0B - FCC ID: UZ7211486030B and IC: 109AN-211486030B Model: 7528P - FCC I…

Text truncated - open the document above for the full version.

 RADIO TEST SETUP According to the standard(s): FCC part 15 Subpart C RSS-Gen _ Issue 3, December 2010 OET Bulletin 65 (1997), RSS 102 (2010) Equipment under test: WORKABOUT PRO V4 7528XLF WORKABOUT PRO V4 7528XPLF (RFID MODULE LF-ID1) FCC ID: UZ77528LFA IC ID: 109AN-7528LFA Company: MOTOROLA SOLUTIONS R041-13-104897-16A Ed.0 PAGE: 26  Conducted emissions R041-13-104897-16A Ed.0 PAGE: 27  Radiated measurement on open area test site R041-13-104897-16A Ed.0 PAGE: 28  Radiated measurement on open area test site R041-13-104897-16A Ed.0 PAGE: 29  Radiated measurement on open area test site R041-13-104897-16A Ed.0 PAGE: 30  Radiated measurement on open area test site (carriers measurements) Frequency tolerance (climatic enclosure) R041-13-104897-16A Ed.0 PAGE: 31  Ac power supply used for 110Vac/60Hz power supply measurement
