AP-7522 Access Point INSTALLATION GUIDE MN000879A01B.fm Page 1 Thursday, July 10, 2014 11:01 AM 2AP-7522 Access Point MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions, Inc. 2014. All rights reserved. MN000879A01B.fm Page 2 Thursday, July 10, 2014 11:01 AM Installation Guide3 1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.4 AP-7522 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.4.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.5 AP-7522 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.4 Power Injector System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.5 Wall Mount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.5.1 Wall Mount Procedure - New Installation . . . . . . . . . . . . . . . . . 12 2.5.2 Wall Mount Procedure - Existing Access Point Replacement . . 13 2.6 Suspended Ceiling T-Bar Mount Installation . . . . . . . . . . . . . . . . . . . 14 2.7 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.0 Basic Access Point Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4.0 AP-7522 Access Point Specifications . . . . . . . . . . . . . . . . . . . . . . . . 30 4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.1 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.2 Wireless Device Country Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.2.1 Country Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 5.2.2 Frequency of Operation - FCC and IC . . . . . . . . . . . . . . . . . . . . . 33 5.3 Health and Safety Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 34 5.3.1 Warnings for the use of Wireless Devices . . . . . . . . . . . . . . . . . 35 MN000879A01B.fm Page 3 Thursday, July 10, 2014 11:01 AM 4AP-7522 Access Point 5.3.2 Potentially Hazardous Atmospheres - Fixed Installations . . . . . . 35 5.3.3 Safety in Hospitals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 5.4 RF Exposure Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.2 International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.3 EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.4 US and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.5 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 5.6 Radio Frequency Interference Requirements - FCC . . . . . . . . . . . . . . . 37 5.6.1 Radio Transmitters - Part 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 5.6.2 Radio Frequency Interference Requirements - Canada . . . . . . . . 37 5.7 CE Marking and European Economic Area (EEA) . . . . . . . . . . . . . . . . . 38 5.8 Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5.9 Japan (VCCI) - Voluntary Control Council for Interference . . . . . . . . . 39 5.10 Korea Warning Statement for Class B ITE . . . . . . . . . . . . . . . . . . . . . 39 5.11 Other Countries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5.12 Waste Electrical and Electronic Equipment (WEEE) . . . . . . . . . . . . . 41 5.13 Turkish WEEE Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . 42 6.0 Motorola Solutions Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . 43 7.0 AP-7522 Access Point China ROHS Compliance . . . . . . . . . . . . . . . 44 MN000879A01B.fm Page 4 Thursday, July 10, 2014 11:01 AM Installation Guide5 1Introduction The AP-7522 external antenna and internal antenna Access Point’s are mid-tier Access Point’s with a relatively small footprint which supports functionality for dependable and efficient network performance.The AP-7522 is a 2x2:2 802.11ac Access Point utilizing one 2.4 GHz 802.11n radio and one 5 GHz 802.11ac radio. The Access Point housing is Plenum-rated (UL2043). The Access Point’s unique WiNG 5 software enables the Access Point to function as either a Standalone Access Point, an Adaptive Access Point, or a Virtual Controller. If new to Motorola Solutions Access Point technology, refer to the WiNG Access Point System Reference Guide to familiarize yourself with Access Point technology and the feature set supported by the WiNG ope…

Text truncated - open the document above for the full version.

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorol a.com May 5, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: FCC Attestations, Authorizations, Declarations FCC ID：UZ7AP7522 / Model No.: AP-7522 To the Commission: I, hereby certify that the submitted documents properly describe the device for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations will have affixed to it a label identical to that submitted for approval with this application. In Addition, Motorola Solutions, Inc., also acknowledges that all responsibility for complying with the terms and conditions for Certification, still resides with Motorola Solutions, Inc., One Motorola Plaza Holtsville, NY 11742 USA. Motorola Solutions, Inc., hereby have entrusted the person Leo Huang of Sporton International Inc. to be a proxy regarding application for Type Certification. We are therefore responsible for the contents of the application (Model No.: AP-7522); submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. In Addition, Motorola Solutions, Inc., as the grantee of this project FCC ID: UZ7AP7522, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD441804-01, FCC Test Firm Registration No.: 187376). In Addition, Motorola Solutions, Inc., pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application for Listing as outlined below: 1. Operational Descriptions 2. Schematics 3. Block Diagrams Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorol a.com The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory 631-738-5134 [email protected]

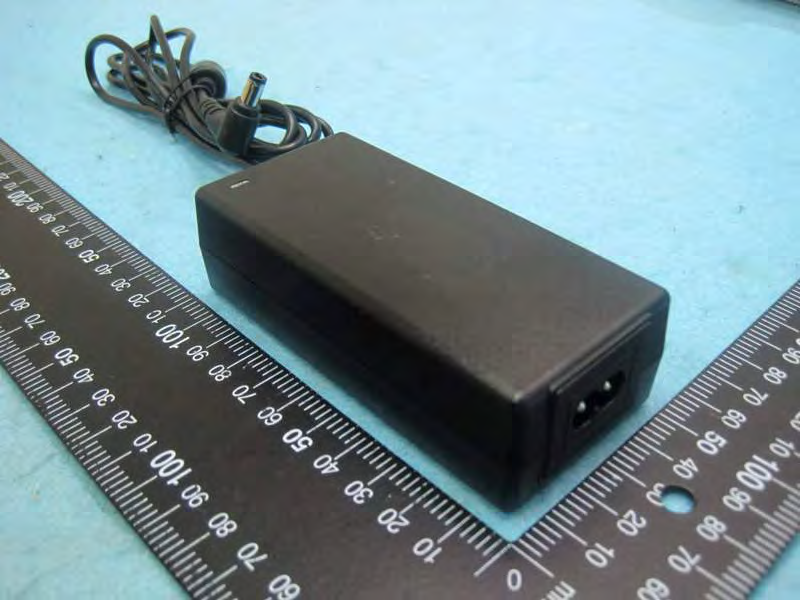

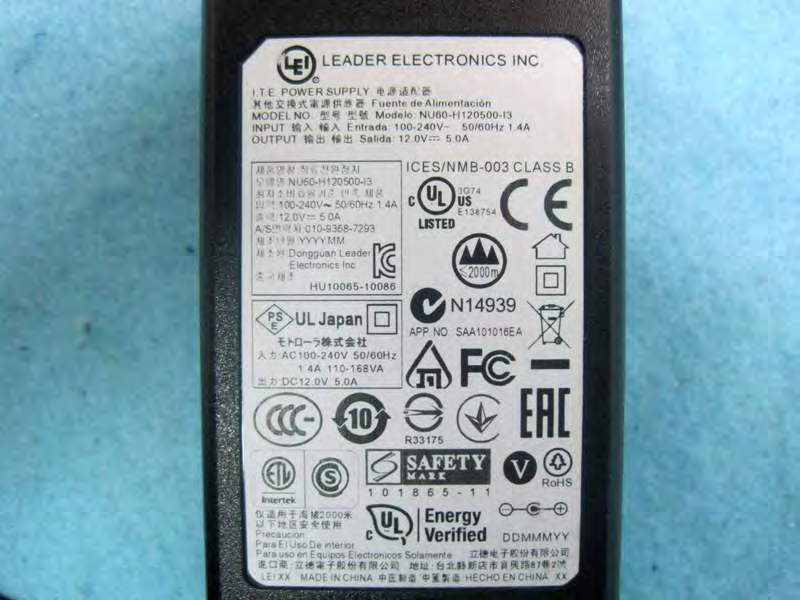

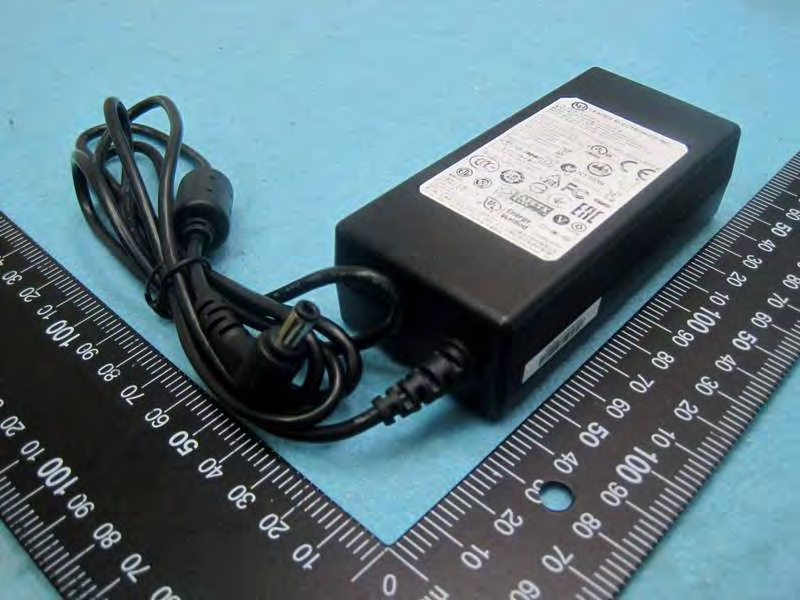

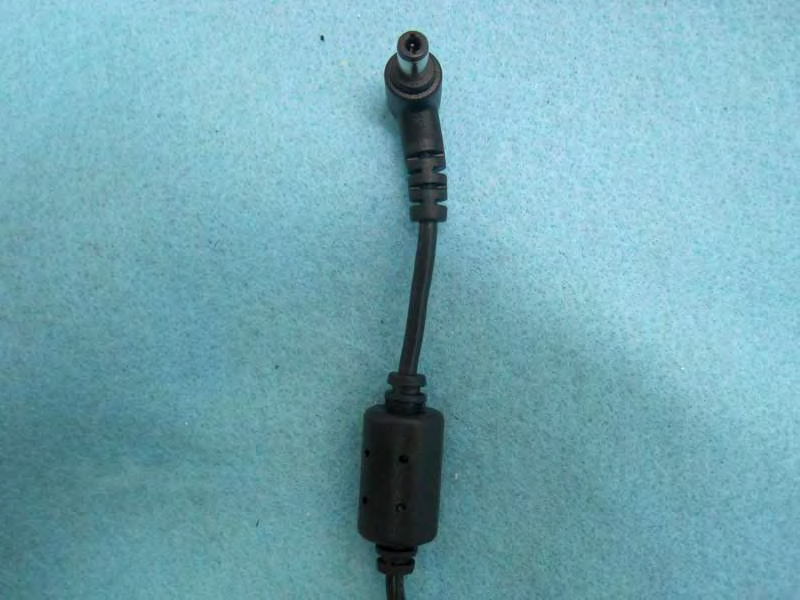

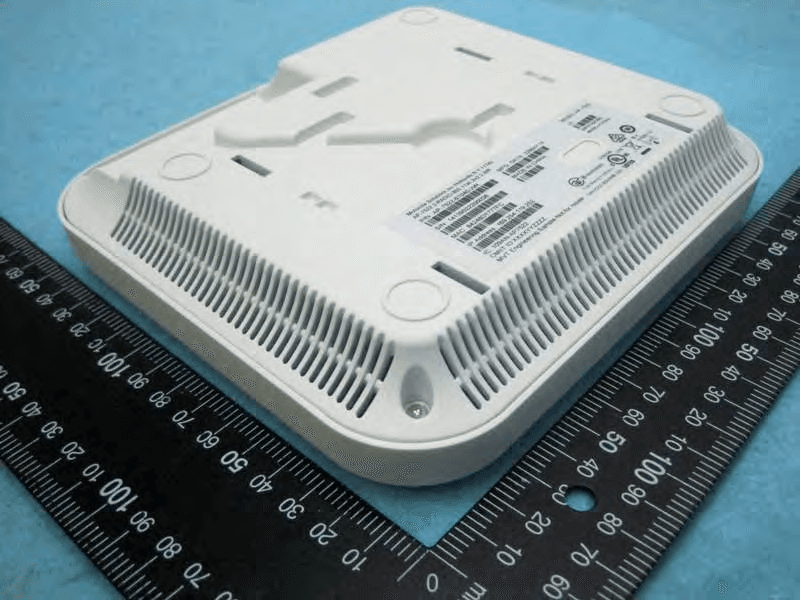

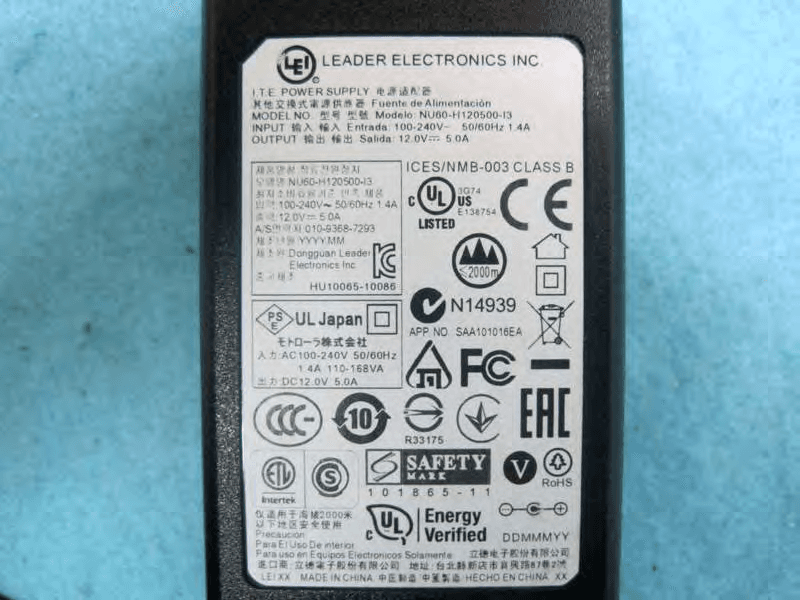

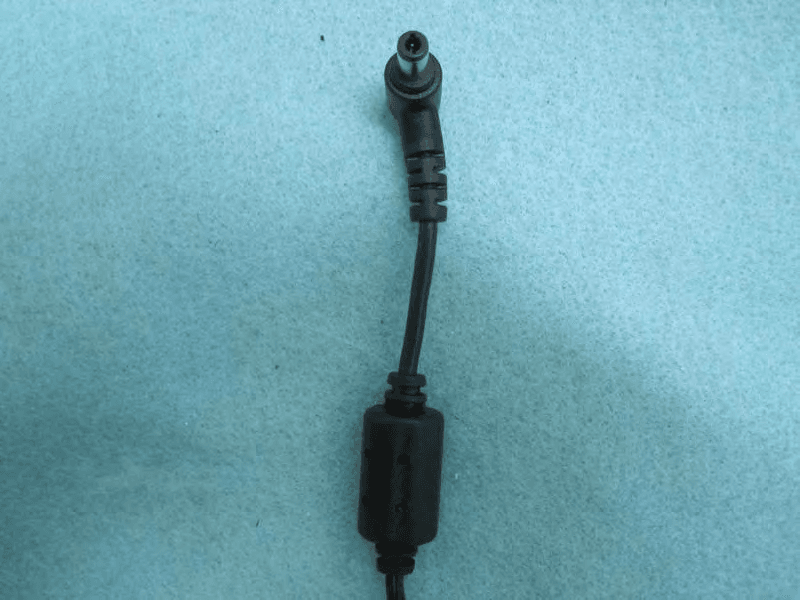

Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Adapter Model No.: NU60-H120500-13 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Ant. 1 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 2 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 3 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 4 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 1 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 2 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 3 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 4 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 5 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 6 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 7 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 8 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 9 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 10 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 11 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 12 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 13 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 14 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 15 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 16 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-04 SPORTON International Inc. PAGE NUMBER : 17 OF 17 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Report No.: FR441804-04 FCC ID: UZ7AP7522 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR441804-04 FCC ID: UZ7AP7522 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR441804-04 FCC ID: UZ7AP7522 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac VHT20 (2TX) : 22.30 dBm The maximum combined Average Output Power Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 8.0103 22.2982 169.7543 0.173221 1 Complies Note: For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac VHT20 (2TX) : 24 dBm The maximum combined Average Output Power Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.18 4.1498 23.9987 251.1135 0.132749 1 Complies Note: CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.173221 / 1 + 0.132749 / 1 = 0.305970, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.
