AP-7532 Access Point INSTALLATION GUIDE MN000878A01B.fm Page 1 Thursday, July 10, 2014 11:18 AM 2AP-7532 Access Point MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions, Inc. 2014. All rights reserved. MN000878A01B.fm Page 2 Thursday, July 10, 2014 11:18 AM Installation Guide3 1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.4 AP-7532 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.4.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.5 AP-7532 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.4 Power Injector System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.5 Wall Mount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.5.1 Wall Mount Procedure - New Installation . . . . . . . . . . . . . . . . . 12 2.5.2 Wall Mount Procedure - Existing Access Point Replacement . . 13 2.6 Suspended Ceiling T-Bar Mount Installation . . . . . . . . . . . . . . . . . . . 14 2.7 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.0 Basic Access Point Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4.0 AP-7532 Access Point Specifications . . . . . . . . . . . . . . . . . . . . . . . . 30 4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.1 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.2 Wireless Device Country Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.2.1 Country Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 5.2.2 Frequency of Operation - FCC and IC . . . . . . . . . . . . . . . . . . . . . 33 5.3 Health and Safety Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 34 5.3.1 Warnings for the use of Wireless Devices . . . . . . . . . . . . . . . . . 35 MN000878A01B.fm Page 3 Thursday, July 10, 2014 11:18 AM 4AP-7532 Access Point 5.3.2 Potentially Hazardous Atmospheres - Fixed Installations . . . . . . 35 5.3.3 Safety in Hospitals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 5.4 RF Exposure Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.2 International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.3 EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.4.4 US and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5.5 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 5.6 Radio Frequency Interference Requirements - FCC . . . . . . . . . . . . . . . 37 5.6.1 Radio Transmitters - Part 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 5.6.2 Radio Frequency Interference Requirements - Canada . . . . . . . . 37 5.7 CE Marking and European Economic Area (EEA) . . . . . . . . . . . . . . . . . 38 5.8 Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5.9 Japan (VCCI) - Voluntary Control Council for Interference . . . . . . . . . 39 5.10 Korea Warning Statement for Class B ITE . . . . . . . . . . . . . . . . . . . . . 39 5.11 Other Countries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5.12 Waste Electrical and Electronic Equipment (WEEE) . . . . . . . . . . . . . 41 5.13 Turkish WEEE Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . 42 6.0 Motorola Solutions Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . 43 7.0 AP-7532 Access Point China ROHS Compliance . . . . . . . . . . . . . . . 44 MN000878A01B.fm Page 4 Thursday, July 10, 2014 11:18 AM Installation Guide5 1Introduction The AP-7532 external antenna and internal antenna Access Point’s are mid-tier Access Point’s with a relatively small footprint which supports functionality for dependable and efficient network performance.The AP-7532 is a 3x3:3 802.11ac Access Point utilizing one 2.4 GHz 802.11n radio and one 5 GHz 802.11ac radio. The Access Point housing is Plenum-rated (UL2043). The Access Point’s unique WiNG 5 software enables the Access Point to function as either a Standalone Access Point, an Adaptive Access Point, or a Virtual Controller. If new to Motorola Solutions Access Point technology, refer to the WiNG Access Point System Reference Guide to familiarize yourself with Access Point technology and the feature set supported by the WiNG ope…

Text truncated - open the document above for the full version.

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.7 38.2400 phone | 1.631.627.7179 fax | www.m otorola.com May 5, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: FCC Attestations, Authorizations, Declarations FCC ID：UZ7AP75 32 / Model No.: AP-7532 To the Commission: I, hereby certify that the submitted documents properly describe the device for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations will have affixed to it a label identical to that submitted for approval with this application. In Addition, Motorola Solutions, Inc., also acknowledges that all responsibility for complying with the terms and conditions for Certification, still resides with Motorola Solutions, Inc., One Motorola Plaza Holtsville, NY 11742 USA. Motorola Solutions, Inc., hereby have entrusted the person Leo Huang of Sporton International Inc. to be a proxy regarding application for Type Certification. We are therefore responsible for the contents of the application (Model No.: AP-7532) ; submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. In Addition, Motorola Solutions, Inc., as the grantee of this project FCC ID: UZ7AP7532, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD441804-01, FCC Test Firm Registration No.: 187376). In Addition, Motorola Solutions, Inc., pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application for Listing as outlined below: 1. Operational Descriptions 2. Schematics 3. Block Diagrams Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.7 38.2400 phone | 1.631.627.7179 fax | www.m otorola.com The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory 631-738-5134 [email protected]

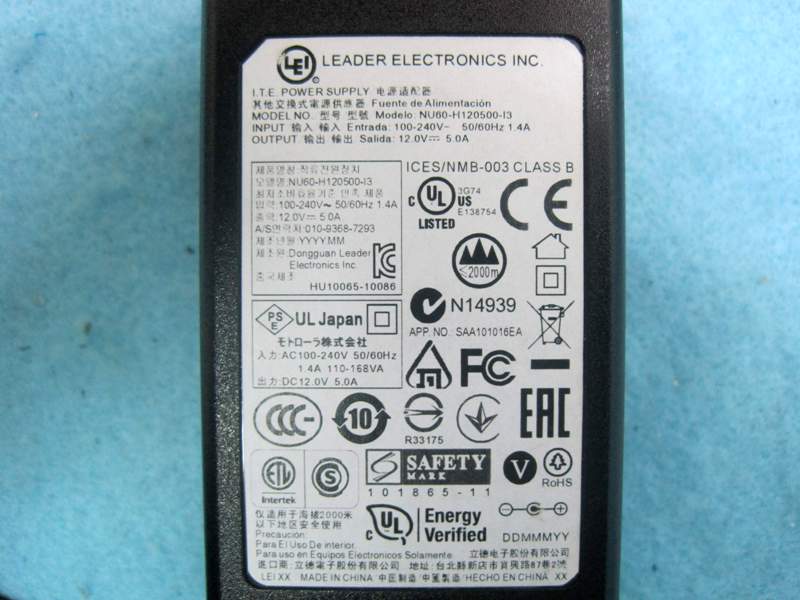

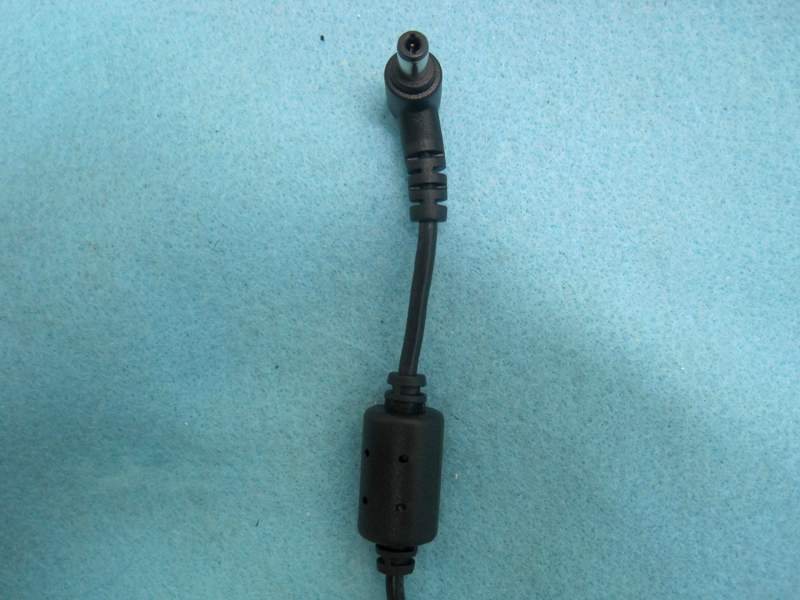

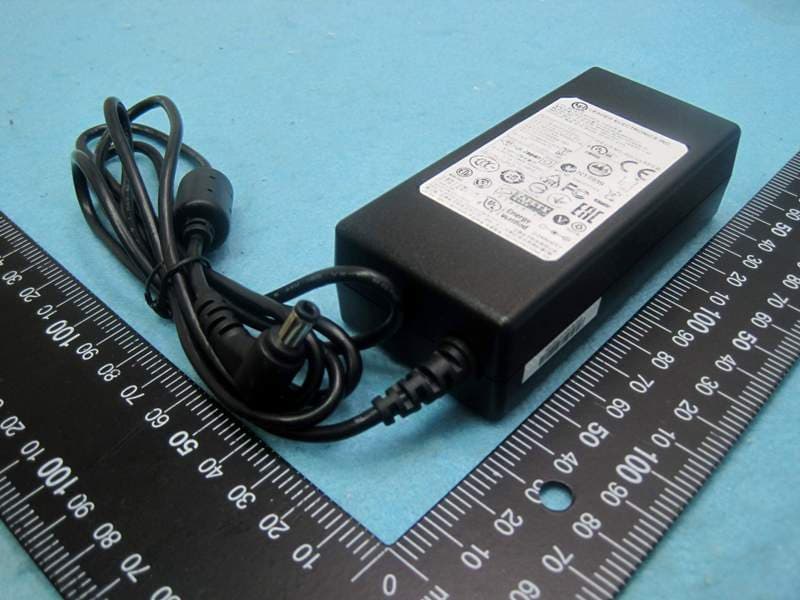

Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Adapter Model No.: NU60-H120500-13 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

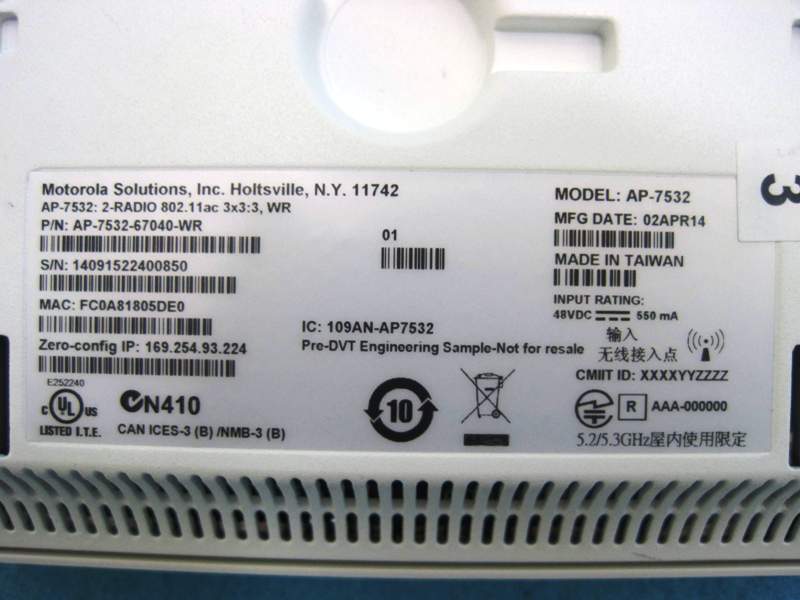

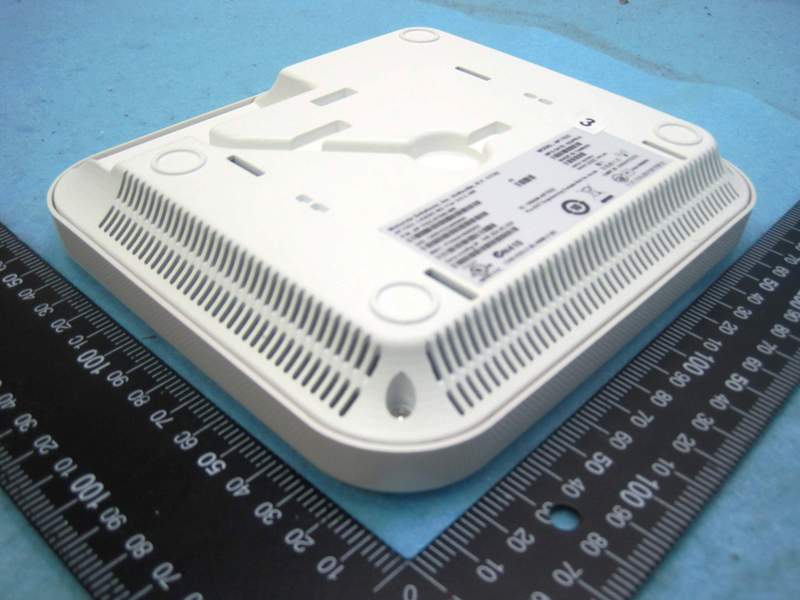

Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Ant. 1 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 2 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 3 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Ant. 4 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 1 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 2 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 3 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 4 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 5 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 6 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 7 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 8 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 9 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 10 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 11 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 12 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 13 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 14 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 15 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 16 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 17 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 18 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 Report No.:441804-02 SPORTON International Inc. PAGE NUMBER : 19 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : Panel Antenna Conducted Power for IEEE 802.11a (3TX) : 23.78 dBm The maximum combined Average Output Power Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.87 9.7078 23.7800 238.7817 0.295293 1 Complies Note: For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac VHT20 (3TX) : 24.83 dBm The maximum combined Average Output Power Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.94 6.2247 24.8260 303.8072 0.240907 1 Complies Note: CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.295293 / 1 + 0.240907 / 1 = 0.5362, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 56% Test Engineer Nick Peng Configurations 2.4G + 5G Horizontal Report No.: FR441804-02 FCC ID: UZ7AP7532 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Motorola Solutions, Inc. Applicant Address One Motorola Plaza Holtsville, NY 11742 USA FCC ID UZ7AP7532 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Product Name Birch External (3x3 MIMO) Brand Name MOTOROLA Model No. AP-7532 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Received Date Apr. 15, 2014 Final Test Date Jun. 18, 2014 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .......................................................................................................................................................................................10 3.3. Table for Filed Antenna.....................................................................................................................................................................11 3.4. Table for Carrier Frequencies ...........................................................................................................................................................13 3.5. Table for Test Modes .........................................................................................................................................................................14 3.6. Table for Testing Locations................................................................................................................................................................18 3.7. Table for Supporting Units .................................................................................................................................................................19 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................20 3.9. EUT Operation during Test .................................................................................................................................................................32 3.10. Duty Cycle ........................................................................................................................................................................................33 3.11. Test Configurations ...........................................................................................................................................................................35 4. TEST RESULT ................................................................................................................................................... 38 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................38 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................42 4.3. 6dB Spectrum Bandwidth and 99% Occupied Bandwidth Measurement........................................................................................67 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................86 4.5. Power Spectral Density Measurement ............................................................................................................................................112 4.6. Radiated Emissions Measurement ..................................................................................................................................................215 4.7. Band Edge Emissions Measurement ...............................................................................................................................................390 4.8. Frequency Stability Measurement ..................................................................................................................................................462 4.9. Antenna Requirements ...................................................................................................................................................................464 5. LIST OF MEASURING EQUIPMENTS ..............…

Text truncated - open the document above for the full version.

Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 215 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6. Radiated Emissions Measurement 4.6.1. Limit For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.725-5.85 GHz band: all emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an e.i.r.p. of −17 dBm/MHz; for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an e.i.r.p. of −27 dBm/MHz. In addition, In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RBW / VBW (Emission in restricted band) 1MHz / 3MHz for Peak, 1MHz / 10Hz for Average RBW / VBW (Emission in non-restricted band) 1MHz / 3MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RBW 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RBW 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RBW 120kHz for QP Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 216 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.3. Test Procedures 1. Configure the EUT according to ANSI C63.10. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 8. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 9. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 217 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.4. Test Setup Layout For Radiated Emissions: 9kHz ~30MHz For Radiated Emissions: 30MHz~1GHz For Radiated Emissions: Above 1GHz Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 218 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.5. Test Deviation There is no deviation with the original standard. 4.6.6. EUT Operation during Test For Non-beamforming mode: The EUT was programmed to be in continuously transmitting mode. For beamforming mode : The EUT was programmed to be in beamforming transmitting mode. For STBC mode : The EUT was programmed to be in continuously transmitting mode. Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 219 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 24°C Humidity 56% Test Engineer Nick Peng Configurations Normal Link Test Date Apr. 26, 2014 Test Mode Mode 1 Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 220 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 24°C Humidity 56% Test Engineer Nick Peng Configurations Normal Link Test Mode Mode 1 Horizontal Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 221 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR441804-02AB Report Format Version: Rev. 01 Page No. : 222 of 467 FCC ID: UZ7AP7532 Issued Date : Jul. 03, 2014 4.6.9. Results for Radiated Emissions (1GHz~40GHz) <For Non-Beamforming Mode> Temperature 24°C Humidity 56% Test Engineer Nick P…

Text truncated - open the document above for the full version.

Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A1 of A6 Appendix A. Test Photos Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A2 of A6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A3 of A6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: mode 1 FRONT VIEW REAR VIEW Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A4 of A6 Test Configuration: 30MHz~1GHz / Test Mode: mode 1 FRONT VIEW REAR VIEW Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A5 of A6 Test Configuration: Above 1GHz / Test Mode: mode 1 FRONT VIEW REAR VIEW Report No.: FR441804-02AB FCC ID: UZ7AP7532 Page No. : A6 of A6 Test Configuration: Above 1GHz / Test Mode: mode 2 FRONT VIEW REAR VIEW
