BT -RS5X6-DNGL Bluetooth Adapter Quick Reference Guide MN-004841-01EN-P Rev A Zebra Technologies | 3 Overlook Point | Lincolnshire, IL 60069 USA www.zebra.com | ip.zebra.com ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2023 Zebra Technologies Corporation and/or its affiliates. All rights reserved. Getting Started The BT-RS5X6-DNGL Bluetooth Adapter provides Bluetooth capability to a host computer. Place it on a horizontal surface or mount it vertically. The Bluetooth Adapter is compatible with RS5100 devices using CAAEXS00-001-R07 or later and all RS6100 devices. Refer to the Adapter's Product Reference Guide (p/n MN-004832-01EN) for adapter configuration information. Features 1 2 4 5 3 6 1 Mounting holes for screws 2 Mounting holes for cable ties 3 Interface port 4 LED indicator 5 Page button 6 Pairing barcode Mounting the Adapter Place the adapter on a tabletop or mount it on a vertical surface. Select a mounting location where the pairing barcode is visible. Horizontal Surface Mounting Place the adapter on a horizontal surface. The rubber feet provide traction and prevent surface damage. Vertical Surface Mounting The adapter may be mounted onto vertical surfaces using either screws or cable ties. Mounting the Adapter With Screws Mount the adapter using screws to hold it in place. Use four M5 screws at least 13 mm long. 1.Place the Bluetooth Adapter on the desired location. 2.Mark the surface through the four mounting holes to determine the location of the screw holes. 3.Pre-drill the holes to accommodate four M5 screws. 4. Attach the adapter securely to the surface. Mounting the Adapter with Cable Ties Mount the adapter using cable ties to hold it in place. Use two cable ties a maximum 8 mm wide and 3 mm thick. NOTE: Mount the adapter no more than 2 m (6 ft 5in.) above the floor. 1.Place the Bluetooth adapter in the desired location. 2.Thread a cable tie through the top two mounting holes and wrap it around the pole. Tighten the cable tie. 3.Trim excess cable tie length. 4.Repeat the process for the bottom mounting holes. Connecting the Adapter Connect the Bluetooth Adapter to the host computer to provide a Bluetooth connection. Use cable CBA-U46-S07ZAR. 1. Connect the latching end of the cable to the Bluetooth adapter port. Press the cable firmly until you hear a click to ensure it is fully inserted into the port. 2. Connect the USB end of the cable to the host computer. Pairing Scan the adapter's pairing barcode to pair it with a Zebra scanner. Modes of Operation Select a mode of operation: •Point-to-Point: Scan the pairing barcode on the Bluetooth Adapter to pair it with your Zebra scanner. •Multipoint-to-Point: Pair up to seven Zebra scanners with one adapter. To use this feature, scan the multipoint barcode when the scanner is connected to the adapter. NOTE: Refer to the scanner's Product Reference Guide for more information about Zebra scanner configuration. Point-to-Point Mode Multipoint-to-Point Mode Using the Page Button Activate the page button to help find paired scanners. The page button is a touch-sensitive sensor. 1. Press Page for approximately one second. The adapter LED indicator turns blue and all connected scanners emit an alert. Based on scanner capability and configuration, the alert may be visual (flashing LED), auditory (beeping), or haptic (vibration). 2. Repeat as needed until the missing scanners are located. NOTE: Scanners out of radio range will not alert when paged. Troubleshooting If the adapter does not work after following the previous procedures: •Check the system power. •Check for loose cable connections. •Check that the host computer settings are correct and that the adapter is connected to the appropriate port. Regulatory Information This device is approved under Zebra Technologies Corporation. This guide applies to the following model number: BT-RS5X6-DNGL All Zebra devices are designed to be compliant with the rules and regulations in the locations they are sold and will be labeled as required. Local language translation / (BG) Превод на местен език / (CZ) P#eklad do místního jazyka / (DE) Übersetzung in die Landessprache / (EL) Μετ#φραση τοπικ## γλ#σσα# /(ES) Traducción de idiomas locales / (ET) Kohaliku keele tõlge / (FI) Paikallinen käännös / (FR) Traduction en langue locale / (HR) Prijevod na lokalni jezik / (HU) Helyi nyelv# fordítás / (IT) Traduzione in lingua locale / (JA) 現地語翻訳 / (KR) 현지 언어 번역 / (LT) Vietin#s kalbos vertimas / (LV) Tulkojums vietējā valodā / (NL) Vertaling in lokale taal / (PL) T#umaczenie na j#zyk lokalny / (PT) Tradução do idioma local /(RO) Traducere în limba locală / (RU) Перевод на местный язык / (SK) Preklad do miestneho jazyka / (SL) Prevajanje v lokalni jezik / (SR) Превод на локални #език /(SV) Översättning av lokalt språk / (TR) Yerel dil çevirisi / (ZH-CN) 当地语言翻译 / (ZH-TW) 當地語言翻譯 zebra.com/support Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the user's authority to operate the equipment. Declared maximum operating temperature: 50°C For use only with Zebra approved and UL Listed mobile devices, Zebra approved. Bluetooth® Wireless Technology This is an approved Bluetooth® product. For more information on the Bluetooth SIG listing, please visit www.bluetooth.com. Regulatory Markings Regulatory markings subject to certification are applied to the device. Refer to the Declaration of Conformity (DoC) for details of other country markings. The DOC is available at: zebra.com/doc. Health and Safety Recommendations This section provides important health and safety recommendations. Safety in Hospitals and Aircraft Wireless devices transmit radio frequency energy that may affect medical electrical equipment and aircraft operation. Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics, hea…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 17, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: UZ7 Zebra Technologies Corporation (“the applicant”) certifies that, as of the date of the filing of the application, [Zebra Technologies Corporation] is our designated U.S. agent for service of process for the above referenced grantee code. Zebra Technologies Corporation accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. [Zebra Technologies Corporation] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced grantee code. Designated U.S. Agent Information: Name: Zebra Technologies Corporation FRN: 0015642663 Address: 1 Zebra Plaza, Holtsville, New York, United States, 11742 Contact Person: Larry (Qianlin) Zhou Tel.: 346-260-3543 Email: [email protected] Sincerely, Applicant U.S. Agent Zebra Technologies Corporation Zebra Technologies Corporation Larry (Qianlin) Zhou Larry (Qianlin) Zhou

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 6, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: UZ7BT-RS5X6-DNGL [Zebra Technologies Corporation] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543 Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 6, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: UZ7BT-RS5X6-DNGL [Zebra Technologies Corporation] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: September 6, 2023 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7BT-RS5X6-DNGL AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Internal Photos  External Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. If you have any questions regarding this authorization, please contact me directly. Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: September 6, 2023 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7BT-RS5X6-DNGL AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Internal Photos  External Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. If you have any questions regarding this authorization, please contact me directly. Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

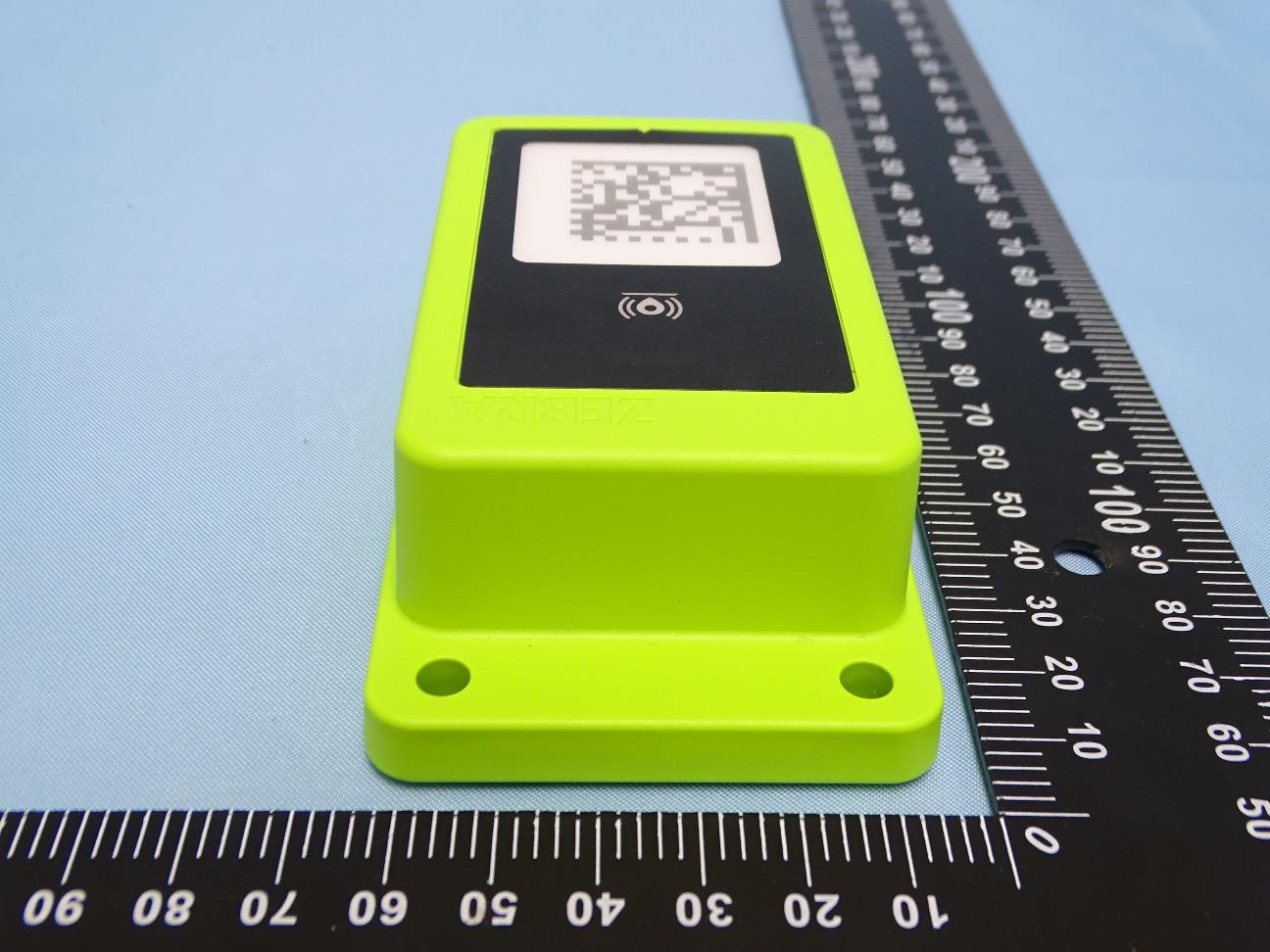

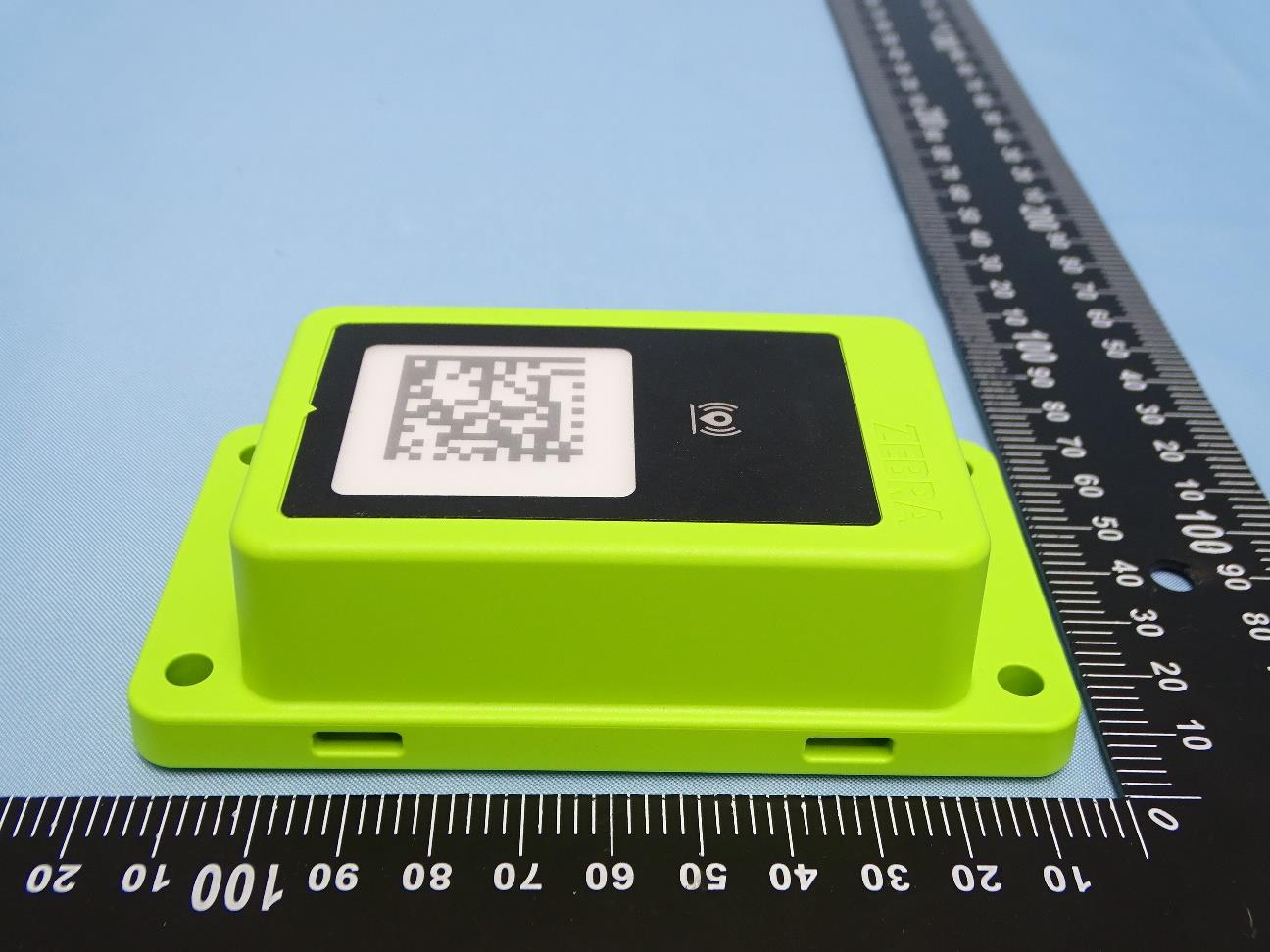

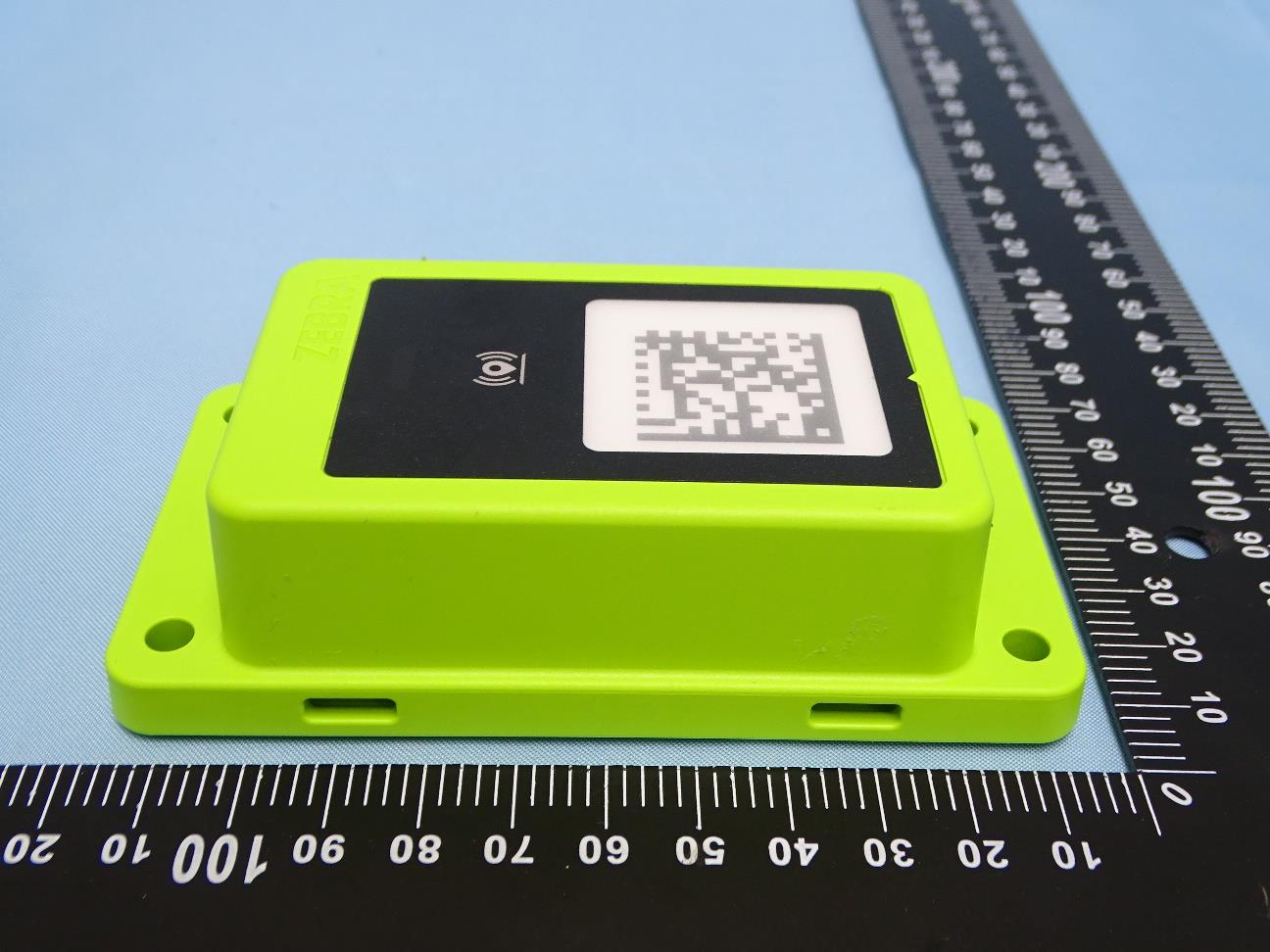

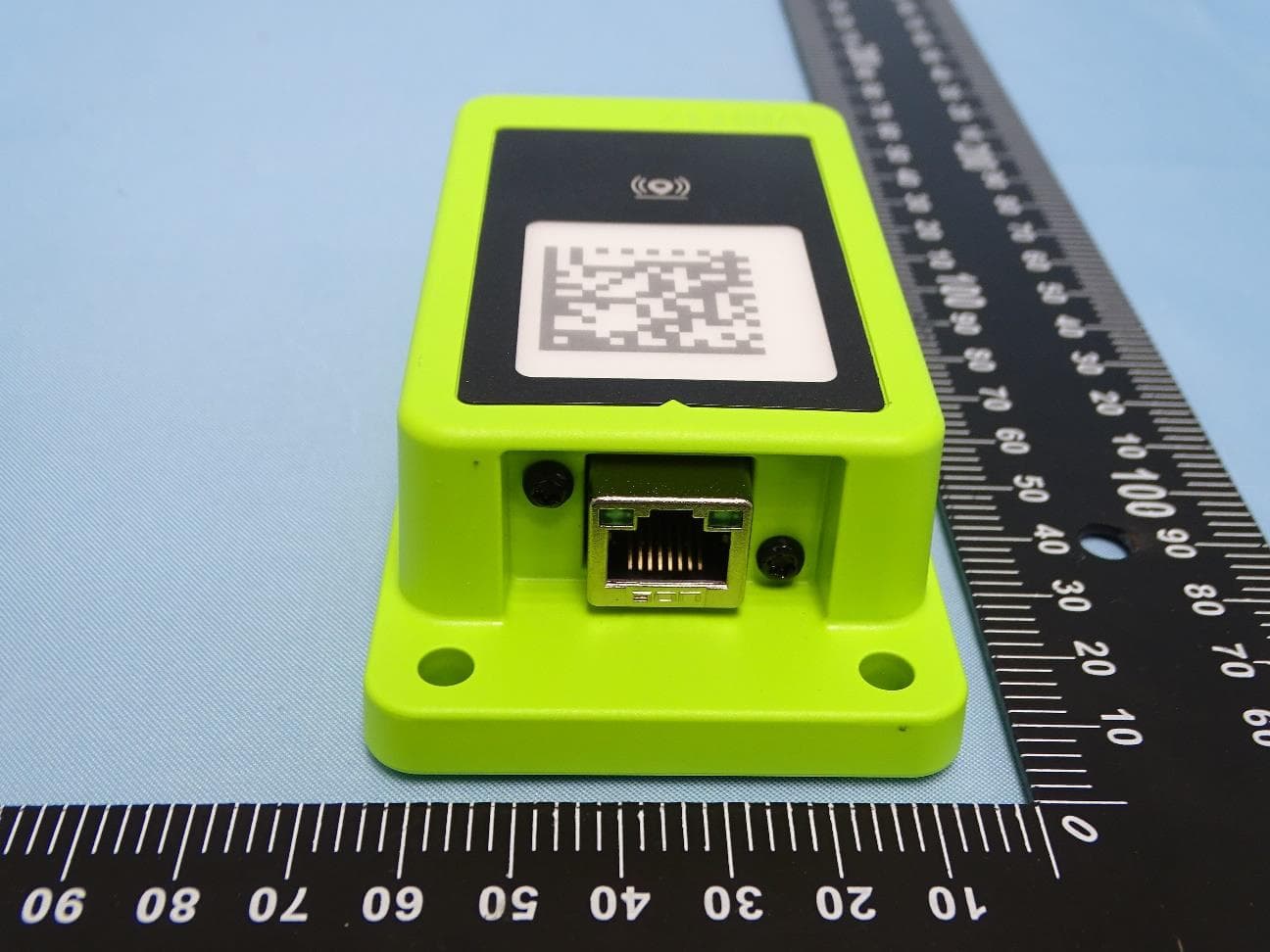

PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 1 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 1. External Photograph of EUT Brand Name: Zebra / Model Name: BT-RS5X6-DNGL PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 2 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 3 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 4 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 5 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 6 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 720510

Back of thedevice Labellocation

PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 7 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 2. Internal Photograph of EUT Brand Name: Zebra / Model Name: BT-RS5X6-DNGL PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 8 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 9 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 10 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 11 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 12 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 13 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 14 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 15 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 16 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 17 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 18 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 19 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 20 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP371315 TEL : 886-3-327-3456 Page Number : 21 of 21 FAX : 886-3-328-4978 Issue Date : Sep. 18, 2023 Report Version : 01 ─────THE END──── 720510 720510 Bluetooth Antenna

TEL : 886-3-327-3456 Page : 1 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 RF EXPOSURE EVALUATION REPORT FCC ID : UZ7BT-RS5X6-DNGL Equipment : Bluetooth Adapter Brand Name : Zebra Model Name : BT-RS5X6-DNGL Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 5 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 6 4.1. Standalone Power Density Calculation ............................................................................................. 6 TEL : 886-3-327-3456 Page : 3 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 History of this test report Report No. Version Description Issued Date FA371315 Rev. 01 Initial issue of report Sep. 18, 2023 TEL : 886-3-327-3456 Page : 4 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Bluetooth Adapter Brand Name Zebra Model Name BT-RS5X6-DNGL FCC ID UZ7BT-RS5X6-DNGL Wireless Technology and Frequency Range Bluetooth: 2400 MHz ~ 2483.5 MHz Mode Bluetooth BR/EDR/LE HW Version DV EUT Stage Identical Prototype Reviewed by: Jason Wang Report Producer: Carlie Tsai 2. Maximum RF average output power among production units Mode Average power (dBm) BR / EDR LE 1Mbps 2Mbps 3Mbps 1Mbps Tune-up Limit 7.50 7.00 7.00 6.50 TEL : 886-3-327-3456 Page : 5 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 3. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna TEL : 886-3-327-3456 Page : 6 of 6 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2023 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA371315 4. Radio Frequency Radiation Exposure Evaluation 4.1. Standalone Power Density Calculation Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Bluetooth 2.85 7.50 10.35 0.01 10.84 0.002 1.000 Conclusion: According to 47 CFR §2.1091, the RF exposure analysis concludes that the RF Exposure is FCC compliant.

TEL: 886-3-327-0868 Page Number : 1 of 27 FAX: 886-3-327-0855 Issue Date : Sep. 15, 2023 Report Template No.: BU5-FR15CBT Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR371315A FCC RADIO TEST REPORT FCC ID : UZ7BT-RS5X6-DNGL Equipment : Bluetooth Adapter Brand Name : Zebra Model Name : BT-RS5X6-DNGL Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : FCC Part 15 Subpart C §15.247 The product was received on Jul. 17, 2023 and testing was performed from Aug. 11, 2023 to Sep. 07, 2023. We, Sporton International Inc. Wensan Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval from Sporton International Inc. Wensan Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) TEL: 886-3-327-0868 Page Number : 2 of 27 FAX: 886-3-327-0855 Issue Date : Sep. 15, 2023 Report Template No.: BU5-FR15CBT Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR371315A Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Product Specification of Equipment Under Test ................................................................................ 5 1.3 Modification of EUT ........................................................................................................................... 5 1.4 Testing Location ................................................................................................................................ 6 1.5 Applicable Standards ......................................................................................................................... 6 2 Test Configuration of Equipment Under Test ......................................................................................... 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 Test Result ................................................................................................................................................ 11 3.1 Number of Channel Measurement .................................................................................................. 11 3.2 Hopping Channel Separation Measurement ................................................................................... 12 3.3 Dwell Time Measurement ................................................................................................................ 13 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 14 3.5 Output Power Measurement ............................................................................................................ 15 3.6 Conducted Band Edges Measurement............................................................................................ 16 3.7 Conducted Spurious Emission Measurement ................................................................................. 17 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 18 3.9 AC Conducted Emission Measurement........................................................................................... 22 3.10 Antenna Requirements .................................................................................................................... 24 4 List of Measuring Equipment ................................................................................................................. 25 5 Measurement Uncertainty ....................................................................................................................... 27 Appendix A. Conducted Test Results Appendix B. AC Conducted Emission Test Result Appendix C. Radiated Spurious Emission Appendix D. Radiated Spurious Emission Plots Appendix E. Duty Cycle Plots Appendix F. Setup Photographs TEL: 886-3-327-0868 Page Number : 3 of 27 FAX: 886-3-327-0855 Issue Date : Sep. 15, 2023 Report Template No.: BU5-FR15CBT Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR371315A History of this test report Report No. Version Description Issue Date FR371315A 01 Initial issue of report Sep. 15, 2023 TEL: 886-3-327-0868 Page Number : 4 of 27 FAX: 88…

Text truncated - open the document above for the full version.

© 2019 Zebra Technologies Inc. All rights reserved Page 1 of 5 Printed and downloaded copies of this document are considered non-controlled Zebra Technologies Corporation BT-RS5X6-DNGL Antenna SPECIFICATION Antenna Manufacturer Name Universal Global Technology Co., Ltd. Address No. 141, Lane 351, Sec. 1, Taiping Road, Tsaotuen, Nantou County 542007, Taiwan P/N: 46-500111-02 Test DATE 2023/07/19 DATASHEET REVISION v01 ______ Test Engineer: Sam Liu © 2019 Zebra Technologies Inc. All rights reserved Page 2 of 5 Printed and downloaded copies of this document are considered non-controlled Zebra Technologies Corporation Description of Antenna Frequency Range 2400~2484MHz Impedance 50Ω Peak Gain 2.85dBi @2442MHz (test in ETS chamber) Antenna type Bluetooth chip antenna Manufacturing Process MLCC Antenna Return Loss: Antenna Peak Gain: © 2019 Zebra Technologies Inc. All rights reserved Page 3 of 5 Printed and downloaded copies of this document are considered non-controlled Zebra Technologies Corporation Antenna 3D Radiation Pattern: - 2402MHz - 2441MHz - 2480MHz
