UZ7CR8178APCPresentation Cradle

Presentation Cradle Quick Reference Guide CR8178A-PC 2 NOTE For Healthcare cradles only: When the digital scanner is in lamp mode, the work station requires a special bracket for vertical mounting (not available from Zebra). CR8178A-PC Presentation Cradle Introduction The CR8178A-PC (presentation) cordless digital scanner cradle acts as charger and radio communication interface for the DS8178A cordless digital scanner. The CR8178A-PC can sit on a desktop or be mounted on a wall.The CR8178A-PC healthcare cradle can sit on a desktop or be mounted on a wall or cart. The cradle receives data from the digital scanner via a Bluetooth radio, and sends that data to the host through an attached cable. The cradle also charges the digital scanner’s internal battery when the digital scanner is inserted. The digital scanner can be charged from an external power supply or a USB cable powered by the host. This document provides basic instructions on setting up and using the cradle. Equipment Supplied The cradle package includes one CR8178A-PC cradle. Accessories The following equipment may be needed: • Power supply (for faster charging). • Mounting • Two M4 screws (for a vertical mount using the threaded brass screw holes, if applicable). Not available from Zebra. • Wall mount bracket. Sold separately from Zebra. • 3M™ Dual Lock™ fasteners for mounting. Sold separately from Zebra. Save the shipping container for storing or shipping. Inspect all equipment for damage. If anything is damaged or missing, call an authorized Zebra Support Center immediately. Related Documentation • DS8178A Digital Scanner Quick Start Guide, p/n MN-002753-xx. • DS8178A Digital Scanner Product Reference Guide, p/n MN-002752-xx. • CR8178A-SC Standard Cradle Quick Reference Guide, p/n MN-002784-xx. • CR8178A-PC Document Capture Stand, p/n MN-002858-xx.All documentation and translations are available at: www.zebra.com/support. Quick Reference Guide3 Service Information If you have a problem running your unit or using your equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Zebra Global Customer Support at http://www.zebra.com/support . For the latest version of this guide go to: http://www.zebra.com/support . Cradle Features Top Charging/Communications Contacts Page Button/LED Pairing Bar Code (in back) 4 Bottom Cradle Connections 1.Connect the appropriate cable to the power supply and an AC power source, if necessary. This ensures detection of the host and prevent inadvertently back powering the cradle from improper detection of the host. 2. Insert the interface cable into the host port. 3.Insert the interface cable into the cradle’s host port. 4.Pair the digital scanner to the cradle either by inserting it in the cradle (if Pair on Contacts is enabled) or by scanning the pairing bar code. 5. If necessary, scan the appropriate host bar code (for non-autodetected interfaces). Refer to the Product Reference Guide. Changing the Host Interface To connect to a different host, or to the same host through a different cable: 1. Unplug the interface cable from the host. 2. Unplug the power supply from the cradle. 3. Connect the interface cable to the new host, or the new interface cable to the existing host. 4. Reconnect the power supply, if required. 5. If necessary, scan the appropriate host bar code (for non-autodetected interfaces). Refer to the Product Reference Guide. Rubber Feet Rubber Feet Interface Port Station Mount Threaded Brass Screw Holes (2 - M4 x 5 mm) CR8178A-PC Presentation Cradle Quick Reference Guide5 Using a DC Power Supply The cradle can operate from host supplied power, if available. If host power is limited or not available, an external DC power supply can be used with certain host interface cables that support a power jack. An external power supply is recommended if fastest charging is required. Mounting the Cradle Horizontal Mount When placing the cradle on a tabletop, the rubber feet on the bottom of the cradle provide traction and prevent surface damage. 75 Degree Mount The cradle can be mounted at a 75° angle (maximum) using the two brass threaded screw holes. 1.Position the cradle on the mounting surface and mark the surface on either side of the cradle. 2.Pre-drill two holes to accommodate the two brass threaded screw holes. Drill the holes 45.5 mm (1.8 in) apart. 3.Attach the interface and power cables (see Cradle Connections on page 4). CAUTIONAlways disconnect the DC power supply BEFORE disconnecting the cable to the host end or the cradle may not recognize the new host. NOTEWhen mounting the cradle on a mobile cart it is recommended to mount the cradle securely on the surface. NOTEThe 75° mount is used in Lamp Mode for Healthcare units only. Refer to the Product Reference Guide for information on Lamp Mode. 45.5 mm (1.8 in) Note: Drawing is not to scale. 6 4. Attach the cradle securely to the surface. Rotate to 75°. 5. Insert the digital scanner in the cradle. Inserting the Digital Scanner in the Cradle. Sending Data to the Host Computer The cradle receives data from the digital scanner via a wireless radio connection and transmits it to the host computer via the host cable. The digital scanner and cradle must be paired for successful wireless communication. CAUTION Do not pour, spray, or spill any liquid on the cradle. 75° max CR8178A-PC Presentation Cradle Quick Reference Guide7 Pairing Pairing registers a digital scanner to the cradle such that the digital scanner and cradle can exchange information. The cradle operates in two modes: Point-to-Point and Multipoint-to-Point. In Point-to-Point mode, pair the digital scanner to the cradle either by inserting it in the cradle (if pair on contacts is enabled), or by scanning the pairing bar code. In Multipoint-to-Point mode, you can pair up to seven digital scanners to one cradle. To pair the digital scanner with the cradle, scan a pairing bar code. A high-low-high-low beep sequen…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 22, 2023 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, [Zebra Technologies Corporation] (“the applicant”) certifies that the equipment [FCC ID: UZ7CR8178APC] for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Zebra Technologies Corporation] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: March 22, 2023 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7CR8178APC AUTHORIZATION LETTER We, the undersigned, hereby authorize Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Internal Photos  External Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. If you have any questions regarding this authorization, please contact me directly. Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

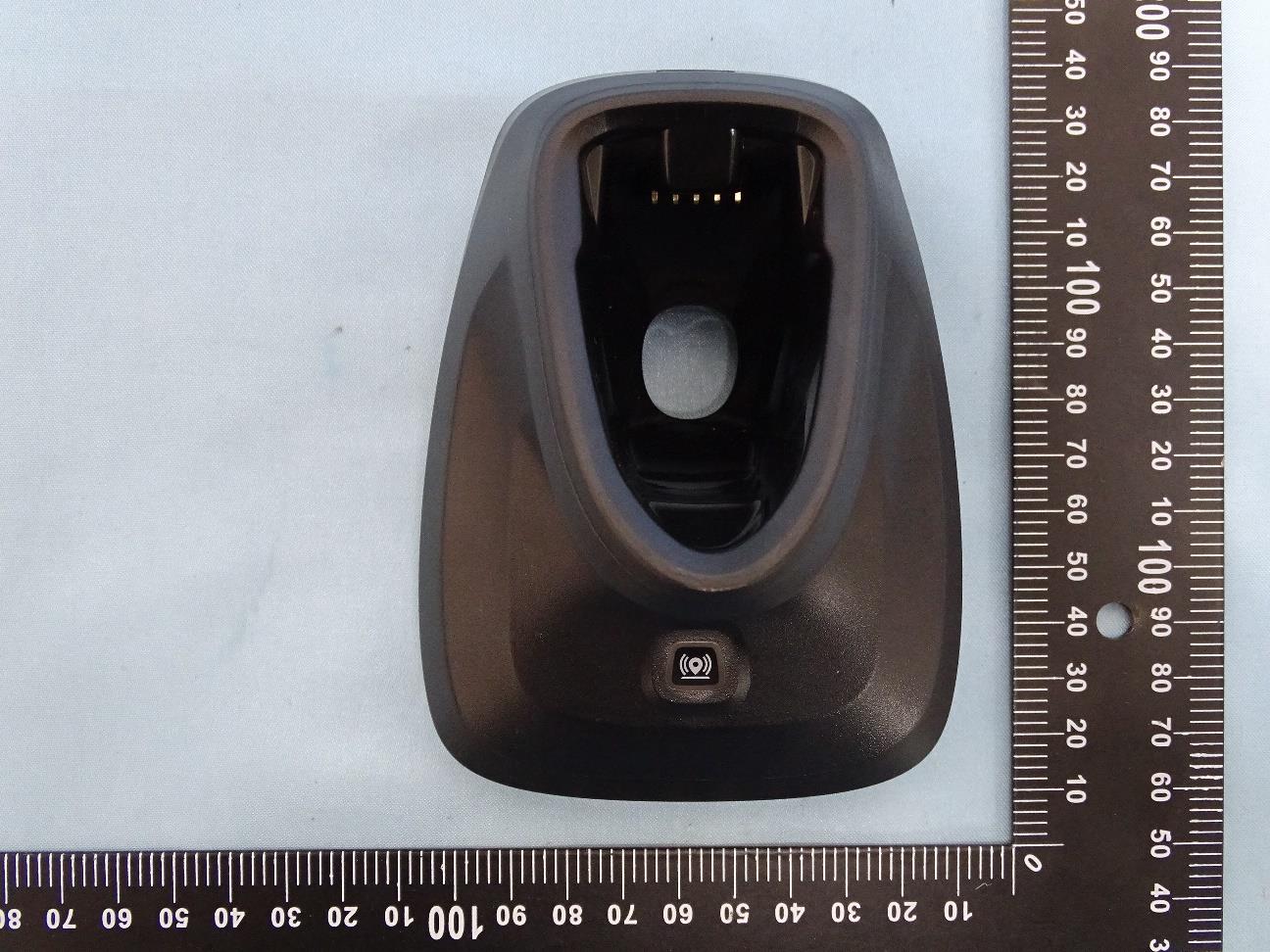

PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 1 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 1. External Photograph of EUT Brand Name: Zebra / Model Name: CR8178A-PC PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 2 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 3 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 4 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 5 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 6 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 7 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 8 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 2. Photograph of Accessory Brand Name: Zebra / Model Name: CR8178A-PC Specification of Accessory 5V Adapter Brand Name Zebra Part Number PWR-WUA5V4W0US RJ-50-RS232 Cable Brand Name Zebra Model Name CBA-R01-S07PBR RJ-50 to USB Cable Brand Name Zebra Model Name CBA-U21-S07ZBR Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 9 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 10 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 5V Adapter

Label on the bottom sideof the device

02/09/23 B DIMENSIONS ARE IN MILLIMETERS DRAWING SCALE: 1 / 1 PRINTOUT @ 100% OF ACTUAL SIZE CYAN MAGENTA PMS-___________ PMS-___________ PMS-___________ BLACK YELLOW PMS-___________ PMS-___________ Do NOT Change Colors, Size or Type Fonts in the Artwork Please Note: Colors. . . Fonts. . . 1. Arial Narrow 2. 3. 4. 6. 5. PRINTER NOTE: This proof indicates color break only and may not accurately reflect actual production colors. Die lines and call-outs are for reference only - DO NOT PRINT This title block must remain on the electronic file for all proofs. PART NO. C. Franco DATE REV DRAWN CONFIDENTIAL AND PROPRIETARY ©ZIH CORP. 2005 ALL RIGHTS RESERVED THE INFORMATION CONTAINED HEREIN IS THE CONFIDENTIAL AND THE EXCLUSIVE PROPERTY OF ZIH CORP. THIS DOCUMENT, AND THE INFORMATION CONTAINED HEREIN, SHALL NOT BE COPIED, REPRODUCED, PUBLISHED, DISPLAYED OR DISTRIBUTED, IN WHOLE OR IN PART, IN ANY MEDIUM, BY ANY MEANS, FOR ANY PURPOSE WITHOUT THE EXPRESS WRITTEN CONSENT OF ZIH CORP. HOLTSVILLE, N.Y. 11742 Pats.: ip.zebra.com AR-002037-01 (墨西哥制造) BD_ADDR: XXXXXXXXXXXXX ZEBRA TECHNOLOGIES CORP. HOLTSVILLE, NY 11742 Input: 12V 1.5 A/5.2V 1.2A Output: 5V 2A max MODEL : CR8178A-PC MADE IN XXXXX XXXX S/N: XXXXXXXXXXXX 无线功能 充电座 P/N: XXXXXXXXXXXX MFD: XXXXXXX 输入 R-R-ZTC-CR8178A-PC FCC ID: UZ7CR8178APC IC ID: 109AN-CR8178APC 3.00 mm NOTES: 1. ALL CASES "XXX..." REPRESENTS VARIABLE FIELDS IN SCRIPT FILE. 2. SERIAL NUMBER MUST BE 4PT MINIMUM CHARACTER HEIGHT IN SCRIPT FILE. 3. PART NUMBER (P/N) SEE BOM FOR ACTUAL MODEL DESCRIPTION. 4. "MFD:" REPRESENTS MANUFACTURE DAY, MONTH, YEAR (IE: 12SEP15) COUNTRY OF ORIGIN REQUIRED. 5. COUNTRY OF ORIGIN REQUIRED. 6. LBL STOCK PN: LB000697A01 7. GRAPHIC TO BE PRINTED AT 600 DPI. 8. ALL BARCODES MUST BE SCAN ABLE. 9. THIS IS A 2D DATAMATRIX CODE PAIRING BAR CODE WHICH INCLUDES "READER INITIALIZATION CHARACTER" + "P" + BT ADDRESS. 10. MINIMUN SIZE REQUIREMENT FOR PAIRING BAR CODE SHALL BE 20MIL MINIMUM. PROD FAM: CR8178A-PC DESCRIPTION: LBL: LCD,CR8178A-PC SN POOL: Standard CCG1: SD02B0 BD_ADDR BAR CODE S/N Barcode 54 3 2 9 5.00 mm 5.00 mm

PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 11 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 3. Internal Photograph of EUT Brand Name: Zebra / Model Name: CR8178A-PC PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 12 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 13 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 14 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 15 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 16 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 17 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 18 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 19 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP320319-01 Page Number : 20 of 20 Issue Date : Mar. 22, 2023 Report Version : 01 ─────THE END──── Bluetooth-LE Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2023 FAX : 886-3-328-4978 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA320319-01 RF Exposure Evaluation Report FCC ID : UZ7CR8178APC Equipment : Presentation Cradle Brand Name : Zebra Model Name : CR8178A-PC Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : 47 CFR Part 2.1093 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part 2.1093 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2023 FAX : 886-3-328-4978 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA320319-01 Table of Contents 1. General Information ........................................................................................................................... 3 1.1 Description of Device Under Test (DUT) ........................................................................................... 3 2. Maximum RF output power among production units ......................................................................... 3 3. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA320319-01 Rev. 01 Initial issue of report Mar. 22, 2023 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2023 FAX : 886-3-328-4978 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA320319-01 1. General Information 1.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type Presentation Cradle Brand Name Zebra Model Name CR8178A-PC FCC ID UZ7CR8178APC Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode Bluetooth LE HW Version DV MFD 13JAN23 DUT Stage Identical Prototype 2. Maximum RF output power among production units Mode Average Power (dBm) LE 1Mbps Bluetooth 4.78 SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Mar. 22, 2023 FAX : 886-3-328-4978 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA320319-01 3. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 4.78 3.01 5 2.48 0.95 Note: 1. Per KDB 447498 D01v06 the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: Per KDB 447498 D01v06, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.95 which is <= 3, SAR testing is not required.
