UZ7ET56ETTablet

ET51/56 Enterprise Tablet Quick Reference Guide MN-003332-04ENa_et51-56-qsg-en.fm Page 1 2ET51/56 Enterprise Tablet Copyright ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC. All other trademarks are the property of their respective owners. ©2020 Zebra Technologies Corporation and/or its affiliates. All rights reserved. COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/copyright. WARRANTY: For complete warranty information, go to www.zebra.com/warranty. END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula. Terms of Use • Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies. • Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice. • Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom. • Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Warranty For the complete Zebra hardware product warranty statement, go to www.zebra.com/warranty. Service Information If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Zebra Support at: zebra.com/support. For the latest version of this guide go to: zebra.com/support. MN-003332-04ENa_et51-56-qsg-en.fm Page 2 Quick Reference Guide3 Introduction The ET51 is a wireless LAN (WLAN) tablet and the ET56 is a wireless WAN (WWAN) tablet. Features ItemDescription 1Ambient Light Sensor - Recognizes the ambient light and adjusts the display brightness (if enabled). 2Front Microphones - Use for voice communications or audio recordings. 3Front Facing Camera - Use for video conferencing or capturing images and video. 4Camera Indicator LED - Lights red when the camera is activate. Momentarily lights red when the device boots and shuts down. 5Charging Indicator LED - Indicates charging status. Off - device is not connected to charger. Orange - device is charging. Green - device is connected and fully charged. Red - charge error. 13 425 2 13 425 2 MN-003332-04ENa_et51-56-qsg-en.fm Page 3 4ET51/56 Enterprise Tablet ItemDescription 6Rear Camera - Use for high resolution images and video. 7Camera LED Flash - Provides illumination for the camera. 8Power Button - Push once to start the device; push it again to enable sleep mode. Push and hold it to shut down the device. 9Volume Key - Push the left side to reduce the volume. Press the right side to increase the volume. 10USB-C Interface - Provides for communication. 11Back Cover - Covers the service replaceable battery. ItemDescription 12NFC Antenna Position - Use to read NFC cards and RFID tags. 13Stereo Speakers - Provides audio playback. 14Docking Connector - Interfaces with the cradle. 9 8 7 6 10 11 13 14 13 12 13 13 8.4 in. Version 10.1 in. Version MN-003332-04ENa_et51-56-qsg-en.fm Page 4 Quick Reference Guide5 Installing a microSD Card or SIM Card To install a microSD card and/or nano SIM card (ET56 only): 1. Press the Power button to turn off the device. 2. Lift the notched corner of the battery cover. 3. Carefully lift the battery cover off the device. 4. On the 8.4 in. version, push the two locking tabs up, then pull up on the tab to remove battery. On the 10.1 in. version, push the two locking tabs up (1), then, using index fingers, lift the battery up (2). 5. Insert the microSD card with contacts facing down. 8.4 in. Version Locking Tabs 10.1 in. Version Locking Tabs MN-003332-04ENa_et51-56-qsg-en.fm Page 5 6ET51/56 Enterprise Tablet 6. Push the microSD card in and ensure that it locks into place. 7. Insert the nano SIM card with contacts facing down. 8. Push the SIM card in and ensure that it locks into place. 9. Replace the battery. ET51AE/ET56BE ET51AT/ET51CT/ET56BT/ ET56DT/ET56ET ET51CE/ET56DE NANO NANO ET56BE ET56BT/ET56DT/ET56ET ET56DE MN-003332-04ENa_et51-56-qsg-en.fm Page 6 Quick Reference Guide7 CAUTION: Be aware of the orientation of the battery cover. Failure to replace the battery cover properly may damage the battery cover. 10. Align the tabs on the underside of the cover with the slot around the battery well. Make sure that the notch on the battery cover is at the bottom left cover of the device. 11. Carefully press down around the edge of the cover. Make sure that the cover is seated properly. 12. Press Power button to turn on the device. Charging the Device Use the Communication and Charging Cradle, Rugged Communication and Charging Cradle or Charge Only Cradle to charge the device. See ET51/56 User Guide for more information. NOTE: The Charge…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: September 7, 2020 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7ET56ET AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

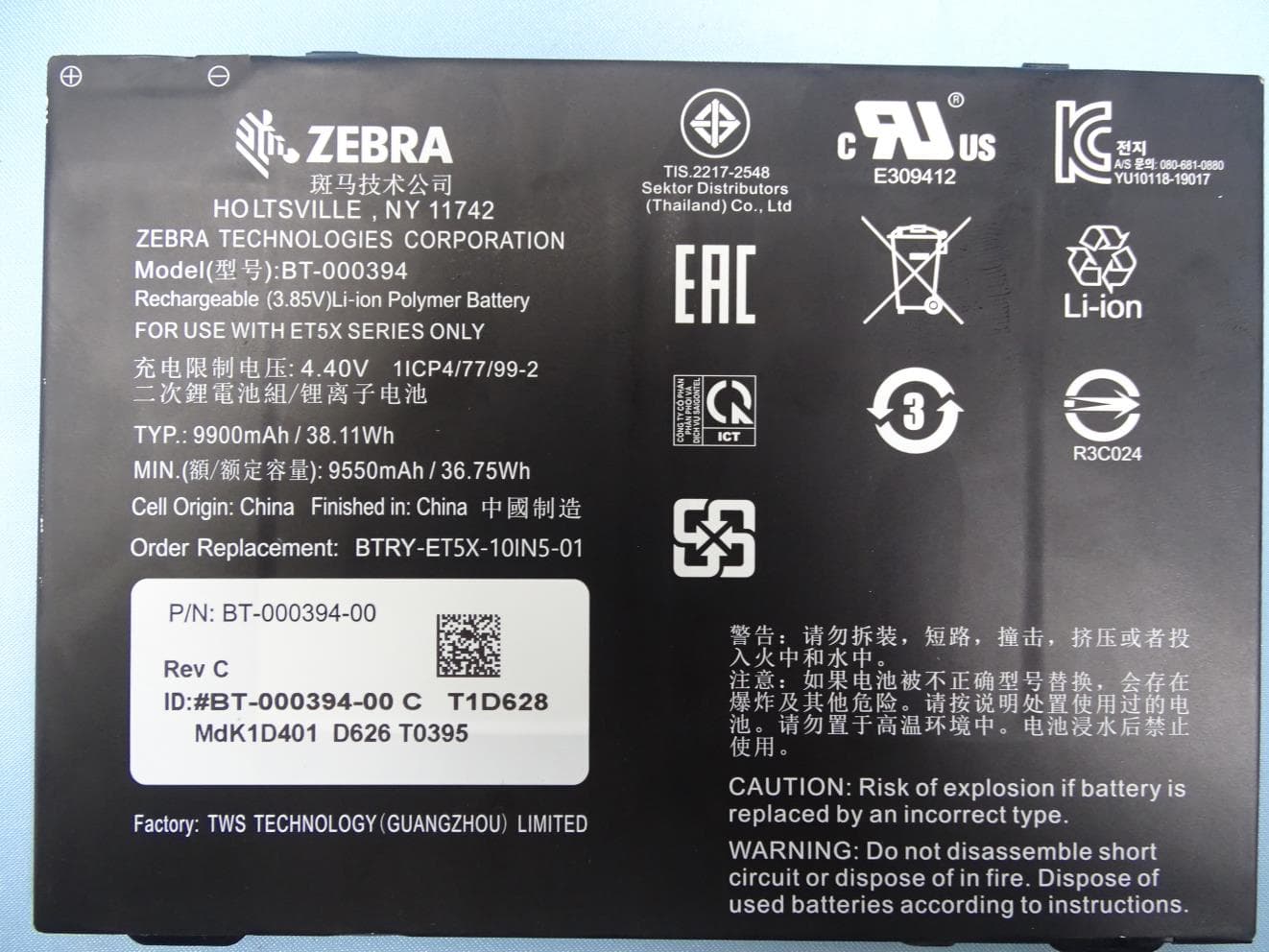

PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 1 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 2 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 3 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 4 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 5 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 6 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 7 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 8 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 9 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 Specification of Accessory Spare Standard Battery 36.75Wh Brand Name Zebra Part Number BT-000394 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 10 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 11 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 12 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 720510

Note: The label will be put inside the battery compartment. The label is visible to the users as they purchase the products and install the micro SD card. Battery Compartment Back of the device Label

PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 13 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 720510 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 14 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 15 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 16 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 17 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 18 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 19 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 20 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 21 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 22 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 23 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 24 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 25 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 26 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 27 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 28 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 29 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 30 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 31 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 32 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 33 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 34 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 35 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 36 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 37 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 38 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01

PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 39 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 40 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 41 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 42 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 43 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 44 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 45 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 46 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 47 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 48 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 49 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 50 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 51 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 52 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 53 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 54 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 55 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 56 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 57 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 WWAN Main Antenna PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 58 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 WWAN Aux. Antenna PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 59 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 WLAN Main Antenna & Bluetooth Antenna PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 60 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 61 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 WLAN Aux. Antenna

PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 62 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 63 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 NFC Antenna PHOTOGRAPHS OF EUT Report No.: EP072904-01 Brand Name: Zebra / Model Name: ET56ET TEL : 886-3-327-3456 Page Number : 64 of 64 FAX : 886-3-328-4978 Issued Date : Sep. 14, 2020 Report Version : 01 ─────THE END──── GPS Antenna

TEL : 886-3-327-3456 Page 1 of 108 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA072904-01 FCC SAR TEST REPORT FCC ID : UZ7ET56ET Equipment : Tablet Brand Name : Zebra Model Name : ET56ET Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Aug. 05, 2020 and testing was started from Aug. 22, 2020 and completed on Sep. 06, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 108 FAX : 886-3-328-4978 Issued Date : Sep. 18, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA072904-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. Proximity Sensor Triggering Test ................................................................................................................................ 8 5. RF Exposure Limits......................................................................................................................................................16 5.1 Uncontrolled Environment .....................................................................................................................................16 5.2 Controlled Environment .........................................................................................................................................16 6. Specific Absorption Rate (SAR) ..................................................................................................................................17 6.1 Introduction ...........................................................................................................................................................17 6.2 SAR Definition .......................................................................................................................................................17 7. System Description and Setup ...................................................................................................................................18 7.1 Test Site Location ..................................................................................................................................................18 7.2 E-Field Probe ........................................................................................................................................................19 7.3 Data Acquisition Electronics (DAE) .......................................................................................................................19 7.4 Phantom ................................................................................................................................................................20 7.5 Device Holder........................................................................................................................................................21 8. Measurement Procedures ...........................................................................................................................................22 8.1 Spatial Peak SAR Evaluation ................................................................................................................................22 8.2 Power Reference Measurement............................................................................................................................23 8.3 Area Scan .............................................................................................................................................................23 8.4 Zoom Scan ............................................................................................................................................................24 8.5 Volume Scan Procedures ......................................................................................................................................24 8.6 Power Drift Monitoring ...........................................................................................................................................24 9. Test Equipment List .....................................................................................................................................................25 10. System Verification ....................................................................................................................................................26 10.1 Tissue Simulating Liquids ............…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/8/24 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200824 Medium parameters used: f = 750 MHz; σ = 0.89 S/m; ε r = 42.349; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(9.92, 9.92, 9.92) @ 750 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: 1131 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.90 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.63 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.91 W/kg 0 dB = 2.91 W/kg = 4.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/8/24 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_200824 Medium parameters used: f = 835 MHz; σ = 0.899 S/m; ε r = 42.474; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(9.61, 9.61, 9.61) @ 835 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: 1131 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.25 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 61.88 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.45 W/kg; SAR(10 g) = 1.62 W/kg Maximum value of SAR (measured) = 3.26 W/kg 0 dB = 3.26 W/kg = 5.13 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Te…

Text truncated - open the document above for the full version.
