UZ7KHUSB601802.11 a/b/g/n USB MODULE

1. Regulatory Information This device is approved under Motorola Solutions, Inc. This guide applies to Model Number KHUSB601 All Motorola/Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: www.motorolasolutions.com/support Any changes or modifications to Motorola/Symbol Technologies equipment, not expressly approved by Motorola/Symbol Technologies, could void the user’s authority to operate the equipment. Motorola/Symbol devices are professionally installed, the Radio Frequency Output Power will not exceed the maximum allowable limit for the country of operation. Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulations. 2. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved for use in the following countries: United States, Canada, Japan, China, S. Korea, Australia, and Europe 1,2 . Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at http://www.motorolasolutions.com/doc Note 1 : For 2.4GHz or 5GHz Products: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. Note 2 : Operation of the device without regulatory approval is illegal. Country Selection Select only the country in which you are using the device. Any other selection will make the operation of this device illegal. The US version of Access Point will only have US listed in the country selection table. The US version will be sold /used in the US protectorates: American Samoa, Guam, Puerto Rico, US Virgin Islands. Ad-Hoc Operation (5 GHz band) Ad-Hoc operation is limited to Channels 36-48 (5150-5250 MHz). Use of this band is restricted to Indoor Use Only, any other use will make the operation of this device illegal. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Frequency of Operation – FCC and IC 5 GHz Only The use in the UNII (Unlicensed National Information Infrastructure) band 1 (5150-5250 MHz) is restricted to Indoor Use Only; any other use will make the operation of this device illegal. Industry Canada Statement: Caution : The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-Channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE- LAN devices. Avertissement : Le dispositive fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. 3. Health and Safety Recommendations Warnings for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. Potetially Hazerdous Atmospheres - Fixed Installations You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders) . Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. Pacemakers Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with independent research and recommendations by Wireless Technology Research. Persons with Pacemakers:  Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON.  Should not carry the device in a breast pocket. Should use the ear furthest from the pacemaker to minimise the potential for interference.  If you have any reason to suspect that interference is taking place, turn OFF your device. Other Medical Devices Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere with the medical device. RF Exposure Guidelines Safety Information Reducing RF Exposure – Use Properly Only operate the device in accordance with the instructions supplied. Safety in Hospitals International The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on “International” human exposure to electromagnic fields refer to the Motorola/Symbol Declaration of Conformity (DoC) at http://www.motorolasolutions.com/doc For further information on the safety of RF energy from wireless devices - see http://responsibility.motorolasolutions.com/index.php/downloads/ Located under Wireless Communications and Health US and Canada Co-located statement This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple- transmitter(s) and module(s) can be ope…

Text truncated - open the document above for the full version.

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com February 6, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: FCC Attestations, Authorizations, Declarations FCC ID：UZ7KHUSB601 / Model No.: KHUSB601 To the reviewer: Motorola Solutions, Inc., hereby I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations will have affixed to it a label identical to that submitted for approval with this application. In Addition, Motorola Solutions, Inc., also acknowledges that all responsibility for complying with the terms and conditions for Certification, still resides with Motorola Solutions, Inc., One Motorola Plaza Holtsville, NY 11742 USA. Motorola Solutions, Inc., hereby have entrusted the person Leo Huang of Sporton International Inc. to be a proxy regarding application for Type Certification. We are therefore responsible for the contents of the application (Model No.: KHUSB601). submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. In Addition, Motorola Solutions, Inc., pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application for Listing as outlined below: 1. Operational Descriptions 2. Schematics 3. Block Diagrams Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. In Addition, Motorola Solutions, Inc., attest that this device does not support access, by any party (End User or Professional Installer), to disable DFS. There are no controls or selections in the product firmware that can turn off/disable DFS. In Addition, Motorola Solutions, Inc., declare that the EUT (Model Name: KHUSB601) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. In Addition, Motorola Solutions, Inc., declares that the EUT (Model Name: KHUSB601) will be installed into AP-8263 and AP-8163, so that we will not supplying an Integrator Manual for third party OEMs. In Addition, Motorola Solutions, Inc., will ensure that our MODEL: KHUSB601 under FCC ID: UZ7KHUSB601 submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory Engineering 631-738-5134 [email protected]

Page No. : 23 Limited Module Approval Request Letter Subject: Module Approval Date: 2014/3/12 FCC ID: UZ7KHUSB601 Dear Reviewer, We, Sporton International Inc., are authorized by Motorola Solutions, Inc. to have their state-of-the-art 802.11 a/b/g/n USB module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR9342. 3. The requirement of power supply regulation: The power regulator has been integrated in chip AR9342. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: The EUT could be installed into Motorola’s APs (AP-8263 / AP-8163). So it tests these APs as a result for co-location test. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com February 6, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: FCC Attestations, Authorizations, Declarations FCC ID：UZ7KHUSB601 / Model No.: KHUSB601 To the reviewer: Motorola Solutions, Inc., hereby I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations will have affixed to it a label identical to that submitted for approval with this application. In Addition, Motorola Solutions, Inc., also acknowledges that all responsibility for complying with the terms and conditions for Certification, still resides with Motorola Solutions, Inc., One Motorola Plaza Holtsville, NY 11742 USA. Motorola Solutions, Inc., hereby have entrusted the person Leo Huang of Sporton International Inc. to be a proxy regarding application for Type Certification. We are therefore responsible for the contents of the application (Model No.: KHUSB601). submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. In Addition, Motorola Solutions, Inc., pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application for Listing as outlined below: 1. Operational Descriptions 2. Schematics 3. Block Diagrams Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. In Addition, Motorola Solutions, Inc., attest that this device does not support access, by any party (End User or Professional Installer), to disable DFS. There are no controls or selections in the product firmware that can turn off/disable DFS. In Addition, Motorola Solutions, Inc., declare that the EUT (Model Name: KHUSB601) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. In Addition, Motorola Solutions, Inc., declares that the EUT (Model Name: KHUSB601) will be installed into AP-8263 and AP-8163, so that we will not supplying an Integrator Manual for third party OEMs. In Addition, Motorola Solutions, Inc., will ensure that our MODEL: KHUSB601 under FCC ID: UZ7KHUSB601 submitted by means of this application, will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory Engineering 631-738-5134 [email protected]

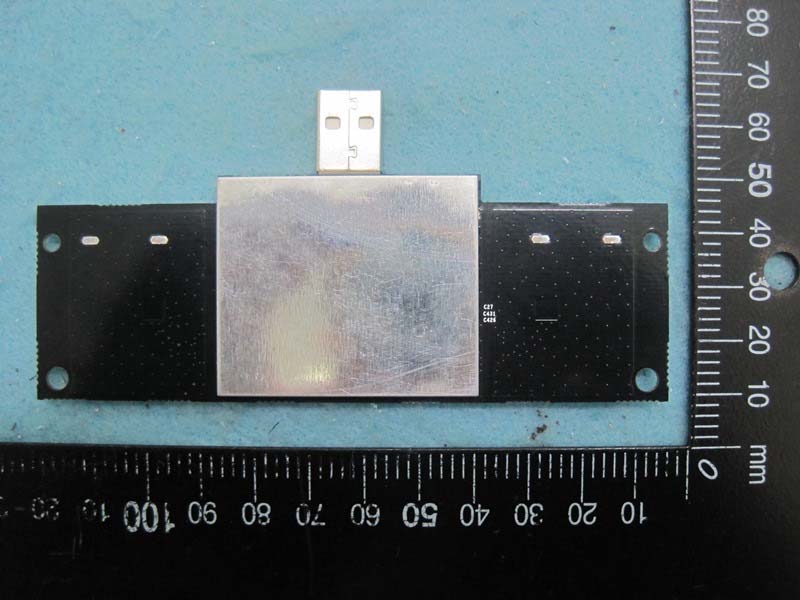

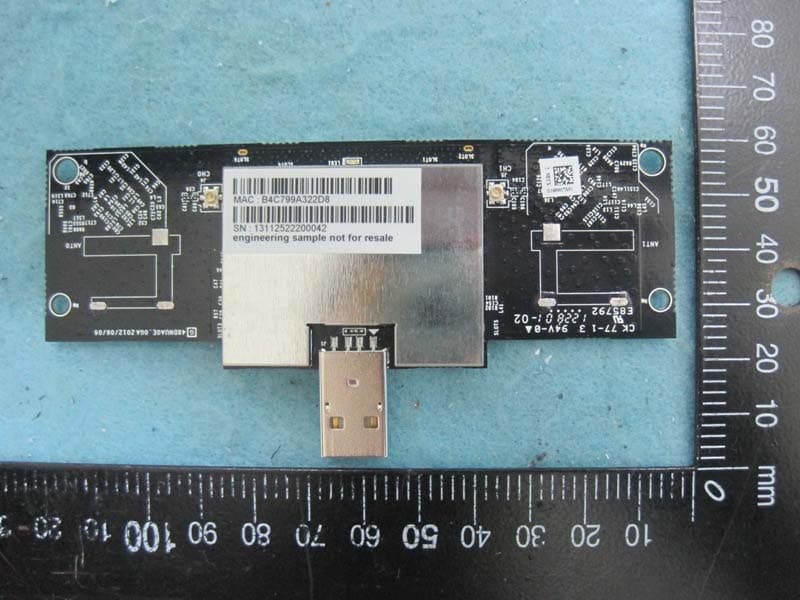

Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Photographs of EUT_External

Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Photographs of EUT_Internal Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085

Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Photographs of EUT_Antenna Ant. 1 Model No. ML-2452-HPAG5A8-01 Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085 Antenna Cable Report No.: 250705-02 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Mar. 11, 2014 FAX : 886-3-656-9085

Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : B1 of B8 Appendix B. Maximum Permissible Exposure Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : B2 of B8 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.35 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.35m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : B3 of B8 1.3. Calculated Result and Limit 1. MOTOROLA / AP-8263: For EUT (FCC ID: UZ7KHUSB601) / 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS8 40MHz (2TX): 20.57 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.35 4.3152 20.5697 114.0169 0.031977 1 Complies For EUT (FCC ID: UZ7KHUSB601) / 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz (2TX): 20.13 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.35 4.3152 20.1303 103.0460 0.028901 1 Complies For EUT (FCC ID: UZ7KHUSB601) / 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b (2TX): 20.49 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 20.4928 112.0155 0.018287 1 Complies For Radio A RF module (FCC ID: UZ7KHAP800) / 2.4GHz Band: Antenna Type : Panel Antenna Max Conducted Power for IEEE 802.11b (3TX) 17.12 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 18.77 75.3356 17.1200 51.5229 0.252275 1 Complies Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : B4 of B8 For Radio B RF module (FCC ID: UZ7RAAP800) / 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (2TX) : 14.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 14.9200 31.0456 0.012731 1 Complies Antenna Type : Panel Antenna Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (2TX) : 10.49dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 12.50 17.7828 10.4900 11.1944 0.012938 1 Complies Antenna Type : Yagi Antenna Max Conducted Power for IEEE 802.11ac VHT40MHz MCS0/NSS3 (3TX) : 14.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 14.8800 30.7610 0.012615 1 Complies Antenna Type : Patch Antenna Max Conducted Power for IEEE 802.11ac VHT20MHz MCS0/NSS1 (3TX) : 16.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.30 1.6982 16.9900 50.0035 0.005519 1 Complies Antenna Type : Facade Antenna Max Conducted Power for IEEE 802.11ac VHT20MHz MCS0/NSS3 (3TX) : 16.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.50 1.7783 16.9900 50.0035 0.005779 1 Complies Antenna Type : Panel Antenna Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (3TX) : 13.77dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.20 8.3176 13.7700 23.8232 0.012879 1 Complies Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : B5 of B8 Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n HT40MHz MCS8 (3TX) : 16.95dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.30 3.3884 16.9506 49.5517 0.014853 1 Complies For Radio B RF module (FCC ID: UZ7RAAP800) / 5GHz ISM Band: Antenna Type :Dipole Antenna Max Conducted Power for IEEE 802.11n HT20MHz MCS0 (3TX) : 27.72dBm Antenna Gain (dBi) Antenna Gai…

Text truncated - open the document above for the full version.

Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C1 of C9 Appendix C. Co-location Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C2 of C9 1. Results of Radiated Emissions for Co-located 1. MOTOROLA / AP-8263: Temperature 24.5°C Humidity 60% Test Engineer Jim Huang Configurations EUT (2.4G) with Ant. 1 + Radio A (2.4G) with Panel Antenna + Radio B (5G) with Panel Antenna Horizontal Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C3 of C9 Vertial Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C4 of C9 Temperature 24.5°C Humidity 60% Test Engineer Jim Huang Configurations EUT (5G) with Ant. 1 + Radio A (2.4G) with Panel Antenna + Radio B (5G) with Panel Antenna Horizontal Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C5 of C9 Vertial Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C6 of C9 2. MOTOROLA / AP-8163: Temperature 23°C Humidity 56% Test Engineer Serway Li Configurations EUT (2.4G) with Ant. 1 + Radio A (2.4G) with Panel Antenna + Radio B (5G) with Panel Antenna Horizontal Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C7 of C9 Vertial Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C8 of C9 Temperature 23°C Humidity 56% Test Engineer Serway Li Configurations EUT (5G) with Ant. 1 + Radio A (2.4G) with Panel Antenna + Radio B (5G) with Panel Antenna Horizontal Report No.: FR250705-02 FCC ID: UZ7KHUSB601 Page No. : C9 of C9 Vertial

TEST REPORT Covering the DYNAMIC FREQUENCY SELECTION (DFS) REQUIREMENTS OF FCC Part 15 Subpart E (UNII), RSS-210 Annex 9 Motorola Solutions, Inc. Model(s): KHUSB600 and KHUSB601 COMPANY: Motorola Solutions, Inc. One Motorola Plaza Holtsville, NY, 11742 TEST SITE: NTS Silicon Valley 41039 Boyce Road Fremont, CA 94538 REPORT DATE: December 14, 2012 REISSUE DATE: August 22, 2013 FINAL TEST DATE: November 28, 2012 TEST ENGINEER: Wayne Fisher PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark Hill David Guidotti Staff Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full File: R90190 Rev. 3 Page 1 of 26 NTS Silicon Valley -- EMC Department Test Report Report Date: December 14, 2012 Reissue Date: August 22, 2013 REVISION HISTORY Rev # Date Comments Modified By 1.0 12-14-2012 Initial Release - 2.0 01-14-2013 Revised antenna gain value MEH 3.0 08-22-2013 Reissued to add new model number by similarity DMG File: R90190 Rev. 3 Page 2 of 26 NTS Silicon Valley -- EMC Department Test Report Report Date: December 14, 2012 Reissue Date: August 22, 2013 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 LIST OF TABLES ....................................................................................................................................................... 3 LIST OF FIGURES ..................................................................................................................................................... 4 SCOPE .......................................................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARD ................................................................................................................ 5 TEST RESULTS .......................................................................................................................................................... 6 TEST RESULTS SUMMARY – FCC PART 15, CLIENT DEVICE ....................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 6 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 7 GENERAL ................................................................................................................................................................ 7 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 9 EUT OPERATION ................................................................................................................................................... 9 RADAR WAVEFORMS ........................................................................................................................................... 10 DFS TEST METHODS ............................................................................................................................................. 11 RADIATED TEST METHOD ............................................................................................................................... 11 DFS MEASUREMENT INSTRUMENTATION .................................................................................................... 13 RADAR GENERATION SYSTEM ....................................................................................................................... 13 CHANNEL MONITORING SYSTEM .................................................................................................................. 14 DFS MEASUREMENT METHODS ....................................................................................................................... 15 DFS – CHANN…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C…
