RAAP-800 Regulatory Information Guide 2AP-8232 Access Point 1Regulatory Information This device is approved under Motorola Solutions, Inc. This guide applies to the following Model Numbers: RAAP-800. All Motorola Solutions devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: http://www.motorolasolutions.com/support Any changes or modifications to Motorola Solutions equipment, not expressly approved by Motorola Solutions, could void the user's authority to operate the equipment. Motorola Solutions devices are professionally installed, the Radio Frequency Output Power will not exceed the maximum allowable limit for the country of operation. Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulations. This device is only to be used with a Motorola Solutions Wireless Switch. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved for use in the following countries: United States and Canada Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at: http://www.motorolasolutions.com/doc Operation of the device without regulatory approval is illegal. Country Selection Select only the country in which you are using the device. Any other selection will make the operation of this device illegal. The US version of Access Point will only have US listed in the country selection table. The US version will be sold /used in the US protectorates: American Samoa, Guam, Puerto Rico, US Virgin Islands. Frequency of Operation – FCC and IC You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders). 5 GHz Only The use in the UNII (Unlicensed National Information Infrastructure) band 1 (5150-5250 MHz) is restricted to Indoor Use Only; any other use will make the operation of this device illegal. Industry Canada Statement: Installation Guide3 Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-Channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. Health and Safety Recommendations Warnings for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. Potetially Hazerdous Atmospheres - Fixed Installations You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders) . Safety in Hospitals Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. Pacemakers Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with independent research and recommendations by Wireless Technology Research. Persons with Pacemakers: •Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON. •Should not carry the device in a breast pocket. •Should use the ear furthest from the pacemaker to minimize the potential for interference. •If you have any reason to suspect that interference is taking place, turn OFF your device. Other Medical Devices Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere with the medical device. 4AP-8232 Access Point RF Exposure Guidelines Safety Information Reducing RF Exposure - Use Properly Only operate the device in accordance with the instructions supplied. International The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on “International” human exposure to eletromagnetic fields refer to the Motorola/Symbol Declaration of Conformity (DoC) at: http://www.motorolasolutions.com/doc US and Canada Co-located statement To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other transmitter/antenna except those already approved in this filling. Remote and Standalone Antenna Configurations To comply with FCC RF exposure requirements, Antennas that are mounted externally must be professionally installed at a fixed location and operate with a minimum distance of 35cm from all persons. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncon-trolled environment. This equipment should be installed and operated with minimum distance 35cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition…

Text truncated - open the document above for the full version.

Page No. : 23 Module Approval Request Letter Subject: Module Approval Date: 2013/9/4 FCC ID: UZ7RAAP800 Dear Reviewer, We, Sporton International Inc., are authorized by Motorola Solutions, Inc. to have their state-of-the-art 802.11ac Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip QCA9890-BR4A. 3. The requirement of power supply regulation: The power regulator has been integrated in chip QCA9890-BR4A. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com May 30, 2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: Attestations: FCC ID：UZ7RAAP800 / Model No.: RAAP-800 To the Commission: We, Motorola Solutions, Inc, at One Motorola Plaza Holtsville NY 11742, certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations will have affixed to it a label identical to that submitted for approval with this application. In Addition, we also acknowledges that all responsibility for complying with the terms and conditions for Certification. We, has hereby entrusted to Leo Huang of Sporton International Inc. to be our proxy regarding application for this approval. We are responsible for the contents of the application (Model No.: RAAP-800 submitted by means of this application and will be continuously produced in compliance with FCC regulations. In relation to this, we accept all consequences of market surveillance performed by FCC or acting Certification Body as specified in the FCC’s regulations. In Addition, we as the grantee of this project FCC ID: UZ7RAAP800, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD341810, FCC Test Firm Registration No.: 187376). In Addition, we pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application for Listing as outlined below: Operational Descriptions Schematics Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. In Addition, we declare that the EUT (Model Name: RAAP-800 doesn’t support Ad Hoc function on “non-US frequencies” or DFS frequencies. If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory Engineering 631-738-5134 [email protected]

Report No.:341810 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2013 FAX : 886-2-2696-2255 Photographs of EUT

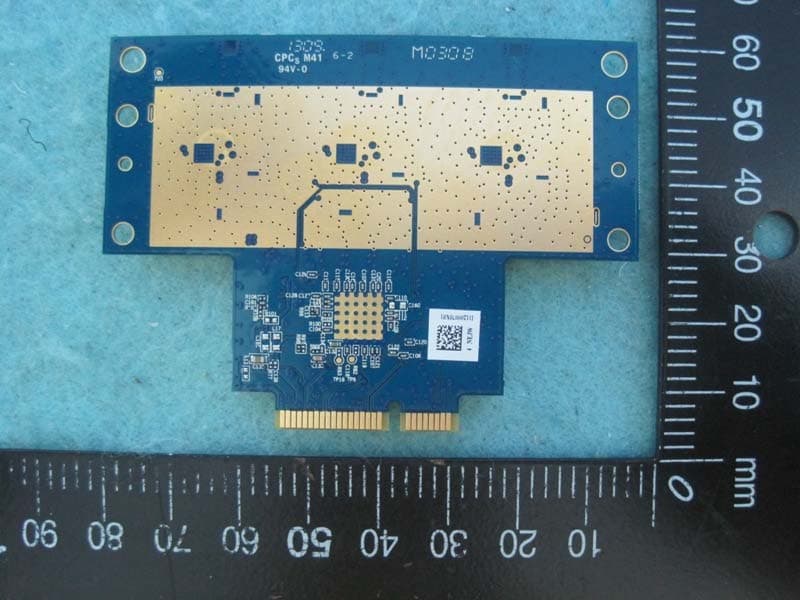

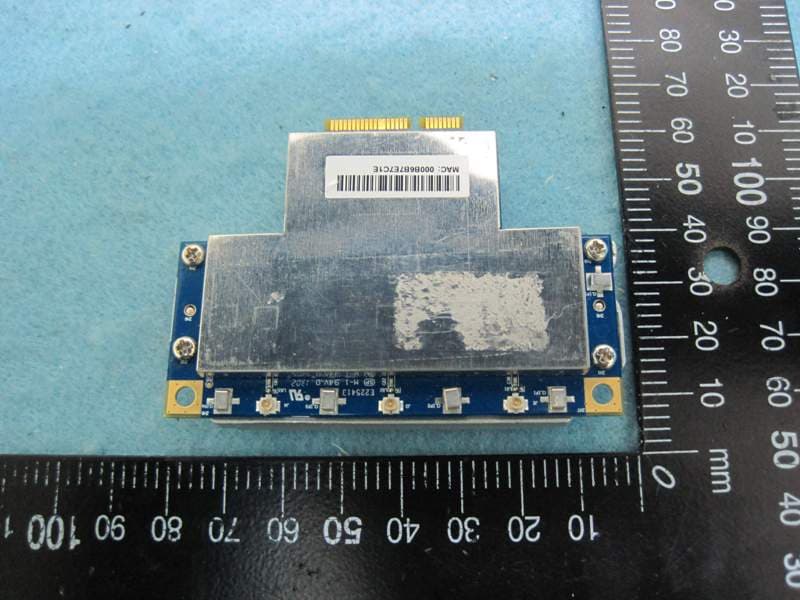

Report No.:341810 SPORTON International Inc. PAGE NUMBER : 1 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Photographs of EUT Ant. 1 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 2 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 3 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 3 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 4 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 5 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 4 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 6 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 7 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 5 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 8 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 9 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 10 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 6 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 11 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 9 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 12 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 13 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Ant. 10 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 14 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 15 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Report No.:341810 SPORTON International Inc. PAGE NUMBER : 16 OF 16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255

Report No.:341810 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:341810 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 29, 2013 FAX : 886-2-2696-2255

Report No.: FR341810 FCC ID: UZ7RAAP800 Page No. : B1 of B7 Appendix B. Maximum Permissible Exposure Report No.: FR341810 FCC ID: UZ7RAAP800 Page No. : B2 of B7 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.35 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.35m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR341810 FCC ID: UZ7RAAP800 Page No. : B3 of B7 1.3. Calculated Result and Limit For 5GHz UNII Band: RadioB (5G) RF module (FCC ID: UZ7RAAP800) Antenna Type : Dipole Antenna Test Mode : Mode 1 Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (2TX) : 14.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 14.9200 31.0456 0.012731 1 Complies Antenna Type : Panel Antenna Test Mode : Mode 2 Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (2TX) : 10.49dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 12.50 17.7828 10.4900 11.1944 0.012938 1 Complies Antenna Type : Yagi Antenna Test Mode : Mode 3 Max Conducted Power for IEEE 802.11ac VHT40MHz MCS0/NSS3 (3TX) : 14.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 14.8800 30.7610 0.012615 1 Complies Antenna Type : Patch Antenna Test Mode : Mode 4 Max Conducted Power for IEEE 802.11ac VHT20MHz MCS0/NSS1 (3TX) : 16.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.30 1.6982 16.9900 50.0035 0.005519 1 Complies Antenna Type : Facade Antenna Test Mode : Mode 5 Max Conducted Power for IEEE 802.11ac VHT20MHz MCS0/NSS3 (3TX) : 16.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.50 1.7783 16.9900 50.0035 0.005779 1 Complies Report No.: FR341810 FCC ID: UZ7RAAP800 Page No. : B4 of B7 Antenna Type : Panel Antenna Test Mode : Mode 6 Max Conducted Power for IEEE 802.11n HT40MHz MCS0 (3TX) : 13.77dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.20 8.3176 13.7700 23.8232 0.012879 1 Complies Antenna Type : PIFA Antenna Test Mode : Mode 7 Max Conducted Power for IEEE 802.11n HT40MHz MCS8 (3TX) : 16.95dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.30 3.3884 16.9506 49.5517 0.014853 1 Complies For 5GHz ISM Band: RadioB (5G) RF module (FCC ID: UZ7RAAP800) Antenna Type :Dipole Antenna Test Mode : Mode 1 Max Conducted Power for IEEE 802.11n HT20MHz MCS0 (3TX) : 27.72dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 27.7200 591.5616 0.242591 1 Complies Antenna Type : Panel Antenna Test Mode : Mode 2 Max Conducted Power for IEEE 802.11a (2TX) : 26.44dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 12.50 17.7828 26.4400 440.5549 0.509183 1 Complies Antenna Type : Yagi Antenna Test Mode : Mode 3 Max Conducted Power for IEEE 802.11n HT20MHz MCS0 (3TX) : 27.72dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.00 6.3096 27.7200 591.5616 0.242591 1 Complies Report No.: FR341810 FCC ID: UZ7RAAP800 Page No. : B5 of B7 Antenna Type : Patch Antenna Test Mode : Mode 4 Max Conducted Power for IEEE 802.11n HT20MHz MCS0 (3TX) : 27.72dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.30 1.6982 27.7200 591.5616 0.065294 1 Complies Antenna Type : Façade Antenna Test Mode : Mode 5 Max Conducted Power for IEEE 802.11n HT20MHz MCS0 (3TX) : 27.72dBm Antenna Gain (dBi) Antenna Gain (nu…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Motorola Solutions, Inc. Applicant Address One Motorola Plaza Holtsville, NY 11742 USA FCC ID UZ7RAAP800 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name 802.11ac Module Brand Name MOTOROLA Model No. RAAP-800 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 5725 ~ 5850MHz Received Date Apr. 02, 2012 Final Test Date Jul. 06, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR341810AA Report Format Version: 01 Page No. : i of ii FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .......................................................................................................................................................................................11 3.3. Table for Filed Antenna.....................................................................................................................................................................12 3.4. Table for Carrier Frequencies ...........................................................................................................................................................15 3.5. Table for Test Modes .........................................................................................................................................................................16 3.6. Table for Testing Locations................................................................................................................................................................19 3.7. Table for Supporting Units .................................................................................................................................................................20 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................21 3.9. EUT Operation during Test .................................................................................................................................................................40 3.10. Duty Cycle ........................................................................................................................................................................................41 3.11. Test Configurations ...........................................................................................................................................................................44 4. TEST RESULT ................................................................................................................................................... 52 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................52 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................56 4.3. Power Spectral Density Measurement ..............................................................................................................................................85 4.4. 6dB Spectrum Bandwidth Measurement ........................................................................................................................................147 4.5. Radiated Emissions Measurement ..................................................................................................................................................208 4.6. Emissions Measurement ..................................................................................................................................................................322 4.7. Antenna Requirements ...................................................................................................................................................................629 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 630 6. TEST LOCATION............................................................................................................................................ 632 APPENDIX A. TEST PHOTOS ............................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR341810AA Report Format Version: 01 Page No. : 348 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / CH 165 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 349 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / Reference Level Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / CH 151 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 350 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / CH 151 / 5850MHz~40000MHz (down 30dBc) Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / CH 159 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 351 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / CH 159 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 352 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT80 / Reference Level Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT80 / CH 155 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 353 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT80 / CH 155 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 354 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11a / Reference Level Plot on Configuration IEEE 802.11a / CH 149 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 355 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11a / CH 149 / 5850MHz~40000MHz (down 30dBc) Plot on Configuration IEEE 802.11a / CH 165 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 356 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11a / CH 165 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 357 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 3TX Plot on Configuration IEEE 802.11n MCS0 HT20 / Reference Level Plot on Configuration IEEE 802.11n MCS0 HT20 / CH 149 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 358 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11n MCS0 HT20 / CH 149 / 5850MHz~40000MHz (down 30dBc) Plot on Configuration IEEE 802.11n MCS0 HT20 / CH 165 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 359 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11n MCS0 HT20 / CH 165 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 360 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11n MCS0 HT40 / Reference Level Plot on Configuration IEEE 802.11n MCS0 HT40 / CH 151 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 361 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11n MCS0 HT40 / CH 151 / 5850MHz~40000MHz (down 30dBc) Plot on Configuration IEEE 802.11n MCS0 HT40 / CH 159 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 362 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11n MCS0 HT40 / CH 159 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 363 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / Reference Level Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / CH 149 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 364 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / CH 149 / 5850MHz~40000MHz (down 30dBc) Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / CH 165 / 30MHz~5725MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 365 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT20 / CH 165 / 5850MHz~40000MHz (down 30dBc) Report No.: FR341810AA Report Format Version: 01 Page No. : 366 of 632 FCC ID: UZ7RAAP800 Issued Date : Aug. 29, 2013 Plot on Configuration IEEE 802.11ac MCS0/Nss1 VHT40 / Reference Level Plot on Conf…
