UZ7RFD4030RFID Sled

RFID Sled RFD40 MN-004149-01EN Rev. A Quick St art Guide RFD40 RFID Sled Quick Start Guide 2 Copyright ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. © 2021 Zebra Technologies Corporation and/or its affiliates. All rights reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements. For further information regarding legal and proprietary statements, please go to: SOFTWARE: zebra.com/linkoslegal COPYRIGHTS: zebra.com/copyright WARRANTY: zebra.com/warranty END USER LICENSE AGREEMENT: zebra.com/eula Terms of Use •Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies. •Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice. •Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom. •Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. RFD40 RFID Sled Quick Start Guide 3 Service Information If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Zebra Global Customer Support Center at: www.zebra.com/support. For the latest version of this guide, localized translations, and related product guides, visit the Zebra website at: www.zebra.com/support. Warranty For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty. For Australia Only This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71 Robinson Road, #05-02/03, Singapore 68895, Singapore. Our goods come with guarantees that cannot be excluded under the Australia Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Zebra Technologies Corporation Australia’s limited warranty above is in addition to any rights and remedies you may have under the Australian Consumer Law. If you have any queries, please call Zebra Technologies Corporation at +65 6858 0722. You may also visit our website: www.zebra.com for the most updated warranty terms. RFD40 RFID Sled Quick Start Guide 4 Introduction The RFD40 Sled provides Radio Frequency Identification (RFID) tag reading, writing , and locating capability to Zebra’s TC20 Mobile Computer. For detailed information, refer to the Product Reference Guide at: www.zebra.com/support. Features NOTEThe RFD40 RFID sled is for use with the compatible version of the TC20 Mobile Computer only. NumberItem 1LED Indicator (2) 2Antenna 3Battery Compartment 4Trigger 5Retention Clip (2) 6Connector for TC20 1 2 3 4 5 6 RFD40 RFID Sled Quick Start Guide 5 Inserting the Battery To install the battery: 1.Align the battery with the notch facing the back of the device. 2.Slide the battery into the handle of the device. 3.Snap the battery into place. Device Installation Inserting the TC20 into the RFD40 Sled To secure the TC20 Mobile Computer to the RFD40 Sled, place the TC20 fully forward on the RFD40 sled base and push the TC20 down into the Retention Clips. NOTEFully charge the RFD40 RFID Sled before initial use. RFD40 RFID Sled Quick Start Guide 6 Removing the TC20 into the RFD40 Sled To remove the TC20 Mobile Computer from the RFD40 Sled, firmly hold the sled handle, and lift the TC20 off of the sled base. Getting Started To use the RFD40 for the first time with the TC20 Mobile Computer: 1.Charge the RFD40 Sled in the charging cradle. 2.Attach the TC20 on the RFD40 Sled. 3.Set the region and power level (using the RFID Manager application, RFID Demo application, or the partner application). For the latest versions of guides and software, go to: www.zebra.com/support. Software Using RFID Manager for Android /RFID Demo To use the RFID Manager / Zebra RFID Demo for RFID operations: 1.Ensure that the RFID Manager for Android is installed on the TC20. The Zebra RFID Demo can be installed after RFID Manager is installed and verified. 2.Launch either application on the TC20. NOTEThe Zebra RFID Manager for Android application must be installed before the RFID Demo application. RFD40 RFID Sled Quick Start Guide 7 3.Connect the RFD40. Both applications automatically connect to the RFD40 upon start. RFID Manager shows the battery status in the Main page. RFID Demo shows the …

Text truncated - open the document above for the full version.

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. © 2020 Zebra Technologies Corp. and/or its affiliates. All rights reserved. | www.zebra.com MN-004149-01EN Rev A RFD4030 Regulatory Guide Regulatory Information This device is approved under Zebra Technologies Corporation. This guide applies to the following model number: RFD4030 All Zebra devices are designed to be compliant with the rules and regulations in the locations they are sold and will be labeled as required. Local language translation / Tradução do idioma local / Übersetzung in die lokale Sprache / Raduccion de idioma local / Traduction en langue locale / Prijevod na lokalni jezik / Traduzione in lingua locale / 現地語 の翻訳 / 현지 언어 번역 / Перевод на местный язык / 本地語言翻譯 / 本地语言翻译 / Yerel dil çeviri /Tłumaczenie na język lokalny: zebra.com/support Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the user’s authority to operate the equipment. Declared maximum operating temperature: 50°C For use only with Zebra approved and UL Listed mobile devices, Zebra approved, and UL Listed/Recognized battery packs. Regulatory Markings Regulatory markings subject to certification are applied to the device signifying the radio(s) is/are approved for use. Refer to the Declaration of Conformity (DoC) for details of other country markings. The DOC is available at: zebra.com/doc. Health and Safety Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury, always follow good ergonomic workplace practices. Consult with your local Health and Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. Safety in Hospitals and Aircraft NOTE: Wireless devices transmit radio frequency energy that may affect medical electrical equipment and aircraft’s operation. Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics, healthcare facilities or by airline staff. These requests are designed to prevent possible interference with sensitive equipments. Medical Devices It is recommended that a minimum separation distance of 20 cm (8 inches) be maintained between a wireless device and a medical devices such as pacemakers, defibrillator, or other implantable devices to avoid potential interference with the medical device. Pacemaker users should keep the device at the opposite side of the pacemaker or turn OFF the device if suspected of interference. Please consult your physician or the manufacturer of the medical device to determine if the operation of your wireless product may interfere with the medical device. RFD4030 Regulatory Guide 2 RF Exposure Guidelines Safety Information Reducing RF Exposure – Use Properly Only operate the device in accordance with the instructions supplied. The device complies with internationally recognized standards covering human exposure to electromagnetic fields. For information on international human exposure to electromagnetic fields, refer to the Zebra Declaration of Conformity (DoC) at zebra.com/doc. Use only Zebra tested and approved headset, belt-clips, holsters, and similar accessories to ensure RF exposure compliance. If applicable, follow the instructions for use as detailed in the accessory guide. The use of third-party belt clips, holsters, and similar accessories may not comply with RF exposure compliance requirements and should be avoided. For further information on the safety of RF energy from wireless devices, refer to RF exposure and assessment standards section at zebra.com/responsibility. To satisfy RF exposure requirements, this device must be hand-use only and, where applicable use only with Zebra tested and approved accessories. Power Supply WARNING ELECTRICAL SHOCK: Use only a Zebra approved, Certified ITE LPS power supply with appropriate electrical ratings. Use of alternative power supply will invalidate any approvals given to this unit and may be dangerous. Batteries and Power Packs This information applies to Zebra-approved batteries and power packs containing batteries. Battery Information CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of batteries according to instructions. Use only Zebra approved batteries. Accessories which have battery charging capability are approved for use with the following battery models: •Model BT-000380 (3.6 VDC, 6600 mAh) Zebra approved rechargeable battery packs are designed and constructed to the highest standards within the industry. However, there are limitations as to how long a battery can operate or be stored before needing replacement. Many factors affect the actual life cycle of a battery pack such as heat, cold, harsh environmental conditions, and severe drops. When batteries are stored over six months, some irreversible deterioration in overall battery quality may occur. Store batteries at half charge in a dry, cool place, removed from the equipment to prevent loss of capacity, rusting of metallic parts, and electrolyte leakage. When storing batteries for one year or longer, the charge level should be verified at least once a year and charged to half charge. Replace the battery when a significant loss of run time is detected. RFD4030 Regulatory Guide 3 •Standard warranty period for all Zebra batteries is one year, regardless if the battery was purchased separately or included as part of the host device. For more information on Zebra batteries, please visit: zebra.com/batterydocumentation and select the Battery Best Practices link. Battery Safety Guidelines IMPORTANT – SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS WARNING – When using this product basic safety precautions should always be followed, including the following: The area in which the units are charged should be clear of debris and combustible materials or chemical…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: April 12, 2021 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7RFD4030 AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  Internal Photos  External Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. If you have any questions regarding this authorization, please contact me directly. Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

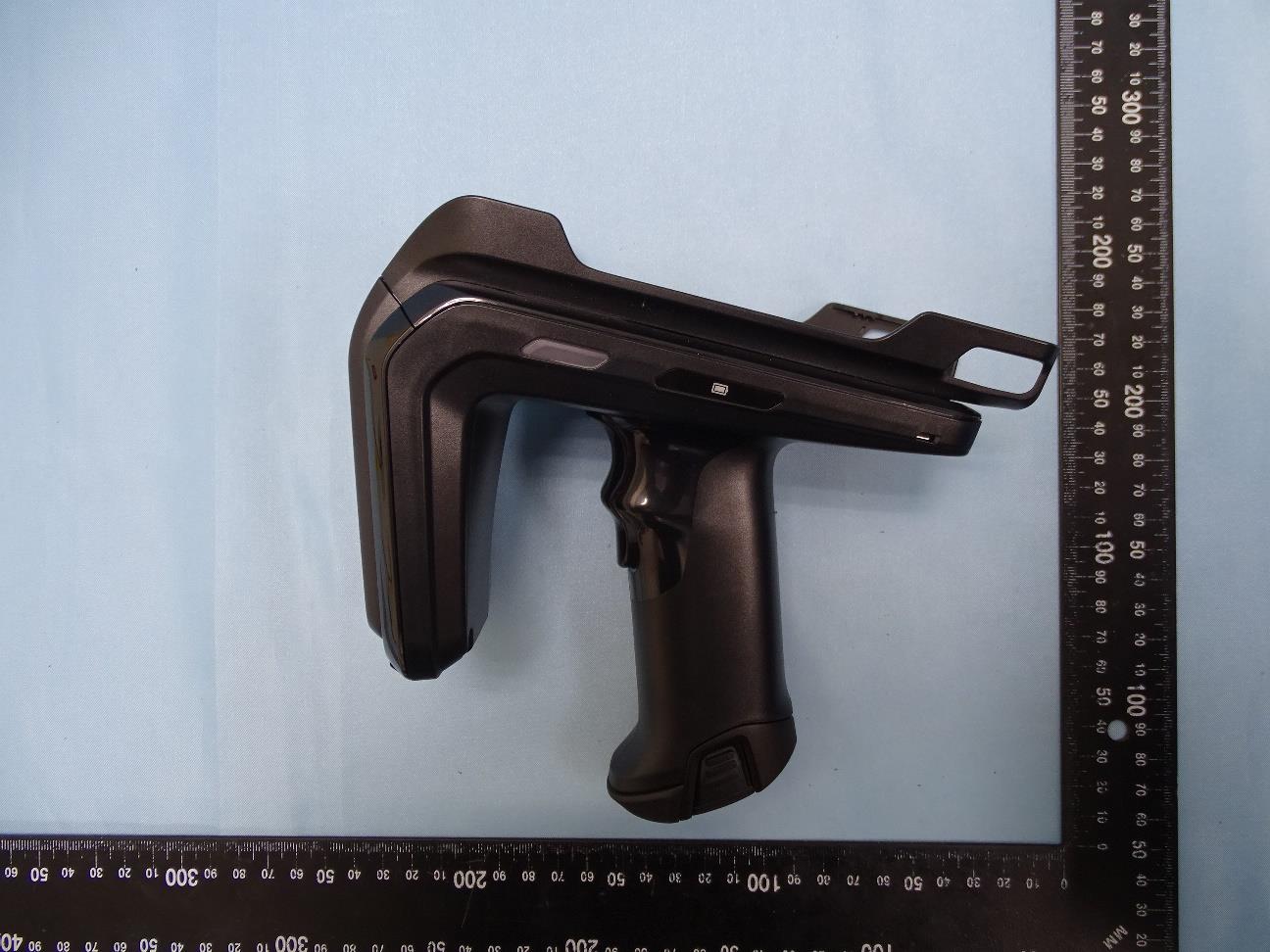

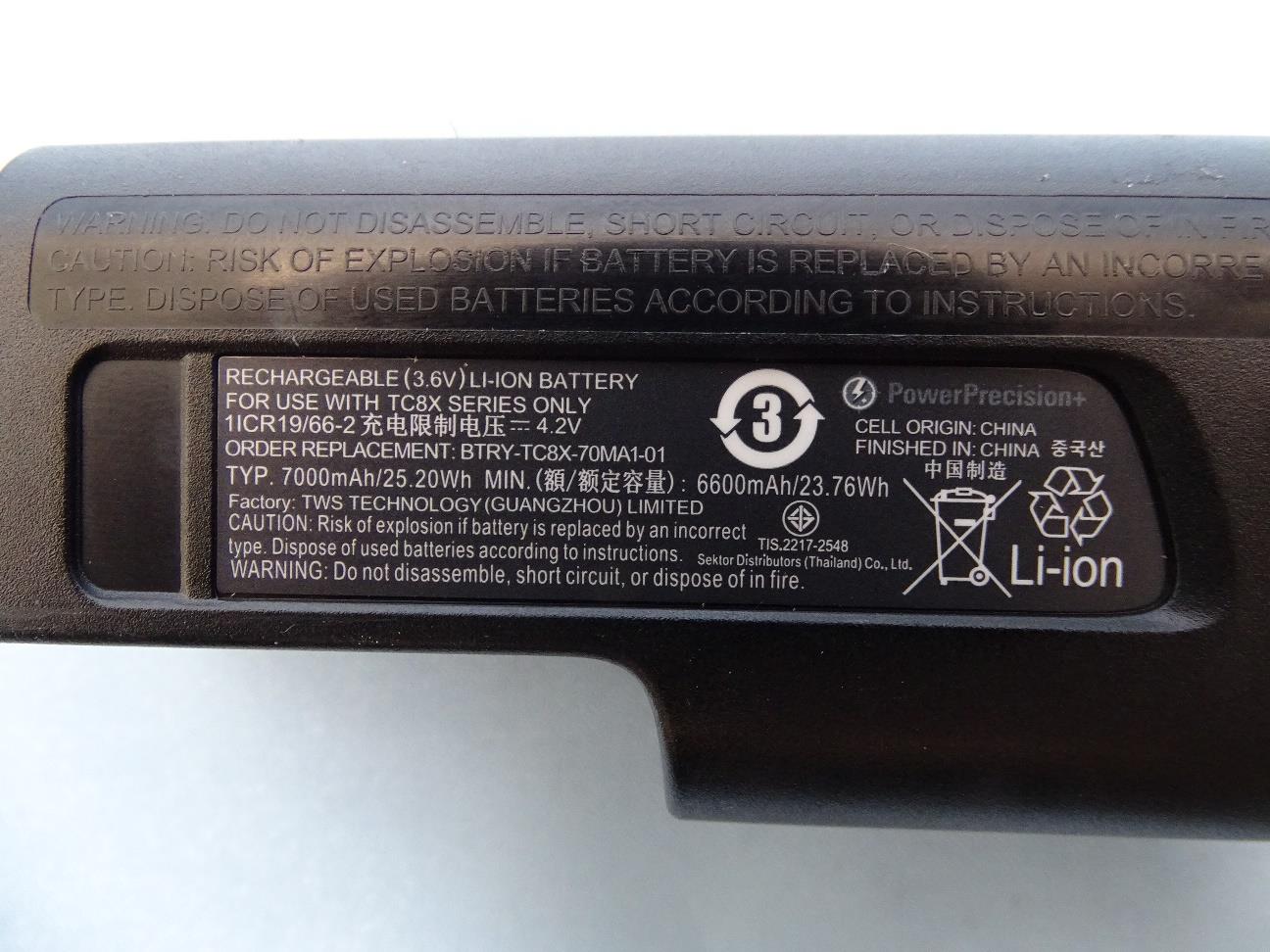

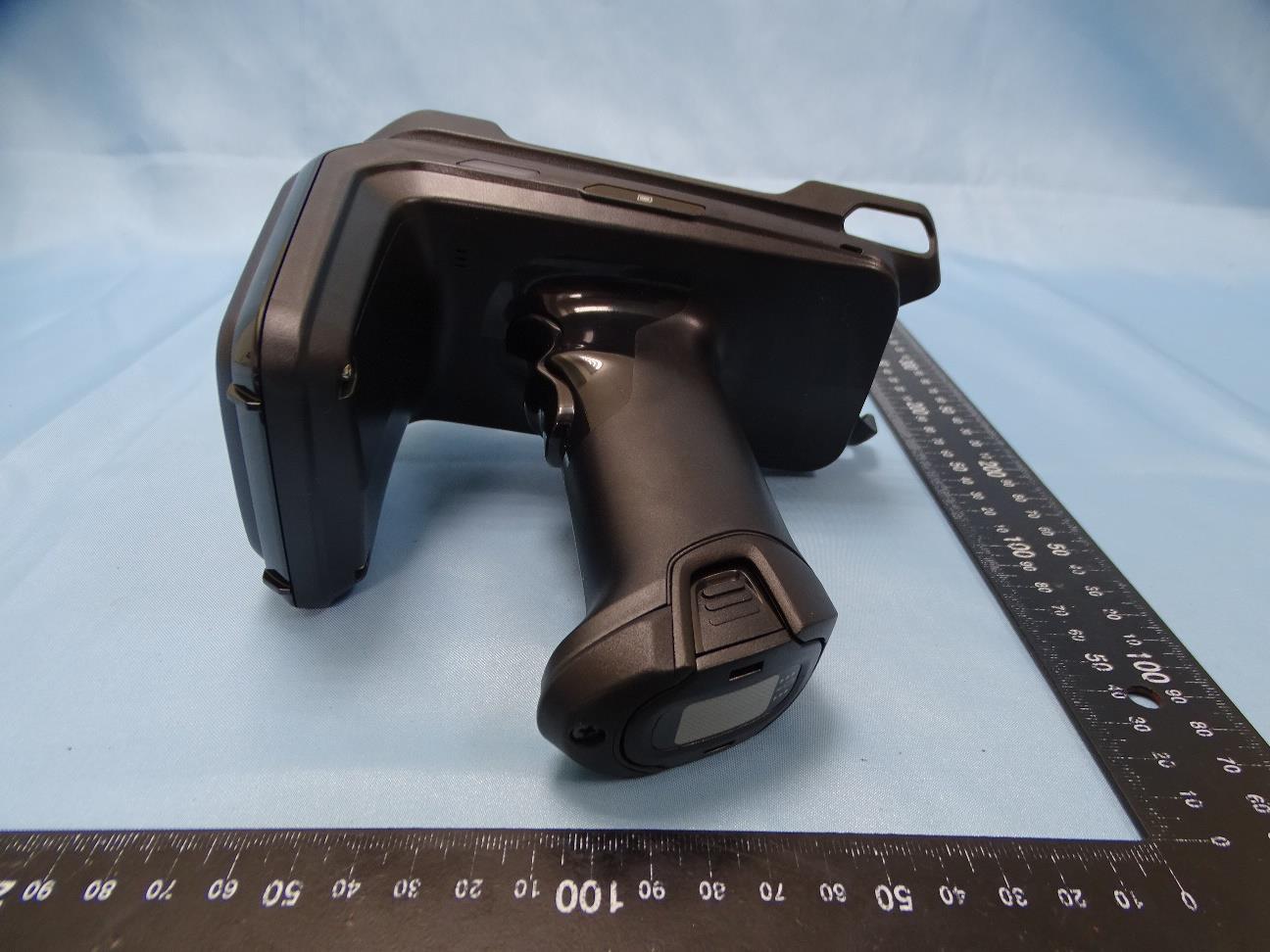

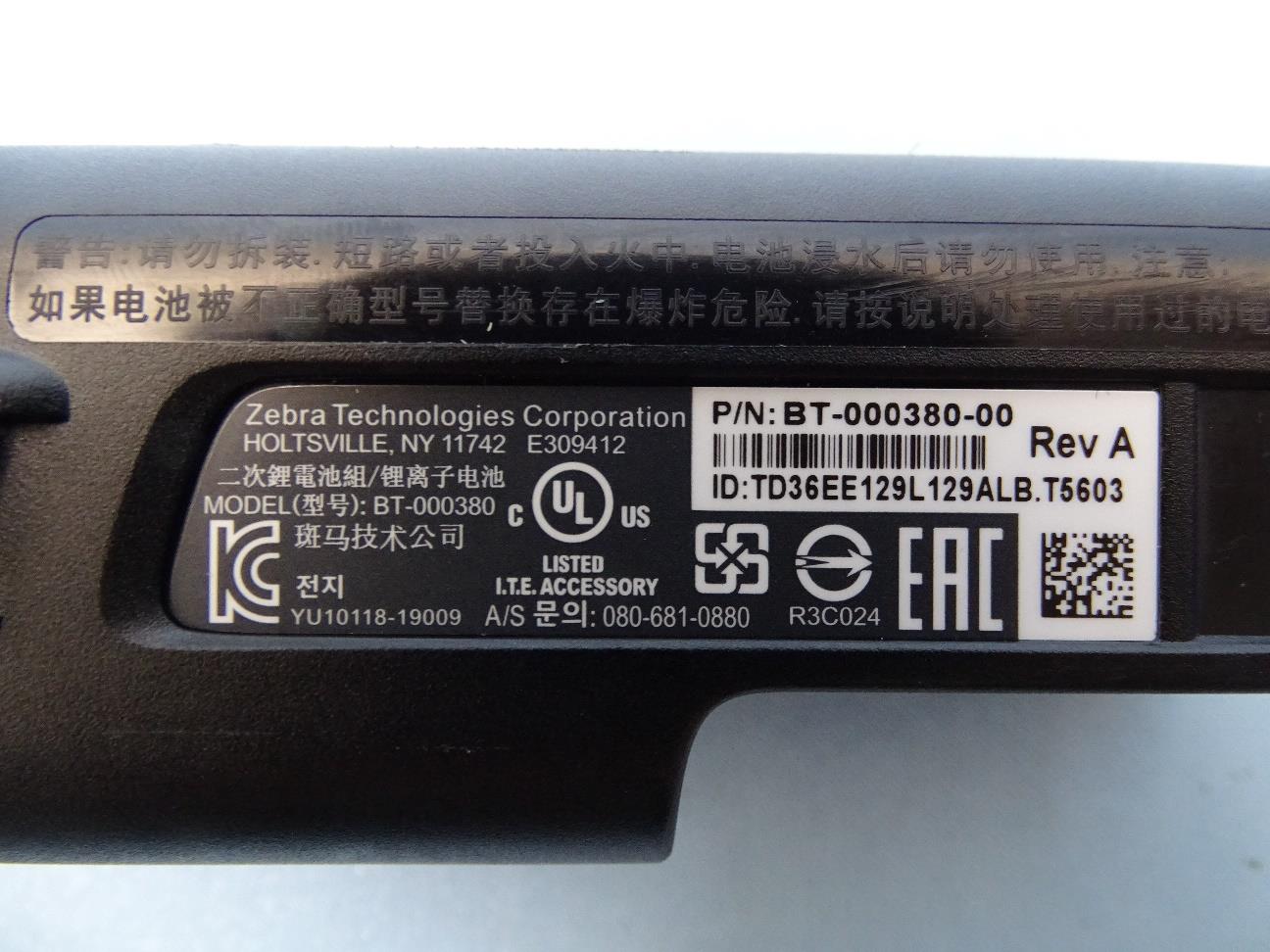

PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 1 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 1. External Photograph of EUT Brand Name: ZEBRA / Model Name: RFD4030 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 2 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 3 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 4 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 5 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 6 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 7 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 2. Photograph of Accessory Brand Name: ZEBRA / Model Name: RFD4030 Specification of Accessory Battery Brand Name ZEBRA Model Name BT-000380 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 8 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 Battery PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 9 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 720510

On the top of device

) A1 59-477908-01 2B-076567 UG/WMS/WMS1/IMS/PLM/TWENG 03/24’21 03/24’21 MFG LBL FOR CRICKET_STD_US SKU Jerry Lin Alex Wang minimum size is 7mm 6:JUN, 7:JUL, 8:AUG, 9:SEP, 10:OCT, 11:NOV, 12:DEC 2. 1. (S)S/N: Serial Number: YYDDDZZZZPSSSS Serial Number : from 0001 to 9999. The start at 0001 at the beginning of every day. Plant code:5201 for USI TAIWAN Nan-Tou. Plant code:5211 for USI Shanghai. Plant code:5230 for USI Kunshan. Julian day of the year from 001 to 365. Year (2005~2009=05~09 ; 2010,2011...=10,11...) All Pre EV or Prototype units : P; All EV units : E ; All DV units : D MV and Produc tion units back to normal format : 0 to 9. Bar code data : SYYDDDZZZZPSSSS (Use 128/code B/Narrow bar width dots is 4) 3. P/N: Please refer “Customer P/N” on PDM (PDM”Customer P/N”). 4. MODEL: XXXXXXX Please refer customer P/N first 7 codes (customer P/N7). 5. MADE IN XXXXXX XX TAIWAN NK CHINA KS 6. XXXX5201 for TAIWAN. 5230 for CHINA. UL card number: PGJI2.MH25635 UL model type: WG-7816-BW, 3M7816 E177793 Logo to be legible. MODEL: XXXXXXX P/N: XXXXXXXXXXXXX (S)S/N: YYDDDZZZZPSSSS SYYDDDZZZZPSSSS MFD: DDMMMYY ZEBRA TECHNOLOGIES CORP. HOLTSVILLE, NY 11742 E177793 IC: 109AN-RFD4030 FCC ID: UZ7RFD4030 MADE IN XXXXXX XX XXXX INPUT: 5V 2.5A

PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 10 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 3. Internal Photograph of EUT Brand Name: ZEBRA / Model Name: RFD4030 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 11 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 12 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 13 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 14 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 15 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 16 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 17 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 18 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 19 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 20 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 21 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 22 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 23 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 24 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 25 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 26 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 27 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 28 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 29 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 30 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP111940 TEL : 886-3-327-3456 Page Number : 31 of 31 FAX : 886-3-328-4978 Issued Date : Apr. 19, 2021 Report Version : 01 ─────THE END──── 720510

TEL : 886-3-327-3456 Page 1 of 17 FAX : 886-3-328-4978 Issued Date : Apr. 21, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA111940 FCC SAR TEST REPORT FCC ID : UZ7RFD4030 Equipment : RFID Sled Brand Name : ZEBRA Model Name : RFD4030 Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Mar 22, 2021 and testing was started from Apr. 07, 2021 and completed on Apr 04, 2021. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 17 FAX : 886-3-328-4978 Issued Date : Apr. 21, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA111940 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 4 3.1 General Information ............................................................................................................................................... 4 4. RF Exposure Limits....................................................................................................................................................... 5 4.1 Uncontrolled Environment ...................................................................................................................................... 5 4.2 Controlled Environment .......................................................................................................................................... 5 5. Specific Absorption Rate (SAR) ................................................................................................................................... 6 5.1 Introduction ............................................................................................................................................................ 6 5.2 SAR Definition ........................................................................................................................................................ 6 6. System Description and Setup .................................................................................................................................... 7 6.1 Test Site Location ................................................................................................................................................... 7 6.2 E-Field Probe ......................................................................................................................................................... 8 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 8 6.4 Phantom ................................................................................................................................................................. 9 6.5 Device Holder........................................................................................................................................................10 7. Measurement Procedures ...........................................................................................................................................11 7.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 7.2 Power Reference Measurement............................................................................................................................12 7.3 Area Scan .............................................................................................................................................................12 7.4 Zoom Scan ............................................................................................................................................................13 7.5 Volume Scan Procedures ......................................................................................................................................13 7.6 Power Drift Monitoring ...........................................................................................................................................13 8. Test Equipment List .....................................................................................................................................................14 9. System Verification ......................................................................................................................................................15 9.1 Tissue Verification .................................................................................................................................................15 9.2 System Performance Check Results .....................................................................................................................15 10. RFID Output Power (Unit…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/7 System Check_Head_900MHz DUT: D900V2-1d165 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900_210407 Medium parameters used: f = 900 MHz; σ = 0.958 S/m; ε r = 42.033; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7625;ConvF(9.68, 9.68, 9.68) @ 900 MHz;Calibrated: 2021/1/19 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.50 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.04 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 4.04 W/kg SAR(1 g) = 2.58 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.54 W/kg 0 dB = 3.50 W/kg = 5.44 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/7 #01_RFID_ASK_Front_21mm_914.75MHz Communication System: CW ; Frequency: 914.75 MHz;Duty Cycle: 1:1.141 Medium: HSL_900_210407 Medium parameters used: f = 915 MHz; σ = 0.965 S/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7625;ConvF(9.68, 9.68, 9.68) @ 914.75 MHz;Calibrated: 2021/1/19 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (101x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.19 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.75 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.934 W/kg; SAR(10 g) = 0.688 W/kg Maximum value of SAR (measured) = 1.17 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg

~ "· In Col aboratio wi -TTL s P e a g CALIBRATION lABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-I0-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: 219-60056 CALIBRATION CERTIFICATE Object D900V2 - SN:1d165 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: March 8, 2019 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the cer…

Text truncated - open the document above for the full version.
