UZ7TC26BKTouch computer

Touch Computer TC21 / TC26 MN-003892-01EN Quick Start Guide REVIEW ONLY3/9/20 TC21/TC26 Quick Start Guide 11 Copyright ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2020 Zebra Technologies Corporation and/or its affiliates. All rights reserved. COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/copyright . WARRANTY: For complete warranty information, go to www.zebra.com/warranty . END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula . Terms of Use • Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies. • Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice. • Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom. • Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. REVIEW ONLY 3/9/20 TC21/TC26 Quick Start Guide 12 Unpacking 1.Carefully remove all protective material from the device and save the shipping container for later storage and shipping. 2.Verify that the following were received: •Touch computer •PowerPrecision Lithium-ion battery •Regulatory Guide. 3.Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer Support center immediately. 4.Prior to using the device for the first time, remove the protective shipping film that covers the scan window, display and camera window. Features Figure 1 Front View Table 1 Front View Features NumberItemFunction 1Front CameraTakes photos and videos (available on some models). 2ReceiverUse for audio playback in Handset mode. 3Proximity/Light Sensor Determines proximity for turning off display when in handset mode. Determines ambient light for controlling display backlight intensity. 4Data Capture LEDIndicates data capture status. 6 11 10 9 8 7 5 4 3 2 1 REVIEW ONLY 3/9/20 TC21/TC26 Quick Start Guide 13 Figure 2 Rear View 5Charging/Notification LED Indicates battery charging status while charging and application generated notifications. 6Touch ScreenDisplays all information needed to operate the device. 7SpeakerProvides audio output for video and music playback. Provides audio in speakerphone mode. 8USB-C ConnectorProvides USB host and client communications, and device charging via cables and accessories. 9MicrophoneUse for communications in Handset mode. 10PTT ButtonInitiates push-to-talk communications (programmable). 11Scan ButtonInitiates data capture (programmable). Table 2 Back View Features NumberItemFunction 12BatteryStandard - 3,300 mAh (typical) / 3,100 mAh (minimum) PowerPrecision Lithium-ion Battery Extended - 5,400 mAh (typical) / 5,400 mAh (minimum), PowerPrecision Lithium-ion Battery. 13Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory. 14Volume Up/Down Button Increase and decrease audio volume (programmable). Table 1 Front View Features<em_Emphasis> (continued) NumberItemFunction 12 14 13 15 16 17 18 19 20 13 16 21 REVIEW ONLY 3/9/20 TC21/TC26 Quick Start Guide 14 Setting Up the Device To start using the device for the first time. 1. Install a micro secure digital (SD) card (optional). 2. Installing a nano SIM card (optional) 3. Install hand strap (optional). 4. Install the battery. 5. Charge the device. 6. Power on the device. Installing a microSD Card The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use. CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD pre- cautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded. 15Scan ButtonInitiates data capture (programmable). 16Battery Release Latches Press to remove the battery. 17Camera FlashProvides illumination for the camera. 18Rear CameraTakes photos and videos. 19Power ButtonTurns the display on and off. Press and hold to reset the device or power off. 20Exit WindowProvides data capture using the imager. 21MicrophoneUse for communications in Speakerphone mode. Table 2 Back View Features <em_Emphasis> (continued) NumberItemFunction REVIEW ONLY 3/9/20 TC21/TC26 Quick Start Guide 15 1. Lift the access door. Figure 3 Lift Access Door 2. Slide the microSD card holder to the unlock position. Figure 4 Unlock microSD Card Holder 3. Lift the microSD card holder. Figure 5 Lift the microSD Card Holder REVIEW ONLY 3/9/20 TC21/TC26 Quick Start Guide 16 4. Insert the microSD card into t…

Text truncated - open the document above for the full version.

- - - 5 GHz Only - 2.4 GHz Only - - For Safe Installation Other Medical Devices Co-located statement LED Devices ANSI C63.19 Rating System Hearing Aid Compatibility Radio Frequency Interference Requirements - Canada Radio Transmitters Brazil Chile China Eurasian Customs Union . Hong Kong Mexico Taiwan Turkey Ukraine Thailand Turkish WEEE Statement of Compliance (Parts) (Pb) (Hg)(Cd) (Metal Parts) (Circuit Modules) (Cables and Cable Assemblies) (Plastic and Polymeric Parts) (Optics and Optical Components) (Batteries)

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: April 21, 2020 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7TC26BK AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Label Location Attestation We attest that the label of device FCC ID: UZ7TC26BK is located in the battery room. The label is visible to the users as they purchase the product and install the battery. Sincerely, ------------------------------- Larry Zhou Regulatory Engineer 631-738-5269 [email protected]

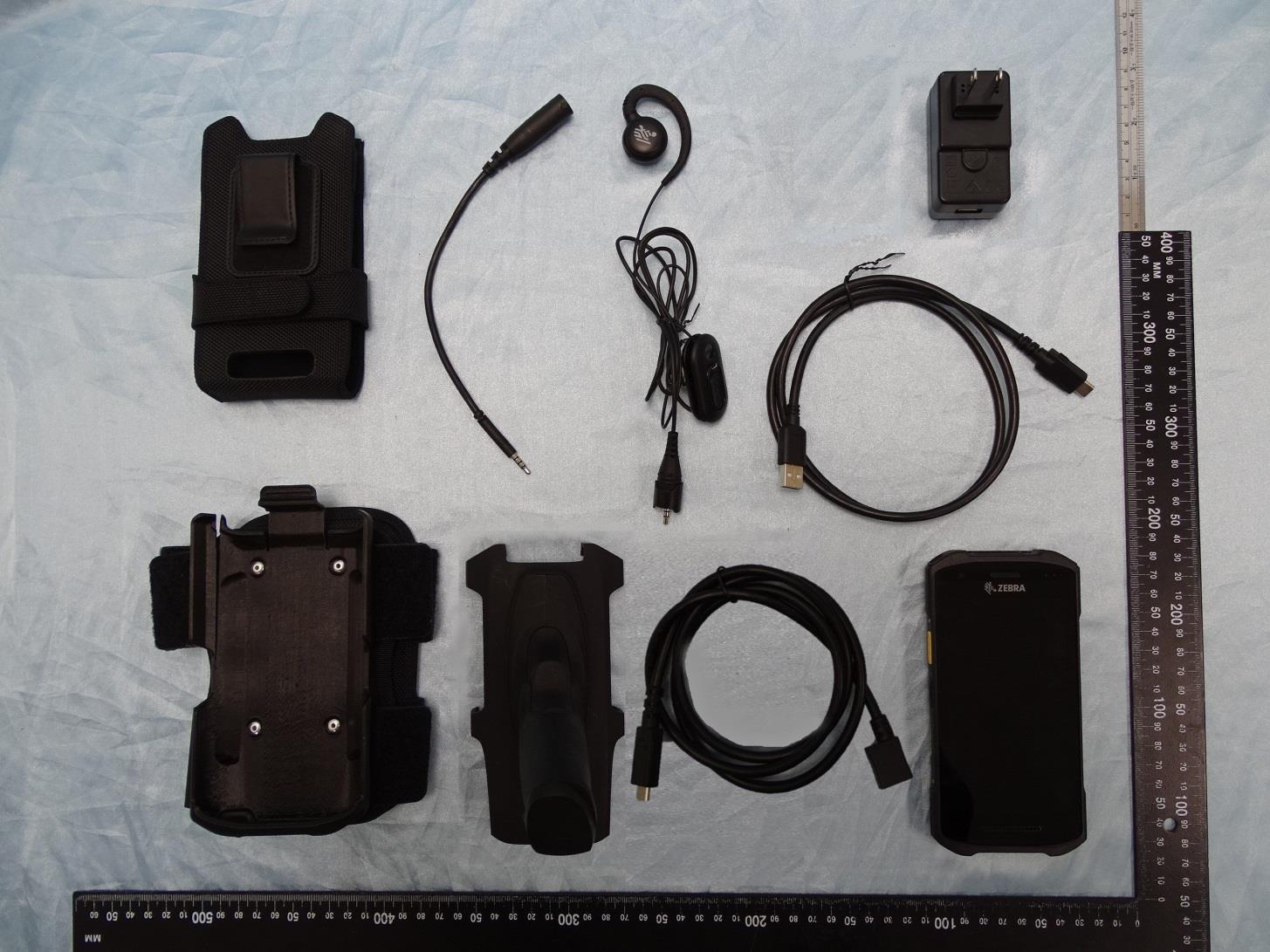

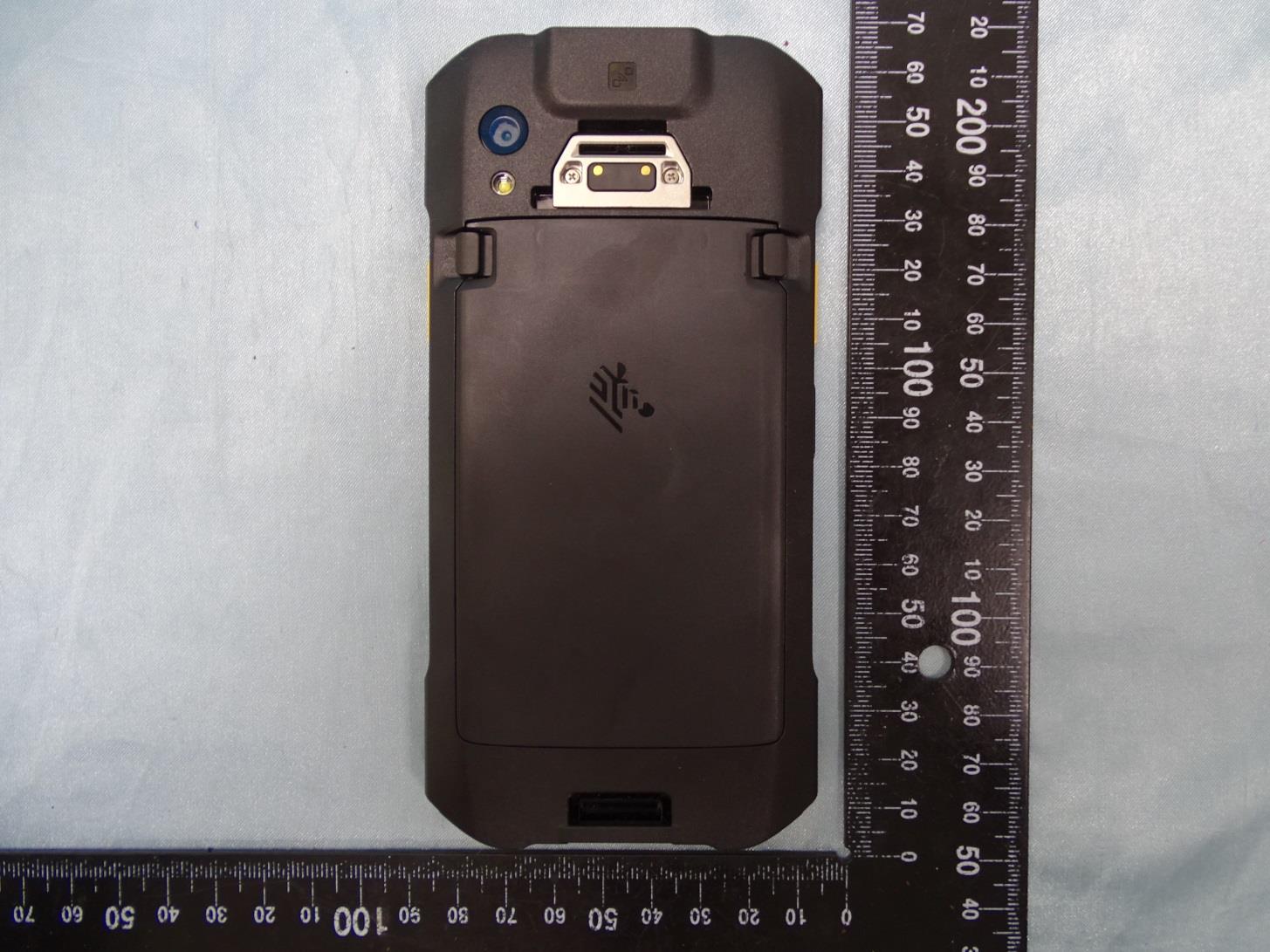

PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 1 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 720510 1. External Photograph of EUT Sample 1 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 2 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 3 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 4 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 5 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 6 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 7 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 Specification of Accessory AC Adapter Brand Name Zebra Part Number PWR-WUA5V12W0US Battery 1 Brand Name Zebra Part Number BT-000409-00 Battery 2 Brand Name Zebra Part Number BT-000409-50 Battery 3 Brand Name Zebra Part Number BT-000411-08 USB Cable 1 (Type A plug to Type C plug) Brand Name Zebra Part Number CBL-TC5X-USBC2A-01 USB Cable 2 (Type A plug to Type C plug) Brand Name Zebra Part Number CBL-TC2Y-USBC90A-01 Headset 3.5mm type with PTT/micassy Brand Name Zebra Part Number HDST-35MM-PTVP-01 Adapter Cable PTT headset (3.5mm to 3.5mm) Brand Name Zebra Part Number CBL-TC51-HDST35-01 Snap on Trigger handle Brand Name Zebra Part Number TRG-TC2Y-SNP1-01 Belt Holster Brand Name Zebra Part Number SG-TC2Y-HLSTR1-01 Wearable Arm Mount Brand Name Zebra Part Number SG-TC2Y-ARMNT-01 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 8 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 9 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 AC Adapter PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 10 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 Battery 1 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 11 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 Battery 2 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 12 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 Battery 3

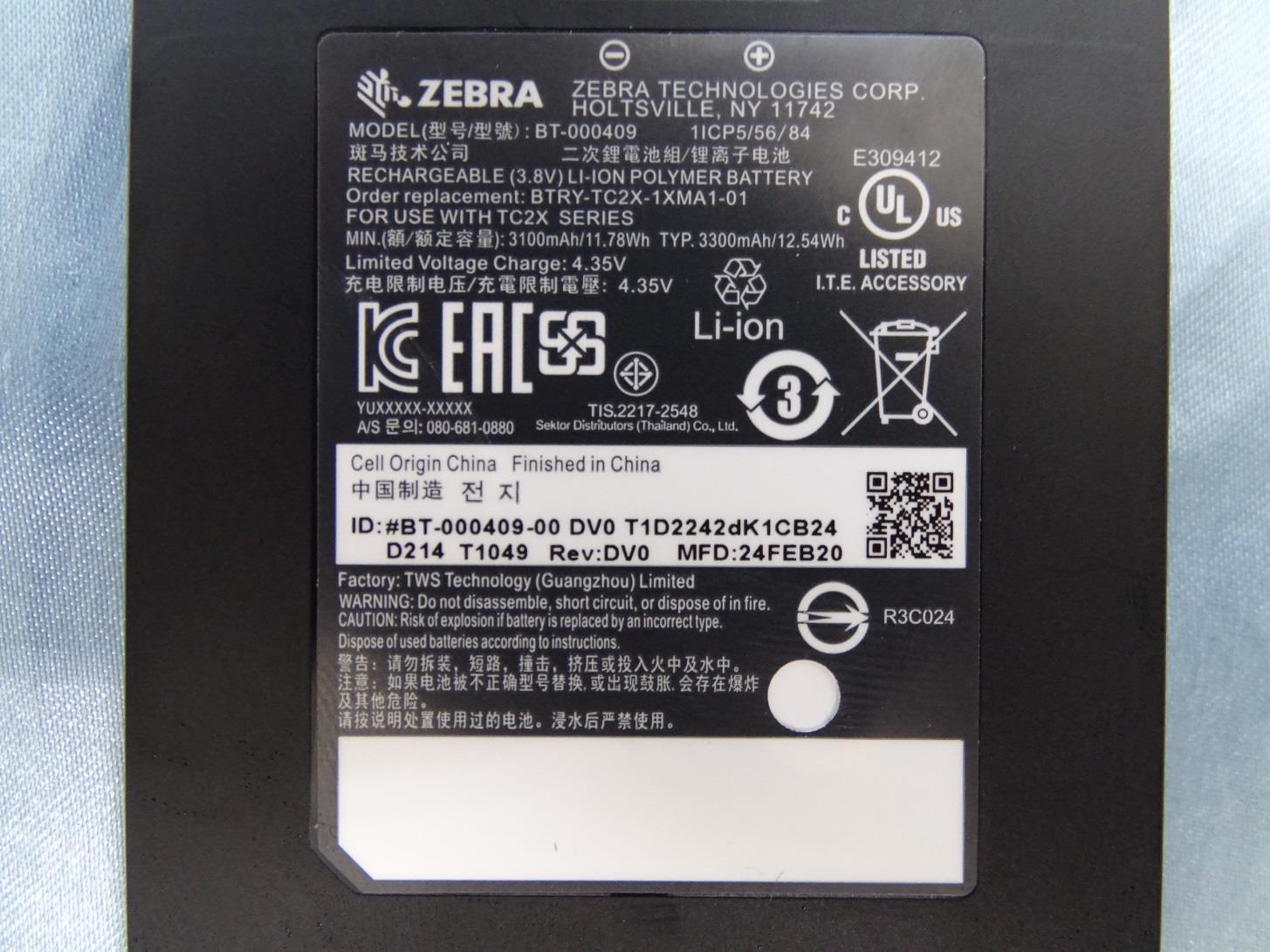

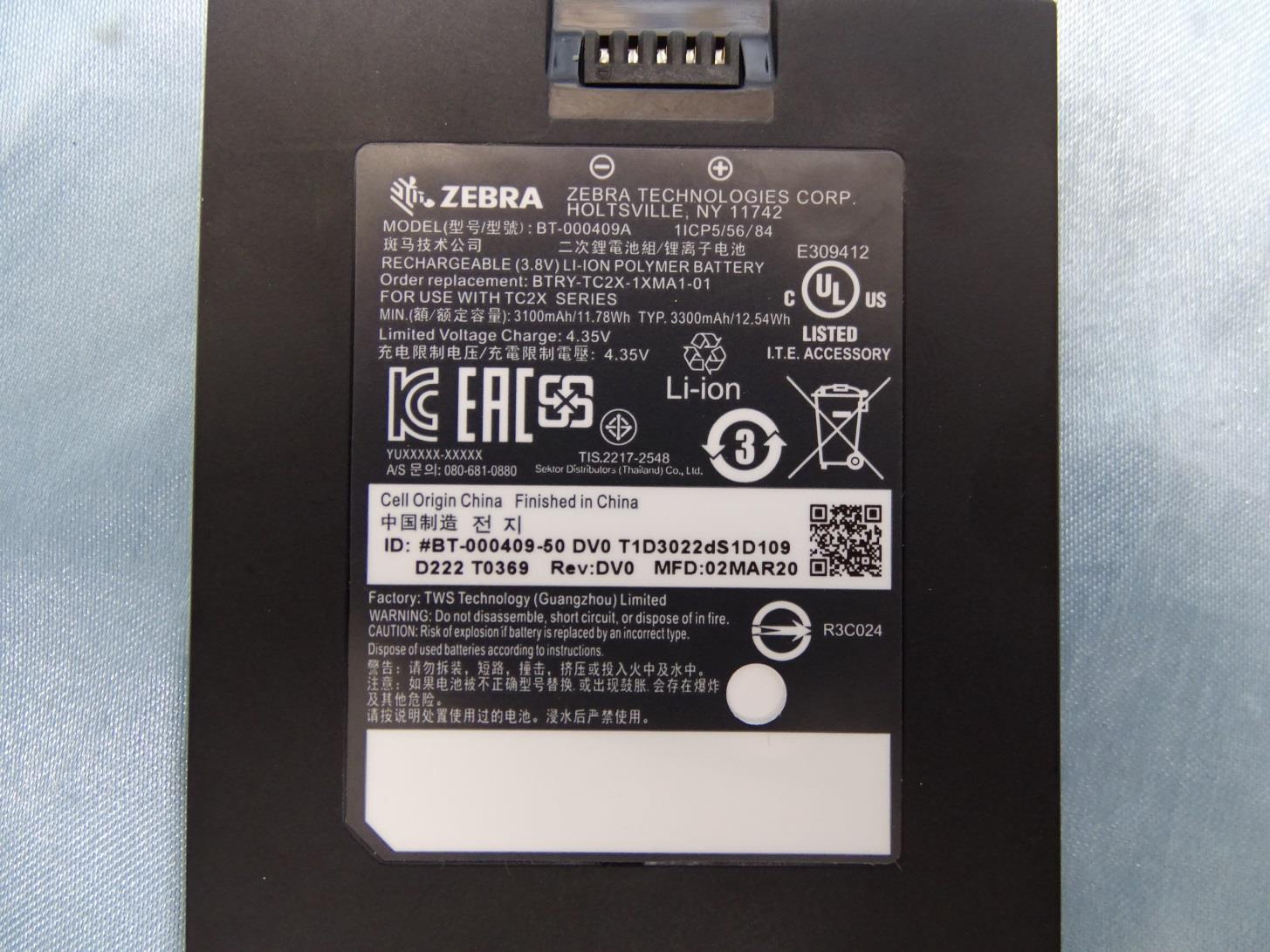

Battery room Label location Back of the device Label is located in the battery room. The label is visible to the users as they purchase the product and install the battery.

PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 13 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 720510 3. Internal Photograph of EUT Sample 1 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 14 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 15 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 16 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 17 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 18 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 19 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 20 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 21 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 22 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 23 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 24 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 25 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 26 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 27 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 28 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 29 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 30 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 31 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 32 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 33 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 34 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 35 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 36 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01

PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 37 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 38 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 39 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 40 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 41 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 42 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 43 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 WWAN TRX1 Antenna PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 44 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 WWAN TRX2 Antenna PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 45 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 WWAN DRX1 Antenna PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 46 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 Bluetooth, WLAN and GPS Antenna PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 47 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 NFC Antenna PHOTOGRAPHS OF EUT Report No.: EP010316 Brand Name: Zebra / Model Name: TC26BK TEL : 886-3-327-3456 Page Number : 48 of 48 FAX : 886-3-328-4978 Issued Date : May 04, 2020 Report Version : 01 ─────THE END────

TEL : 886-3-327-3456 Page 1 of 88 FAX : 886-3-328-4978 Issued Date : May 06, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA010316 FCC SAR TEST REPORT FCC ID : UZ7TC26BK Equipment : Touch computer Brand Name : Zebra Model Name : TC26BK Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Mar. 26, 2020 and testing was started from Apr. 21, 2020 and completed on Apr. 25, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 88 FAX : 886-3-328-4978 Issued Date : May 06, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA010316 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 4. RF Exposure Limits....................................................................................................................................................... 9 4.1 Uncontrolled Environment ...................................................................................................................................... 9 4.2 Controlled Environment .......................................................................................................................................... 9 5. Specific Absorption Rate (SAR) ..................................................................................................................................10 5.1 Introduction ...........................................................................................................................................................10 5.2 SAR Definition .......................................................................................................................................................10 6. System Description and Setup ...................................................................................................................................11 6.1 E-Field Probe ........................................................................................................................................................12 6.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 6.3 Phantom ................................................................................................................................................................13 6.4 Device Holder........................................................................................................................................................14 7. Measurement Procedures ...........................................................................................................................................15 7.1 Spatial Peak SAR Evaluation ................................................................................................................................15 7.2 Power Reference Measurement............................................................................................................................16 7.3 Area Scan .............................................................................................................................................................16 7.4 Zoom Scan ............................................................................................................................................................17 7.5 Volume Scan Procedures ......................................................................................................................................17 7.6 Power Drift Monitoring ...........................................................................................................................................17 8. Test Equipment List .....................................................................................................................................................18 9. System Verification ......................................................................................................................................................19 9.1 Tissue Simulating Liquids ......................................................................................................................................19 9.2 Tissue Verification .......................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/22 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200422 Medium parameters used: f = 835 MHz; σ = 0.93 S/m; ε r = 42.371; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 835 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.58 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 3.20 W/kg SAR(1 g) = 2.28 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.63 W/kg = 4.20 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/24 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200424 Medium parameters used: f = 835 MHz; σ = 0.931 S/m; ε r = 42.471; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 835 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.58 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.21 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.63 W/kg = 4.20 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/21 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200421 Medium parameters used: f = 1750 MHz; σ = 1.36 S/m; ε r = 41.536; ρ = 1000 kg/m 3 23.9 22.9 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.34, 5.34, 5.34) @ 1750 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.59 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 9.02 W/kg; SAR(10 g) = 4.83 W/kg Maximum value of SAR (measured) = 11.2 W/kg 0 dB = 11.2 W/kg = 10.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/21 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200421 Medium parameters used: f = 1750 MHz; σ = 1.407 S/m; ε r = 39.471; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(8.7, 8.7, 8.7) @ 1750 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2019/12/6 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.70 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 17.…

Text truncated - open the document above for the full version.
