Touch Computer TC21 / TC26 MN-003892-03EN Quick Start Guide TC21/TC26 Quick Start Guide 2 Copyright ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2020 Zebra Technologies Corporation and/or its affiliates. All rights reserved. COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/copyright . WARRANTY: For complete warranty information, go to www.zebra.com/warranty . END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula . Terms of Use • Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies. • Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice. • Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom. • Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. TC21/TC26 Quick Start Guide 3 Unpacking 1.Carefully remove all protective material from the device and save the shipping container for later storage and shipping. 2.Verify that the following were received: •Touch computer •PowerPrecision Lithium-ion battery •Regulatory Guide. 3.Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer Support center immediately. 4.Prior to using the device for the first time, remove the protective shipping film that covers the scan window, display and camera window. Features Figure 1 Front View Table 1 Front View Features NumberItemFunction 1Front CameraTakes photos and videos (available on some models). 2ReceiverUse for audio playback in Handset mode. 3Proximity/Light Sensor Determines proximity for turning off display when in handset mode. Determines ambient light for controlling display backlight intensity. 4Data Capture LEDIndicates data capture status. 6 11 10 9 8 7 5 4 3 2 1 TC21/TC26 Quick Start Guide 4 Figure 2 Rear View 5Charging/Notification LED Indicates battery charging status while charging and application generated notifications. 6Touch ScreenDisplays all information needed to operate the device. 7SpeakerProvides audio output for video and music playback. Provides audio in speakerphone mode. 8USB-C ConnectorProvides USB host and client communications, and device charging via cables and accessories. 9MicrophoneUse for communications in Handset mode. 10Programmable Button Typically used for Push-to-Talk communications. Where regulatory restrictions exist for Push-to-Talk VoIP communication, this button is configurable for use with other applications. 11Scan ButtonInitiates data capture (programmable). Table 2 Back View Features NumberItemFunction 12NFC AntennaProvides communication with other NFC-enabled devices. 13Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory. 14Battery Release Latches Press to remove the battery. 15Alert ButtonRed alert button (available on healthcare devices only). Table 1 Front View Features (continued) NumberItemFunction 16 17 13 18 14 19 20 21 22 13 14 23 12 15 TC21/TC26 Quick Start Guide 5 Setting Up the Device To start using the device for the first time. 1. Install a micro secure digital (SD) card (optional). 2. Installing a nano SIM card (optional) 3. Install hand strap (optional). 4. Install the battery. 5. Charge the device. 6. Power on the device. Installing a microSD Card The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use. CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD pre- cautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded. 16BatteryStandard - 3,400 mAh (typical) / 3,100 mAh (minimum) PowerPrecision Lithium-ion Battery Extended - 5,260 mAh (typical) / 5,000 mAh (minimum), PowerPrecision Lithium-ion Battery. 17Volume Up/Down Button Increase and decrease audio volume (programmable). 18Scan ButtonInitiates data capture (programmable). 19Camera FlashProvides illumination for the camera. 20Rear CameraTakes photos and videos. 21Power ButtonTurns the display on and off. Press and hold to reset the device or power off. 22Exit WindowProvides data capture using the imager. 23MicrophoneUse for communications in Speakerphone mode. Table 2 Back View Features (continued) NumberItemFunction TC21/TC26 Quick Start Guide 6 1. Lift the access door. Figure 3 Lift Access Door 2. Slide the microSD card holder to the unlock position. Figure 4 Unlock microSD Card Hold…

Text truncated - open the document above for the full version.

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. © 2020 Zebra Technologies Corp. and/or its affiliates. All rights reserved. | www.zebra.com MN-004127-01ENEN Rev. A TC26EK Regulatory Guide Regulatory Information This device is approved under Zebra Technologies Corporation. This guide applies to the following model number: TC26EK All Zebra devices are designed to be compliant with the rules and regulations in the locations they are sold and will be labeled as required. Local language translation / Tradução do idioma local / Übersetzung in die lokale Sprache / Raduccion de idioma local / Traduction en langue locale / Prijevod na lokalni jezik / Traduzione in lingua locale / 現地語 の翻訳 / 현지 언어 번역 / Перевод на местный язык / 本地語言翻譯 / 本地语言翻译 / Yerel dil çeviri /Tłumaczenie na język lokalny : www.zebra.com/support Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the user’s authority to operate the equipment. Declared maximum operating temperature: 50°C For use only with Zebra approved and UL Listed mobile devices, Zebra approved, and UL Listed/Recognized battery packs. Bluetooth ® Wireless Technology This is an approved Bluetooth ® product. For more information on the Bluetooth SIG listing, please visit www.bluetooth.com. Regulatory Markings Regulatory markings subject to certification are applied to the device signifying the radio(s) is/are approved for use. Refer to the Declaration of Conformity (DoC) for details of other country markings. The DOC is available at: www.zebra.com/doc. The regulatory marks specific to this device (including FCC and ISED) are available on the screen of the device by following these instructions: Go to Settings > Regulatory. Health and Safety Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury, always follow good ergonomic workplace practices. Consult with your local Health and Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. Vehicle Installation RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles (including safety systems). Check with the manufacturer or its representative regarding your vehicle. Ensure the equipment is installed to avoid driver distractions. You should also consult the manufacturer about any equipment that has been added to your vehicle. Position the device within easy reach. User should be able to access the device without removing their eyes from the road. MN-004127-01ENa_tc26ek-rg-en.book Page 1 Wednesday, January 27, 2021 7:51 AM Draft v4 TC26EK Regulatory Guide 2 IMPORTANT: Before installing or using, check national and local laws regarding distracted driving. Safety on the Road Give your full attention to driving. Obey the laws and regulations on the use of wireless devices in the areas where you drive. The wireless industry reminds you to use your device / phone safely when driving. Restricted Use Locations Remember to observe restrictions and obey all signs and instructions on the use of electronic devices in restricted use locations. Safety in Hospitals and Aircraft NOTE: Wireless devices transmit radio frequency energy that may affect medical electrical equipment and aircraft’s operation. Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics, healthcare facilities or by airline staff. These requests are designed to prevent possible interference with sensitive equipments. It is recommended that a minimum separation distance of 20 cm (8 inches) be maintained between a wireless device and a medical devices such as pacemakers, defibrillator, or other implantable devices to avoid potential interference with the medical device. Pacemaker users should keep the device at the opposite side of the pacemaker or turn OFF the device if suspected of interference. Please consult your physician or the manufacturer of the medical device to determine if the operation of your wireless product may interfere with the medical device. RF Exposure Guidelines Safety Information Reducing RF Exposure – Use Properly Only operate the device in accordance with the instructions supplied. The device complies with internationally recognized standards covering human exposure to electromagnetic fields. For information on international human exposure to electromagnetic fields, refer to the Zebra Declaration of Conformity (DoC) at www.zebra.com/doc. Use only Zebra tested and approved headset, belt-clips, holsters, and similar accessories to ensure RF exposure compliance. If applicable, follow the instructions for use as detailed in the accessory guide. The use of third-party belt clips, holsters, and similar accessories may not comply with RF exposure compliance requirements and should be avoided. For further information on the safety of RF energy from wireless devices, refer to RF exposure and assessment standards section at www.zebra.com/responsibility. LED Devices Classified as ‘EXEMPT RISK GROUP’ according to IEC 62471:2006 and EN 62471:2008. Pulse Duration: CW ms (TC26EK with SE4710) MN-004127-01ENa_tc26ek-rg-en.book Page 2 Wednesday, January 27, 2021 7:51 AM Draft v4 TC26EK Regulatory Guide 3 Power Supply WARNING ELECTRICAL SHOCK: Use only a Zebra approved, Certified ITE [LPS] power supply with appropriate electrical ratings. Use of alternative power supply will invalidate any approvals given to this unit and may be dangerous. Batteries and Power Packs This information applies to Zebra-approved batteries and power packs containing batteries. Battery Information CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of batteries according to instructions. Use only Zebra approved batteries. Accessories which have battery charging capability are approved fo…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: January 30, 2021 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UZ7TC26EK AUTHORIZATION LETTER We, the undersigned, hereby authorize Jones Tsai in Sporton International Inc. to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jones Tsai in Sporton International Inc. on our behalf shall have the same effect as acts of our own. If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos Regulatory Engineering Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Label Location Attestation We attest that the label of device FCC ID: UZ7TC26EK is located in the battery room. The label is visible to the users as they purchase the product and install the battery. Sincerely, Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Regulatory Engineering Declaration - MIF for HAC RF Interference Evaluation This device, with FCC ID: UZ7TC26EK, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) or average antenna input power as documented in HAC test report exhibit, and adding the MIF value in dB. The MIF values below for the worst-case operation mode for all air interfaces are pre-determined values provided by Speag. UID Communication System Name MIF(dB) 10025 EDGE-FDD (TDMA, 8PSK, TN 0) 3.75 10460 UMTS-FDD(WCDMA, AMR) -25.43 10225 UMTS-FDD (HSPA+) -20.39 10170 LTE-FDD(SC-FDMA,1RB,20MHz,16-QAM) -9.76 10172 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, QPSK) -1.62 10173 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 16-QAM) -1.44 10174 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 64-QAM) -1.54 10061 IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077 IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10427 IEEE 802.11n (HT Green eld, 150 Mbps, 64-QAM) -13.44 10069 IEEE 802.11a/h WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616 IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 We are confirming that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely, Zebra Technologies Corporation 1 Zebra Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Signature : _______________________________ Name and Job Title. : Larry (Qianlin) Zhou / Regulatory Specialist E-mail : [email protected] Tel. : 346-260-3543

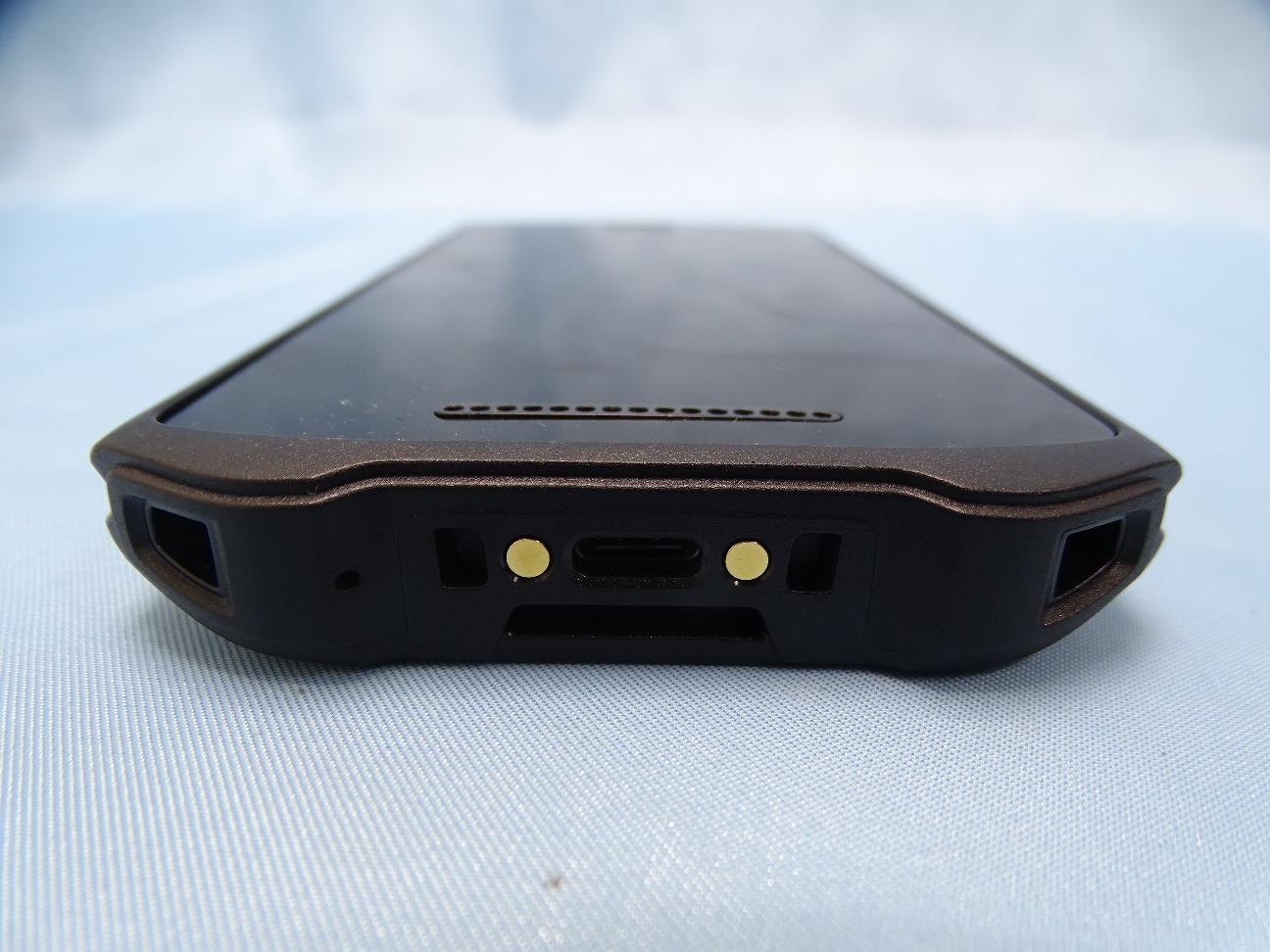

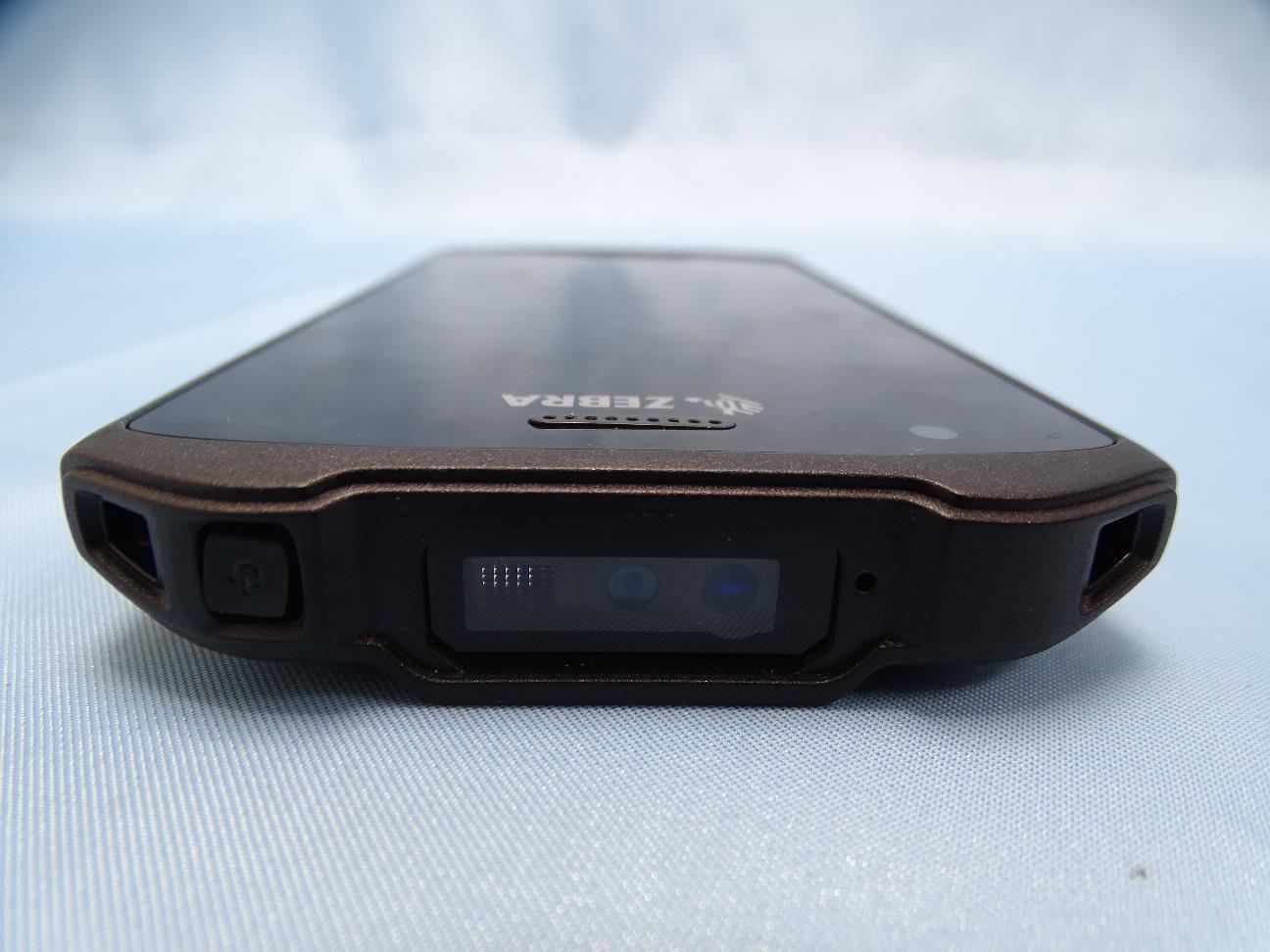

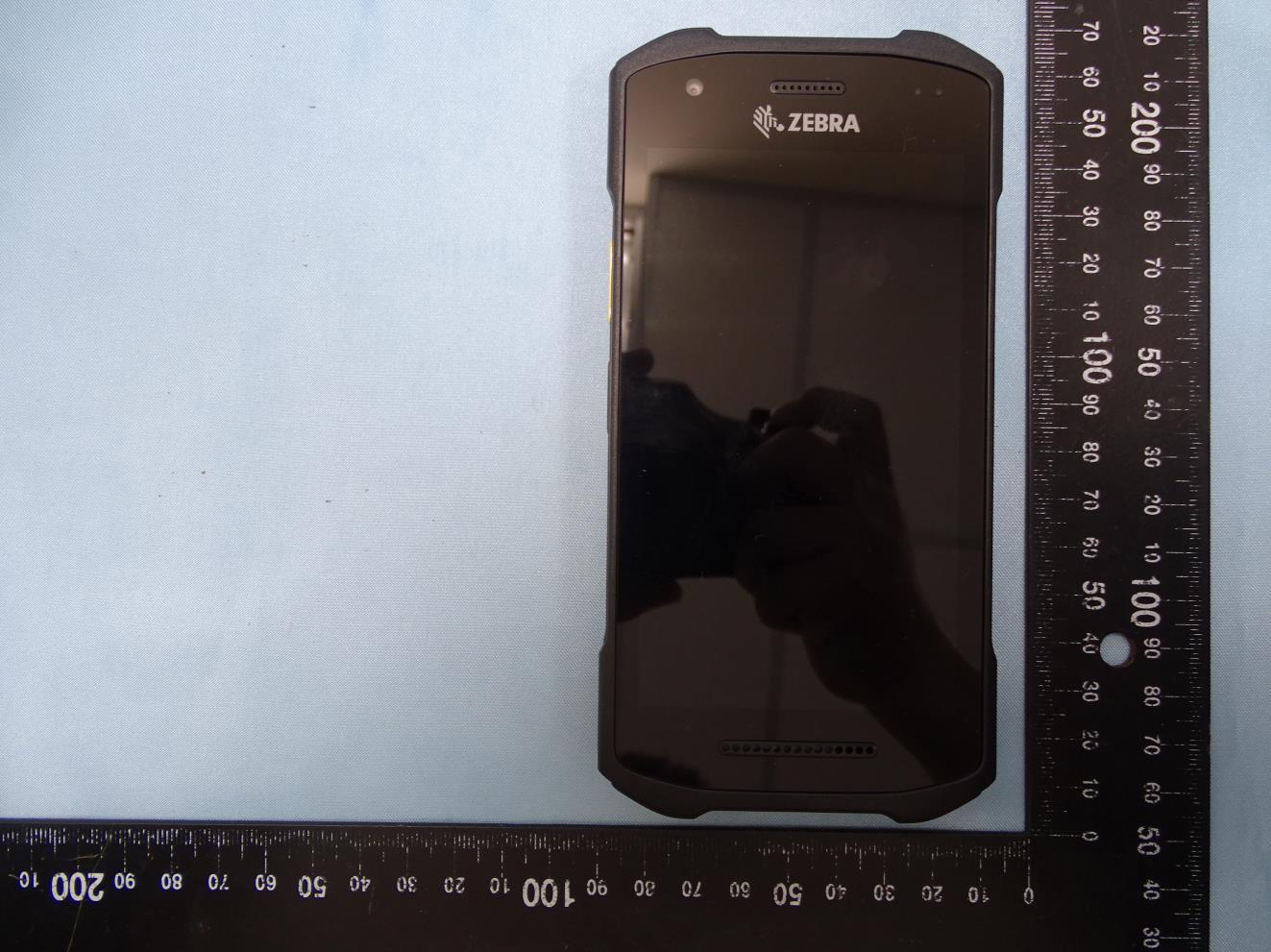

PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 1 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 1. External Photograph of EUT Brand Name: Zebra / Model Name: TC26EK PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 2 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 3 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 4 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 5 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 6 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 7 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 8 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 9 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 10 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 11 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 2. Photograph of Accessory Brand Name: Zebra / Model Name: TC26EK Specification of Accessory AC Adapter Brand Name Zebra Model Name SAWA-65-20005A Battery Brand Name Zebra Model Name BT-000409A USB Cable 1 (TypeA plug to TypeC plug) Brand Name Zebra Part Number CBL-TC5X-USBC2A-01 USB Cable 1 (TypeA plug to TypeC plug) Brand Name Zebra Part Number CBL-TC2Y-USBC90A-01 Headset 3.5mm type with PTT/micassy Brand Name Zebra Part Number HDST-35MM-PTVP-01 Adapter Cable PTT headset (3.5mm to 3.5mm) Brand Name Zebra Part Number CBL-TC51-HDST35-01 Type C to 3.5mm adapter Brand Name Zebra Part Number ADP-USBC-35MM1-01 Snap on Trigger handle Brand Name Zebra Part Number TRG-TC2Y-SNP1-01 Belt Holster Brand Name Zebra Part Number SG-TC2Y-HLSTR1-01 Wearable Arm Mount Brand Name Zebra Part Number SG-TC2Y-ARMNT-01 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 12 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 13 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 AC Adapter PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 14 of 55 FAX : 886-3-328-4978 Issued Date : Mar. 08, 2021 Report Version : 02 720510 Battery

Battery room Label location Back of the device Label is located in the battery room. The label is visible to the users as they purchase the product and install the battery.

6 2B-075520 A1 1 1:1mm 2. 0.2 1. (S)S/N: Serial Number: YYDDDZZZZPSSSS The start at 0001 at the beginning of every day. Plant code:5201 for USI TAIWAN Nan-Tou. Plant code:5211 for USI Shanghai. Plant code:5230 for USI Kunshan. Julian day of the year from 001 to 365. Year (2005~2009=05~09 ; 2010,2011...=10,11...) All Pre EV or Prototype units : P All EV units : E; All DV units : D MV and Production units back to normal format : 0 to 9. Bar code data : SYYDDDZZZZPSSSS 3. MODEL: TC26EK is fixed( Yuanhao Jane Wu 11/26’19 11/26’19 4. P/N:XXXXXXXXXXXXX PDM Page2customer P/N). 5. BT: XXXXXXXXXXXX EX: BT: 123456789012 LABEL MFG FOR TC26EK_NA SKU Meteor minimum size is 7mm 6. WLAN: XXXXXXXXXXXX EX: WLAN: 123456789012 UG/WSS/WSS1/ IMS/PLM/KSENG ZEBRA TECHNOLOGIES CORP. HOLTSVILLE, NY 1 1742 MODEL: TC26EK P/N: XXXXXXXXXXXXX MFD: DDMMMYY XXXX (S)S/N: YYDDDZZZZPSSSS 5 V 2.5 A MADE IN XXXXXX XX 59-477794-01 E177793 FCC ID: UZ7TC26EK E177793 Logo to be legible. WLAN: XXXXXXXXXXXX BT: XXXXXXXXXXXX 8. MADE IN XXXXXX XX Kunshan sit e show “MADE IN CHINA KS” Taiwan sit e show “MADE IN TAIWAN NK” XXXX Kunshan site show 5230 Taiwan sit e show 5201 IMEI: XXXXXXXXXXXXXXX HAC 7. IMEI: XXXXXXXXXXXXXXX EX: IMEI: 123456789012345 HACmust be visible. ZEBRA TECHNOLOGIES CORP. HOLTSVILLE, NY 1 1742 MODEL: TC26EK P/N: XXXXXXXXXXXXX MFD: DDMMMYY XXXX (S)S/N: YYDDDZZZZPSSSS 5 V 2.5 A MADE IN XXXXXX XX E177793 FCC ID: UZ7TC26EK WLAN: XXXXXXXXXXXX BT: XXXXXXXXXXXX IMEI 1: XXXXXXXXXXXXXXX HAC IMEI 2: XXXXXXXXXXXXXXX Single-WAN Dual-WAN TC26EK-ZXXXXX-XX 1 : Signle-WAN() 2 : Dual-WAN() 3M7815 UL File: MH47378, Company name: SHANGHAI BECORE PAPER MANUFACTURING CO LTD UL Category code: PGJI2,HT-POLYESTER-200, UL Marking:SHANGHAI BECORE PAPER MANUFACTURING CO LTD. HT-POLYESTER-200, zebra 5095

PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 11 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 3. Internal Photograph of EUT Brand Name: Zebra / Model Name: TC26EK PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 12 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 13 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 14 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 15 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 16 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 17 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 18 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 19 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 20 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 21 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 22 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 23 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 24 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 25 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 26 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 27 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 28 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 29 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 30 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 31 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 32 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 33 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01

PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 34 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 35 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 36 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 37 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 38 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 39 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 40 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 41 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 42 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 43 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 44 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 45 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 46 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 47 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 48 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 WWAN Main Antenna PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 49 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 WWAN Diversity Antenna PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 50 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 Bluetooth & WiFi & GPS Antenna PHOTOGRAPHS OF EUT Report No.: EP0O2628-02 TEL : 886-3-327-3456 Page Number : 51 of 51 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Report Version : 01 ─────THE END──── 720510 NFC Antenna

TEL : 886-3-327-3456 Page 1 of 99 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA02628-02 FCC SAR TEST REPORT FCC ID : UZ7TC26EK Equipment : Touch computer Brand Name : Zebra Model Name : TC26EK Applicant : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Manufacturer : Zebra Technologies Corporation 1 Zebra Plaza, Holtsville, NY 11742 Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Jan. 29, 2021 and testing was started from Feb. 04, 2021 and completed on Feb. 22, 2021. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 99 FAX : 886-3-328-4978 Issued Date : Mar. 04, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA02628-02 Table of Contents 1. Statement of Compliance .......................................................................................…
