UZ7TC58A1

Zebra Technologies Corporation

Touch Computer

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 14, 2022
Application Purpose: Original Equipment
Date of Application: Jun 26, 2022
Equipment Note: Touch Computer
Frequency Range: 790.50000000 - 795.50000000
Company: Zebra Technologies Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

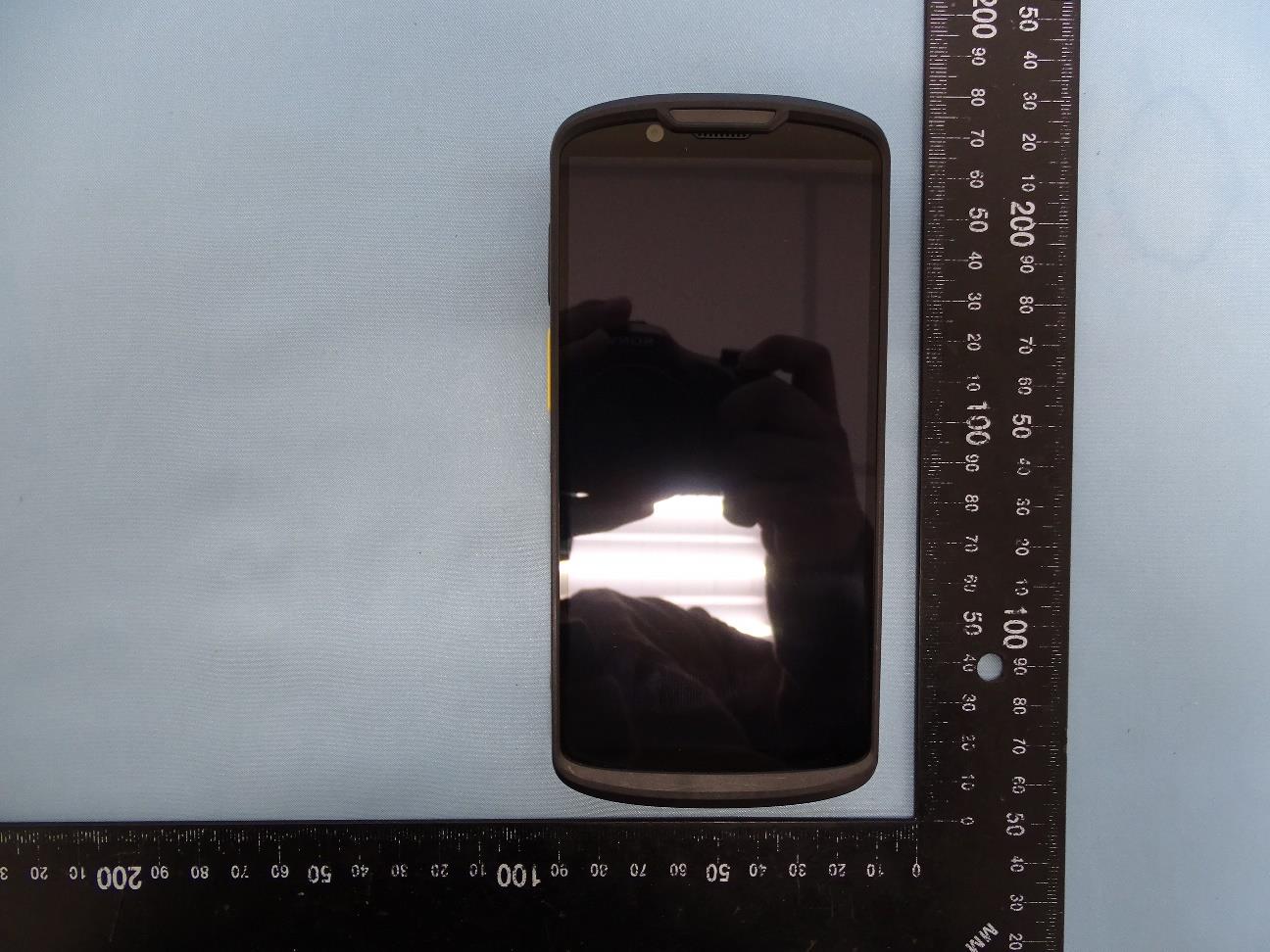

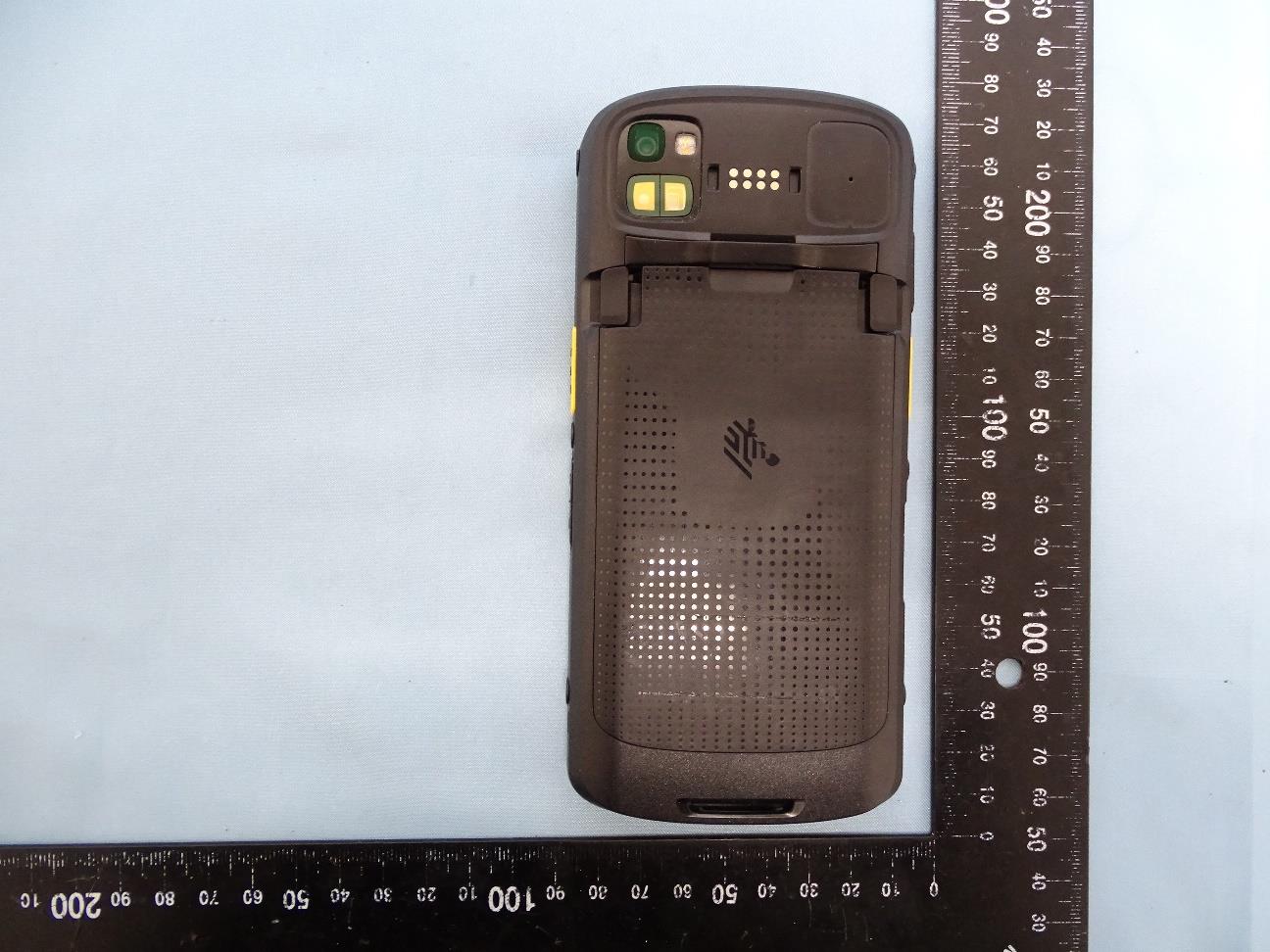

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
122	9	790.5 MHz - 795.5 MHz	70.80 mW	4M50G7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively, except for Part 90 LTE Band 26 and 5G NR Band n26 emissions, which are conducted. SAR compliance for body-worn operating configurations is limited to the specific body-worn accessories, such as belt-clips and holsters, tested for this filing, or belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 1.5 cm, as described in this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 0.92 W/kg, 1.06 W/kg, 1.05 W/kg, 1.59 W/kg and 1.66 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2, 4, 25 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 7 and 71; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Bands 5 and 12; LTE of 5 and 10 MHz bandwidth modes for FDD LTE Bands 13, 14 and17; LTE of 1.4, 3, 5, 10 and 15 MHz bandwidth modes for FDD LTE Band 26; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for TDD LTE Bands 38 and 41. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 5, 10, 15, and 20 MHz bandwidth for FDD Bands n2, n5, n7, n25, n26 and n71; 5, 10 and 15 MHz bandwidth modes for FDD Band n12; 5 and 10 MHz bandwidth modes for FDD Bands n13 and n14; 20 MHz bandwidth modes for TDD Band n38; 5, 10, 15, 20, 30, and 40 MHz bandwidth modes for FDD Band n66; 20, 30, 40, 50, 60, 80, 90 and 100 MHz bandwidth modes for TDD Band n41; and 20, 30, 40, 50, 60, 70, 80, 90 and 100 MHz bandwidth modes for TDD Band n77 and n78. Certification of 3GPP 5G NR band n77/n78 operations is limited to the 3.45 GHz segment under Part 27.5(o) and the 3.7 GHz segment under Part 27.5(m). Frequency Range 1 5G NR EN-DC (NSA) modes are supported by this device, as described in this filing. HAC Rating: M4 T3: 2011. T-coil 5G sub 6 bands appraised as equivalent LTE connections.
