UZ7TC700HTOUCH COMPUTER

6 5 8 1 2 3 7 10 18 16 21 17 14 19 15 20 4 11 12 9 13 Notifications Charging\Notification LED: Data Capture LED: Slow blinking amber: Battery charging Solid green: Fully charged Fast blinking amber: Charging error Slow blinking blue: Application notification. Green: Good Decode Data Capture Charging/Notification Note: Remove protective shipping film that covers the touch screen, exit window and camera window before using. FEATURES CARD INSTALLATION MicroSD Card Installation (Optional) 1. Remove the handstrap. 2. Lift the access door. 3. Insert the microSD card into the card holder. Push the card all the way into the card holder. NOTE : Proper position of the microSD card — the card connector (i.e., gold contacts) should be facing down. 4. Replace the access door. Ensure that it is properly seated. TC70 QUICK START GUIDE 1 Scan Button 2 Programmable Button 3 Back Button 4 Home Button 5 Power Input 6 Search Button 7 Menu Button 8 Touch Screen (with screen protector) 9 Power Button 10 Receiver 11 Charging/Notification LED 12 Data Capture LED 13 Front-facing Camera 14 Handstrap Mounting Point 15 Camera Flash 16 Rear-facing Camera 17 Interface Connector 18 Exit Window 19 Volume Button 20 Battery Release Latch 21 Handstrap Note 1: To reset the TC70, press and hold the Power button until the menu appears and then select Reset. BATTERY INSTALLATION Red: Data capture in process 1. Remove the handstrap. 2. Insert the bottom of the battery into the battery compartment. 3. Rotate the battery down into the battery compartment and press the battery down until it snaps into position. 4. Re-attach the handstrap. 1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4 Review Copy AVOID EXTREME WRIST ANGLES MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. Android is a trademark of Google Inc. All other trademarks are the property of their respective owners. © 2014 Motorola Solutions, Inc. All rights reserved. MN000746A01 Rev. A — April 2014 Imaging Camera Decode Camera Photo 1. Ensure that an application is open and a text field is in focus (text cursor in text field). 2. Point the TC70 at the bar code. 3. Press the Scan button. 4. In the image window align the red target over the bar code. When the TC70 decodes the bar code the Data Capture LED light green and a beep sounds. 5. Release the Scan button. 1. Touch > Camera. 2. Point the TC70 at an object. 3. Touch the shutter button. Motorola Solutions, Inc. 1301 E. Elgonquin Rd. Schaumburg, IL 60196-1078, U.S.A. ACCESSORIES DATA CAPTURE OPTIONS AVOID EXTREME WRIST ANGLES 1. Unlatch the handstrap. 2. Press the Power button until the menu appears. 3. Touch Power Off. 4. Press the battery latches in and lift the battery from the TC70. 1. Ensure that an application is open and a text field is in focus (text cursor in text field). 2. Point the exit window at the bar code. 3. Press and hold the Scan button. 4. The red laser aiming pattern turn on to assit in aiming. When the TC70 decodes the bar code the Data Capture LED light green and a beep sounds. 5. Release the Scan button. For more information see the TC70 User Guide and the TC70 Integator Guide available at: http://www.motorolasolutions.com/support BATTERY REMOVAL Five Slot Charge Only Cradle Holster Magnetic Stripe Reader Charge Only Cable Four Slot Battery Charger Review Copy

Motorola Solutions reserves the right to make changes to any product to improve reliability, function, or design. Motorola Solutions does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Motorola Solutions products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Motorola Solutions products. Warranty For the complete Motorola Solutions hardware product warranty statement, go to: http://www.motorolasolutions.com/warranty. Service Information If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Motorola Solutions Global Support Center at: http:// www.motorolasolutions.com/support. For the latest version of this guide go to: http:// www.motorolasolutions.com/support. TC70 REGULATORY GUIDE Motorola Solutions, Inc. 1301 E. Algonquin Rd. Schaumburg, IL 60196-1078, U.S.A. http://www.motorolasolutions.com MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2014 Motorola Solutions, Inc. All Rights Reserved. MN000748A01 Rev. A — March 2014 Regulatory Information This device is approved under Motorola Solutions, Inc. This guide applies to the Model Number: TC700H. All Motorola devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: http://www.motorolasolutions.com/ support. Any changes or modifications to Motorola equipment, not expressly approved by Motorola, could void the user's authority to operate the equipment. Declared maximum operating temperature: 50°C. Bluetooth ® Wireless Technology This is an approved Bluetooth product. For more information or to view the End Product Listing, please visit http://www.bluetooth.org/tpg/listings.cfm. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the following countries: United States and Canada. Country Roaming This device incorporates the International Roaming feature (IEEE802.11d) which will ensure the product operates on the correct channels for the particular country of use. Frequency of Operation – FCC and IC 5 GHz Only The use in the UNII (Unlicensed National Information Infrastructure) band 1 (5150 - 5250 MHz) is restricted to Indoor Use Only; any other use will make the operation of this device illegal. Industry Canada Statement Caution: The device for the band 5150 - 5250 MHz is only for indoor usage to reduce potential for harmful interference to co-Channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le dispositive fonctionnant dans la bande 5150 - 5250 MHz est réservé uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250 - 5350 MHz et 5650 - 5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. 2.4 GHz Only The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels is limited by firmware. Health and Safety Recommendations Ergonomic Recommendations • Reduce or eliminate repetitive motion • Maintain a neutral postures • Reduce or eliminate excessive force • Keep objects that are used frequently within easy reach • Perform tasks at correct heights • Reduce or eliminate vibration • Reduce or eliminate direct pressure • Provide adjustable workstations • Provide adequate clearance • Provide a suitable working environment • Improve work procedures • The following section is only applicable for mobile computers. Please observe all warning notices with regard to the usage of wireless devices. Safety in Aircraft Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers a 'flight mode' or similar feature, consult airline staff as to its use in flight. Wireless devices transmit radio frequency energy and may affect medical electrical equipment. Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or healthcare facilities. These requests are designed to prevent possible interference with sensitive medical equipment. Pacemakers Pacemaker manufacturers recommended that a minimum of 15 cm (6 inches) be maintained between a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with independent research and recommendations by Wireless Technology Research. Persons with pacemakers: • Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON. • Should not carry the device in a breast pocket. • Should use the ear furthest from the pacemaker to minimize the potential for interference. • If you have any reason to suspect that interference is taking place, turn OFF your device. Other Medical Devices Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere with the…

Text truncated - open the document above for the full version.

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division SUBJECT: FCC Application for FCC ID: UZ7TC700H To Whom It May Concern: We, Motorola Solutions, Inc., declare the device of FCC ID: UZ7TC700H, Model Name: TC700H, disabled ad-hoc function for 5250 MHz ~ 5350 MHz (UNII Band II) and 5470 MHz ~ 5725 MHz (UNII Band III) that software and associated drivers will not initiate any transmission, beacon or Peer to Peer communications on DFS frequencies. Yours sincerely, ________________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

Regulatory Engineering Motorola Solutions, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com February 25, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: Letter of Authorization FCC ID：UZ7TC700H To the Commission: As the designated signatory for FCC applications under the Grantee code UZ7 (Motorola Solutions, Inc.), I hereby authorize Andrew Ho to sign all corresponding application documents relating to the processes of FCC Approval. This authorization is limited to the following Model(s): TC700H If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S Luksich DMTS, Regulatory Engineering [email protected] 631-738-5134

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division SUBJECT: FCC Application for FCC ID: UZ7TC700H To Whom It May Concern: We, Motorola Solutions, Inc., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Yours sincerely, _______________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 Statement We, Motorola Solutions, Inc., states that our device, FCC ID: UZ7TC700H, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Yours sincerely, ________________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: UZ7TC700H Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours sincerely, ________________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 P O W E R O F A T T O R N E Y To whom it may concern, Please be notified that we, Motorola Solutions, Inc. have assigned Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan as being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of BV CPS Taoyuan, on the matters of relating to all processes required in the FCC matters and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the following product: FCC ID: UZ7TC700H Please send any acknowledgement or response to Daniel Lee of BV CPS Taoyuan directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact us. Yours sincerely, ________________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

Regulatory Engineering Motorola Solutions, Inc. O n e Mo t o r o l a P l a za , | Ho l t s vi l l e , NY 1 1 7 4 2 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.m otorola.com Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : UZ7TC700H To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which Motorola Solutions, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Yours sincerely, ______________________________ Andrew Ho Regulatory Manager Motorola Solutions - Regulatory Tel: +65 6643 9326 Email: [email protected]

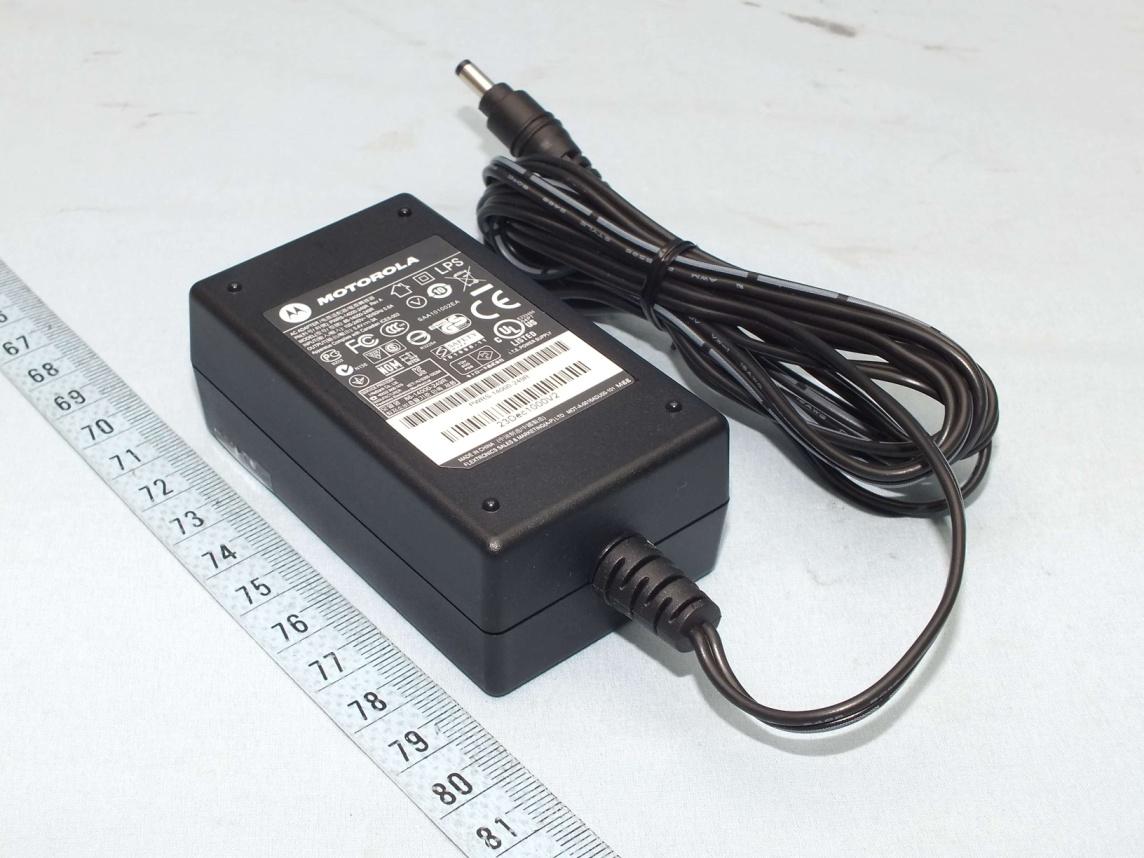

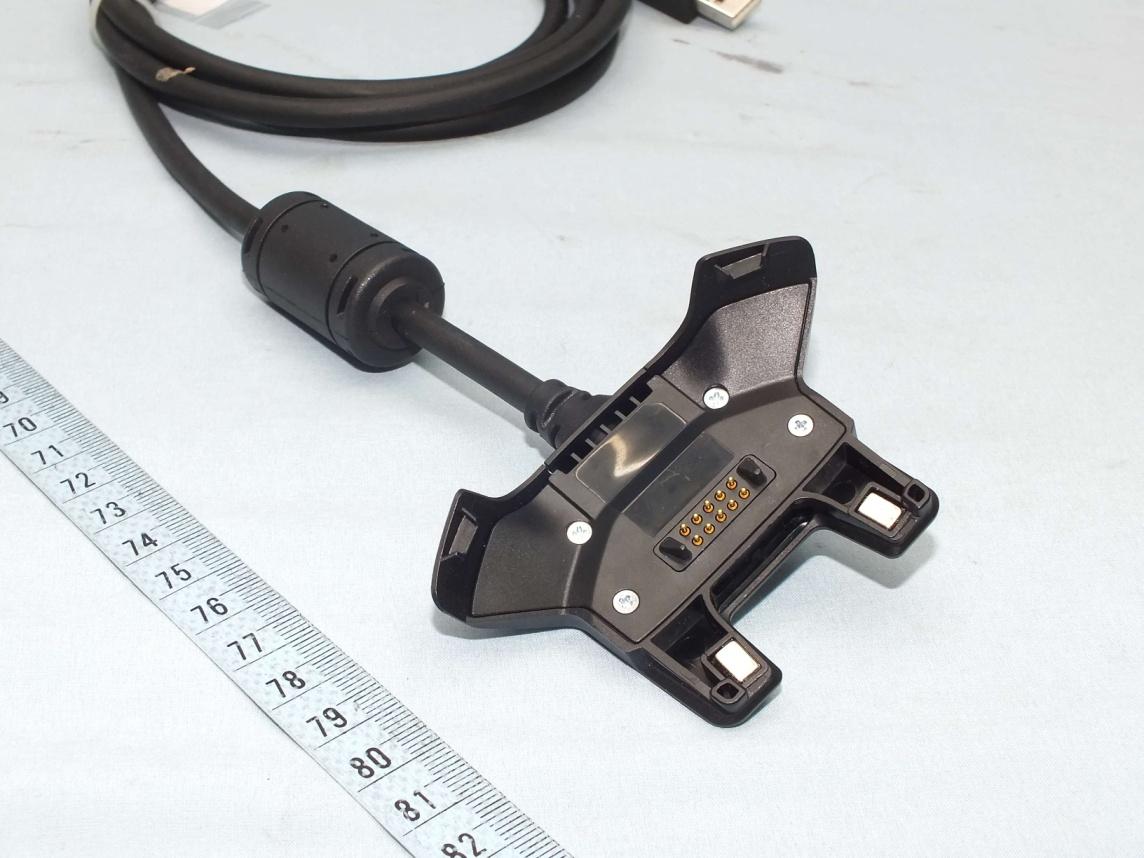

Page 1 of 6 Report No.: 140219C09 CONSTRUCTION PHOTOS OF EUT Page 2 of 6 Report No.: 140219C09 Page 3 of 6 Report No.: 140219C09 Page 4 of 6 Report No.: 140219C09 Page 5 of 6 Report No.: 140219C09 Page 6 of 6 Report No.: 140219C09

(Printing Drawing) MODELNO.: PARTNAME: A/WNO.: SCALE: UNIT: SHEET REVIEWED: APPROVED: REVDESCRIPTIONSIGNDATE 1:1 mm 1 WistronIncorporated OF 1 DRAWN: MVDG00 Dora Chang 4/17/2014 LBL SPEC FOR US (SKU6-NO 3G) QP200(Pollux)-SYSTEM 40.18R04.091 MVDG00 Vicki Jan 4/17/2014 1. MATERIAL: WHITE POLYESTER (T=0.075mm) +可打印霧P.P.膜. 2.THE MATERIAL MUSE BE APPROVED BY UL 3. FINISH: PRINT FRONT SIDE, ADHESIVE BACK 4. ADHESIVE: 壓花永久膠. 5. PRINT COLOR: BLACK 6. PRINT TOLERANCE OF DIMENSION: +0mm/-0.2mm (Instruction Drawing) Printed by Wistron’s Factory (REF 40.18R04.021) Barcode Area Size:28(W)x35(H) mm CAN ICES-3(B)/ NMB-3(B) FCC ID: UZ7TC700H IC: 109AN-TC700H Made in China Factory ID: KS 移動式電腦 5.4V 3A COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2001, 2007 (Ed.1.2, 2.0); EN 60825-1:2007 & IEC 62471:2006 (Ed.1.0); EN 62471:2008. CAN ICES-3(B)/ NMB-3(B) FCC ID: UZ7TC700H IC: 109AN-TC700H Made in China Factory ID: KS CAUTION- CLASS 2 LASER, 1M LED LIGHT WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VORSICHT-LASERLICHT KLASSE 2, LED KLASSE 1M WENN ABDECKUNG GEÖFFNET NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN. ATTENTION- LASER CLASSE 2, 1M LED LIGHT EN CAS D'OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU OU REGARDER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES. MODEL: TC700H P/N: XXXXXXXXXXXXX (S) S/N: XXXXXXXXXXXXXX MFD: XXXXXXX X DV WIFI MAC ID: XXXXXXXXXXXXXXX 移動式電腦 5.4V 3A Line mark 88.5mm 18.7mm 26.5mm 58.5mm Motorola Solutions, Inc. Holtsville, N.Y. 11742 Motorola Solutions, Inc. Holtsville, N.Y. 11742 Moto Logo:Pantone 877C COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2001, 2007 (Ed.1.2, 2.0); EN 60825-1:2007 & IEC 62471:2006 (Ed.1.0); EN 62471:2008. 注意:打開時有2類 激光,1M類LED幅射 請勿直視或通過光 學儀器直視光束 CAUTION- CLASS 2 LASER, 1M LED LIGHT WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VORSICHT-LASERLICHT KLASSE 2, LED KLASSE 1M WENN ABDECKUNG GEÖFFNET NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN. ATTENTION- LASER CLASSE 2, 1M LED LIGHT EN CAS D'OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU OU REGARDER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES. 注意:打開時有2類 激光,1M類LED幅射 請勿直視或通過光 學儀器直視光束

Battery Door Barcode label Spec label SIM Door Laser label

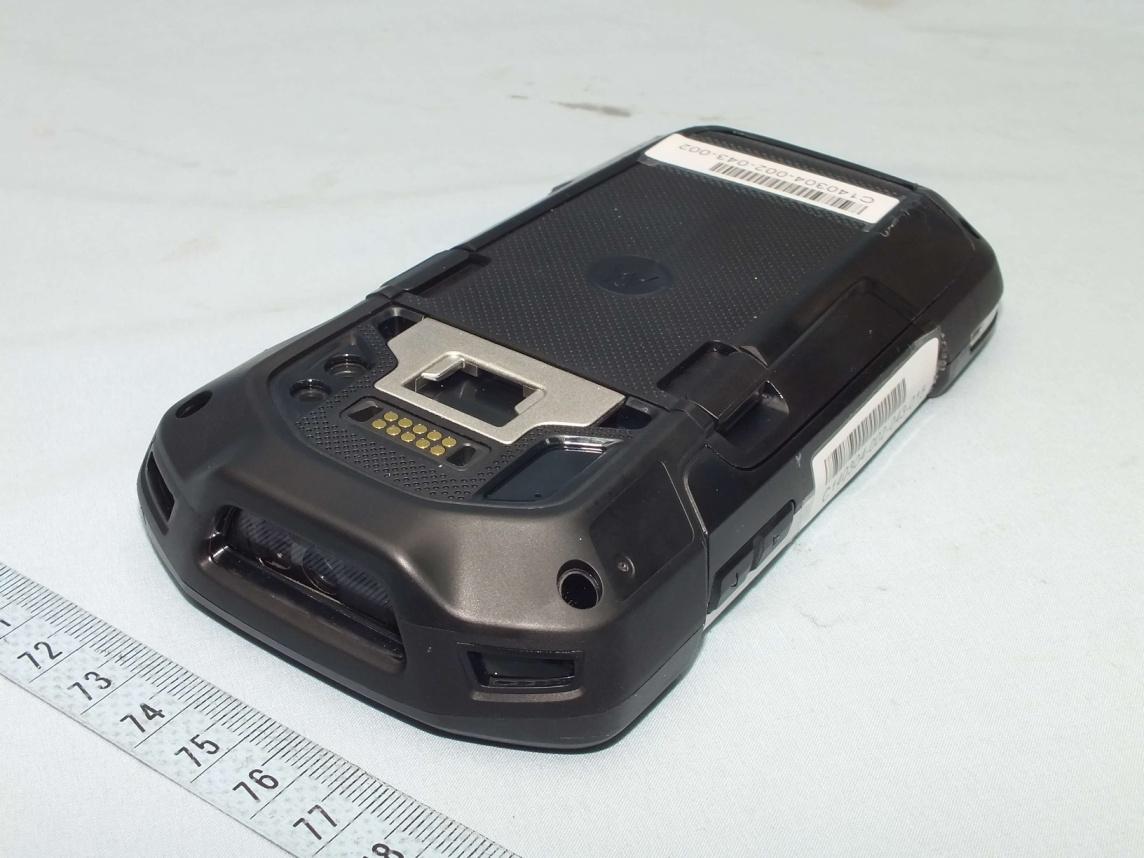

Page 1 of 15 Report No.: 140219C09 CONSTRUCTION PHOTOS OF EUT Page 2 of 15 Report No.: 140219C09 Page 3 of 15 Report No.: 140219C09 Page 4 of 15 Report No.: 140219C09 Page 5 of 15 Report No.: 140219C09 Page 6 of 15 Report No.: 140219C09 Page 7 of 15 Report No.: 140219C09 Page 8 of 15 Report No.: 140219C09 Page 9 of 15 Report No.: 140219C09 Page 10 of 15 Report No.: 140219C09 Page 11 of 15 Report No.: 140219C09 Page 12 of 15 Report No.: 140219C09 Page 13 of 15 Report No.: 140219C09 Page 14 of 15 Report No.: 140219C09 Page 15 of 15 Report No.: 140219C09

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 30 Report No. : SA140219C09 Issued Date : Apr. 15, 2014 FCC SAR Test Report Report No. : SA140219C09 Applicant : Motorola Solutions, Inc. Address : One Motorola Plaza, Holtsville, NY 11742-1300 USA Product : Touch Computer FCC ID : UZ7TC700H Brand : Motorola Model No. : TC700H Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 Sample Received Date : Feb. 19, 2014 Date of Testing : Mar. 17, 2014 ~ Mar. 21, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 30 Report No. : SA140219C09 Issued Date : Apr. 15, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot .................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure ................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods .........…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Apr. 15, 2014 Report No. : SA140219C09 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

Report No.: RF140219C09-2 1 of 23 Report Format Version 5.1.0 DFS TEST REPORT REPORT NO.: RF140219C09-2 MODEL NO.: TC700H FCC ID: UZ7TC700H RECEIVED: Feb. 19, 2014 TESTED: Mar. 11 ~ Mar. 17, 2014 ISSUED: Mar. 18, 2014 APPLICANT: Motorola Solutions, Inc. ADDRESS: One Motorola Plaza, Holtsville, NY 11742-1300 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140219C09-2 2 of 23 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. EUT INFORMATION ................................................................................................. 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ..................................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ....................................................... 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT ..................................... 5 2.4 EUT MAXIMUM CONDUCTED POWER .................................................................. 6 2.5 EUT MAXIMUM E.I.R.P. POWER ............................................................................. 7 2.6 TRANSMIT POWER CONTROL (TPC) .................................................................... 8 2.7 STATEMENT OF MAUNFACTURER ....................................................................... 8 3. U-NII DFS RULE REQUIREMENTS ........................................................................ 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ............................................... 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ............................................ 10 4. TEST & SUPPORT EQUIPMENT LIST .................................................................. 12 4.1 TEST INSTRUMENTS ........................................................................................... 12 4.2 DESCRIPTION OF SUPPORT UNITS ................................................................... 12 5. TEST PROCEDURE .............................................................................................. 13 5.1 ADT DFS MEASUREMENT SYSTEM: ................................................................... 13 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: ................................ 14 5.3 DEVIATION FROM TEST STANDARD .................................................................. 15 5.4 RADIATED TEST SETUP CONFIGURATION ........................................................ 15 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .................................................. 15 6. TEST RESULTS ..................................................................................................... 16 6.1 SUMMARY OF TEST RESULT .......…

Text truncated - open the document above for the full version.
