UZ7USB1USB Beacon

MPACT LOCATION & ANALYTICS HARDWARE INSTALLATION GUIDE VERSION 1.0 Draft Draft TABLE OF CONTENTS Chapter 1 MPact Bluetooth® Smart beacon Overview Chapter 2 Beacon Hardware Installation 2.1 Beacon Part Number: MPACT-T1B20-000-WR .............................................................................................................2-2 2.1.1 Installing the Tie-Wrap Style Beacon ..................................................................................................................2-2 2.2 Beacon Part Number: MPACT-T1B10-000-WR ............................................................................................................. 2-3 2.2.1 Installing the Universal Style Beacon ..................................................................................................................2-3 2.3 Beacon Part Number: MPACT-MB2000-01-WR ............................................................................................................2-5 2.3.1 Installing the Indoor Style Beacon ......................................................................................................................2-5 2.4 Beacon Part Number: MPACT-MB3000-01-WR ............................................................................................................2-6 2.4.1 Installing the USB Style Beacon ..........................................................................................................................2-6 2.5 Beacon Battery Replacement ........................................................................................................................................ 2-7 2.5.1 Replacing Battery: MPACT-T1B20-000-WR and MPACT-T1B10-000-WR ..........................................................2-7 2.5.2 Replacing Battery: MPACT-MB2000-01-WR ....................................................................................................... 2-8 2.6 Beacon Hardware Regulatory Information ....................................................................................................................2-9 Appendix A Customer Support Draft 4MPact Location & Analytics Deployment Guide Draft ABOUT THIS GUIDE This chapter is organized into the following sections: •Using the Documentation •Zebra Technologies Corporation ("Zebra") End-User Software License Agreement Draft 6 Using the Documentation The following sections provide information about the document and notational conventions used in the guides, and provides a list of related documentation. Document Conventions The following conventions are used in this manual to draw your attention to important information: Revision History This guide has the following release and revision milestone history: NOTE: Indica tes tips or special requirements. CAUTION: Indicate s conditions that can cause equipment damage or data loss. WARNING! Indicates a condition or procedure t hat could result in personal injury or equipment damage. ReleaseDateChange Revision AJune, 2015Initial release of document with new MPact beacons ad ded. ! Draft About this Guide7 Notational Conventions The following notational conventions are used in this document: • Italics are used to highlight specific items in the general text, an d to identify chapters and sections in this and related documents • Bullets (•) indicate: • lists of alternatives • lists of required steps that are not necessarily sequential • action items • Sequential lists (those describing step-by-step procedures) appear as numbered lists Related Documentation MPact Location and Analytics documentation includes the following: • MPact Location & Analytics Deployment Guide • MPact Location & Analytics Server Reference Guide •MP act Location & Analytics Server API Guide • MPact Location & Analytics Toolbox Reference Guide • MPact Location & Analytics Client Software Development Kit Draft 8 Zebra Technologies Corporation ("Zebra") End-User Software License Agreement BY INSTALLING AND/OR USING THIS PRODUCT, YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND ITS TERMS. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, ZEBRA IS NOT WILLING TO LICENSE THE PRODUCT TO YOU, AND YOU MUST NOT INSTALL OR USE THIS PRODUCT. Definitions Grant of License Zebra Technologies Corporation ("Zebra") grants you ("Licensee" or "you") a personal, nonexclusive, nontransferable, revocable, nonassignable, limited license to use the software and documentation ("Product(s)") subject to the terms and conditions of this Agreement. You shall use the Products only for your internal business purposes, exclusively to support Zebra devices. Any use of the Products outside of the conditions set forth herein is strictly prohibited and will be deemed a breach of this Agreement resulting in immediate termination of your License. In the event of a breach of this Agreement, Zebra will be entitled to all available remedies at law or in equity (including immediate termination of the license without notice, immediate injunctive relief and repossession of all Products unless Licensee is a Federal agency of the United States Government). You shall not distribute, sublicense, rent, loan, lease, export, re-ex port, resell, ship or divert or cause to be exported, re- exported, resold, shipped or diverted, directly or indirectly, the Products under this Agreement. You shall not, and shall not permit others to: (i) modify, translate, decompile, bootleg, reverse engineer, disassemble, or extract the inner workings of the Products, (ii) copy the look-and-feel or functionality of the Products; (iii) remove any proprietary notices, marks, labels, or logos from the Products; (iv) rent or transfer all or some of the Products to any other party without Zebra's prior written consent; or (v) utilize any computer software or hardware which is designed to defeat any copy protection device, should the Products be equipped with such a protection device. Title to all copies of Products will not pass to Lice…

Text truncated - open the document above for the full version.

Regulatory Information All Zebra devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. This regulatory information applies to Model number MPACT-USB1 Local language translations are available at the following website: www.zebra.com/support Any changes or modifications to Zebra equipment, not expressly approved by Zebra, could void the user’s authority to operate the equipment. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved for use in the following countries: United States and Canada. Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at www.zebra.com/doc. Operation of the device without regulatory approval is illegal. Bluetooth Smart® Wireless Technology This is an approved Bluetooth® product. For more information or to view End Product Listing, please visit https://www.bluetooth.org/tpg/listings.cfm. Warnings for use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. Potentially Hazardous Atmospheres – Vehicles Use You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders) and any other area where you would normally be advised to turn off your vehicle engine. Potentially Hazardous Atmospheres – Fixed Installations You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Safety in Aircraft Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers a ‘flight mode’ or similar feature, consult airline staff as to its use in flight. Safety Information RF Exposure Guidelines Reducing RF Exposure - Use Proper Only operate the device in accordance with the instructions supplied. International The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on “International” human exposure to electromagnet fields refer to the Motorola Declaration of Conformity (DoC) at www.zebra.com/doc. For further information on the safety of RF energy from wireless devices, see www.zebra.com/support. This is located under Wireless Communications and Health. Radio Frequency Interference Requirements- FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio Frequency Interference Requirements -Canada This device is in compliance with the NRC for Industry Canada applicable to license-exempt radios. Use is allowed with the following two conditions: (1) the device must not produce interference, and (2) the device must accept any interference to the radio, even if the interference is likely to compromise operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CAN ICES-3(B)/ NMB-3 (B) Waste Electrical and Electronic Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling. For information on how to return product, please go to: www.zebra.com/weee Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être retournés à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits, consultez : www.zebra.com/weee. Product Introduction Guide Part Numbers: MPACT-MB3000 Customer Support Web Site If you have a problem with your equipment, contact Support for your region. Support and issue resolution is provided for products under warranty or that are covered by a service agreement. For information and online assistance including developer tools, software downloads, product manuals, support contact information and online repair requests. Contact information and web self-service is available by visiting www.zebra.com/support. When contacting Support, please provide the following information: • MAC ID of the product shown on the side of the product next to the barcode • Model number or product name shown on the label on the back of the product. . Tag Moun…

Text truncated - open the document above for the full version.

Regulatory Engineering Zebra Technologies Corporation 1 Z e b r a P l a z a , | H o l t s v i l l e , N Y 1 1 7 4 2 | 1 . 6 3 1 . 7 3 8 . 2 4 0 0 p h o n e | 1 . 6 3 1 . 6 2 7 . 7 1 7 9 f a x | w ww.z e b r a . c o m July 14, 2015 Federal Communications Commission Authorization and Evaluation Division Ref: FCC ID: UZ7USB1 Confidentiality Request regarding application for certification of FCC ID: UZ7USB1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Tune up Procedure  Operational Description  Block Diagram  Schematics  Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  Test Setup Photos  User Manual  External Photos  Internal Photos The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Regulatory Engineering Zebra Technologies Corporation 1 Z e b r a P l a z a , | H o l t s v i l l e , N Y 1 1 7 4 2 | 1 . 6 3 1 . 7 3 8 . 2 4 0 0 p h o n e | 1 . 6 3 1 . 6 2 7 . 7 1 7 9 f a x | w ww.z e b r a . c o m Power of Attorney Please be notified that I, Mark Luksich, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: UZ7USB1 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Declaration of Conformity We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Respectfully, Mark S. Luksich DMTS, Regulatory Engineering 631-738-5134 [email protected]

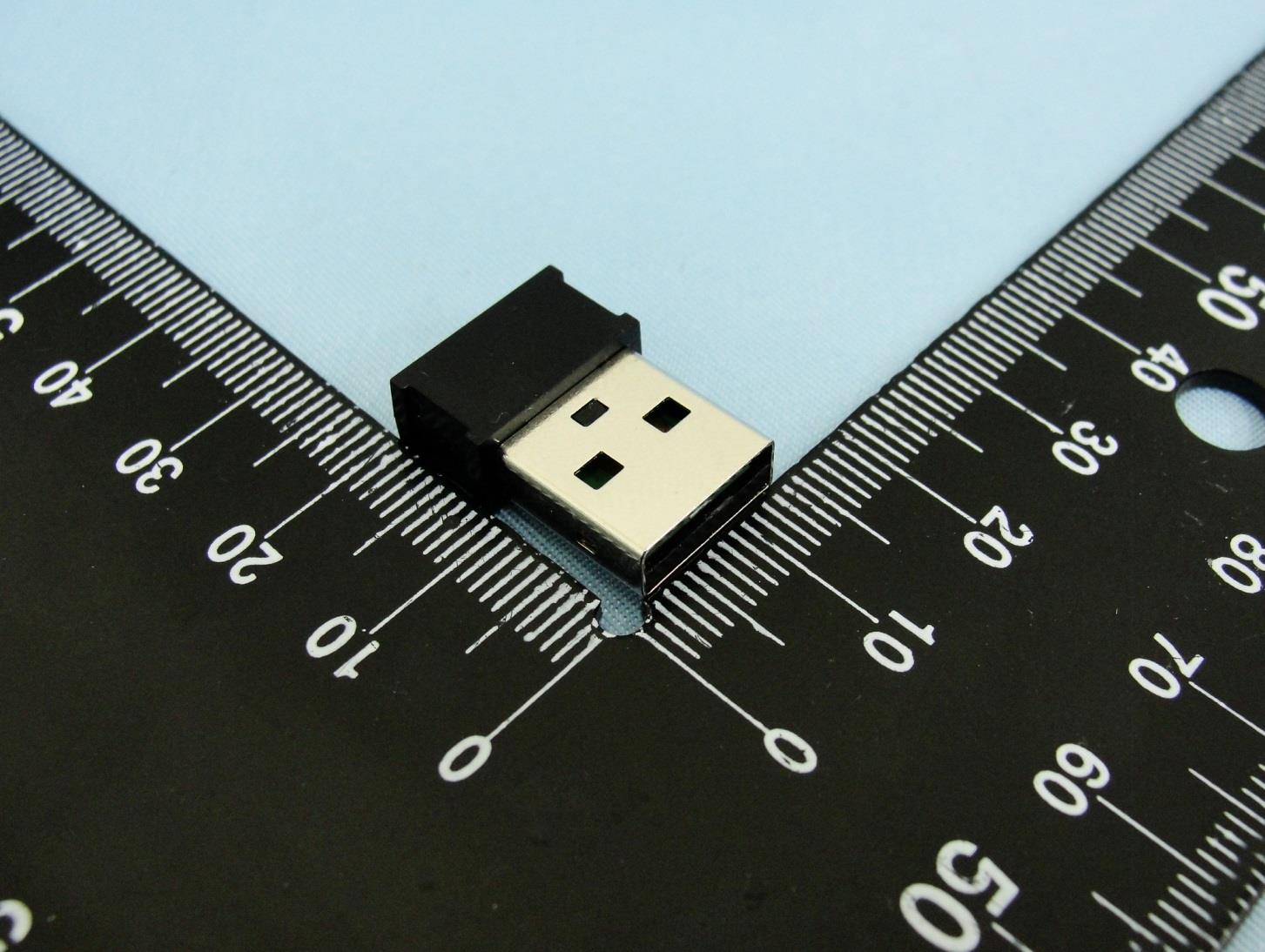

Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1

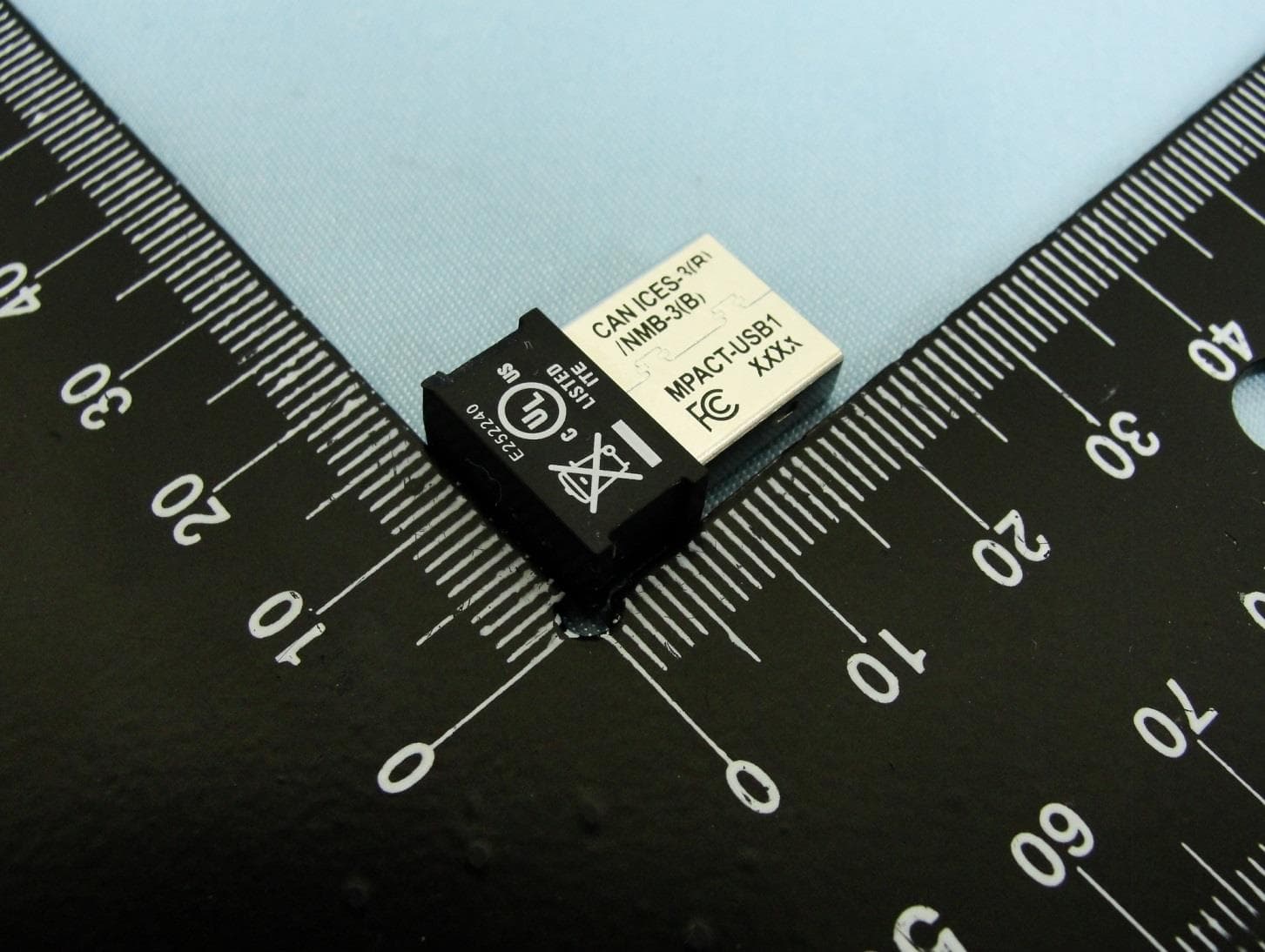

Label locates on the front side and the bottom side of the device

Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 720510 2. Internal Photograph of EUT Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 6 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 7 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 8 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1 Bluetooth Antenna Photographs of EUT Report No.: EP541789 Brand Name: Zebra / Model Name: MPACT-USB1 / Marketing Name: USB Beacon SPORTON INTERNATIONAL INC. Page Number : 9 of 9 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 IC : 109AN-MPACTUSB1

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : UZ7USB1 RF Exposure Evaluation Report Report No. : FA541789 RF Exposure Evaluation Report APPLICANT : Zebra Technologies Corporation EQUIPMENT : USB Beacon BRAND NAME : Zebra MODEL NAME : MPACT-USB1 MARKETING NAME : USB Beacon FCC ID : UZ7USB1 STANDARD : 47 CFR Part 2.1093 FCC KDB 447498 D01 v05r02 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : UZ7USB1 RF Exposure Evaluation Report Report No. : FA541789 Table of Contents 1. Administration Data ........................................................................................................................... 3 2. General Information ........................................................................................................................... 3 2.1 Description of Device Under Test (DUT) ........................................................................................... 3 3. Maximum RF output power among production units ......................................................................... 4 4. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA541789 Rev. 01 Initial issue of report Jun. 22, 2015 FA541789 Rev. 02 Revised FCC ID Jul. 08, 2015 FA541789 Rev. 03 Updated equipment name and marketing name Jul. 17, 2015 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : UZ7USB1 RF Exposure Evaluation Report Report No. : FA541789 1. Administration Data Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name Zebra Technologies Corporation Address 1 Zebra Plaza Holtsville, NY 11742 USA Manufacturer Company Name Wistron NeWeb Corporation Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type USB Beacon Brand Name Zebra Model Name MPACT-USB1 Marketing Name USB Beacon FCC ID UZ7USB1 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode •Bluetooth v4.0-LE DUT Stage Production Unit SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : UZ7USB1 RF Exposure Evaluation Report Report No. : FA541789 3. Maximum RF output power among production units Mode / Band Average Power (dBm) Bluetooth v4.0 with LE 2.4 GHz Band 4.0 4. RF Exposure Evaluation Wireless Technology Max Power (dBm) Distance (mm) Frequency (GHz) Exclusion threshold Limit Bluetooth 4.0 5 2.480 0.94 3.0 General Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: The SAR measurement is not necessary.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A1 of A6 FCC Test Report Report No. : FR541789 Appendix A. Radiated Spurious Emission Test Engineer : Donny Tang Temperature : 22~24°C Relative Humidity : 47~50% 15C 2.4GHz 2400~2483.5MHz BLE (Band Edge @ 3m) WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BLE CH 00 2402MHz 2389.02 52.5 -21.5 74 48.35 31.94 6.73 34.52 140 1 P H 2337.9 39.6 -14.4 54 35.61 31.91 6.6 34.52 140 1 A H * 2402 92.4 - - 88.25 31.94 6.73 34.52 140 1 P H * 2402 91.24 - - 87.09 31.94 6.73 34.52 140 1 A H H H 2359.59 51.96 -22.04 74 47.89 31.92 6.67 34.52 100 75 P V 2389.56 39.42 -14.58 54 35.27 31.94 6.73 34.52 100 75 A V * 2402 87.83 - - 83.68 31.94 6.73 34.52 100 75 P V * 2402 86.63 - - 82.48 31.94 6.73 34.52 100 75 A V V BLE CH 19 2440MHz 2388.12 52.2 -21.8 74 48.05 31.94 6.73 34.52 185 3 P H 2375.97 39.65 -14.35 54 35.57 31.93 6.67 34.52 185 3 A H * 2440 90.75 - - 86.5 31.97 6.8 34.52 185 3 P H * 2440 89.6 - - 85.35 31.97 6.8 34.52 185 3 A H 2490.08 52.11 -21.89 74 47.75 32 6.87 34.51 185 3 P H 2484.32 39.64 -14.36 54 35.29 31.99 6.87 34.51 185 3 A H 2370.66 52.3 -21.7 74 48.22 31.93 6.67 34.52 268 108 P V 2376.06 39.67 -14.33 54 35.59 31.93 6.67 34.52 268 108 A V * 2440 89.67 - - 85.42 31.97 6.8 34.52 268 108 P V * 2440 88.48 - - 84.23 31.97 6.8 34.52 268 108 A V 2494.8 52.57 -21.43 74 48.21 32 6.87 34.51 268 108 P V 2488.84 39.62 -14.38 54 35.26 32 6.87 34.51 268 108 A V SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A2 of A6 FCC Test Report Report No. : FR541789 BLE CH 39 2480MHz * 2479.742 86.6 - - 82.25 31.99 6.87 34.51 285 334 P H * 2479.993 85.36 - - 81.01 31.99 6.87 34.51 285 334 P H 2484.04 51.96 -22.04 74 47.61 31.99 6.87 34.51 285 334 P H 2483.52 40.32 -13.68 54 35.97 31.99 6.87 34.51 285 334 A H H H * 2480 86.21 - - 81.86 31.99 6.87 34.51 260 109 P V * 2480 84.99 - - 80.64 31.99 6.87 34.51 260 109 A V 2488.68 51.69 -22.31 74 47.33 32 6.87 34.51 260 109 P V 2483.52 40.38 -13.62 54 36.03 31.99 6.87 34.51 260 109 A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A3 of A6 FCC Test Report Report No. : FR541789 15C 2.4GHz 2400~2483.5MHz WIFI 802.11b (Harmonic @ 3m) WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BLE CH 00 2402MHz 4806 49.61 -24.39 74 62.76 34.35 10.13 57.63 100 0 P H H H H 4806 49.78 -24.22 74 62.93 34.35 10.13 57.63 100 0 P V V V V BLE CH 19 2440MHz 4884 49.95 -24.05 74 62.91 34.4 10.18 57.54 100 0 P H 7323 40.9 -33.1 74 51.94 35.73 12.36 59.13 100 0 P H H H 4881 50.78 -23.22 74 63.74 34.4 10.18 57.54 100 0 P V 7323 40.36 -33.64 74 51.4 35.73 12.36 59.13 100 0 P V V V BLE CH 39 2480MHz 4959 52.82 -21.18 74 65.56 34.47 10.23 57.44 100 355 P H 4959 51.65 -2.35 54 64.39 34.47 10.23 57.44 100 355 A H 7440 44.66 -29.34 74 55.58 35.71 12.62 59.25 100 0 P H H 4959 51.65 -22.35 74 64.39 34.47 10.23 57.44 274 304 P V 4959 50.22 -3.78 54 62.96 34.47 10.23 57.44 274 304 A V 7440 42.33 -31.67 74 53.25 35.71 12.62 59.25 100 0 P V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A4 of A6 FCC Test Report Report No. : FR541789 15C Emission below 1GHz 2.4GHz BLE (LF @ 3m) WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BLE LF 118.56 22.68 -20.82 43.5 41.1 12.12 1.21 31.75 - - P H 170.4 23.71 -19.79 43.5 44.09 9.76 1.61 31.75 - - P H 262.2 28.18 -17.82 46 44.4 13.72 1.79 31.73 - - P H 391 35.97 -10.03 46 50.09 15.53 2.16 31.81 - - P H 496 39.41 -6.59 46 51.15 17.75 2.44 31.93 111 212 P H 650 38.38 -7.62 46 48.12 19.5 2.8 32.04 - - P H H H H H H H 80.76 21.76 -18.24 40 45.43 7.1 0.99 31.76 - - P V 175.8 23.16 -20.34 43.5 43.83 9.55 1.53 31.75 - - P V 230.34 27.32 -18.68 46 47.09 10.32 1.65 31.74 - - P V 454 37.58 -8.42 46 50.12 17.02 2.32 31.88 100 212 P V 518.4 37.1 -8.9 46 48.55 17.99 2.51 31.95 - - P V 673.1 36.42 -9.58 46 46.14 19.47 2.84 32.03 - - P V V V V V V V Remark 1. No other spurious found. 2. All results are PASS against limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A5 of A6 FCC Test Report Report No. : FR541789 Note symbol for Part 15C rule * Fundamental Frequency which can be ignored. However, the level of any unwanted emissions shall not exceed the level of the fundamental frequency per 15.209(c). ! Test result is over limit line. @ Frequency falls in non-restricted band is passed and tested by conducted band edges and spurious emission measurement in the test report. # Peak measured value is under 20dB and complies with the average limit, so it is unnecessary to perform an average measurement per clause 6.5.4.2 of ANSI C63.10. P/A Peak or Average H/V Horizontal or Vertical SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A6 of A6 FCC Test Report Report No. : FR541789 A calculation example for radiated spurious emission is shown as below: WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 802.11b CH 01 2412MHz 2390 55.45 -18.55 74 54.51 32.22 4.58 35.86 103 308 P H 2390 43.54 -10.46 54…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 41 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR541789 FCC RF Test Report APPLICANT : Zebra Technologies Corporation EQUIPMENT : USB Beacon BRAND NAME : Zebra MODEL NAME : MPACT-USB1 MARKETING NAME : USB Beacon FCC ID : UZ7USB1 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Apr. 17, 2015 and testing was completed on May 27, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Louis Wu / Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 41 TEL : 886-3-327-3456 Report Issued Date : Jul. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 03 FCC ID : UZ7USB1 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR541789 TABLE OF CONTENTS SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer .....................................................................................................…

Text truncated - open the document above for the full version.
