UZZNSSPBTP1WBluetooth Plug-In Wall Speaker

Before using your new product, please read these instructions to prevent any damage. USER GUIDE Bluetooth Plug-in Wall Speaker NS-SPBTP1-W 2 NS-SPBTP1-W Bluetooth Plug-in Wall Speaker www.insigniaproducts.com NS-SPBTP1-W Bluetooth Plug-in Wall Speaker Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Setting up your Bluetooth speaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using your Bluetooth speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Charging an external device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 ONE-YEAR LIMITED WARRANTY - INSIGNIA . . . . . . . . . . . . . . . . . . . . . . .13 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-SPBTP1-W represents the state-of-the-art in Bluetooth plug-in speaker design and is designed for reliable and trouble-free performance. Safety information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your speaker. This label is located on the back of your speaker. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your speaker. 3 NS-SPBTP1-W Bluetooth Plug-in Wall Speaker www.insigniaproducts.com Important safety instructions 1Read these instructions. 2Keep these instructions. 3Heed all warnings. 4Follow all instructions. 5Do not use this apparatus near water. 6Clean only with a dry cloth. 7Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11Only use attachments/accessories specifed by the manufacturer. 12Use only with the cart, stand, tripod, bracket or table specifed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable cart warning (symbol provided by RETAC) 13Unplug this apparatus during lightning storms or when unused for long periods of time. 14Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15To reduce the risk of fire or electric shock, do not expose this device to rain, moisture, dripping, or splashing, and no objects filled with liquids, such as vases, shall be placed on it. 4 NS-SPBTP1-W Bluetooth Plug-in Wall Speaker www.insigniaproducts.com 16The wall plug is the disconnecting device. The plug must remain readily operable. 17The batteries (battery pack & batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 18Do not place any naked _ame sources, such as lighted candles, on the apparatus. 19The battery used in this product must be properly recycled or disposed of. Please contact your local recycling center for proper battery handling and disposal instructions. 5 NS-SPBTP1-W Bluetooth Plug-in Wall Speaker www.insigniaproducts.com Features • Bluetooth connectability • Built-in power adapter • Built-in rechargable battery Package contents • Bluetooth plug-in speaker •Quick Setup Guide #ItemDescription 1 / (power/pair) button •Press and hold for three seconds to turn this system on. •Press and hold for two seconds to put this system into pairing mode. •Press and release to turn this system off. 2Volume+/– buttonsPress to increase or decrease the volume level of playback. 3Battery/pairing indicator•Indicates the battery charging status. •Indicates the pairing states. 4AC power plugs (foldable)Fold down, then plug into a wall outlet to charge your speaker. 5AUX IN jackPlug an external audio device into this jack to hear the playback from this speaker. 6USB charge portConnect an external device to this port to charge it. 6 NS-SPBTP1-W Bluetooth Plug-in Wall Speaker www.insigniaproducts.com Setting up your Bluetooth speaker Your plug-in wall speaker is typically used while plugged into a wall socket. You can also use the speaker unplugged, with the built-in rechargable battery. Charging the battery Your speaker has a built-in rechargable battery, which must be charged to use the speaker. • Fold down the AC power plug from the speaker body and plug it into an AC wall outlet. • The battery/pairing indicator turns red when the batt…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 4.0 Beautiful Enterprise Co., Ltd. 27 th Floor, Beautiful Group Tower, Tel: +852 2327 0195 77 Connaught Road Central, Hong Kong Fax: +852 2352 3380 2014-09-05 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _ Beautiful Enterprise Co., Ltd. _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: UZZNSSPBTP1W Bluetooth Plug-In Wall Speaker MODEL No.: NS-SPBTP1-W Sincerely, John Liao/Product Approbation Manager E-mail: [email protected] Phone: +86-755-83311618-2333 Fax: +86-755-83312325 Address: 27th Floor, Beautiful Group Tower, 77 Connaught Road Central, HK

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Beautiful Enterprise Co., Ltd. 27 th Floor, Beautiful Group Tower, Tel: +852 2327 0195 77 Connaught Road Central, Hong Kong Fax: +852 2352 3380 2014-09-05 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: UZZNSSPBTP1W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, John Liao/Product Approbation Manager E-mail: [email protected] Phone: +86-755-83311618-2333 Fax: +86-755-83312325 Address: 27th Floor, Beautiful Group Tower, 77 Connaught Road Central, HK

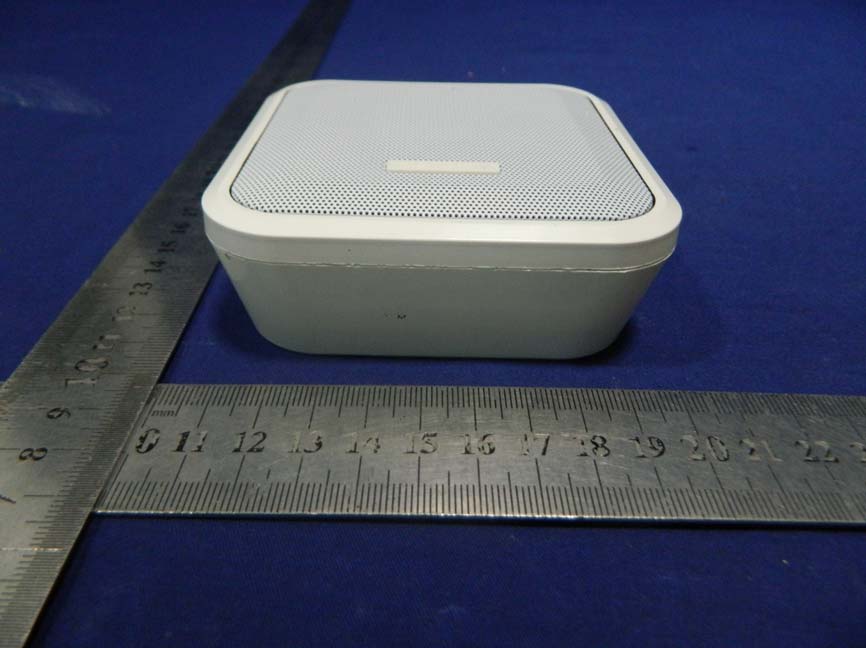

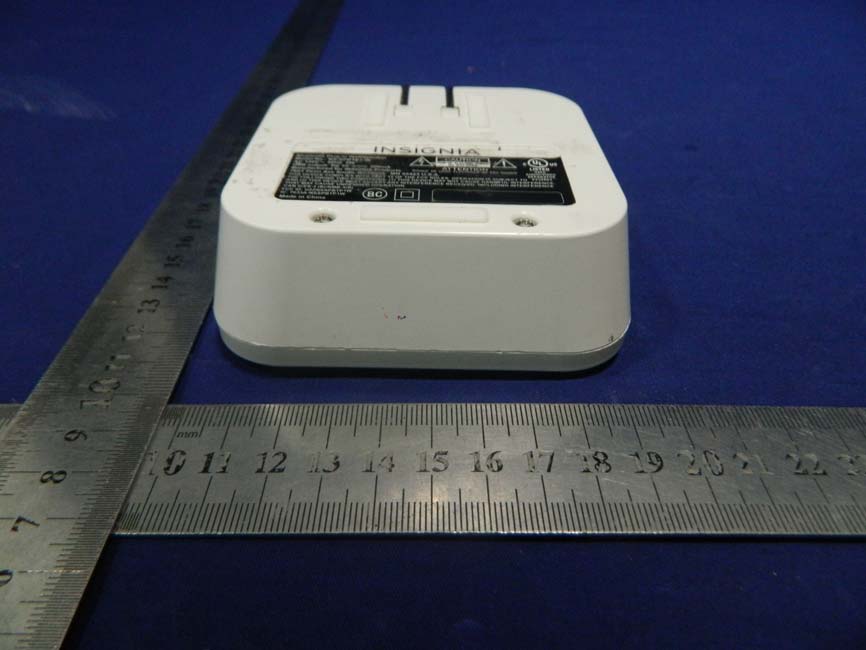

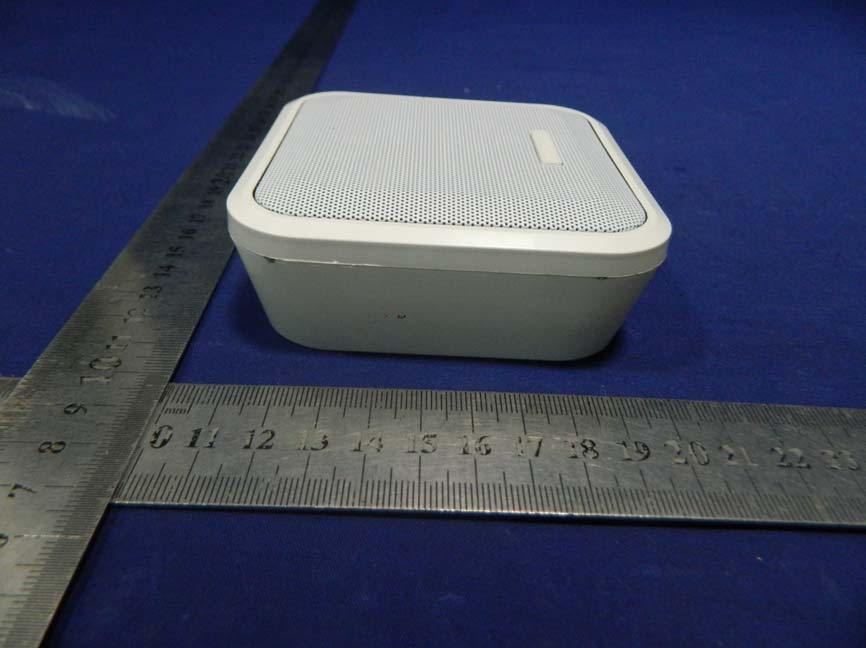

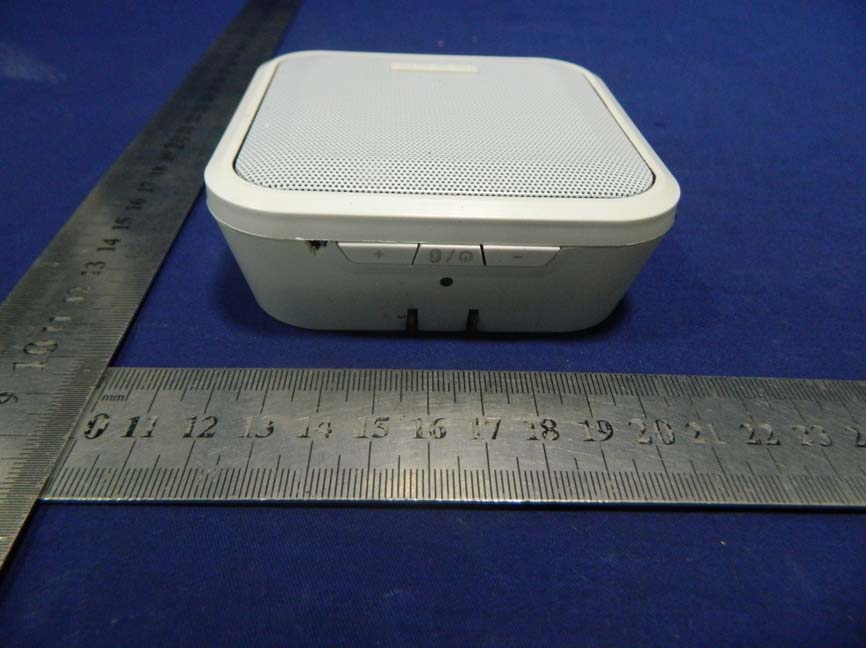

External Photos

Label location we will stick the serial no label on the here. The label size:28x 8 mm Rating label artwork 2014-08-14 14 -- Year H -- Month: From A~L for Jan.- Dec. 08 -- A -- Factory code . Keep as A A -- Version number. If run a ECR , it increase to B , C... Font:Arial (Regular) Example : 14H08AA000001 62.7 mm 29.8 mm Made in China FCC ID: UZZNSSPBTP1W IC: 7633A-NSSPBTP1W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CAN ICES-3 (B)/NMB-3(B) Bluetooth Plug-in Wall Speaker Model No.: NS-SPBTP1-W 7601 Penn Ave South, Richfield, MN 55423 U.S.A. Manufactured for INSIGNIA Products AC 120V 60Hz 8W USB output: DC 5V 500mA Made in China FCC ID: UZZNSSPBTP1W IC: 7633A-NSSPBTP1W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CAN ICES-3 (B)/NMB-3(B) Bluetooth Plug-in Wall Speaker Model No.: NS-SPBTP1-W 7601 Penn Ave South, Richfield, MN 55423 U.S.A. Manufactured for INSIGNIA Products AC 120V 60Hz 8W USB output: DC 5V 500mA MANUFACTURED: AUGUST 2014 14H08AA000001

Internal Photos Bluetooth module

FCC ID: UZZNSSPBTP1W Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DSS: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Result calculation 1-g SAR 2.402 GFSK 1.92 0.48 3.0 2.441 GFSK 3.49 0.70 3.0 2.480 GFSK 2.46 0.56 3.0 2.402 1/4Π-DQPSK -0.70 0.26 3.0 2.441 1/4Π-DQPSK 1.59 0.45 3.0 2.480 1/4Π-DQPSK 1.08 0.40 3.0 2.402 8DPSK 0.68 0.36 3.0 2.441 8DPSK 1.85 0.48 3.0 2.480 8DPSK 1.30 0.42 3.0 Conclusion: For the max result : 0.7≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

TRF NoFCC 15.247/A Page 1 of 56 Report No: ES140903037E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF Bluetooth Plug-In Wall Speaker MODEL No.: NS-SPBTP1-W FCC ID: UZZNSSPBTP1W Trademark: N/A REPORT NO: ES140903037E ISSUE DATE: September 15, 2014 Prepared for Beautiful Enterprise Co., Ltd. 27th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF NoFCC 15.247/A Page 2 of 56 Report No: ES140820252E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: Beautiful Enterprise Co., Ltd. 27th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Manufacturer: Beautiful Enterprise Co., Ltd. 27th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Product Description: Bluetooth Plug-In Wall Speaker Model Number: NS-SPBTP1-W Serial Number: N/A File Number: ES140903037E We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : September 03, 2014 to September 15, 2014 Prepared by : Yaping Shen/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF NoFCC 15.247/A Page 3 of 56 Report No: ES140820252E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1. GENERAL INFORMATION ....................................................................................... 5 1.1 PRODUCT DESCRIPTION ....................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .................................................................................. 5 1.3 TEST METHODOLOGY ............................................................................................................ 5 1.4 SPECIAL ACCESSORIES ......................................................................................................... 5 1.5 EQUIPMENT MODIFICATIONS ................................................................................................ 5 1.6 TEST FACILITY ......................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION ........................................................................... 7 2.1 EUT CONFIGURATION ............................................................................................................ 7 2.2 EUT EXERCISE ......................................................................................................................... 7 2.3 TEST PROCEDURE .................................................................................................................. 7 2.4 LIMITATION ............................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM ............................................................................. 10 2.6 EQUIPMENT USED IN TESTED SYSTEM ............................................................................ 10 2.7 DESCRIPTION OF TEST MODES .......................................................................................... 11 3. SUMMARY OF TEST RESULTS ............................................................................. 12 4. CONDUCTED EMISSIONS TEST ........................................................................... 13 4.1 MEASUREMENT PROCEDURE: ............................................................................................ 13 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................. 13 4.3 MEASUREMENT EQUIPMENT USED: .................................................................................. 13 4.4 CONDUCTED EMISSION LIMIT ................................................................................................. 13 4.5 MEASUREMENT RESULT: ..................................................................................................... 13 5. RADIATED EMISSION TEST .................................................................................. 16 5.1 MEASUREMENT PROCEDURE ............................................................................................. 16 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................. 17 5.3 MEASUREMENT EQUIPMENT USED: .................................................................................. 18 5.4 MEASUREMENT RESULT ....................................................................................................... 18 6. CHANNEL SEPARATION TEST ............................................................................. 28 6.1 MEASUREMENT PROCEDURE ............................................................................................. 28 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................…

Text truncated - open the document above for the full version.

SETUP PHOTOS LINE CONDUCTED EMISSION TEST RADIATED EMISSION TEST
