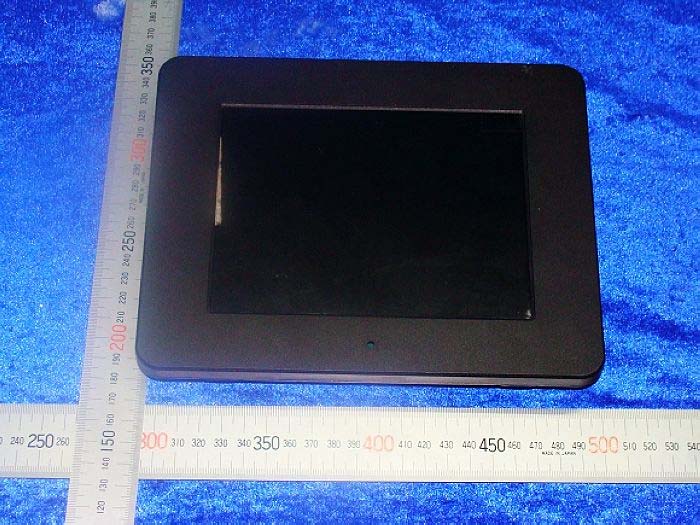

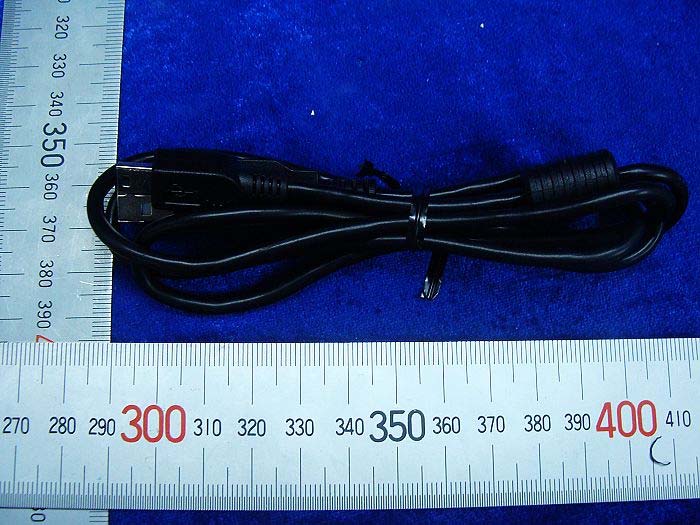

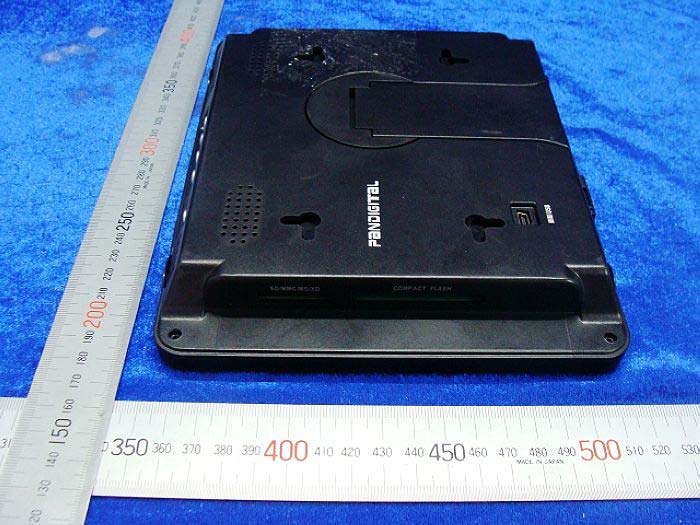

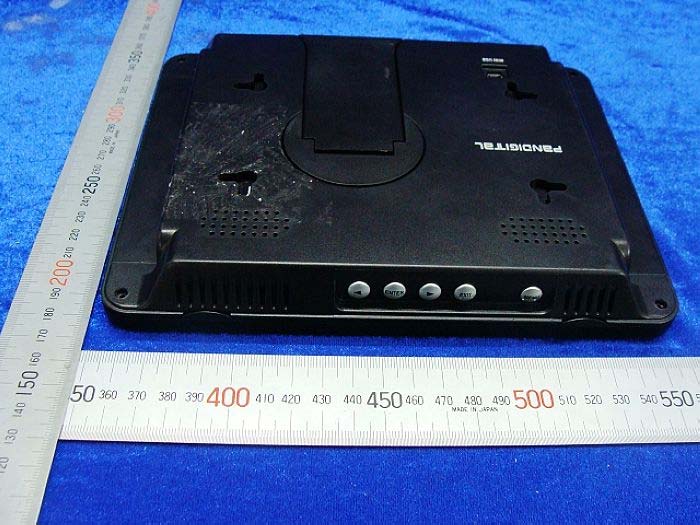

V37-6222-PD7DNDigital Photo Frame

Digital Photo Frame User Guide PAN7000DW and PAN9000DW Effortlessly Moving Images Out of your Camera and Into your Life 2 Sign up now to enjoy the following benefits... Qualify to win a FREE digital photo frame!* Register your FREE 1-year warranty!** *For details, go to our website: www.pandigital.net **The online signup is for the purpose of user and product registration. Failure to register does not in any way diminish any of your standard warranty rights, as described in the documentation included with your product. NOTE: If you must mail your 1-year registration, please send your name, address, phone number, model & serial number, and when & where purchased to: Pandigital, P.O. Box 2969, Dublin, CA 94568-2969 USA Note: Your frame style and features may differ from those documented in this User Guide. UGE_PAN7000DW_PAN9000DW_V1.11_03-09 1 Year Sign up now at... http://www.pandigital.net 3 Table of Contents Introduction .................................................................................................. 5 DPF Key Features ................................................................................................... 5 Getting Started ............................................................................................. 6 Overview of the DPF .................................................................................... 6 Remote Control ............................................................................................ 7 Control Buttons on DPF .............................................................................. 8 The HOME Screen ........................................................................................ 9 Setup Menu Overview ................................................................................ 10 About Selecting Options ........................................................................... 11 Select Media Source .................................................................................. 11 PHOTOS ...................................................................................................... 12 Photo Thumbnails .................................................................................................. 12 View Individual Photo during a Slideshow ............................................................. 13 Zoom or Rotate Photos ......................................................................................... 13 Adjust Screen Colors ............................................................................................. 14 Optimal Image Display .......................................................................................... 14 Photo Import Method ............................................................................................. 14 Display Current Time with Photos ......................................................................... 15 Display Photo File Date/Time Stamp with Photos ................................................. 15 Import Photos into Internal Memory ....................................................................... 15 Delete Photos from Internal Memory ..................................................................... 16 PHOTO SLIDESHOWS ............................................................................... 17 Slideshow of Photos in Internal Memory ............................................................... 17 Slideshow of Photos on your Media Source .......................................................... 17 Pause a Slideshow ................................................................................................ 17 Slideshow Folders ................................................................................................. 18 Slideshow Background Music ................................................................................ 19 Set Slideshow Music Mode ................................................................................... 19 Set Slideshow Interval ........................................................................................... 20 Set Slideshow Transition ....................................................................................... 20 Set Slideshow Shuffle ............................................................................................ 21 MUSIC ......................................................................................................... 21 Select Media Source for Music .............................................................................. 21 Playing Music Only ................................................................................................ 21 Music Repeat Mode ............................................................................................... 22 Import Music Files into Internal Memory ................................................................ 22 Delete Music Files from the Internal Memory ........................................................ 23 4 VIDEOS ....................................................................................................... 23 Select Media Source for Videos ............................................................................ 23 Watch a Video ....................................................................................................... 24 Video Repeat Mode ............................................................................................... 24 Import Video Files into Internal Memory ................................................................ 24 Delete Videos from the Internal Memory ............................................................... 25 CALENDAR/CLOCK ................................................................................... 26 Select Media Source for Calendar Slideshow........................................................ 26 Set Schedule ...................................................................…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title SizeDocument NumberRev Date:Sheet of History 1.0 DPF_AML6222D+INNOLUX8D_REF A 19Friday, July 03, 2009 Title SizeDocument NumberRev Date:Sheet of History 1.0 DPF_AML6222D+INNOLUX8D_REF A 19Friday, July 03, 2009 Title SizeDocument NumberRev Date:Sheet of History 1.0 DPF_AML6222D+INNOLUX8D_REF A 19Friday, July 03, 2009 KEY & REMOTE Internal Audio 4in1 Card Reader (SD/MMC/MS/XD) USB Host High speed NAND FLASH 1GB USB Device High speed 6222D Internal RTC JTAG CPU SDRAM M12L128168A-6TG/ MT48LC4M16A2TG (16MB/8MB Option) Build-in LED Backlight Touch Panel Panel cmo 7dn" digital CF CARD 24MHZ PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn 5 5 4 4 3 3 2 2 1 1 DD CC BB AA TDO M1_DQM1 RESET_N TMS NAND_R/nB M1_D7M1_D1 TCK M1_SCS0_n M1_D15M1_A4 NAND_nRD M1_D3M1_D13M1_D6M1_A12 M1_RAS_n M1_D14M1_A3M1_A6M1_A9M1_A10M1_D12M1_D5M1_A11 M1_DQM0M1_CAS_n M1_D9 M1_BA1 M1_D10M1_A2M1_A8 M1_CLKO M1_A0M1_D11M1_D0 NAND_nWE M1_D4 OSCOUT_RT RTC_VCC M1_WE_n M1_D8M1_D2 M1_D[0..15]M1_A[0..12] TDO M1_BA0 M1_A1M1_A7M1_A5 NAND_nCS LCD_G3 LCD_G0 LCD_G4 LCD_G1 TDI OSCIN OSCOUT OSCIN_RT OSCOUT_RT OSCIN_RT RTC_VCC LCD_R0 LCD_R2 LCD_R4 LCD_R3 LCD_R5 LCD_R1 IR REFN VCM REFP REFNVCMREFP M1_A6 M1_A7 M1_A8 M1_A9 M1_A11 M1_DQM0 M1_BA0 M1_RAS_N M1_CAS_N M1_WE_N M1_A10 M1_BA1 M1_DQM1 IR VBUS1 USBA_txrtune GND USB3.3V VBUS2 KEY TMS TCK TDI M1_A4 M1_A5 RESET_N LCD_G2 LCD_G5 LCD_B4 LCD_B2 LCD_B0 LCD_B1 LCD_B3 LCD_B5 ID1 ROTA_DET ID2 Core3.3V DGND Core3.3V DGND DGND USB3.3V DGND DAC_3.3V TAVV_3.3V Core3.3V DGND AVDD1 USBGND Core3.3V Core1.2V TAVV_3.3V Core1.2V DGND DAC_3.3V DGND Core3.3V VCC1.2V Core3.3V AVDD1 RTC_33VSB Audio_GNDAudio_GNDAudio_GND DGND Core3.3V DAC_3.3V USBGND USBGND USB3.3V USBGND DAC_3.3V Audio_GND Audio_GND Audio_GND USBGND Core3.3V Core3.3V DP18 M1_BA0 CKV M1_DQM0M1_DQM1 STVR OEV CARD_EN DM18 OEH M1_A[0..12]4 LCD_G[5:0] STHL NAND_nCS NAND_nRD NAND_nWE NAND_R/nB DM2 DP2 LCD_R[5:0] M1_D[0..15]4 M1_CAS_NM1_WE_NM1_SCS0_NM1_RAS_N M1_CLKO VCOM M1_BA1 D_CLK M1_CKE PWM BL_CS1BL_CS0 BL_PWM VGHL_CS0 10V_CTL +15V_CTL VBUS1 8 VBUS2 KEY XD_CE 4 XD_CLE/SD_CLK/MS_CLK 4 XD_ALE/SD_CMD/MS_BS 4 XD_RB 4 XD_WR/SD_CLK/MS_CLK 4 XD_RD/SD_CMD/MS_BS 4 SD_D3/XD_D3 4 SD_D2/XD_D2 4 SD_D1/XD_D1 4 SD_D0/XD_D0 4 XD_D7 4 XD_D6 4 XD_D5 4 XD_D4 4 CARD_WP CARD_INS SPL SPR HPR HPL MUTE LCD_B[5:0] XDPower_EN 4 XD_IN 4 ID2 INV_EN INV_EN BL_CS0 ROTA_DET Title SizeDocument NumberRev Date:Sheetof Decoder 1.0 DPF_AML6222D+INNOLUX8D_REF D 29Friday, April 17, 2009 Title SizeDocument NumberRev Date:Sheet of Decoder 1.0 DPF_AML6222D+INNOLUX8D_REF D 29Friday, April 17, 2009 Title SizeDocument NumberRev Date:Sheet of Decoder 1.0 DPF_AML6222D+INNOLUX8D_REF D 29Friday, April 17, 2009 M1_A6 M1_A7 L L Boot SDIO_A L H Boot SDIO_B H L Boot SDIO_C H H Boot NAND M1_A9 M1_A8 L L 1Mx16 SDRAM connected to the chip L H 4Mx16 SDRAM connected to the chip H L 8Mx16 SDRAM connected to the chip H H 16Mx16 SDRAM connected to the chip M1_A11 L use SPI_B H use SPI_A M1_DQM0 H ROM boot L HW boot M1_BA0 M1_RAS L L 512 byte page L H 2048 byte page H H 4096 byte page M1_CAS L 2 ALEs H 3 ALEs M1_A10 L GPIO H JTAG ENABLE M1_DQM1 L 8-bit interface H 16-bit interface M1_BA1 L use 9 bit BCH correction H use 15 bit BCH correction M1_WE_N L Boot from Nor H Boot from Nand Power On Configuration: close to CPU 旋转开关 R454.7KR454.7K C45 100uF/16V C45 100uF/16V R300RR300R R56 100 R56 100 R18NC/4.7KR18NC/4.7K C33 220uF/16V C33 220uF/16V + C3 100uF/16V + C3 100uF/16V RP2 R 33r 0603 B-T 排阻 4x0603R RP2 R 33r 0603 B-T 排阻 4x0603R 1 2 3 45 6 7 8 R414.7KR414.7K C3150pFC3150pF R14 1K R14 1K R46NC/4.7KR46NC/4.7K R57 22R R57 22R C11 103p C11 103p R35NC/4.7KR35NC/4.7K R194.7KR194.7K C19 103p C19 103p C6 103p C6 103p + C35 100uF/16V + C35 100uF/16V C2450pFC2450pF Memory #1 TCON P O W E R Audio AML6222D USB U2 Memory #1 TCON P O W E R Audio AML6222D USB U2 M1_D_0 29 M1_D_1 30 M1_D_2 31 M1_D_3 32 M1_D_4 34 M1_D_5 35 M1_D_6 37 M1_D_8 48 M1_D_9 47 M1_D_10 46 M1_D_12 43 M1_D_13 42 M1_D_14 41 M1_D_15 40 M1_A_0 71 M1_A_1 72 M1_A_2 73 M1_A_3 74 M1_A_4 60 M1_A_5 59 M1_A_6 58 M1_A_7 57 M1_A_8 56 M1_A_9 55 M1_A_10 70 M1_D_11 44 M1_WE_n 62 M1_CAS_n 63 M1_RAS_n 64 M1_SCS0_n 66 M1_DQM0 39 M1_DQM1 49 M1_CLKO 51 M1_BA0 67 M1_BA1 68 NAND_RDY_BSY 25 NAND_CE_n 26 M1_A_11 54 NAND_WE_n 24 M1_D_7 38 DVSS 23 NAND_RD_n 28 TADC_AV33 84 TADC_CH2 85 LCD_R2 112 LCD_R3 113 LCD_R4 115 LCD_R5 116 LCD_R6 117 LCD_R7 118 LCD_G2 119 LCD_G3 120 LCD_G4 121 LCD_G5 123 LCD_G6 124 LCD_G7 125 LCD_B2 127 LCD_B3 128 LCD_B4 129 LCD_B5 130 LCD_B6 131 LCD_B7 132 TCON_VCOM 135 TCON_CPH1 136 TCON_STH1 137 TCON_OEH 138 TCON_STV1 139 TCON_CPV1 140 TCON_OEV1 141 GPIOA_N3 27 REMOTE 80 GPIOB_0 81 I2C / UART 165 I2C / UART 166 VDD33 21 VDD12 22 JTAG_TMS // I2C_MASTER_CLOCK 171 JTAG_TDI // I2C_MASTER_DATA 172 JTAG_TCK // AUDIO_MUTE 173 JTAG_TDO // OTG_VBUS 174 TESTn/CARD_ENABLE 175 RESET_N 176 VDD33 33 DVSS 36 VDD33 45 DVSS 50 VDD33 61 VDD12 65 DVSS 69 VDD33 77 VDD12 110 VDD33 111 DVSS 114 VDD33 122 DVSS 126 VDD12 133 VDD33 134 DVSS 142 VDD33 143 VDD12 147 DVSS 151 VDD33 160 VDD33 167 VSS33 168 LCD_PWM_180 75 LCD_PWM 76 VGHL_CS0 96 TADC_CH1 86 TADC_CH0 87 TADC_AGND 88 OSCIN 169 OSCOUT 170 PLL_VDD33 19 PLL_VSS 20 RTC_GPO 91 RTC_VBAT 92 RTC_XO32K 93 RTC_XI32K 94 RTC_GND 95 LED_PWM 78 LED_PWM_180 79 LED_CS0 89 LED_CS1 90 AOUT_SPRC 97 AOUT_SPR 98 AOUT_HPR 99 AOUT_HPRC 100 AOUT_AVSS33_0 101 AOUT_AVDD33_0 105 XD_NAND_CE_n 144 XD_NAND_IO7 145 XD_NAND_IO6 146 XD_NAND_IO5 148 XD_NAND_IO4 149 XD_NAND_IO3 // SD_D3_A 150 XD_NAND_IO2 // SD_D2_A 152 XD_NAND_IO1 // SD_D1_A 153 XD_NAND_IO0 // SD_D0_A 154 XD_NAND_CLE_n 155 XD_NAND_ALE_n 156 XD_NAND_RDY_BSY 157 XD_WR_n // SD_CLK_A 158 XD_NAND_RD_n // SD_CMD_A 159 SD_CLK_B 161 SD_CMD_B 162 USBB_ID 10 USBB_VBUS 11 USBB_txrtune 16 USBB_DP 13 USBB_DM 14 USBB_VDD33 18 USBB_VDD33 12 USBA_VDD33 3 USBA_VDD33 9 USBB_VSS33c 17 USBB_VSS33 15 USBA_VSS33 6 USBA_vss33c 8 USBA_DP 4 USBA_DM 5 USBA_ID 1 USBA_VBUS 2 USBA_txrtune 7 M1_CKE 52 M1_A_12 53 GPIOB_1 82 GPIOB_2 83 AOUT_HPLC 106 AOUT_HPL 107 AOUT_SPL 108 AOUT…

Text truncated - open the document above for the full version.

TO: ShenZhen Timeway Technology Consulting Co. , Ltd WIN ACCORD LTD. Statement We need adding models for CE,FCC approval is PAN7000DW Trade name is N/A The basic Model No. DF07205-14-XXX-XXX（X=A-Z,0-9,a-z） The basic trade name is N/A We hereby state that these models are identical in interior structure, electrical circuits and components, and just model names and appearance color are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: 2009/04/30 Company Name: WIN ACCORD LTD.

DATE： 11 02, 2009 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD ，5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA.，Hanson Chueng to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with WIN ACCORD LTD. 12F,NO.225,SEC 5,105 SONG SHAN DIST.,NAN JING EAST ROAD,TAIPEI,TAIWAN,R.O.C Dated this 11 02 ，2009 Agency agreement expiration date: Usually Give 8 - 12 Months By: Chen Kelly Signature Printed Title: Board Chairman On behalf of : WIN ACCORD LTD. Telephone: 02-2749 3837

DATE ： 1 5/06/2009 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _ V37-6222-PD7DN ___________ Product Name: __ Digital Photo Frame ______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 15/06/2009 Day of 20 By: Chen Kelly Signature Printed Title: engineer On behalf of : WIN ACCORD LTD. Telephone: 02-2749 3837

FCC ID: V37-6222-PD7DN 50.00MM

Proposed Label Location on EUT FCC ID Label

Operation Description This digital photo frame uses5V/2A power adaptor which inputs power into AOM7080. One of the input stream is converted into 5V to power digital LCD. One of the input stream emit through 1117 to convert into 1.2V and another emit through 1117-3.3 to convert into 3.3V to supply power for main IC chip AML6222. This main IC chip enable speaker to work by sending signals through APM2068. The chip can directly control flash, nand flash, 4in1 card, CF card, USB slot, RTC, function control button. Flash frequency is 10MHz. Clock Frequency is 24MHz. SDROM Frequency is 156MHz

ISO/IEC17025 Accredited Lab. Report No: FCC 0904241 File reference No: 2009-05-12 Applicant: WIN ACCORD LTD. Product: Digital Photo Frame Brand Name: N/A Model No: DF07205-14-XXX (X=A-Z, 0-9, a-z) Test Standards: FCC Part 15 Subpart B: 2008 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: May 12, 2009 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8, Tairan Rd. Chegongmiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 0904241 Page 2 of 47 Date: 2009-05-12 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. Report No: 0904241 Page 3 of 47 Date: 2009-05-12 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 2.3 Auxiliary Equipment.......................................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Investigations Requested..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 Power line Conducted Emission Test..................................................................... 7 5.0 Radiated Disturbance Test................................................................................... 21 6.0 FCC ID Label ....................................................................................................... 35 7.0 Photo of testing......................................................................…

Text truncated - open the document above for the full version.
