V37-DF1130-XX-XX11.3 Digital Photo Frame

HP df1130 Series Digital Picture Frame Marco de Fotos Digital Cadre Photo Numérique User Manual Manual del usuario Manuel de l'utilisateur i ENGLISH FCC Compliance Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, only use shielded interface cables when FRQQHFWLQJWRFRPSXWHURUSHULSKHUDOGHYLFHV$Q\FKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\ approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ii ENGLISH Table of Contents FCC Compliance Statement ...........................................................i What’s in the Box ..........................................................................1 Identifying the parts .....................................................................2 Getting Started..............................................................................3 Remote Control .............................................................................5 Using the Picture Frame ................................................................6 Main Menu ............................................................................................6 Photo mode ..........................................................................................7 Video mode...........................................................................................9 Music mode...........................................................................................11 Time mode ...........................................................................................13 Setting the Date, Time, and Alarm ..........................................................14 Setup Menu ...................................................................................15 6SHFL¿FDWLRQVGI..................................................................18 Frequently Asked Questions..........................................................19 Cleaning and Care Tips..................................................................2 Cleaning the Screen...............................................................................20 Cleaning the Frame and Backing.............................................................20 Getting Help ..................................................................................21 1 ENGLISH What’s in the Box QtyItemImage 1Digital Picture Frame 1Extra set of double mat* 1Remote Control Replacement Battery = CR2025 1Universal Power Adapter (12V, 1.5A) 1USB Cable 1User Manual 1Declaration of Conformity 1Quick Start Guide 1Warranty Document * Select models only 2 ENGLISH Identifying the parts Mini USB Port for File Transfer USB Port for USB Flash Drives Compact Flash™ Slot AC Power Input xD-Picture Card™, Memory Stick™, Memory Stick PRO™, Memory Stick Duo™, Memory Stick PRO Duo™, Secure Digital™, or Multi Media Card™ Slot Key Pad Power Button Speakers Adjustable Stand 3 ENGLISH Getting Started Plug the adapter into a power outlet and connect the power cord into the DC input of the 1. digital picture frame as illustrated below. DC 12V The HP Digital Picture Frame is preloaded with pictures that illustrate the basic features of 2. this product. If you want to view these pictures, turn the frame on as illustrated in step 4. The slideshow will begin in a few seconds. Insert a memory card or USB storage device (external memory) containing desired pictures, 3. music, and/or video into the appropriate card slot or USB port as illustrated below. Note: Memory cards and USB storage devices must be orientated correctly. Press the POWER button4.. POWER 4 ENGLISH A slideshow of your pictures will begin automatically in a few seconds. If music tracks 5. are available on the same external memory device, the slideshow will be displayed with background music unless disabled in the SETUP MENU. Enjoy it and have fun! In addition to the remote control, the digital picture frame has basic control buttons on the 6. top of the frame as illustrated below. MENU EXIT PLAY/PAUSE/SELECT PREVIOUS/RETURN POWER MEMUEXIT NEXT/FOWARD HP df1130 When using the remote control, point it at the remote sensor on the front of the frame as 7. illustrated below. Remote Sensor 5 ENGLISH Remote Control POWER Press to turn the frame on or off. SETUP Press to access the Setup menu. SLIDESHOW Press to start a photo slideshow. UP Press to move up in Thumbnail mode or when setting options. DOWN Press to move down in Thumbnail mode or when setting options. LEFT or PREVIOUS Press to move left in menus or Thumbnail mode. Press to view the previous photo in Browse mode or Slideshow mode. RIGHT or NEXT Press to move right in menus or Th…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA OSCILLATOR IR for remote control 5V SD/MMC/MS/XD Card SHARP11.3 LCDPanel 6 Function Key Pad Alternative for NAND Flash 32.768KHZ 3.3V USB Host & Device CAT1117 CAT1117 DC-DC 5V SPI NOR FLASH AM7213D OSCILLATOR 24 Mhz Audio AMP 4863 AVDD/VGH/VGL PFM with feedback loop Speaker Internal RTC Battery 1.8V NAND Flash 12V DC IN 2W X 2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

TO: ShenZhen Timeway Technology Consulting Co. , Ltd WIN ACCORD LTD Statement Product Name: 11.3 Digital Photo Frame The Models No. DF11301-13-XXXX；DP111X；df1130XX-XX (X=A-Z,a-z,0-9) ; DP111A; DigiFrame 1160 We hereby state that these models are identical in interior structure, electrical circuits and components, and just model names and appearance color are different for the marketing requirement. （X＝0-9，X＝a-z, X＝A-Z） Your assistance on this matter is highly appreciated. Yours sincerely, Signature: 2010/07/29 Company Name: WIN ACCORD LTD

DATE： 08 07, 2010 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD ，5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA.，Hanson Chueng to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with WIN ACCORD LTD. 12F,NO.225,SEC 5,105 SONG SHAN DIST.,NAN JING EAST ROAD,TAIPEI,TAIWAN,R.O.C Dated this 08, 07 2010 Agency agreement expiration date: Usually Give 8 - 12 Months By: Chen Kelly Signature Printed Title: Board Chairman On behalf of : WIN ACCORD LTD. Telephone: 02-2749 3837

DATE ： 29/07/2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _ V37-DF1130-XX-XX ___________ Product Name: __ 11.3 Digital Photo Frame ______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 29/07/2010 Day of 20 By: Chen Kelly Signature Printed Title: engineer On behalf of : WIN ACCORD LTD. Telephone: 02-2749 3837

Proposed Label Location on EUT FCC ID Label Location

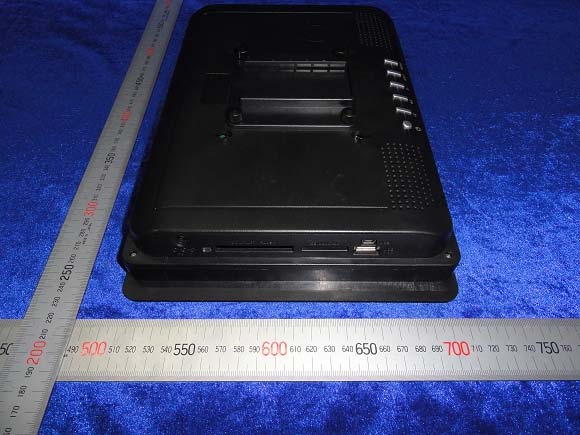

This digital photo frame uses 12V/1.5A power adaptor which inputs power into AOM7080. One of the input stream is converted into 5V to power digital LCD. One of the input stream emit through 1117 to convert into 1.2V and another emit through 1117-3.3 to convert into 3.3V to supply power for main IC chip AM7213D. This main IC chip enable speaker to work by sending signals through APM2068. The chip can directly control flash, nand flash, 4in1 card, USB slot, RTC, function control button. Flash frequency is 10MHz. Clock Frequency is 27MHz. EUT port: DC input port, SD card port, CF card port, USB port and mini-USB port. Operation mode: Play music and photo in the memory, Reading USB, CF and SD card. And connected to PC for data transport. Power supply: DC12V

ISO/IEC17025 Accredited Lab. Report No: FCC 1007335/SZ10020185 File reference No: 2010-07-29 Applicant: WIN ACCORD LTD. Product: 11.3 Digital Photo Frame Brand Name: N/A Model No: DF11301-13-XXXX； Test Standards: FCC Part 15 Subpart B: 2008 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Terry Tong Manager Dated: July 29, 2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8, Tairan Rd. Chegongmiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1007335/SZ10020185 Page 2 of 57 Date: 2010-07-29 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. VCCI- Registration No.: R-3015 and C-3332 The EMC Laboratory has been registered and fully described in a report filed with the (VCCI) Voluntary Control Council for Interference. The acceptance letter from the VCCI is maintained in our files. Registration IC No.: R-3015 and C-3332 Report No: 1007335/SZ10020185 Page 3 of 57 Date: 2010-07-29 TEST REPORT "The report refers only to the sample tested and does not apply to the bulk production. This report is issued in confidential to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co., Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for illegal purpose. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co., Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co., Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate." Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 2.3 Auxiliary Equipment.......................................................................................... 5 2.4 I/O Cable....................................................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Investigations Requested..................................................................................... 6 3.2 Test Standards...........................................................................…

Text truncated - open the document above for the full version.

Conducted test View-- 7.2 Radiated emission test view--
