V3J-J2013J2013

J2013 QSG [SIDE 1] [PANEL 1] "DOWNLOAD THE JAWBONE® APP TO GET THE MOST FROM J2013." [PANEL TWO] GET CONNECTED The JAWBONE® app helps you easily pair J2013 to your devices. [PANEL THREE] EASY ACCESS [PANEL FOUR] CUSTOMIZABLE PLAY BUTTON Program the PLAY [PANEL FIVE] MAKE IT YOURS [SIDE TWO] [PANEL SIX] STILL HAVE QUESTIONS? The JAWBONE® app is home to the user guide, how‐to information and expert support. [PANEL SEVEN] BUTTON CONTROLS [PANEL EIGHT] VOLUME DOWN/UP [SIDE NINE] POWER PAIRING MICROPHONE MICRO‐USB SIDE CONTROLS Power On/Off Hold Hear Battery Status Press 1x Activate Pairing Mode Hold Hear Connection Status Press 1x All third party trademarks are those of their respective owners. [PANEL TEN] MEET J2013 VISIT JAWBONE.COM/START 770‐00849‐0100 Rev A SAFETY GUIDE Please read these safety warnings and cautions carefully. Failure to read, understand and follow these warnings can result in death or serious personal injury and property damage. Fire and Electric Shock Hazard • Never use the Jawbone® J2013 near a bathtub, shower, sink, sauna, pool, or steam room. Death or serious personal injury from electrocution will result. • Do not expose your Jawbone® J2013 to liquid, moisture, humidity, or rain. Exposure of the Jawbone® J2013 to moisture could result in electric shock. • Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects in to the Jawbone® J2013. Such actions could result in electric shock. • Do not attempt to disassemble the Jawbone® J2013 or force open the built‐in battery because this may result in electric shock. • Do not charge the Jawbone® J2013 in damp areas or in extremely high or low temperatures because this could result in electric shock. • Do not clean the Jawbone® J2013 when it is being charged. Always unplug the Jawbone® J2013 first before cleaning. • Clean the Jawbone® J2013 only with a dry cloth. BATTERY EXPLOSION Hazard • Do not dispose of your Jawbone® J2013 in a fire. The battery could explode causing death or serious personal injury. • Do not expose your Jawbone® J2013 to extremely high or low temperatures because this could result in an explosion. • Do not leave your Jawbone® J2013 in direct sunlight for extended periods of time because this could result in an explosion. • Do not leave your Jawbone® J2013 near open flames or other heat sources such as cooking burners,candles, or fireplaces because this could result in an explosion. • Do not block any ventilation openings. • Dispose of the Jawbone® J2013 and the Jawbone® J2013’s battery in accordance with local regulations. Do not dispose of the battery with regular household waste. • Only charge the battery in accordance with the user instructions supplied with the Jawbone® J2013. • Do not attempt to replace your Jawbone® J2013 battery; it is built‐in and is not changeable. Failure to follow this warning may result in serious personal injury. • Do not attempt to repair, modify, or disassemble your Jawbone® J2013 yourself; it does not contain any user‐serviceable components. • Do not use abrasive cleaners to clean your Jawbone® J2013 because this could cause scratches and damage. • Do not bring your Jawbone® J2013 in to contact with any sharp objects because this could cause scratches and damage. • Do not insert anything into your Jawbone® J2013 unless otherwise specified in the user instructions. This may damage the internal components. • Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas. • Turn off your Jawbone® J2013 prior to boarding an aircraft. Do not use the Jawbone® J2013 inside an aircraft unless allowed by your airline. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. FCC CAUTION • Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. • This device and its antenna(s) must not be co‐located or operating in conjunction with any other antenna or transmitter. Canada notices This Class B digital apparatus meets all requirements of the Canadian Interference‐ Causing Equipment Regulations, CAN ICES‐3(B)/NMB‐3(B). This device has Bluetooth capability, the device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitationestautorisée aux deu…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 June-06-2013 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 JAWBONE Date： 2013/6/14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Aliph com, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): J2013 We affirm that between SIEMIC and Aliph com, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, _______________________ Aliph com Kathy Beisel Director of Program Management [email protected] 99 Rhode Island Street, 3rd Floor, San Francisco, CA 94103, United States

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 JUN-06-2013 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 JAWBONE 2013/6/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: V3J-­‐J2013 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematic Diagrams - Operational Description - Antenna Report The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Aliph com Kathy Beisel Director of Program Management [email protected] 99 Rhode Island Street, 3rd Floor, San Francisco, CA 94103, United States SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 JAWBONE 2013/6/14 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: V3J-­‐J2013 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual - Internal Photos - Test Set-up Photos - External Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ___________________________ Aliph com Kathy Beisel Director of Program Management [email protected] 99 Rhode Island Street, 3rd Floor, San Francisco, CA 94103, United States

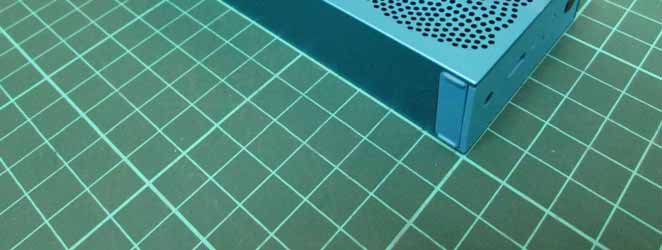

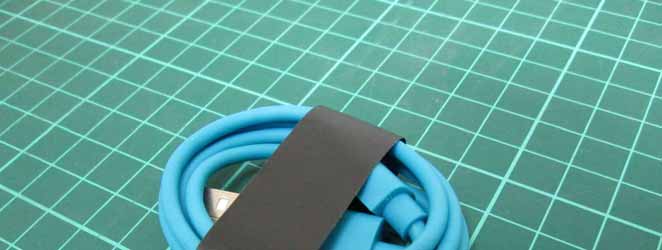

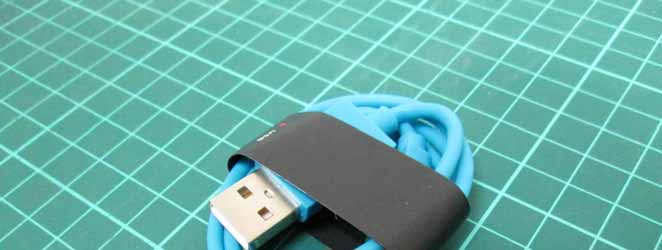

Report No.T130605S03 Page 1 of 4 External Photo Report No.T130605S03 Page 2 of 4 Report No.T130605S03 Page 3 of 4 USB Cable Report No.T130605S03 Page 4 of 4 Audio Cable

Label Location (Sample Bottom)

Report No.T130605S03 Page 1 of 6 Internal Photo Report No.T130605S03 Page 2 of 6 Report No.T130605S03 Page 3 of 6 Report No.T130605S03 Page 4 of 6 Report No.T130605S03 Page 5 of 6 Report No.T130605S03 Page 6 of 6

FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 1 / 1 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES According to § 15.247 (i) and § 1.1307(b)(1), system operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. KDB 447498 D01: Approximate SAR test exclusion power thresholds at selected frequencies and test separation distances are illustrated in the following table: MHz 5 10 15 20 25 mm 150 39 77 116 155 194 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 SAR Test Exclusion Threshold (mW) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum Measured Transmitter Power: Maximum Peak Conducted Output Power Maximum AVG Conducted Output Power Channel Frequency (MHz) (dBm) (mW) (dBm) (mW) 2480 8.77 7.5 8.47 7.0 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] = 7.0/5*√2.48 = 2.20 ≤ 3.0 Threshold at which no SAR required is 10mW and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion : The SAR measurement is exempt.

FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 1 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2009 TEST REPORT For J2013 Model : J2013 Trade Name : JAWBONE Issued for Aliph com 99 Rhode Island Street, 3rd Floor. San Francisco, CA 94103 United States Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: July 04, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 2 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/06/2013 Initial Issue All Page 40 Gloria Chang 01 07/04/2013 Deleted RF Exposure Evaluation in EUT Description & Revised Appendix All Page 41 P.5, P.41 Gloria Chang FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 3 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1 6dB BANDWIDTH .................................................................................................. 10-13 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 14-15 7.3 POWER SPECTRAL DENSITY............................................................................. 16-19 7.4 CONDUCTED SPURIOUS EMISSION .................................................................. 20-23 7.5 RADIATED EMISSION........................................................................................... 24-35 7.6 CONDUCTED EMISSION ...................................................................................... 36-40 APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES.................................. 41 FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 4 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Aliph com Address 99 Rhode Island Street, 3rd Floor. San Francisco, CA 94103 United States Equipment Under Test J2013 Model J2013 Trade Name JAWBONE Tested Date May 15 ~ June 06, 2013 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 5 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name J2013 Model Number J2013 Identify Number T130605S03 Received Date May 15, 2013 Frequency Range 2402MHz～2480MHz Transmit Power 8.77 dBm (0.0075W) Channel Spacing 2MHz Channel Number 40 Channels Transmit Data Rate GFSK (1Mbps) Type of Modulation Frequency Hopping Spread Spectrum Frequency Selection by software / firmware Antenna Type Monopole Antenna, Antenna Gain : 1.30 dBi Power Rating 3.7Vdc, 900mAh, 3.3Wh (For Battery) 5Vdc (For Charging) Test Voltage 120Vac/60Hz DC Power Cable Type Shielded micro USB cable 0.6m × 1 (Detachable) I/O Port Micro USB Port × 1, Audio In Port × 1 Signal Cable Audio cable 1m × 1 Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: V3J-J2013 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. FCC IDV3J-J2013 Report No.T130605S03-RP1-1 Page 6 / 41 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.…

Text truncated - open the document above for the full version.

Report No.T130605S03-D Page 1 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Report No.T130605S03-D Page 2 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz Report No.T130605S03-D Page 3 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
