V3J-JC01Headset

Visit JAWBONE.COM/stArt MEET 23 STunning Sound and dESign. LoadEd wiTh fEaTurES. it’s time to see what you’ve gotten yourself into. 45 Choose the earbud that feels best tWIst the taIl to fINd the PerfeCt fIt ThE TEchnicaL E aSy parT. ErA™ is ready to connect right out of the box. Press the talk button, turn it on and select ErA from your device list of Bluetooth ® connections. All third party trademarks are those of their respective owners. you’rE onE of a Kind. What feels right to you? right side? Left? small, medium, large? We got you covered. it’s your ear. More options available at store.jawbone.com 67 led INdICators shoW your Case Charge status. get max PoWer by ChargINg era + Case together up ThE awESoME wiTh ThE JawbonE app. MANAgE your connected devices. PErsONALiZE your ErA + get cool updates. KNOW who’s calling by name. Fi Nd your ErA if it’s lost. download it from the App store℠ or on google Play STay in chargE. the CHArgiNg CAsE (included in bundle or sold separately) gives your ErA up to 8 extra hours of juice. Or use the UsB cable to charge your headset directly. 45 minutes to fully charge case, 60 minutes to just charge headset 89 mICro usb talk buttoN led rINg VoICe aCtIVIty seNsor oN/off sWItCh TaLK Pick-up/Hang-up_______________________________Press ignore________________________________Hold 2 seconds redial________________________________________Press 2x switch between calls___________________________Press End one call, switch to the other_____________Press 2x LiSTEn Volume (while talking or listening)____________Press + Hold the volume level will cycle up and down. release button to set your volume. groovE Pause the music________________________________Press Play the music_______________________________Press 3x Failure to follow these safety instructions could result in hearing damage or in fire, electric shock, or other injury or damage. avoiding hEaring daMagE Permanent hearing loss may occur if the Jawbone® headset is used at a high volume. set the volume to a safe level. Even though you may become accustomed to a higher volume of sound, and even though it may sound normal, any higher volume of sound can be damaging to your hearing. if you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. the louder the volume, the less time is required before your hearing could be affected. the Jawbone® headset has been initially set at a medium volume for sound. do not increase the level of volume unless you are in conditions where you need a higher level for a short period of time. if this level of volume is uncomfortably high for you, you should decrease this level. hEaring EXpErTS SuggEST ThaT To proTEcT your hEaring: 1. Limit the amount of time you use the Jawbone® headset including use at high volume. 2. Avoid turning up the volume to block out noisy surroundings. 3. turn the volume down if you can’t hear people speaking near you. JawbonE hEadSET carE • Do not expose your Jawbone® headset to liquid, moisture, humidity, or rain. the Jawbone® headset is not waterproof. • Do not tamper with or abuse the Jawbone® SafETy inforMaTion warning headset. For example, without limitation, do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into the Jawbone® headset. • Do not use abrasive cleaners to clean your Jawbone® headset. • Do not expose your Jawbone® headset to extremely high or low temperatures. • Do not leave your Jawbone® headset in direct sunlight for an extended period of time. • Do not leave your Jawbone® headset near open flames such as cooking burners. • Do not dispose of your Jawbone® headset in a fire. the battery could explode. • Do not bring your Jawbone® headset into contact with any sharp objects. this can cause scratches and damage. • Do not insert anything into your Jawbone® headset unless otherwise specified in the user manual. this may damage the internal components. • Do not attempt to disassemble your Jawbone® headset, it does not contain serviceable components. • Do not wear your Jawbone® headset without a Jawbone® approved earbud. buiLT-in baTTEry carE • Do not attempt to replace your Jawbone® headset’s battery. it is built-in and not changeable. • Charge the battery in accordance with the instructions supplied with this guide. • Use only the charger supplied by Jawbone® headset’s original manufacturer to charge the battery. chargEr carE • Use only the charger supplied by the Jawbone® headset’s original manufacturer to charge your Jawbone® headset. Other chargers may look similar but using them could be dangerous and could damage the Jawbone® headset. • Do not attempt to disassemble the charger as it may expose you to dangerous electric shock. • Do not use the charger outdoors or in damp areas. • Only charge your Jawbone® headset’s built-in battery in accordance with the instructions described in this guide. • Avoid charging your Jawbone® headset in extremely high or low temperatures. • Do not use your Jawbone® headset while it is charging. • Do not connect the Jawbone® headset to the charger while on an active call. SafETy inforMaTion • Check and observe local laws regarding the use of a mobile phone and headset while driving. if you use the Jawbone® headset while driving, ensure that you maintain your full attention and focus; it is your responsibility to drive safely. Consider pulling off the road before making or answering a call. • Never allow children to play with the Jawbone® headset; the small components of the headset may be a choking hazard. • Do not leave or store the Jawbone® headset or any of its accessories in the area over the air bag or in the air bag deployment area of an automobile as serious injury may result when an air bag deploys. • Observe all signs and displays that require an electrical device or rF radio product to be switched off in designated areas. • Turn off your Jawbone® headset prior to boarding aircraft. do…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: September 18, 2013 Subject: Request for Confidentiality FCC ID: V3J-JC01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Report Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2014/03/31. External Photos Internal Photos Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely yours, Signature FCC grantee contact person information. Name/Title: Masood Abrishamcar / Sr. Manager, Compliance Engineering Company Name: Aliph com Address: 99 Rhode Island Street 3rd Floor San Francisco, CA 94103 TEL: 1-415-230-7600 FAX: 1-415-230-7699 Email: [email protected]

Date: October 28, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. David Wang / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. David Wang / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Masood Abrishamcar / Sr. Manager, Compliance Engineering Aliph com REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

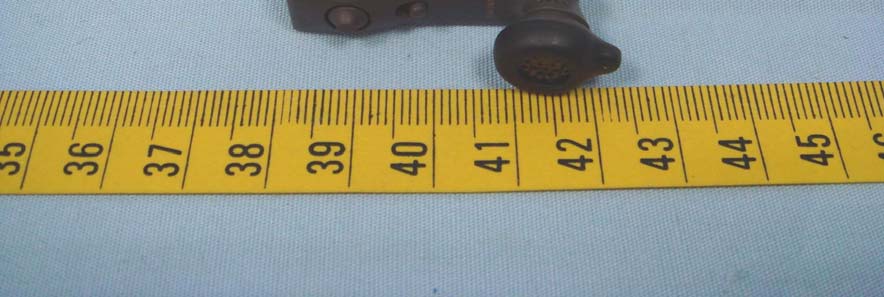

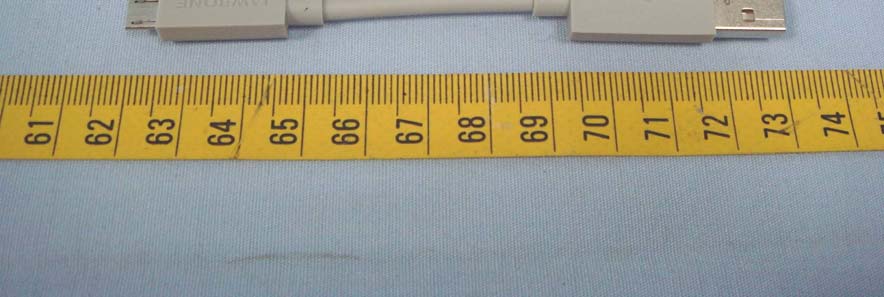

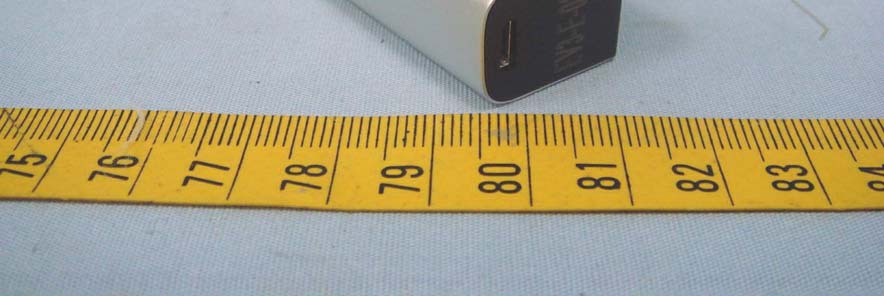

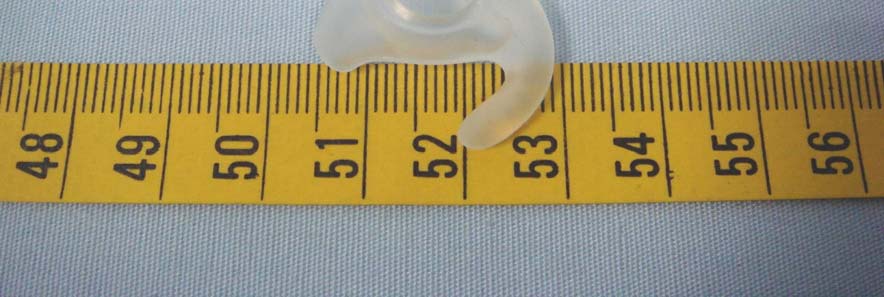

Report No: T130823L04 Page 1 / 13 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130823L04 Page 2 Rev.00 Report No: T130823L04 Page 3 Rev.00 CHARGER / JC02 Report No: T130823L04 Page 4 Rev.00 Report No: T130823L04 Page 5 Rev.00 USB To Mini USB Cable Report No: T130823L04 Page 6 Rev.00

FCC Label and Model Number

Report No: T130823L04 Page 7 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130823L04 Page 8 Rev.00 Report No: T130823L04 Page 9 Rev.00 Report No: T130823L04 Page 10 Rev.00 Report No: T130823L04 Page 11 Rev.00 Report No: T130823L04 Page 12 Rev.00 Report No: T130823L04 Page 13 Rev.00 ANTENNA

JAWBONE Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: Bluetooth 4.0 / 3.0+EDR : 5.56dBm (AV) Tune up Tolerance: +-2dB

Compliance Certification Services Inc. Report No.: T130823L04 FCC ID: V3J-JC01 Date of Issue: November 01, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 The max. power of channel, including tune-up tolerance(mW) is 7.56 mW @ 2480MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] = 1.796 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Headset Model: JC01 Trade Name: JAWBONE Issued to Aliph com 99 Rhode Island Street, 3rd Floor. San Francisco, CA 94103 United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 21, 2013 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION ...................................................................................................... 6 3.2. EUT EXERCISE .................................................................................................................. 6 3.3. GENERAL TEST PROCEDURES ....................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 3.5. DESCRIPTION OF TEST MODES...................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASUREMENT EQUIPMENT USED ............................................................................... 9 4.2. MEASUREMENT UNCERTAINTY .................................................................................... 11 5 FACILITIES AND ACCREDITATIONS................................................................................. 12 5.1. FACILITIES ....................................................................................................................... 12 5.2. EQUIPMENT..................................................................................................................... 12 5.3. TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 13 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 14 6.1. SETUP CONFIGURATION OF EUT ................................................................................. 14 6.2. SUPPORT EQUIPMENT................................................................................................... 14 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 15 7.1. 20DB BANDWIDTH........................................................................................................... 15 7.2. PEAK POWER .................................................................................................................. 19 7.3. AVERAGE POWER .......................................................................................................... 21 7.4. BAND EDGES MEASUREMENT ...................................................................................... 22 7.5. FREQUENCY SEPARATION............................................................................................ 36 7.6. NUMBER OF HOPPING FREQUENCY ............................................................................ 38 7.7. TIME OF OCCUPANCY (DWELL TIME) ........................................................................... 41 7.8. SPURIOUS EMISSIONS................................................................................................... 55 7.9. POWERLINE CONDUCTED EMISSIONS ........................................................................ 69 8 PHOTOGRAPHS OF TEST SETUP..................................................................................... 72 Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Aliph com 99 Rhode Island Street, 3rd Floor. San Francisco, CA 94103 United States Manufacturer: Cheng Uei Precision Industry Co., Ltd. 18, Chung Shan Road, Tu Cheng Dist., New Taipei City 23680,Taiwan Equipment Under Test: Headset Trade Name: JAWBONE Model: JC01 Date of Test: August 27 ~ September 18, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130823L04-RP2 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 43 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8 PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130823L04-RP2 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 44 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T130823L04-RP2 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 45 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: T130823L04-RP2 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 46 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Line Conducted Emissions Setup Photos

Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 70 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8 PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 71 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 72 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: T130823L04-RP1 FCC ID: V3J-JC01 Date of Issue: October 21, 2013 Page 73 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Line Conducted Emissions Setup Photos
