V4FYCBLHD6802.11b/g/n (1T1R) WiFi Module

LP-8627M 802.11 B/G/N(1T1R) Wifi module USER MANUAL 1.0.0 © 2012 1. Overview LP-8627M Wireless LAN USB Module is a perfect combination of both performance and cost-effective product introduced. It is sincerely hoped that you can enjoy the wireless world through this solidly profiled wireless adapter. It provides a full solution of all the IEEE 802.11 b/g/n protocols, that pass the WiFi tests and are compatible with all the wireless products with WiFi logo. If you have a Wireless LAN USB Module on hand, it means you can connect to the wireless world without any difficulty. Since the security issue has become one of the most important one in the wireless society, it provides you with the full security coverage from the 64/128bits WEP encryptions, second generation WPA-PSK encryption, to the most advanced WPA2-AES encryption. WPA2 is the latest security standard currently approved by WiFi standards. 2. Product Spec Standards IEEE802.11b/g/n Antenna interface IPEX connector Chip Set Realtek RTL8188CUS Frequency Band 2.400~2.484 GHz unlicensed ISM band Modulation Technology Orthogonal frequency division multiplexing(OFDM), Direct Sequence Spread Spectrum(PBCC,CCK,DQPSK, DBPSK) Data Rate 802.11b：11,5.5,2 and 1 Mbps with auto-rate fall back 802.11g：54,48,36,24,18,12,9 & 6 Mbps 802.11n：(20MHz) ：up to 72 Mbps 802.11n：(40MHz) ：up to 150 Mbps Sensitivity -94dBm @802.11b/-88dbm @802.11g/-88dbm @802.11n Security 64/128 bit WEP/WPA/WPA2(TKIP/AES) Driver support Windows ® XP 32/64, Vista 32/64,Win 7 32/64 Working mode Infrastructure/Ad-Hoc/Soft AP Operation Voltage5V DC or 3.3V DC Host Interface USB 2.0 / 6 Pins header Frequency Stability <±5ppm @ Room Temperature +25°C OFDM Output Power 15dBm (Typ.) @EVM<3%, all channel CCK Spectral Mask @Pout=18dBm -37dBc (Typ.) @ 11~22MHz -60dBc (Typ.) @ 22~33MHz 2f Harmonics -55dBm (Typ.) LO Leakage Peak Power -64dBm (Typ.) @Transmit State Receiver sensitivity (PER<10%) -65dBm [Typ.] @ HT40M, MCS7 -70dBm [Typ.] @ 54M, OFDM -72dBm [Typ.] @ 11M, CCK -94dBm [Typ.] @ 1M, CCK RF Port Impedance 50Ω±10% USB Differential Port Impedance 90Ω±10% Temperatures(AMBIENT) Operation: 0°C~60°C, Storage:-20°C~70°C 3. Pin Configurations 4. Software Installation Step 1: Software Installation Insert product CD to your PC. At the welcome screen, please click “Driver Installation” to install the device driver & utility. If you do not see the welcome screen, go to Start > My Computer and click to open CD-ROM drive. Then double click autorun.exe and wait a few seconds for the welcome screen to show up. Step 2: Restart your computer Once the installation is finished, click Finish button to restart your computer. Step 3: Connect the USB adapter Plug the USB Dongle into a USB port on your Laptop or Desktop computer. Step 4: Connect to Wireless Network To connect to a wireless network, double click on the Wireless Utility icon in the system tray or on the desktop. Icon in system Tray Icon on Desktop Click on Available Network tab to view all the access points within range of the adapter. Double Click on the Access Point’s SSID to join the network. If the wireless Network you selected requires security, the utility will guide you through the appropriate security setup. Available Network tab After the signal strength is indicated, you have successfully set up your wireless network on your PC or Laptop. General tab Unable to connect to a wireless network? 1. Ensure that the LEDs of your router are correctly lit.  Check whether your Wireless LAN settings (e.g. SSID, Channel Number) are the same as the routers.  Check whether you use the same encryption key (e.g. WEP or WPA) for both Dongle and the router. 2. Make sure that your USB Dongle is correctly installed.  Check that your Dongle is plugged in properly to the USB port or try to plug the Dongle into another USB port if available.  The LED on Dongle should be lit. if not, (i) there could be a hardware problem, or (ii) Dongle is disabled or (iii) device driver is not installed properly. 5. Hardware Installation ➢Connect the on board connector with pin header module. Federal Communication Commission Statement (FCC, U.S.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTES FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Co-location warning: This transmitter must not be co-located or operating in conjunction wi…

Text truncated - open the document above for the full version.

Y-CAM SOLUTIONS LTD. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Y-CAM SOLUTIONS LTD. Addresss 3 DEE ROAD, RICHMOND, City SURREY Country United Kingdom request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: V4F YCBLHD6 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SURREY United Kingdom 2012/08/07 SHENG TANG Operations Director

FCC Modular Approval Request Number:CF305 Version: V01 Date: 01-02-2010 To t he FCC or FCC TCB handling this application Hereby we, Company (grantee) Y- C A M S O L U T I O N S LT D Addresss 3 DEE ROAD, RICHMOND, City / ZIP / State / Country SURREY United Kingdom request modular approval for the certification of our equipment within this application, identified by: FCC ID: V4FYCBLHD6 The table below contains justification for modular approval of this equipment. Requirement per 15. 2 12 and K DB 9 9 6 36 9 D01 Explanation from grantee 1. The modular transmitter must have its own RF shielding. Yes, The modular Transmitter has metal shielding. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter uses RTL8188CUS for buffered/ data inputs. 2. The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply Regulator. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The antenna of the modular transmitter complies with FCC requirements. 3. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand- alone configuration. 4. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. When the module is installed inside another device, it will be labeled as “ contain transmitter module” V4FYCBLHD6 ” 5. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The user’s manual has provide instructions to explain the requirements. 6. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimetre wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The radiated output power of WiFi Module 802.11bgn devices is far below the FCC radio frequency exposure limits. Attestation (by grantee) City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SURREY United Kingdom 2012/08/07 SHENG TANG Operations Director Y-CAM SOLUTIONS LTD

Y-CAM SOLUTIONS LTDFCC Ad-Hoc Declaration Number: CF308 Version: V02 Date: 01-08-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Ad Hoc Mode Function Declaration Hereby, we: (the applicant company) Company NameY-CAM SOLUTIONS LTD Address:3 DEE ROAD, RICHMOND Postal/Zip:TW92JNCity:SURREYState/Province:Country:United Kingdom declare that this device identified by: Grantee Code (CG)Product Code FCC ID:V4FYCBLHD6 When the device is working in ad-hoc mode, it is not capable of transmitting on any other frequency not authorized in the US. When operating in Ad-hoc mode, the supported channels are limited to 2412-2462MHz for 11bgn20 and 2422-2452MHz in 11n40 mode. (Attestation) (the applicant company or its authorized representative) City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2012-08-10M. Koop (authorized representative) Manager

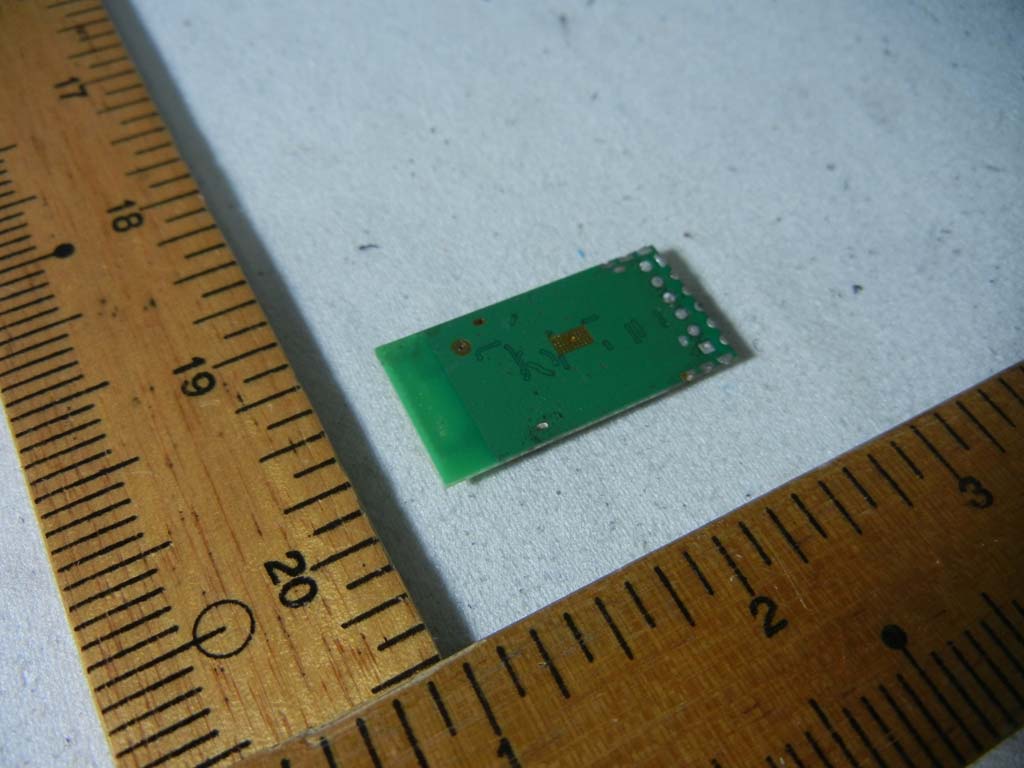

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : V4FYCBLHD6 Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : V4FYCBLHD6 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : V4FYCBLHD6 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : V4FYCBLHD6 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : V4FYCBLHD6

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206102 Cerpass Technology Corp. Issued date : Aug. 08, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : V4FYCBLHD6 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11B/G/N (1T1R) Wifi Module Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 20.17 dBm (104.0 mW) 802.11g: 16.27 dBm (42.4 mW) 802.11n (20MHz): 15.23 dBm (33.3 mW) 802.11n (40MHz): 15.47 dBm (35.2 mW) Antenna gain (Max) 5.0 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.17 dBm (104.0 mW) at 2462 MHz (with numeric 5.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206102 Cerpass Technology Corp. Issued date : Aug. 08, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : V4FYCBLHD6 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206102 Cerpass Technology Corp. Issued date : Aug. 08, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : V4FYCBLHD6 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 20.17 5.0 20 0.065 1 802.11g 2412-2462 16.27 5.0 20 0.027 1 802.11n (20MHz) 2412-2462 15.23 5.0 20 0.021 1 802.11n (40MHz) 2422-2452 15.47 5.0 20 0.022 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 99 FCC ID : V4FYCBLHD6 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Y-cam Solutions Ltd Address : Vision House, 3 Dee Road, Richmond, Surrey, TW9 2JN, United Kingdom Equipment : 802.11B/G/N (1T1R) Wifi Moduleb Model No. : LP-8627M Trade Name : Y-cam Solutions Ltd FCC ID : V4FYCBLHD6 The test result refers exclusively to the test presented test model / sample., Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 99 FCC ID : V4FYCBLHD6 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System......................................................................................................... 9 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement Equipment ......................................................................................................... 21 5.5 Test Result and Data................................................................................................................ 22 5.6 Test Photographs (30MHz~1000MHz) ..................................................................................... 58 5.7 Test Photographs (1000MHz~25000MHz) ............................................................................... 59 6. 6dB Bandwidth Measurement Data................................................................................................. 60 6.1 Test Limit .................................................................................................................................. 60 6.2 Test Procedures ....................................................................................................................... 60 6.3 Test Setup Layout .................................................................................................................... 60 6.4 Measurement Equipment ......................................................................................................... 60 6.5 Test Result and Data................................................................................................................ 60 7. Maximum Peak and Average Output Power ................................................................................... 67 7.1 Test Limit .................................................................................................................................. 67 7.2 Test Procedures .............…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 52 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH3Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 53 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH3Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 54 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH6Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 55 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH6Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 56 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : VERTICAL Test Mode 3 : 802.11n HT40, CH9Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 57 of 99 FCC ID : V4FYCBLHD6 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 3 : 802.11n HT40, CH9Temperature: 26 °C Memo :Humidity : 61 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 60 of 99 FCC ID : V4FYCBLHD6 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c.The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d. The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum AnalyzerR&S FSP40 1002192011/11/24 2012/11/23 6.5 Test Result and Data Test Date: Jun. 13, 2012 Temperature: 24°C Atmospheric pressure: 1020 hPaHumidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) 802.11b (11Mbps) 01 241210.9 06 243711.2 11 246211.0 802.11g (54Mbps) 01 241216.7 06 243716.7 11 246216.6 802.11n HT20 (130Mbps) 01 241218.1 06 243718.0 11 246218.0 802.11n HT40 (270Mbps) 03 242236.6 06 243736.6 09 245236.4 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 61 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11b (11Mbps) Channel: 01 Modulation Standard: 802.11b (11Mbps) Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 62 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11b (11Mbps) Channel: 11 Modulation Standard: 802.11g (54Mbps) Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 63 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11g (54Mbps) Channel: 06 Modulation Standard: 802.11g (54Mbps) Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 64 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11n HT20 (130Mbps) Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps) Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 65 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11n HT20 (130Mbps) Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps) Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 66 of 99 FCC ID : V4FYCBLHD6 Modulation Standard: 802.11n HT40 (270Mbps) Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps) Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 67 of 99 FCC ID : V4FYCBLHD6 7. Maximum Peak and Average Output Power 7.1 Test Limit The Maximum Peak Output Power Measurement is 30dBm. 7.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1MHz and VBW to 3MHz. c.Set detector mode to peak (for peak output power) or set detector mode to RMS (for average output power).Trace averaging in power averaging (RMS) mode must be performed over a minimum of 100 traces. d. Use the spectrum analyzer’s integrated band power measurement function with band limits set equal to the EBW band edges. e. The maximum peak and average output power was measured and recorded. 7.3 Test Setup Layout 7.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum AnalyzerR&S FSP40 1002192011/11/24 2012/11/23 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 68 of 99 FCC ID : V4FYCBLHD6 7.5 Test Result and Data Test Date: Jun. 13, 2012 Temperature: 24°C Atmospheric pressure: 1020 hPaHumidity: 65% Modulation Stan…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 99 FCC ID : V4FYCBLHD6 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 99 FCC ID : V4FYCBLHD6 5.6 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1206113 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 59 of 99 FCC ID : V4FYCBLHD6 5.7 Test Photographs (1000MHz~25000MHz) Front Vi…

Text truncated - open the document above for the full version.
