V4TSKT1SK Meter Module

Leap Devices, LLC

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Mar 23, 2014
Application Purpose: Original Equipment
Date of Application: Mar 23, 2014
Equipment Note: SK Meter Module
Frequency Range: 903.56000000 - 925.80000000
Company: Leap Devices, LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SK Tx Module Technical Guide Connection between the SK Tx module and a host device is provided by a single 12 pin header. The pin out and operation of pins is described below. Pin 1 - DC Power Supply 3.3v to 6.0v Pin 2 - Ground Pin 3 - General Input Pin 4 - General Output Pin 5 - Not Used Pin 6 - Not Used Pin 7 - Serial Data Output (9600 bps, N81) Pin 8 - Serial Data Input (9600 bps, N81) Pin 9 - Reset (Enable High, Disable/Powerdown Low) Pin 10, Pin 11, Pin 12 - Not Connected, Not Used Module Installation The SK Tx module may be installed in a battery pow- ered host device. The SK Tx module is not permitted to be installed in any host device that connects to mains power (for example to a wall outlet). To maintain regulatory authorization to use the SK Tx module in a host device, following the installation of the SK Tx module into a host device, it is required that the included label sating “This device includes FCC ID: V4TSKT1” be applied to an exterior non- removable surface of the host device. Do not apply to a battery door of the host device. An example of this label is provided on the next page of this guide. This guide includes technical specification of the SK Tx Module, as well as guidelines for installation of the module into a host device. Module Connections SK METER MODULE Model: SK Tx FCC ID: V4TSKT1 IC: 7822A-SKT1 Green Light Pin 1 Pin 12 FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Important Note: To comply with FCC RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied - This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Support Need help? We’re happy to offer support. Online Support: radiopopper.com/support Email: [email protected] Phone: 360.713.0776 Specifications Supply Voltage: Typical 3.3 Volts DC May be supplied with 3.3v to 6.0v DC Maximum Voltage Supplied to Pins: No more than 0.3 volts above supply voltage. Radio Frequency: 902-928 MHz, ISM Band FCC ID: V4TSKT1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains FCC ID: V4TSKT1 Model: SK Tx IC: 7822A-SKT1 Example of label. This label was shipped in the packaging with the SK Tx module. Place this label on a non-removable surface on the exterior of the host device.

Cover Letter(s)

Request for a modular approval Dear Application Examiner, The Leap Devices LLC module Model: SK Tx is seeking FCC authorization as a limited modular transmitter. The requirements of FCC 15.212 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See the external photos. 2. The modular transmitter must have buffered modulation/data inputs There is a microprocessor on the board that collects the information from the digital data collection module and sends this stream to the RF transmitter. 3. The modular transmitter must have its own power supply regulation The board used in this module includes its own 3.3 volt regulator on the main processor for regulating the power to the transmitter so regulation is not a problem. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 The antenna is soldered directly to the module. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The controller board that it is connected to is for collection of data only. 6. The modular transmitter must be labeled with its own FCC ID number The EUT will be labeled with its own FCC ID number. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. The exterior label is supplied in packaging with the module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. This RF module does not comply with all FCC rules. This RF module is intended to be integrated in battery powered host devices only, therefore the AC conducted emission requirements of 15.207 were not performed. Please see installation limitations inside the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Instructions are given in the installation manual for compliance to the RF exposure requirements.

ID Label/Location Info

MeterModule_Rev1 SHEET 1 OF 1 REVDWG. NO. A SIZE TITLE: PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF LEAP DEVICES LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF LEAP DEVICES LLC IS PROHIBITED. 5 4 3 2 1 1.0 MeterModule_Rev1 SK METER MODULE Model: SK TxFCC ID: V4TSKT1IC: 7822A-SKT1 12mm Tall 29mm Wide Model Label will be photo-etched into the outer surface of the EMI shield. Text will be high resolution and easily readable. Example of Artwork and Model/ID Numbers This device contains FCC ID: V4TSKT1 Model: SK Tx IC: 7822A-SKT1 This device contains FCC ID: V4TSKT1 Model: SK Tx IC: 7822A-SKT1 Actual size of Label 8.5mm tall x 24 mm long Example of label that will be provided in packaging with SK Tx module FCC ID V4TSKT1

RF Exposure Info

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is10.00mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 11.00% Value1-g (mW)10-g (mW) 1.92(122)112 "Value" is3, the SAR test exclusion threshold 1-g power limit10-g power limit 156390 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency V4TSKT1 Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 0.9259510 SAREXJUST-B-0-43REV A01/21/2014

Test Report

Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15, SUBPART B and C TEST REPORT for SK METER MODULE MODEL: SK TX Prepared for LEAP DEVICES, LLC 229 EAST RESERVE STREET, #102 VANCOUVER, WASHINGTON 98661-38030 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 15, 2014 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 12 30 67 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - Emissions 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. TEST PROCEDURES 14 7.1 RF Emissions 14 7.1.1 Conducted Emissions Test 14 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab B 15 7.1.3 Radiated Emissions (Spurious and Harmonics) Test – Lab D 17 7.1.4 RF Emissions Test Results 18 8. CONCLUSIONS 19 Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site 3 Layout of the Semi-Anechoic Test Chamber Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: SK Meter Module Model: SK Tx S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Customer: Leap Devices, LLC 229 East Reserve Street, #102 Vancouver, Washington 98661-38030 Test Dates: March 7 and 8, 2014 Test Specifications : EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz This test was not performed because the EUT is a DC powered device only. 2 Spurious Radiated RF Emissions, 10 kHz – 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.209 3 Spurious Radiated RF Emissions, 1000 MHz – 9300 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.249 Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report SK Meter Module Model: SK Tx Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630…

Text truncated - open the document above for the full version.

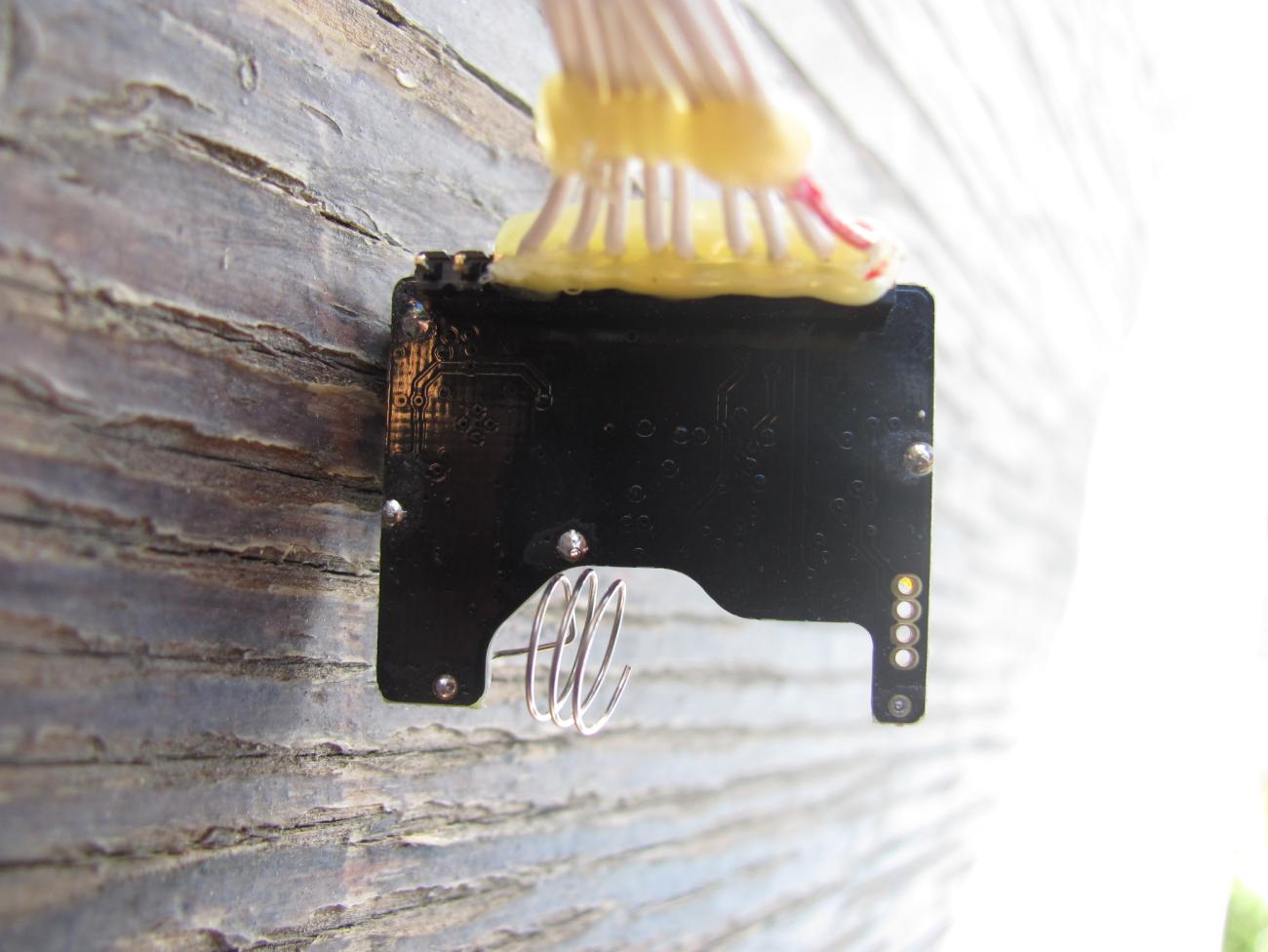

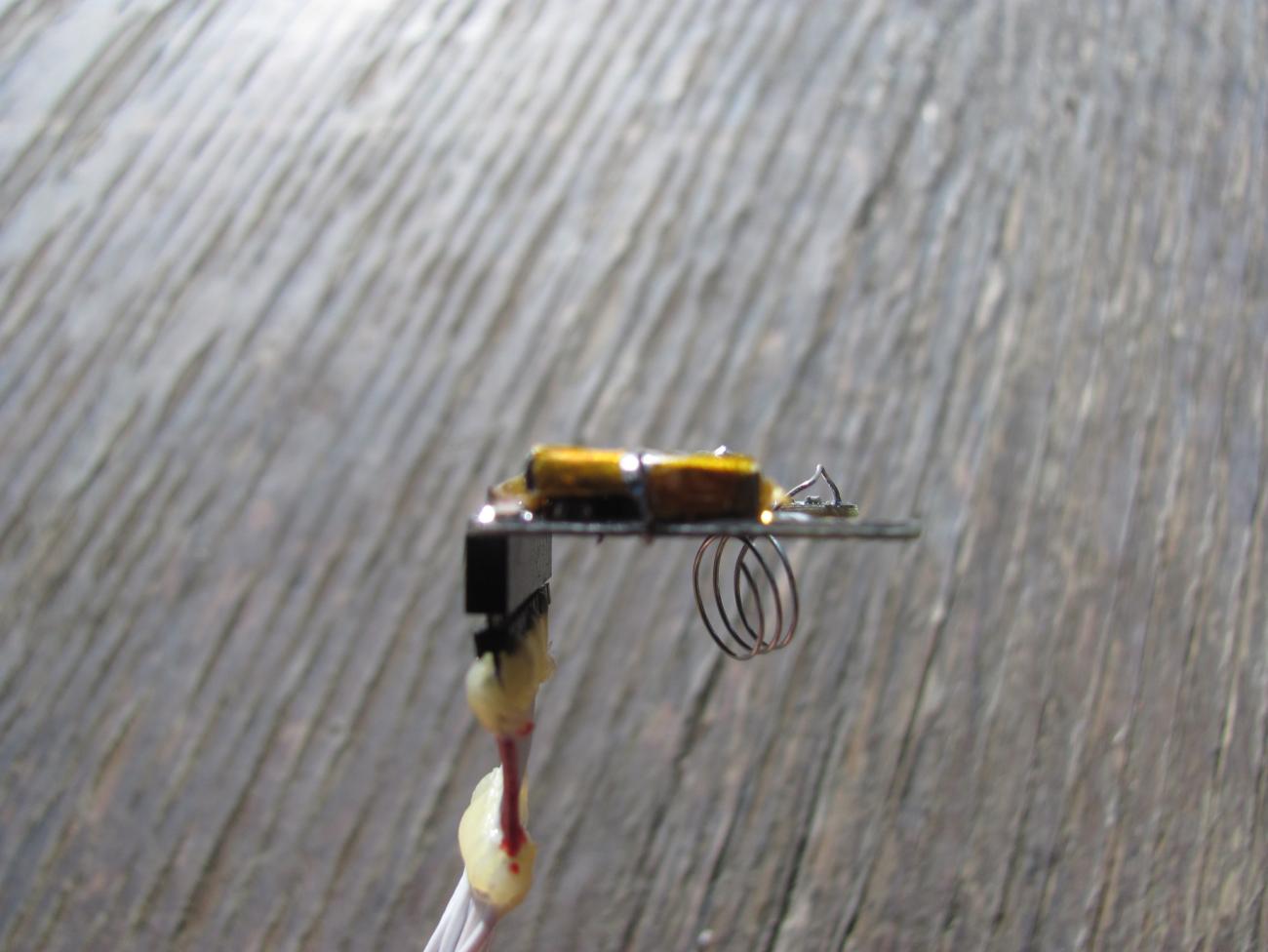

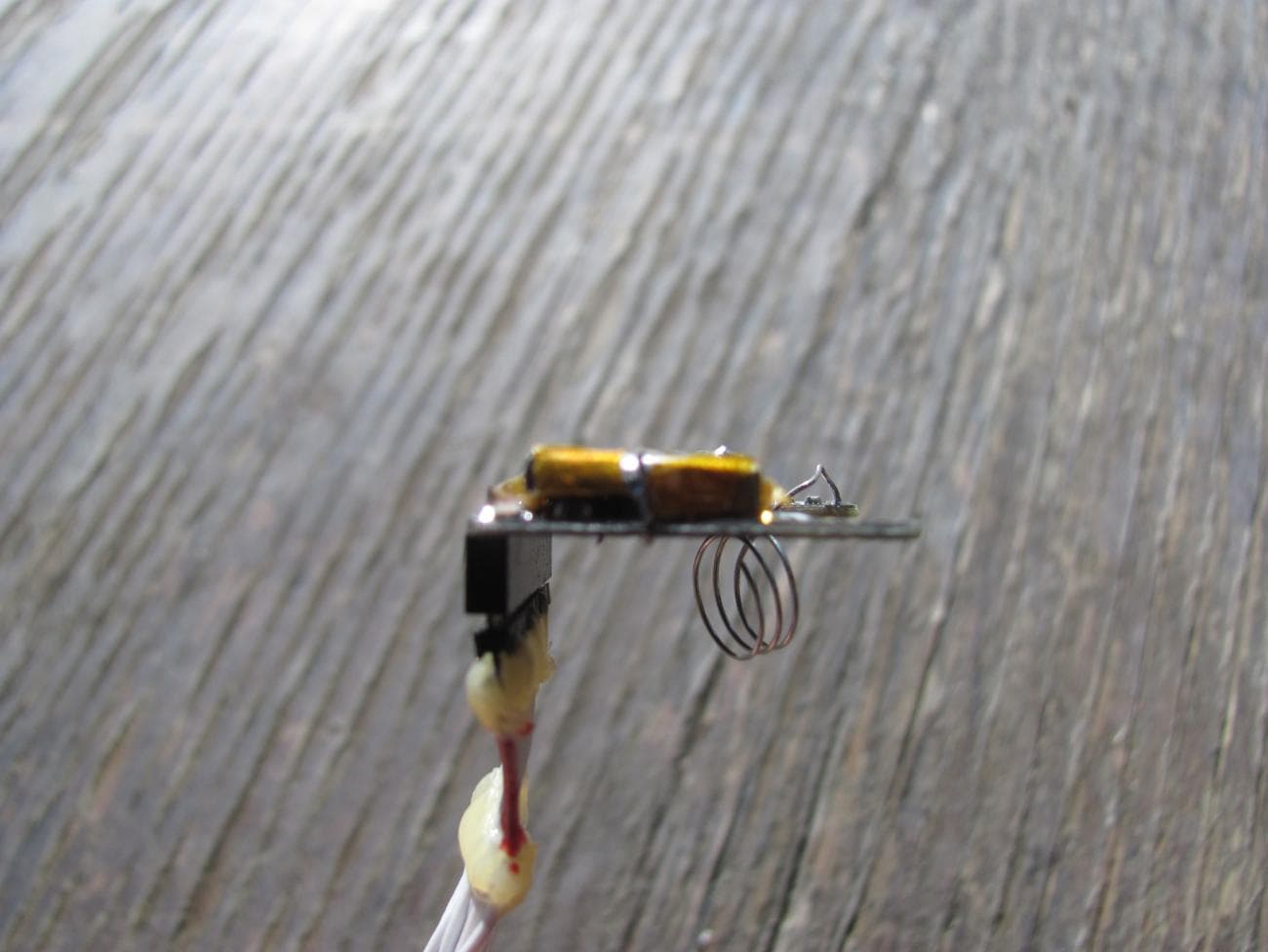

Test Setup Photos

Contact Information

Applicant

Kevin King(Director)

[email protected](602) 909-1039Fax: N/A

Technical Contact

Compatible Electronics, Inc.Kyle Fujimoto

[email protected]714-579-0500

114 Olinda Drive · Brea · United States

Test Firm

Compatible Electronics, Inc.Michael Christensen

[email protected]714-579-0500Fax: 714-579-1850

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	903.56 MHz - 925.8 MHz	-

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Integration is strictly limited to battery-powered end products and products that do not connect to the AC mains. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
