V5PX5Wireless Data Terminal

X5 Wireless Data Terminal Note: Product images shown may be different than actual product received 1.Contents Checklist Please check the components after unpacking. If any are missing, please contact the dealer. Part Qty. X5 mobile smart terminal 1 Charger 1 USB Cable 1 Wrist Strap 1 Battery 1 Product manual 1 Unscrew Piece 1 Base (optional) 1 2.Product Description 3.Installation 1. Unlock and lock the rear cover 1) To unlock the rear cover: Unscrew the four screws on the cover with screwdriver, then take the cover off the terminal. As figure shown be low. Figure 3-1-1 2) To lock the rear cover: Put back the rear cover and make the 4 screws aligned with the 4 holes, then tighten the screws to lock the cover. As the figure shown below. Figure 3-1-2 2. Install and remove the battery 1) To install battery: Put battery into the battery storehouse in the right direction as shown be low. Figure 3-2-1 2) To remove battery: Place your finger in the position shown below and push forward slightly to remove the battery. Figure 3-2-2 3. Install SIM card/PSAM card /TF card 1) Install SIM card/PSAM card /TF card in direction shown below. Figure 3-3-1 2) Remove SIM card/PSAM card /TF card in direction shown below. Figure 3-3-2 4. Device Charging The device can be charged in two ways: Using USB cable or charging base 1) By USB cable : Connect terminal to USB cable via Type-C port to charge. See port location as figure be low. 2) By charging base: Place the terminal vertically into the base, the pogo pins will be connected themselves to charge. As figure shown below. Figure 4-1-1 5. Wrist strap installation diagram Figure 5-1-1 4.Instructions 1. Use of two-dimensional scanner (one-dimensional optional) The scanner is on the top of the device. When using, enter the “Menu”，select “DEMO”> two-dimensional (or one-dimensional) scan, align the reading window with the barcode, slightly press the left , right scan button on the device or click "start" on the interface, the reading window will emits the two-dimensional illumination region or one-dimensional light beam, cover the barcode with the lighting beam emitted by the scanner, then the barcode will be read correctly. Note that the barcode cannot be read if it is scanned with tilted angles or without being covered the whole area. After reading success, the device will make a short sound, the barcode and the read times will be rapidly displayed in the scanning area. Figure 4-1-1 Right,Wrong,Operation demonstration for scanning bar code(2D) Figure 4-1-2 Figure 4-1-3 2. Use of contactless card The reading area of the contactless card is the underside of the terminal, with the reading distance is 0-4cm. You can use it by following these steps: 1) When running the contactless card reading and writing program, the contactless card function, which is closed by default, will be opened. 2) Enter the “Menu” >”DEMO”> select the type (ISO 14443A/B or ISO 15693) according to the label protocol. When placing the card over the battery cover of the device, the selected contactless card can be read correctly. 3) After reading success, the device will make a short sound and the information related to the card will be displayed quickly in the reading window area. 3. PSAM Card After the Mobile Smart Terminal is installed with PSAM card, you can use the demo for the of PSAM card. 1) Enter the menu>DEMO> select "PSAM". 2) Open the PSAM application, if the status bar shows that initiation is successful, the PSAM card is recognized correctly. Then select corresponding card slot, voltage and baud rate and other related settings. 3) Input an APDU instruction in the input box or use the default random command, then click "Send". 4) After sending, the message returned by the command is displayed in the result bar, and the status bar will prompt a successful send. 5.Installation and Usage Tips 1） Do not damage the USB cable and power adapter. Otherwise, they can't be used again. 2） Do not use battery chargers or batteries that are not special for the device to avoid damage to the device. 3） Do not scratch the screen. Do not use pens, pencils or other sharp objects on the screen. 4） If the surface of screen is dirty, please use soft cloth to clean with diluent screen cleanser. 5） Discard the used polymer battery according to regulations. Do not throw the terminal into the fire. Otherwise there is a risk of explosion. 6） Before connecting the power supply to the AC socket, check whether the power supply of the socket is in accordance with the device specified operating voltage. 7） Please contact the special maintenance personnel when the device fails. The user is not allowed to repair the device without authorization. 8） When using the device, do not irradiate human eyes to avoid injury. 6.Lithium Ion Battery Usage Tips WARNING: 1）Don't use the battery in sunlight or smoke, dust environment. 2）Prohibited to strike, squeeze and tread on battery or throw it into the liquid and fire. 3）If battery is impressive, deformed, damaged or exothermic seriously, please stop using immediately and replace it! 4）If the continuous working time is only half of new one, the battery life may be end. Please replace it! 5）Must use the specified battery model and charger, otherwise there will be explosion 6）Charging time can not exceed 24 hours. If the battery is out of power, please recharge in time. Avoid damaging the battery in over-charge and over-discharge. 7）If be non-use for long time, please recharge the battery per 6 months to avoid shortening its life. 8）Suggest to replace it when the battery have been used for 2 years. 9）Be sure to follow the instructions to dispose the wasted batteries. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tes…

Text truncated - open the document above for the full version.

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 6, 2019 Statement We, PAX Technology Limited, states that our device, FCC ID: V5PX5. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely, ________________________ Jenna Tan

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 6, 2019 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PX5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Jenna Tan

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 6, 2019 Power of Attorney To whom it may concern, Please be notified that I, Jenna Tan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: V5PX5 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

1/1 PAX Technology Limited Date: July 6, 2019 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PX5 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 da ys:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

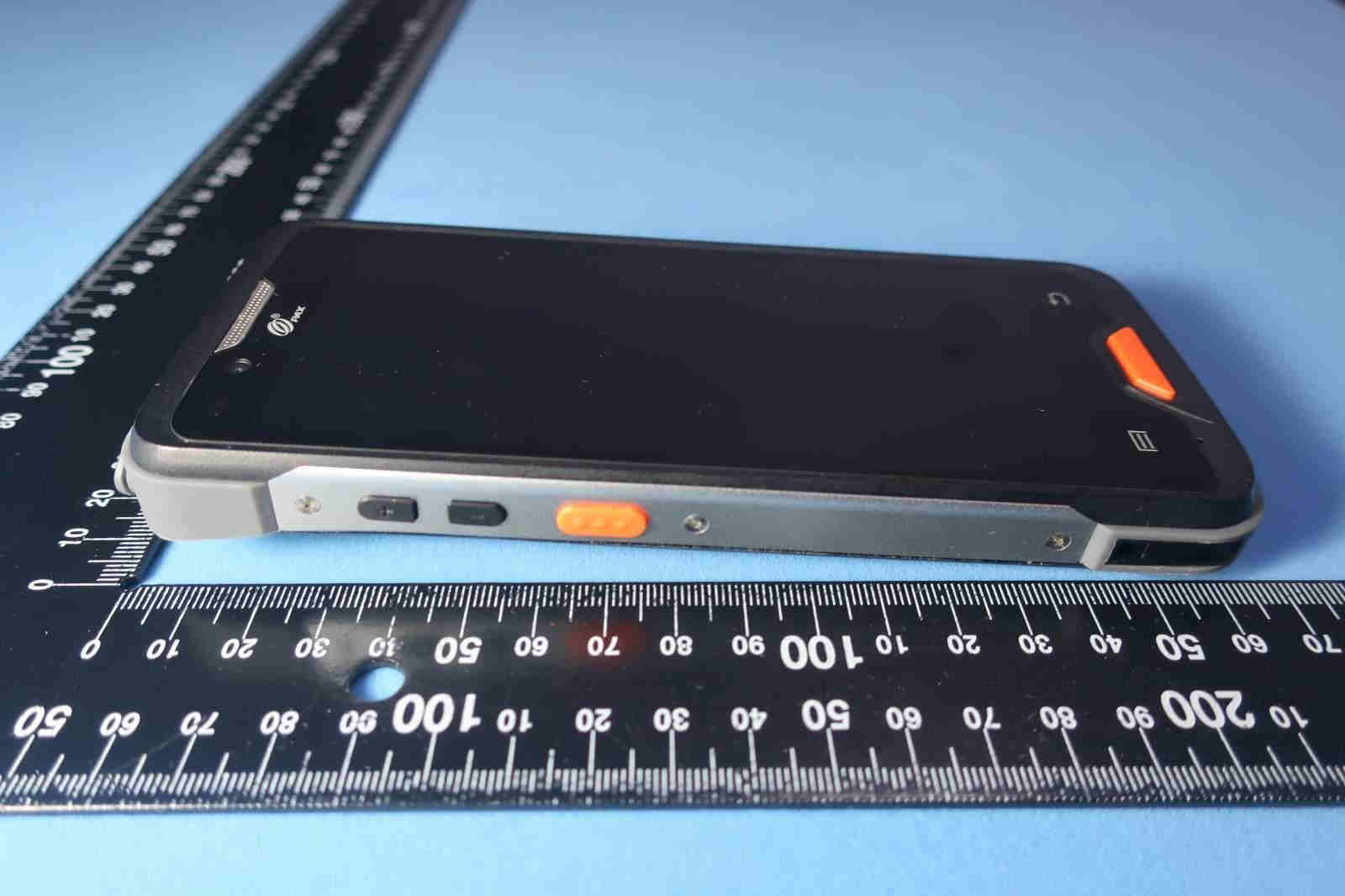

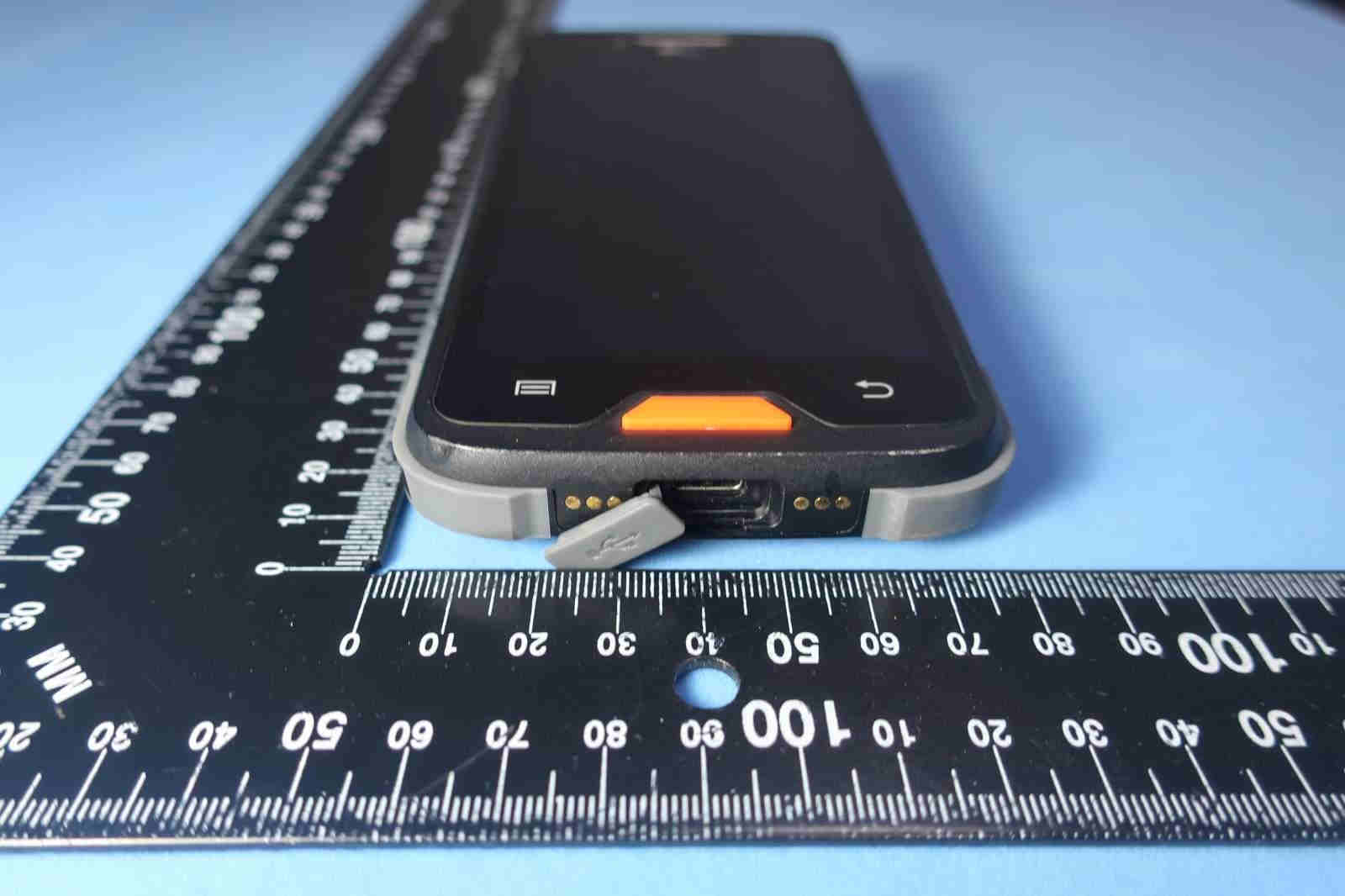

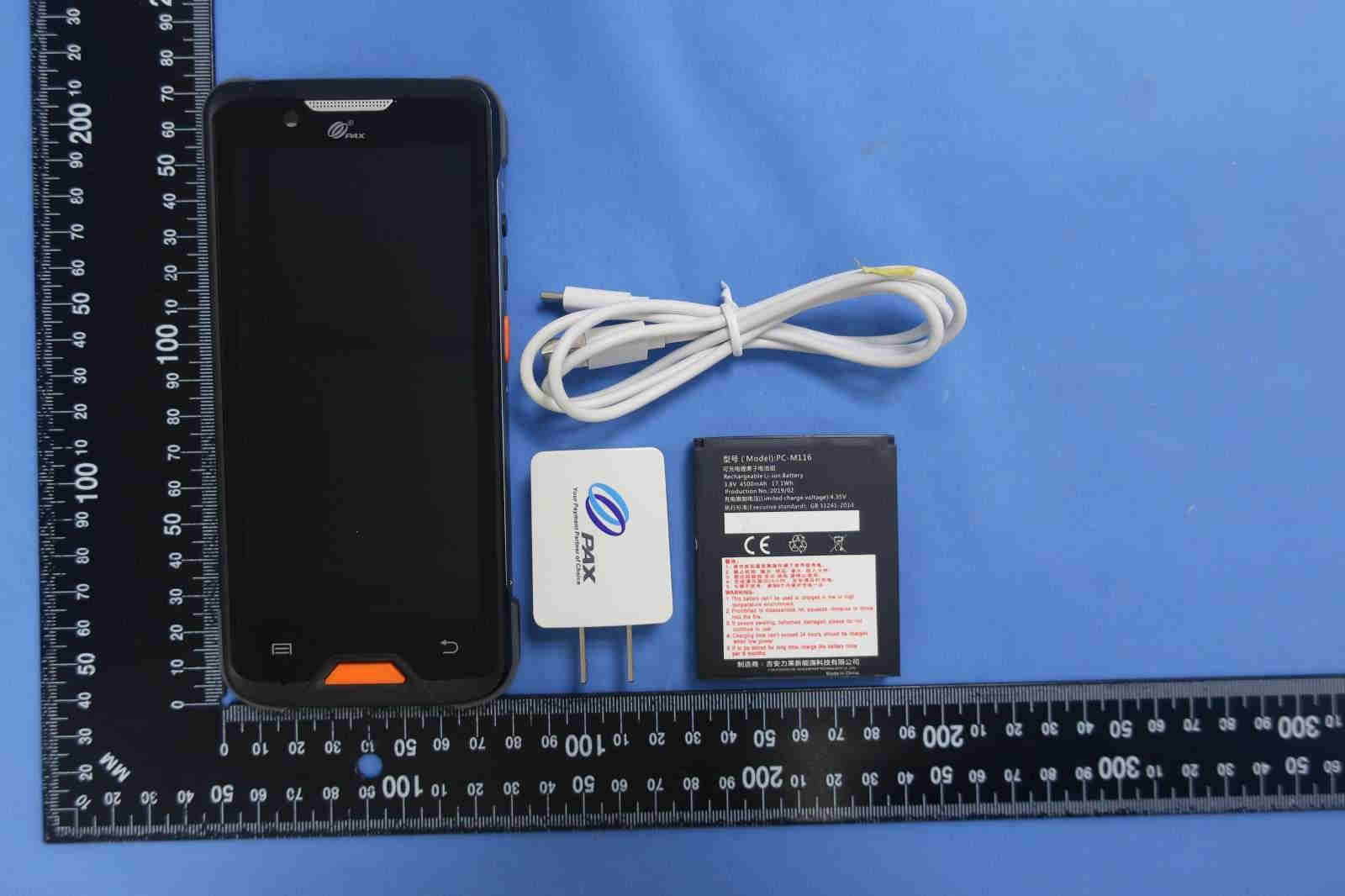

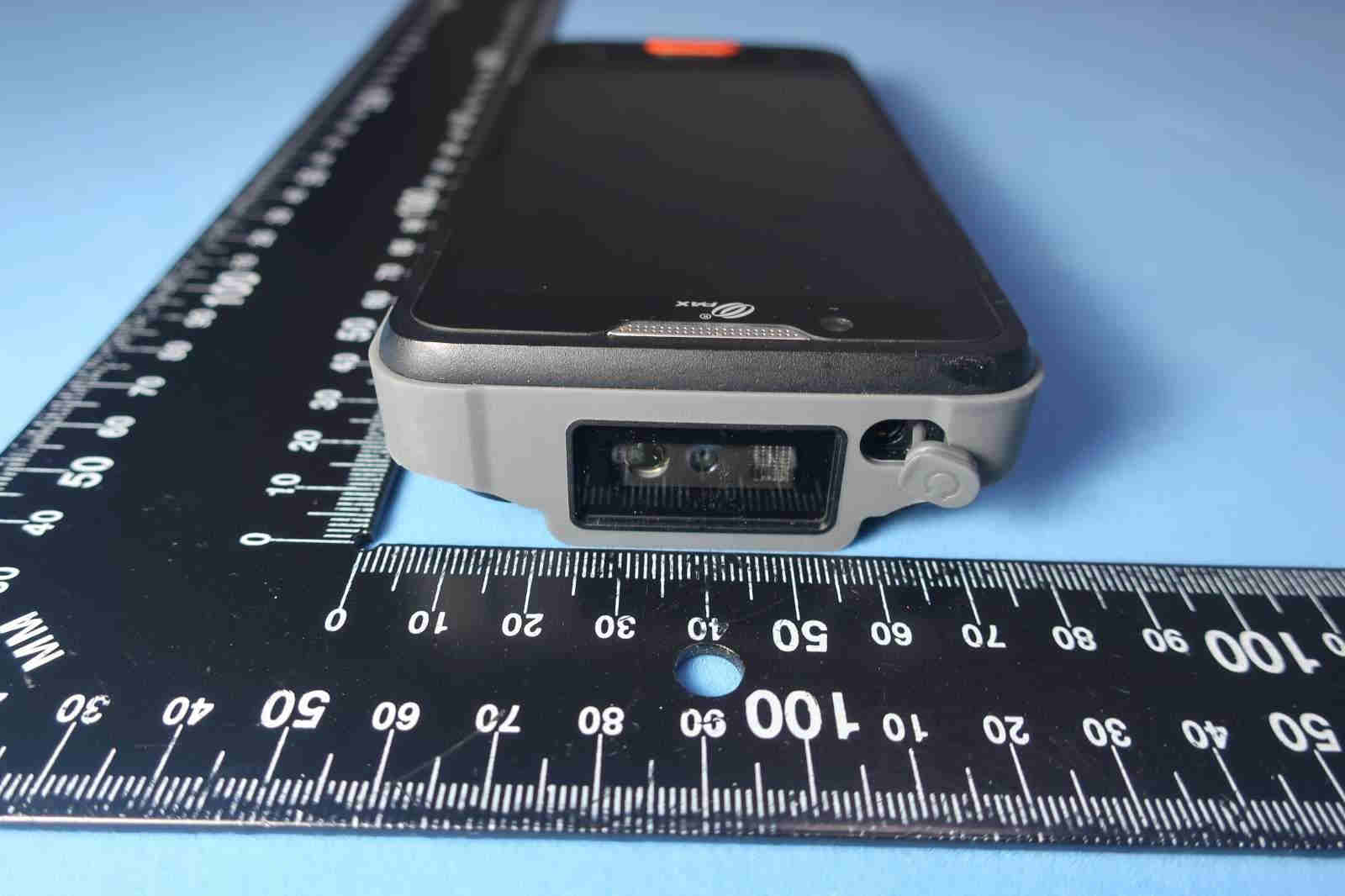

Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 1 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 2 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 3 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 4 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 5 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 6 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 7 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 List of Accessory: Specification of Accessory AC Adapter Brand Name N/A Model Name GLH50D2000HW Power Rating I/P: 100-240 Vac, 400mA, O/P: 5Vdc, 2000mA Battery Brand Name N/A Model Name PC-M116 Power Rating 3.8Vdc, 4500mAh Type Li-ion, Polymer USB Cable Signal Line Type 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 8 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 720510 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 9 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 AC Adapter Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 10 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Battery Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 11 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 12 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 USB Cable

52.40 30.00

Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 13 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 3. Internal Photograph of EUT NFC Antenna<Tx/Rx> Bluetooth & WLAN Antenna <Tx/Rx> WWAN Main Antenna<Tx/Rx> GNSS Antenna <Rx> WWAN Diversity Antenna<Rx> Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 14 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 15 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 16 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 17 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 18 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 19 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 20 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 21 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 22 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 23 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 24 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 25 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 26 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 27 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 28 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 29 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 30 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 31 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 32 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 33 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 34 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : V5PX5 Photographs of EUT Report No.: EP952227 Brand Name: PAX / Model Name: X5 Sporton International (Shenzhen) Inc. Page Number : 35 of 49 TEL : +86-755-86379589 Report Issued Date : Jan. 16, 2020 FAX : +86-755-86379595 Report Version : Rev. 0…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Report Version : Rev.01 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Template No.: : 181113 FCC ID : V5PX5 Page 1 of 69 Issued Date : Jan. 16, 2020 FCC SAR Test Report Report No. : FA952227 FCC SAR Test Report APPLICANT : PAX Technology Limited EQUIPMENT : Wireless Data Terminal BRAND NAME : PAX MODEL NAME : X5 FCC ID : V5PX5 STANDARD : FCC 47 CFR PART 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on May 22, 2019 and testing was started from Jun. 15, 2019 and completed on Jun. 28, 2019. We, Sporton International (Shenzhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Long Liang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Report Version : Rev.01 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Template No.: : 181113 FCC ID : V5PX5 Page 2 of 69 Issued Date : Jan. 16, 2020 FCC SAR Test Report Report No. : FA952227 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ..............................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019.06.15 27_WCDMA IV_RMC 12.2Kbps_Front_10mm_Ch1312 Communication System: UID 0, UMTS (0); Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium: HSL_1750_190615 Medium parameters used: f = 1712.4 MHz; σ = 1.363 S/m; ε r = 40.271; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3191; ConvF(5.51, 5.51, 5.51); Calibrated: 2019.01.29; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2018.10.15 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1312/Area Scan (71x131x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.679 W/kg Ch1312/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.26 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.910 W/kg SAR(1 g) = 0.579 W/kg; SAR(10 g) = 0.342 W/kg Maximum value of SAR (measured) = 0.693 W/kg 0 dB = 0.679 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019.06.15 28_WCDMA II_RMC 12.2Kbps_Front_10mm_Ch9538 Communication System: UID 0, UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_1900_190615 Medium parameters used: f = 1908 MHz; σ = 1.451 S/m; ε r = 39.996; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: ES3DV3 - SN3191; ConvF(5.28, 5.28, 5.28); Calibrated: 2019.01.29; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2018.10.15 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9538/Area Scan (71x131x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.730 W/kg Ch9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.93 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.992 W/kg SAR(1 g) = 0.599 W/kg; SAR(10 g) = 0.346 W/kg Maximum value of SAR (measured) = 0.729 W/kg 0 dB = 0.730 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019.06.17 29_LTE Band 12_10M_QPSK_1RB_25Offset_Back_10mm_Ch23095 Communication System: UID 0, LTE (0); Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750_190617 Medium parameters used: f = 707.5 MHz; σ = 0.86 S/m; ε r = 41.73; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3191; ConvF(6.59, 6.59, 6.59); Calibrated: 2019.01.29; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2018.10.15 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch23095/Area Scan (71x131x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.442 W/kg Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.41 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.493 W/kg SAR(1 g) = 0.407 W/kg; SAR(10 g) = 0.312 W/kg Maximum value of SAR (measured) = 0.445 W/kg 0 dB = 0.445 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019.06.17 30_LTE Band 13_10M_QPSK_1RB_25Offset_Back_10mm_Ch23230 Communication System: UID 0, LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750_190617 Medium parameters used: f = 782 MHz; σ = 0.902 S/m; ε r = 40.073; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3191; ConvF(6.59, 6.59, 6.59); Calibrated: 2019.01.29; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2018.10.15 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch23230/Area Scan (71x131x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.229 W/kg Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.326 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.334 W/kg SAR(1 g) = 0.186 W/kg; SAR(10 g) = 0.103 W/kg Maximum value of SAR (measured) = 0.237 W/kg 0 dB = 0.237 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019.06.16 31_LTE Band 5_10M_Q…

Text truncated - open the document above for the full version.
