V65E6710PDA PHONE

Important Information for the Torque Important Safety Information – page 2 Manufacturer’s Warranty – page 15 End User License Agreement – page 19 General Terms and Conditions of Service – page 24 Important Message From Sprint – page 53 2Important Safety Information ♦General Precautions (page 2) ♦Maintaining Safe Use of and Access to Your Phone (page 3) ♦Using Your Phone With a Hearing Aid Device (page 6) ♦Caring for the Battery (page 9) ♦Radio Frequency (RF) Energy (page 11) ♦Owner’s Record (page 14) This booklet contains important operational and safety information that will help you safely use your phone. Failure to read and follow the information provided in this booklet may result in serious bodily injury, death, or property damage. General Precautions There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service. ●To maximize performance, do not touch the portions of your phone where the internal antennas are located while using the phone. ●Speak directly into the mouthpiece. ●Your phone is water-resistant but not waterproof. ●Do not expose your phone to direct sunlight for extended periods of time (such as on the dashboard of a car). ●Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. Important Safety Information Important Safety Information3 ●Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Maintaining Safe Use of and Access to Your Phone Do Not Rely on Your Phone for Emergency Calls Mobile phones operate using radio signals, which cannot guarantee connection in all conditions. Therefore you should never rely solely upon any mobile phone for essential communication (e.g., medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services or mobile phone features are in use. Check with your local service provider for details. Using Your Phone While Driving Talking on your phone while driving (or operating the phone without a hands-free device) is prohibited in some jurisdictions. Laws vary as to specific restrictions. Remember that safety always comes first. Following Safety Guidelines To operate your phone safely and efficiently, always follow any special regulations in a given area. Turn your phone off in areas where use is forbidden or when it may cause interference or danger. Note:For the best care of your phone, only Sprint- authorized personnel should service your phone and accessories. Failure to do so may be dangerous and void your warranty. Tip:Purchase an optional hands-free accessory at your local Sprint Store, or call Sprint at 1-866-866-7509. You can also dial # 2 2 2 on your phone. 4Important Safety Information Using Your Phone Near Other Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, RF signals from wireless phones may affect inadequately shielded electronic equipment. RF signals may affect improperly installed or inadequately shielded electronic operating systems or entertainment systems in motor vehicles. Check with the manufacturer or their representative to determine if these systems are adequately shielded from external RF signals. Also check with the manufacturer regarding any equipment that has been added to your vehicle. Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are adequately shielded from external RF signals. Turning Off Your Phone Before Flying Turn off your phone before boarding any aircraft. To prevent possible interference with aircraft systems, the U.S. Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your phone while the plane is on the ground. To prevent any risk of interference, FCC regulations prohibit using your phone while the plane is in the air. Turning Off Your Phone in Dangerous Areas To avoid interfering with blasting operations, turn your phone off when in a blasting area or in other areas with signs indicating two-way radios should be turned off. Construction crews often use remote-control RF devices to set off explosives. Note:Always turn off the phone in healthcare facilities, and request permission before using the phone near medical equipment. Important Safety Information5 Turn your phone off when you’re in any area that has a potentially explosive atmosphere. Although it’s rare, your phone and accessories could generate sparks. Sparks can cause an explosion or fire, resulting in bodily injury or even death. These areas are often, but not always, clearly marked. They include: ●Fueling areas such as gas stations. ●Below deck on boats. ●Fuel or chemical transfer or storage facilities. ●Areas where the air contains chemicals or particles such as grain, dust, or metal powders. ●Any other area where you would normally be advised to turn off your vehicle’s engine. Restricting Children’s Access to Your Phone Your phone is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the phone or make calls that increase your Sprint invoice. Water Resistance Your Torque is water-resistant. To ensure that your phone maintains water resistance, the following precautions must be observed. ●Make sure the battery cover is properly attached and locked. ●Make sure the charger/accessory jack and the headphone jack are properly sealed, with no foreign objects obstructing the seals. ●Do not expose your phone to water heated in excess of 104° F (40° C), or to liquids other than water, such as detergent, beverages, or chlorinated or treated water. Note:Never transport or store flammable gas, flammable liquids, or explosives in the compartment of your vehicle that contains your phone or accessories. 6Important Safety …

Text truncated - open the document above for the full version.

Kyocera Torque User Guide ©2013 Sprint. Sprint and the logo are trademarks of Sprint. KYOCERA is a registered trademark of Kyocera Corporation. Other marks are trademarks of their respective owners. [Sprint UG template version 12b] TOC i Table of Contents Table of Contents ......................................................................................................................... i Get Started ................................................................................................................................ 1 Your Phone at a Glance ...................................................................................................... 1 Set Up Your Phone ............................................................................................................. 2 Insert and Charge the Battery ...................................................................................... 2 Insert a SIM Card......................................................................................................... 4 Activate Your Phone ........................................................................................................... 5 Complete the Setup Application .......................................................................................... 6 Set Up Voicemail ................................................................................................................ 7 Sprint Account Information and Help ................................................................................... 8 Sprint Account Passwords ........................................................................................... 9 Manage Your Account ................................................................................................. 9 Sprint Support Services ..............................................................................................10 Phone Basics ............................................................................................................................11 Your Phone’s Layout ..........................................................................................................12 Turn Your Phone On and Off .............................................................................................14 Turn Your Screen On and Off ............................................................................................14 Touchscreen Navigation ....................................................................................................15 Your Home Screen ............................................................................................................16 Home Screen Overview ..............................................................................................16 Extended Home Screens ............................................................................................17 Customize the Home Screen ......................................................................................17 Status Bar ..........................................................................................................................19 Enter Text ..........................................................................................................................20 Touchscreen Keyboards .............................................................................................21 Swype .........................................................................................................................21 Android Keyboard .......................................................................................................26 Copy and Paste Text ..................................................................................................29 Phone Calls ..............................................................................................................................32 Make Phone Calls ..............................................................................................................32 TOC ii Call Using the Phone Dialpad .....................................................................................33 Call from Call Logs .....................................................................................................33 Call from Contacts ......................................................................................................34 Call Using a Speed Dial Number ................................................................................34 Call a Number in a Text Message or Email Message ..................................................34 Call Emergency Numbers ...........................................................................................34 Call Numbers with Pauses ..........................................................................................35 Call Using the Plus (+) Code .......................................................................................36 Call Using Internet Calling ..........................................................................................36 Receive Phone Calls ..........................................................................................................37 Visual Voicemail ................................................................................................................38 Set Up Visual Voicemail..............................................................................................38 Review Visual Voicemail .............................................................................................39 Listen to Multiple Voicemail Messages .......................................................................40 Compose a Message ..................................................................................................41 Configure Visual Voicemail Settings ...........................................................................41 Change Your Main Greeting …

Text truncated - open the document above for the full version.

8611 Balboa Avenue, San Diego, CA 92123 Date: December 11, 2012 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: V65E6710 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune-up Procedure  Operational Description  Operational Description (Antenna) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, CK Li Kyocera Corporation Fax: 858-882-2010 Tel: 858-882-2000 E-mail: [email protected]

8611 Balboa Avenue, San Diego, CA 92123 Date: December 11, 2012 Statement We, Kyocera Corporation, state that there is no other space for putting the label on our device, FCC ID: V65E6710, except for the space of the battery compartment of this device. The label will be put under the battery compartment and it is visible to the users as they purchase the product and install the battery. If you have any question regarding the declaration, please don’t hesitate to contact us. Sincerely yours, _________________________ CK Li Kyocera Corporation Fax: 858-882-2010 Tel: 858-882-2000 E-mail: [email protected]

8611 Balboa Avenue, San Diego, CA 92123 Date: December 11, 2012 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia MD 21046 SUBJECT: FCC Application for FCC ID: V65E6710 To Whom It May Concern, We, Kyocera Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, CK Li Kyocera Corporation Fax: 858-882-2010 Tel: 858-882-2000 E-mail: [email protected]

8611 Balboa Avenue, San Diego, CA 92123 Date: December 11, 2012 Power of Attorney To whom it may concern, Please be notified that I, CK Li, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V65E6710 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, CK Li Kyocera Corporation Fax: 858-882-2010 Tel: 858-882-2000 E-mail: [email protected]

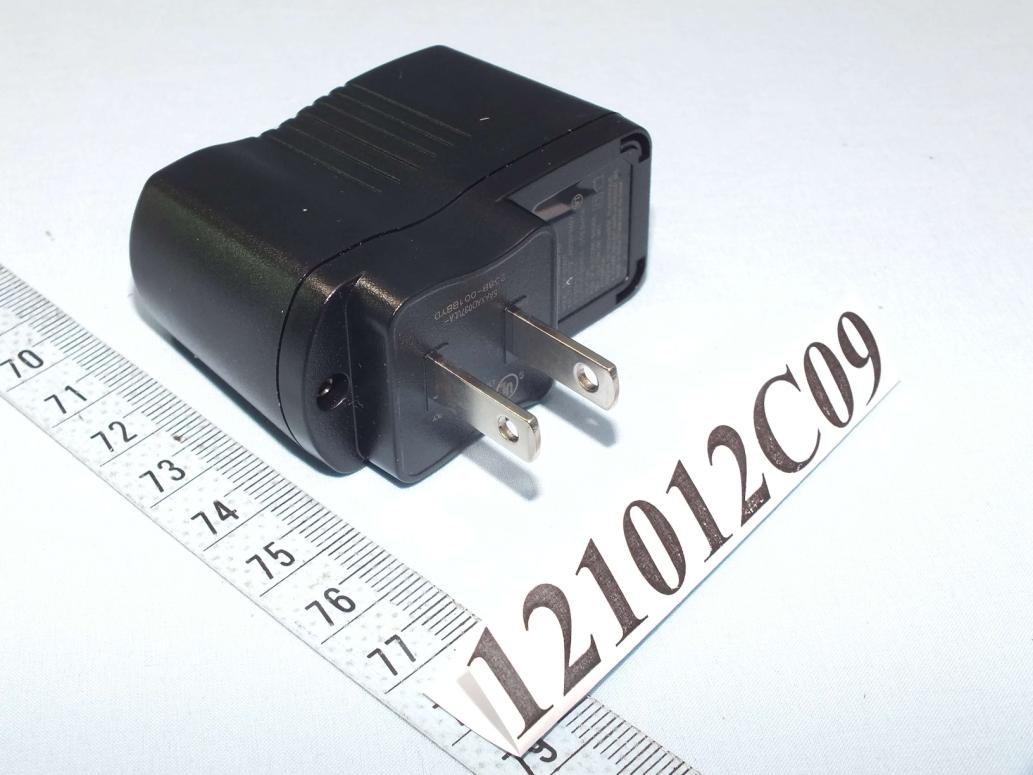

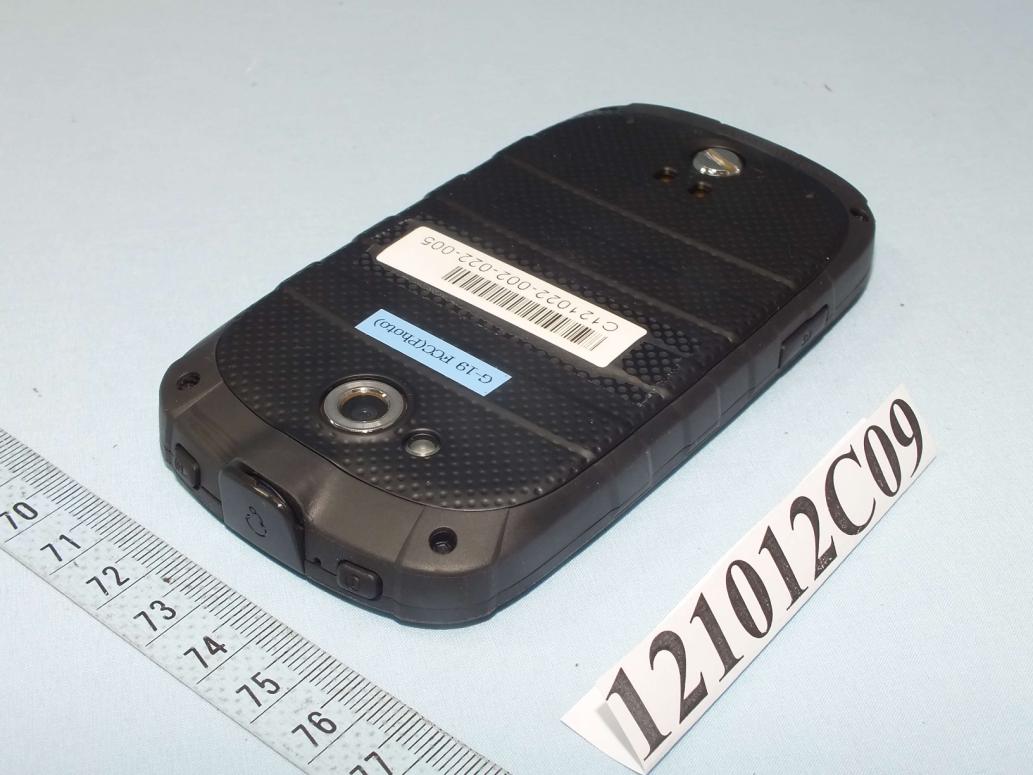

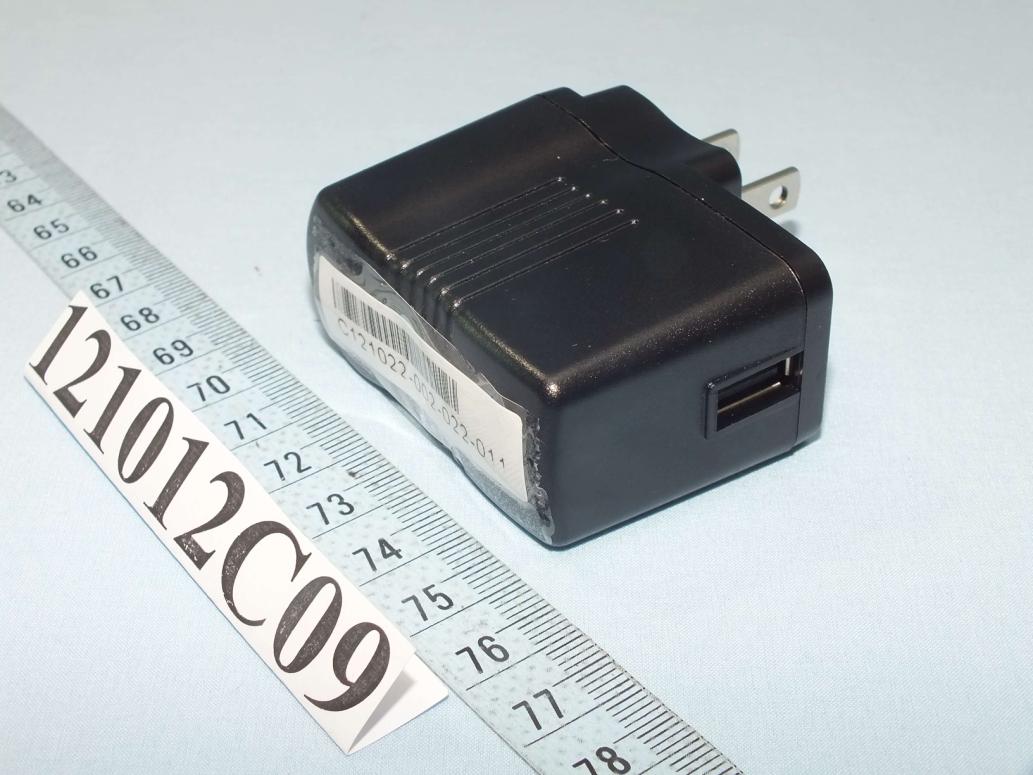

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC HAC (RF Emission) Test Report Report Format Version 5.0.0 Page No. : 1 of 20 Report No. : SA121012C09-1 Issued Date : Dec. 17, 2012 Revision : R01 FCC HAC (RF Emission) Test Report Report No. : SA121012C09-1 Applicant : Kyocera Communications, Inc. Address : 8611 Balboa Avenue, San Diego, CA 92123 Product : PDA Phone FCC ID : V65E6710 Brand : Kyocera Model No. : E6710 Standards : FCC 47 CFR Part 20.19 ANSI C63.19-2007 Date of Testing : Oct. 24, 2012 Summary M-Rating : M4 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s HAC characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified her ein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writi ng and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC HAC (RF Emission) Test Report Report Format Version 5.0.0 Page No. : 2 of 20 Report No. : SA121012C09-1 Issued Date : Dec. 17, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum M-Rating .......................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. HAC RF Emission Measurement System ............................................................................................................................ 6 3.1 SPEAG DASY System ................................................................................................................................................. 6 3.1.1 Robot.................................................................................................................................................................. 7 3.1.2 Probes ................................................................................................................................................................ 7 3.1.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.1.4 Phantoms ........................................................................................................................................................... 8 3.1.5 Device Holder ..................................................................................................................................................... 8 3.1.6 RF Emission Calibration Dipoles ........................................................................................................................ 8 3.2 DASY System Verification ............................................................................................................................................ 9 3.3 EUT Measurements Reference and Plane ................................................................................................................. 10 3.4 HAC RF Emission Measurement Procedure .............................................................................................................. 11 3.5 Probe Modulation Factor ............................................................................................................................................ 13 4. HAC Measurement Evaluation ............................................................................................................................................ 15 4.1 M-Rating Category ..................................................................................................................................................... 15 4.2 EUT Configuration and Setting ................................................................................................................................... 16 4.3 System Verification ..................................................................................................................................................... 16 4.4 Conducted Power Results .................................................................................................…

Text truncated - open the document above for the full version.

FCC HAC (T-Coil) Test Report Report Format Version 5.0.0 Page No. : 1 of 20 Report No. : SA121012C09-2 Issued Date : Dec. 17, 2012 Revision : R01 FCC HAC (T-Coil) Test Report Report No. : SA121012C09-2 Applicant : Kyocera Communications, Inc. Address : 8611 Balboa Avenue, San Diego, CA 92123 Product : PDA Phone FCC ID : V65E6710 Brand : Kyocera Model No. : E6710 Standards : FCC 47 CFR Part 20.19 ANSI C63.19-2007 Date of Testing : Oct. 31, 2012 Summary M-Rating : T3 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s HAC characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC HAC (T-Coil) Test Report Report Format Version 5.0.0 Page No. : 2 of 20 Report No. : SA121012C09-2 Issued Date : Dec. 17, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum T-Rating ........................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. HAC RF Emission Measurement System ............................................................................................................................ 6 3.1 SPEAG DASY System ................................................................................................................................................. 6 3.1.1 Robot.................................................................................................................................................................. 7 3.1.2 AM1D Probe ....................................................................................................................................................... 8 3.1.3 Audio Magnetic Calibration Coil (AMCC) ........................................................................................................... 8 3.1.4 Audio Magnetic Measuring Instrument (AMMI) .................................................................................................. 8 3.1.5 Data Acquisition Electronics (DAE) .................................................................................................................... 9 3.1.6 Phantoms ........................................................................................................................................................... 9 3.1.7 Device Holder ..................................................................................................................................................... 9 3.1.8 Telephone Magnetic Field Simulator (TMFS) ..................................................................................................... 9 3.2 System Calibration ..................................................................................................................................................... 10 3.3 EUT Measurements Reference and Plane ................................................................................................................. 11 3.4 HAC T-Coil Measurement Procedure ......................................................................................................................... 12 3.5 Audio Reference Input Level ...................................................................................................................................... 14 4. HAC Measurement Evaluation ............................................................................................................................................ 15 4.1 Measurement Criteria ................................................................................................................................................. 15 4.1.1 Field Intensity ................................................................................................................................................... 15 4.1.2 Frequency …

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Dec. 14, 2012 Report No. : SA121012C09 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/12/01 System Check_H835_121201 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_1201 Medium parameters used: f = 835 MHz; σ = 0.896 mho/m; ε r = 42.43; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(8.71, 8.71, 8.71); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.18 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.684 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.730 mW/g SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 3.17 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/12/02 System Check_H835_121202 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System:…

Text truncated - open the document above for the full version.
