V65KYI11CDMA Mobile phone

FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. WarningThe user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. FCC RF EXPOSURE INFORMATION Warning! Read this information before using your phone. In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.Body-worn OperationThis device was tested for typical body-worn operations with the back of the phone kept 0.59 inches (1.5 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.59 inches (1.5 cm) must be maintained between the user’s body and the back of the phone, including the antenna. All beltclips, holsters and similar accessories used by this device must not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided.Turn off your phone before flyingYou should turn off your phone when boarding any aircraft. To prevent possible interference with aircraft systems, U.S. Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your phone while the plane is on the ground. To prevent any risk of interference, FCC regulations prohibit using your phone while the plane is in the air.

Safety Precautions ・ The precautions must be observed at all times since they contain information intended to prevent the bodily injury or damage to property. ・ The following describes the meaning of safety symbols and signal words. ■ Pictographs DANGER Indicates that death or serious bodily injury may result directly and immediately from improper use. WARNING Indicates that death or serious bodily injury may result from improper use. CAUTION Indicates that bodily injury and/or result from improper use. ■ Symbols Don't Indicates that it is prohibited. No disassembly Indicates that it must not be disassembled. No wet hands Indicates that you must not touch it with wet hands. No liquids Indicates that it must not be used near water, which means that you must not let it become wet. Do Indicates that it is an instruction-based compulsory conduct (must be acted). Unplug Indicates that you must unplug the power cord from the outlet. ■ Precautions for the Device, Battery Pack, Adapter and UIM (au IC-Card) (Common) This product is designed to operate with AC adaptors limited to 6.2V, 1.5A maximum. DANGER ・Use the battery pack and adapter specified for the device. Failure to observe this precaution may cause fire, burns, injury or electric shock. ・Do not use, keep or leave the devices in locations subject to high temperatures, such as near fire, indirect sunlight or inside a car on a hot day. Doing so may cause fire, burns, or injury. ・Make sure to turn off the devices and stop charging before you get close to the places like a gas station where a flammable gas is generated. Doing so may cause the gas to ignite. Turn off the power, when you use Osaifu-keitai at a gas station (if the IC card lock is set, turn the power off after the lock is released). ・Do not throw the device into fire. Doing so may cause the device to ignite, explode, overheat or leak. ・Do not put the devices in a microwave oven or pressurized container. Doing so may cause fire, burns, injury or electric shock. ・Do not disassemble or modify the equipment. Doing so may cause fire, burns, injury or electric shock. ・Do not place electrically conductive objects (wires, pencil leads, etc.) in contact with the external jacks. Do not insert those materials inside the terminal. Doing so may cause fire, burns, injury or electric shock. ・Do not throw the devices or expose it to strong shocks. Doing so may cause fire, burns, injury or electric shock. ・If something unusual happens, such as unusual odor, overheating, discoloration or deformation during use, charge or storage, be sure to: ● Unplug the power cord from the power outlet or the cigarette lighter socket. ● Turn off the power. ● Remove the battery pack. ● Contact your nearest au shop or Customer Center. WARNING ・Electricity is in a state, and please do not touch the connection terminal in a physical part including a hand and the finger. ・Please do not charge it in the state that the ISW11K gets wet with. It causes trouble, the fire by the shortstop of an electric shock and the electronic circuit. The trouble by the charge at the age of the water wet is out of the guarantee, and repair is not possible. ・ISW11K is a model having a waterproofing function, but please stop use by any chance when liquids such as the water enter the main body of ISW11K inside from an outside connection terminal cover, a battery cover. It causes fever, ignition, the trouble when I just use it. ・When you drop and damaged ISW11K, please contact au shop or the visitor center. ・Keep the device out of young children's reach. A young child may try to swallow it or suffer injury. ・Do not leave the device in humid, dusty or hot places. Doing so may cause fire, burns or electric shock. CAUTION ・If you touch the warm part of these devices for a long period of time, it may cause redness, itch, skin irritation or low temperature burns depending on your constitution or physical condition. ・Do not leave the device on a slope or unstable surface. The devices may fall and cause injury. ・Do not touch for a long time the apparatus (separate sale) for charge of ISW11K, a battery pack, the designation that is in condition that a power supply is supplied from the outside. It causes the low temperature burn. ・Do not put it in the side of a corrosive medicine and the place where the corrosive gas is generated. It causes the disappearance of internal data by the trouble. ・Do not bend the UIM (au IC-Card) or place a heavy object on it. Doing so may cause malfunction. ・Do not damage, scratch, unnecessarily touch, or short-circuit the IC. Doing so may cause data loss or malfunction. ・Do not injure the IC (metal) part of the au lC card. Doing so may cause malfunction. ・Do not allow the UIM (au IC-Card) to get wet or leave it in places of high humidity. Doing so may cause a malfunction. ・When you play games or music with an earphone/microphone connected to the device, adjust the volume properly. Too large a volume may lead to defective hearing. Also, hearing difficulties may cause an accident. ■ Precautions for the Device DANGER ・Be careful when using the device while driving. A penalty may be imposed for holding a mobile phone while driving. When you need to receive a call, tell the caller that you will call back later using hands-free functions, then pull off the road before using the phone. ・Do not turn on the light against the car drivers, etc. Doing so may interfere with driving and cause a traffic accident. ・Before using your devices in a vehicle, ask the manufacturer or sales agent whether the operation of the vehicle can be affected by radio waves. In some types of vehicle, using the devices may interfere with the operation of the vehicle's electronic equipment. In this case, stop using the devices immediately. ・Please turn off your device when inside an airplane. ・Radio waves emitted by the device may adversely affect implanted pacemakers and ICDs when used in close proximity. 1. A person with an implantable cardiac pacemaker …

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: KYOCERA Corporation Address : 2-1-1 kagahara, Tsuzuki-ku City: Yokohama-shi Country: Japan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: V65KYI11 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: We, Kyocera Corporation, could not disclose above documents until market release. Planned Release Date STC: 180 Days (notes 2, 3, 4, 5) Date: 14/Nov/2011 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

KYOCERA Corporation 22-Nov-11 c/o Kyocera Communications, Inc. C.K.Li Authorization Letter for FCC certification FCC ID: V65KYI11 We herby authorize the following person to obtain FCC approval for KYI11: Yoshikazu Yamamoto This authorization is valid from 11/22/2011 till the end of the project date. C. K. Li Director, Design center To whom it may concern

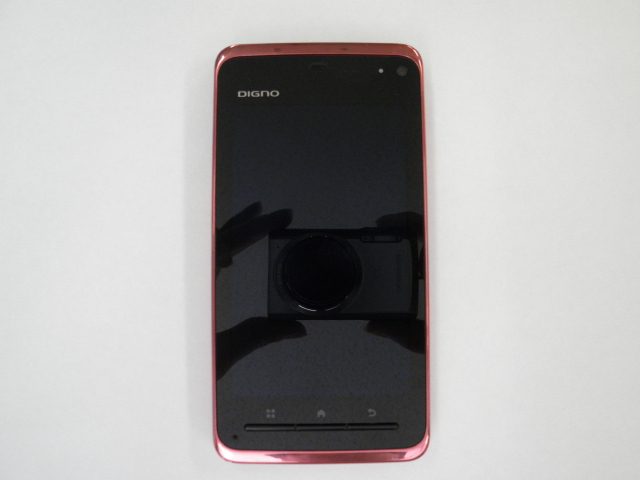

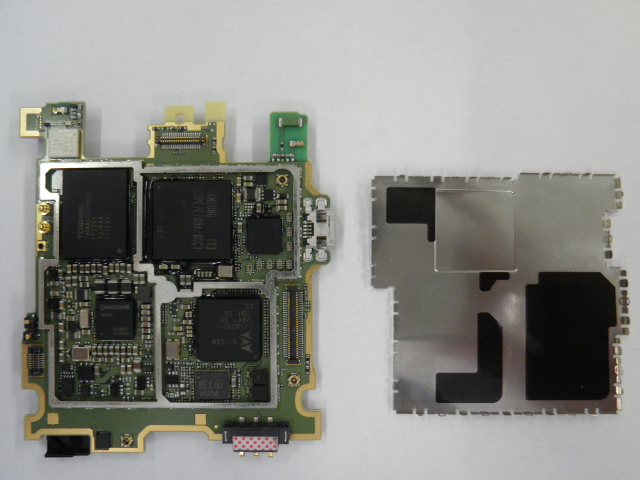

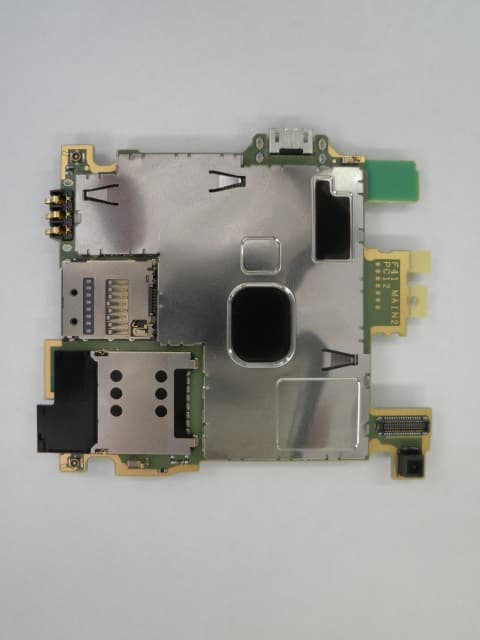

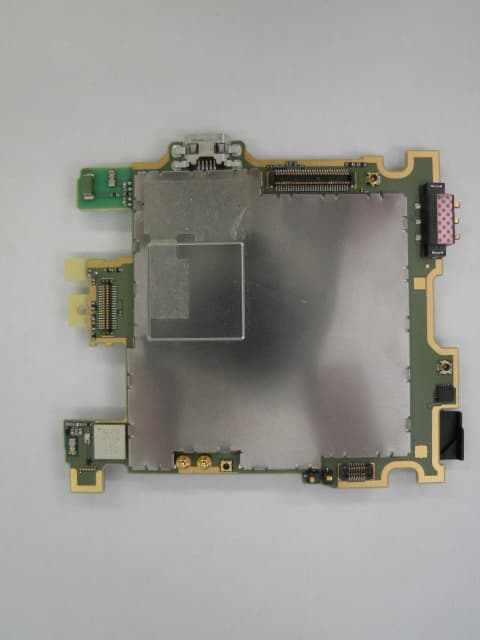

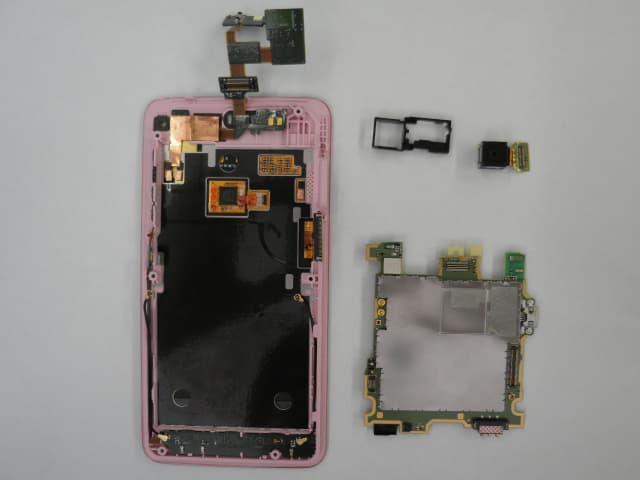

ISW11K Internal PhotosFRONT REAR REAR 2 REAR OPEN FRONT & MAIN PCB FRONT & Side key FPC & FeliCa FPC MAIN FPC L1 with shield MAIN FPC L12 with shield MAIN PCB L1 without Shield MAIN PCB L12 without Shield

㪝㪋㪈㪶㪪㪟㪠㪥㪪㪜㪠㪶㪞㪶㪟㪪      ISW11K Label Location >>

F41_LABEL_HS ISW11K Label 005XZAA0235 005ZYAA0163 005NXAA0195 005XUAA0025 005WWDA0402 005IVAA0010 0560 AD11-0191005 K Y I11M S K Y IMEI V65KYI11 50 38.6 4-R2

ISW11K Internal PhotosFRONT REAR REAR 2 REAR OPEN FRONT & MAIN PCB FRONT & Side key FPC & FeliCa FPC MAIN FPC L1 with shield MAIN FPC L12 with shield MAIN PCB L1 without Shield MAIN PCB L12 without Shield

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_F41_V2 Page 1 of 49 Report Dosimetric Assessment of the Portable Device Kyocera F41 (FCC ID: V65XYI11) According to the FCC Requirements November 16, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer KYOCERA Corporation 2-1-1 Kagahara, Tsuzuki-ku, 224-8502 Yokohama-shi Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. This revised version of the report supersedes all previous versions SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_F41_V2 Page 2 of 49 Executive Summary The device F41 is a mobile phone from Kyocera operating in the 850 MHz, 900 MHz, 1800 MHz, 1900 MHz and 2450 MHz frequency range. The device has different integrated antennas and the system concepts used are the GSM/GPRS 850 (Class 12), GSM/GPRS 900 (Class 12), DCS/GPRS 1800 (Class 12), PCS/GPRS 1900 (Class 12), CDMA2000 (800 MHz band), Bluetooth and IEEE 802.11 b/g/n standards. Based on the KDB 648474 [KDB 648474] measurements with Bluetooth are not required since the output power is below the threshold for Bluetooth. The objective of the measurements done by IMST was the dosimetric assessment of one device in head and body worn configuration in the GSM/GPRS 850 (Class 8), CDMA 2000 (800MHz band), PCS/GPRS 1900 (Class 8) and IEEE 802.11 b/g/n standards. Since GPRS Class 8 configuration delivers the highest output power, SAR assessment was conducted with 1 time slot for GPRS 850 and GPRS 1900 data mode. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions and IC RSS 102 Issue 4 and the following specific FCC Procedures: • KDB 248227 D01 SAR meas. for 802.11 abg v01r02 All measurements have been performed in accordance to the recommendations given by SPEAG. SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_F41_V2 Page 3 of 49 Compliance Statement The portable device F41 from Kyocera (FCC ID: V65XYI11) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following body worn configurations: • Voice mode with headset attached (display towards the phantom, distance 15 mm) • Voice mode with headset attached (display towards the ground, distance 15 mm) • GPRS mode without accessory (display towards the phantom, distance 15 mm) • GPRS mode without accessory (display towards the ground, distance 15 mm) Maximum SAR 1g = 0.710 W/kg (CDMA2000, display towards the ground, CH 384) prepared by: ........................................... reviewed by:.............................................. Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_F41_V2 Page 4 of 49 Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 5 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA ....................................... 5 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ....................................... 6 2.3 SAR LIMIT .................................................................................................................................................. 6 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 7 3.1 GENERAL REQUIREMENTS......................................................................................................................... 7 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................................... 7 4 BODY-WORN CONFIGURATIONS ........................................................................................................... 10 4.1 POC (PTT) POSITION .............................................................................................................................. 11 4.2 PHANTOM REQUIREMENTS ...................................................................................................................... 11 4.3 TEST TO BE PERFORMED ......................................................................................................................... 11 5 THE MEASUREMENT SYSTEM ................................................................................................................ 12 5.1 PHANTOM ................................................................................................................................................. 14 5.2 PROBE ...................................................................................................................................................... 14 5.3 MEASUREMENT PROCEDURE .................................................................................................................. 15 5.4 ADDITIONAL INFORMATION FOR 802.11 A/B/G TRANSMITTERS .............................................................. 16 5.5 UNCERTAINTY ASSESSMENT ................................................…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_Plots_F41 Page 1 of 40 Appendix for the Report Dosimetric Assessment of the Kyocera F41 (FCC ID: V65XYI11) According to the FCC Requirements SAR Distribution Plots November 17, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer KYOCERA Corporation 2-1 -1 Kagahara, Tsuzuki-ku, 224-8502 Yokohama-shi Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_Plots_F41 Page 2 of 40 Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850, HEAD ........................................................................................ 3 2 SAR DISTRIBUTION PLOTS, CDMA 2000, HEAD ................................................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900, HEAD ..................................................................................... 11 4 SAR DISTRIBUTION PLOTS, GSM/GPRS 850, BODY .......................................................................... 15 5 SAR DISTRIBUTION PLOTS, CDMA 2000, BODY ................................................................................. 18 6 SAR DISTRIBUTION PLOTS, PCS/GPRS 1900, BODY......................................................................... 21 7 SAR DISTRIBUTION PLOTS, IEEE 802.11 B, BODY ............................................................................. 24 8 SAR DISTRIBUTION PLOTS, IEEE 802.11 G/N, BODY......................................................................... 28 9 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 33 10 SAR Z-AXIS SCANS (MEASUREMENTS) ................................................................................................ 37 SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_Plots_F41 Page 3 of 40 1 SAR Distribution Plots, GSM 850, Head Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 860_yalm_1.da4 DUT: Kyocera; Type: F41; Serial: 358678040007580 Program Name: GSM 850 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.67, 6.67, 6.67); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.642 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.19 V/m; Power Drift = -0.129 dB Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.460 mW/g Maximum value of SAR (measured) = 0.670 mW/g Fig. 1: SAR distribution for GSM 850, channel 190, cheek position, left side of head (August 30, 2011; Ambient Temperature: 21.8° C; Liquid Temperature: 21.6 C). SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_Plots_F41 Page 4 of 40 Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 860_yalm_2.da4 DUT: Kyocera; Type: F41; Serial: 358678040007580 Program Name: GSM 850 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.67, 6.67, 6.67); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.340 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 0.409 W/kg SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.252 mW/g Maximum value of SAR (measured) = 0.351 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, tilted position, left side of head (August 30, 2011; Ambient Temperature: 21.8° C; Liquid Temperature: 21.6° C). SAR_Report_7layers_6620_860_FCC_850_1900_CDMA2000_2450_Plots_F41 Page 5 of 40 Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 860_yarm_1.da4 DUT: Kyocera; Type: F41; Serial: 358678040007580 Program Name: GSM 850 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.67, 6.67, 6.67); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.624 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.90 V/m; Power Drift = -0.130 dB Peak SAR (extrapolated) = 0.766 W/kg SAR(1 g) = 0.617 mW/g; SAR(10 g) = 0.457 mW/g Maximum value of SAR (measured) = 0.659 mW/g Fig. 3: SAR distribution for GSM 850, channel 190, cheek posi…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_7layers_6620_860_FCC_CalData_F41 Appendix for the Report Dosimetric Assessment of the Portable Device Kyocera F41 (FCC ID: V65XYI11) According to the FCC Requirements Calibration Data November 18, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer KYOCERA Corporation 2-1 -1 Kagahara, Tsuzuki-ku, 224-8502 Yokohama-shi Japan DAT-P-152/98-01 Cal_D835V2_SN437_0410 Page 1 of 8 _ Calibration_Certificate_Dipole_V1.0/01.08.2009/ABo Calibration Certificate Certificate No: Cal_D835V2_SN437_0410 Object: D835V2 SN: 437 Date of Calibration: April 7, 2010 Next Calibration: April 2012 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 10 Power Sensor E9301H US40010212 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 10 Powermeter E4417A GB41050441 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 10 Power Sensor E9301A MY41495584 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 10 Network Analyzer E5071C MY46103220 Aug 09 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 10 Reference Probe EX3DV4 SN 1579 Jan 10 SPEAG, No ET3- 1579_Jan10 Jan 11 DAE3 SN 631 Sep 09 SPEAG, No DAE4- 631_Sep09 Sep 10 Cal_D835V2_SN437_0410 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D835V2_SN437_0410 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1059 Distance Dipole Center – TSL: 15mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 835 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 41.50 0.90 Measured Body TSL Parameters 22.0 41.10 ± 6% 0.91 S/m ± 6% SAR result with Head TSL Averaged over 1g SAR measured 250mW input power 2.56 mW/g SAR normalized normalized to 1W 10.24 mW/g SAR for nominal Body TSL parameters normalized to 1W 10.15 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 1.66 mW/g SAR normalized normalized to 1W 6.64 mW/g SAR for nominal Body TSL parameters normalized to 1W 6.60 mW/g ± 16.5 % (k=2) Cal_D835V2_SN437_0410 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 55.20 0.97 Measured Body TSL Parameters 22.0 55.70 ± 6% 1.00 S/m ± 6% SAR result with Body TSL Averaged over 1g SAR measured 250mW input power 2.49 mW/g SAR normalized normalized to 1W 9.96 mW/g SAR for nominal Body TSL parameters normalized to 1W 9.83 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 1.62 mW/g SAR normalized normalized to 1W 6.48 mW/g SAR for nominal Body TSL parameters normalized to 1W 6.44 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameter with Head TSL Impedance, transformed to feed point 46.34 jΩ - 4.8 jΩ Return Loss -24.06 dB Antenna Paramter with Body TSL Impedance, transformed to feed point 49.35 jΩ - 8.93 jΩ Return Loss -20.94 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: December 15, 2000 Cal_D835V2_SN437_0410 Page 5 of 8 SAR results with Head TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 070410_y_1579.da4 DUT: Dipole 835 MHz SN437; Type: D835V2; Serial: D835V2 - SN:437 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(6.34, 6.34, 6.34); Calibrated: 20.01.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 14.09.2009 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.80 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.5 V/m; Power Drift = -0.070 dB Peak SAR (extrapolated) = 3.77 W/kg SAR(1 g) = 2.56 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.78 mW/g Cal_D835V2_SN437_0410 Page 6 of 8 Impedance Measurements Plot for Head …
