V65S2151Tri-Band CDMA Mobile Phone with Bluetooth

Safety & Warranty Information Safety This phone guide contains important operational and safety information that will help you safely use your phone. Failure to read and follow the information provided in this phone guide may result in serious bodily injury, death, or property damage. General Precautions There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service. + To maximize performance, do not touch the portions of your phone where the internal antennas are located while using the phone. + Speak directly into the mouthpiece. + Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. + Do not expose your phone to direct sunlight for extended periods of time (such as on the dashboard of a car). + Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. + Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. + Authorized personnel should service your phone and accessories. Failure to do so may be dangerous and void your warranty. Maintaining Safe Use of and Access to Your Phone Do Not Rely on Your Phone for Emergency Calls Mobile phones operate using radio signals, which cannot guarantee connection in all conditions. Therefore you should never rely solely upon any mobile phone for essential communication (e.g., medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services or mobile phone features are in use. Check with your local service provider for details. Using Your Phone While Driving Talking on your phone while driving (or operating the phone without a hands- free device) is prohibited in some jurisdictions. Laws vary as to specific restrictions. Remember to focus on driving first. Following Safety Guidelines To operate your phone safely and efficiently, always follow any special regulations in a given area. Turn your phone off in areas where use is forbidden or when it may cause interference or danger. Using Your Phone Near Other Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, RF signals from wireless phones may affect inadequately shielded electronic equipment. RF signals may affect improperly installed or inadequately shielded electronic operating systems or entertainment systems in motor vehicles. Check with the manufacturer or their representative to determine if these systems are adequately shielded from external RF signals. Also check with the manufacturer regarding any equipment that has been added to your vehicle. Personal Implantable Medical Devices Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are adequately shielded from external RF signals. Note: Always request permission before using the phone in healthcare facilities or near medical equipment. Turning Off Your Phone Before Flying To prevent possible interference with aircraft systems, the U.S. Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your phone while the plane is on the ground. To help prevent the risk of interference, regulations prohibit using your phone while the plane is in the air. Turning Off Your Phone in Dangerous Areas To avoid interfering with blasting operations, turn your phone off when in a blasting area or in other areas with signs indicating two-way radios should be turned off. Construction crews often use remote-control RF devices to set off explosives. Turn your phone off when you’re in any area that has a potentially explosive atmosphere. Although it’s rare, your phone and accessories could generate sparks. Sparks can cause an explosion or fire, resulting in bodily injury or even death. These areas are often, but not always, clearly marked. They include: + Fueling areas such as gas stations. + Below deck on ships and boats. + Fuel or chemical transfer or storage facilities. + Areas where the air contains chemicals or particles such as grain, dust, or metal powders. + Any other area where you would normally be advised to turn off your vehicle’s engine, for example. Note: Never transport or store flammable gas, flammable liquids, or explosives in the compartment of your vehicle that contains your phone or accessories. Restricting Children’s Access to Your Phone Your phone is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the phone, make inadvertent emergency calls, or make other calls that may impact your Boost account. Using Your Phone With a Hearing Aid Device A number of Boost phones have been tested for hearing aid device compatibility. When some wireless phones are used with certain hearing devices (including hearing aids and cochlear implants), users may detect a noise which can interfere with the effectiveness of the hearing device. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference noise they may generate. ANSI standard C63.19 was developed to provide a standardized means of measuring both wireless phone and hearing devices to determine usability rating categories for both. Ratings have been developed for mobile phones to assist hearing device users find phones that may be compatible with their hearing device. Not all phones have been rated for compatibility with hearing devices. Phones that have been rated have a label located on the box. Your Coast has an M4 and a T4 rating. These ratings are not guarantees. Results will vary depending on the user’s hearing device and individual type and degree of hearing loss. If a hearing device is particularly vulnerable to interferen…

Text truncated - open the document above for the full version.

KYOCERA COMMUNICATIONS, INC. 8611 Balboa Avenue San Diego, San Diego, CA 92123 Kyocera Communications, Inc. Proprietary/Confidential 1 of 2 Date: 12/14/2012 Federal Communications Commission c/o Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Comptest Services LLC and hereafter referred to as Comptest, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Comptest on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Comptest as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; KYOCERA COMMUNICATIONS, INC. 8611 Balboa Avenue San Diego, San Diego, CA 92123 Kyocera Communications, Inc. Proprietary/Confidential 2 of 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ____________________________ C. K. Li Director, Design Center Kyocera Corporation c/o Kyocera Communications, Inc. (KCI) 8611 Balboa Avenue San Diego, San Diego, CA 92123

KYOCERA COMMUNICATIONS, INC. 8611 Balboa Avenue San Diego, San Diego, CA 92123 Kyocera Communications, Inc. Proprietary/Confidential Date: 12/14/2012 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: V65S2151 To Whom It May Concern: In accordance with §0.459 of CFR 47, KYOCERA Corporation requests confidentiality for the following items 1. Block Diagram 2. Parts List 3. Adjustment Procedure and Schematic Diagrams 4. Technical Description These items contain detailed system and equipment description and related information about the product which KYOCERA Corporation considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, KYOCERA Corporation also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, ____________________________ C. K. Li Director, Design Center Kyocera Corporation c/o Kyocera Communications, Inc. (KCI) 8611 Balboa Avenue San Diego, San Diego, CA 92123

KYOCERA COMMUNICATIONS, INC. 8611 Balboa Avenue San Diego, San Diego, CA 92123 Kyocera Communications, Inc.. Proprietary/Confidential Date: 12/14/2012 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Short-Term Confidentiality FCC ID: V65S2151 To Whom It May Concern: In accordance with §0.457 and 0.459 of CFR 47, KYOCERA Corporation requests short-term confidentiality (135 days) for the following items 1. Test Setup Photos 2. External and Internal Photos 3. User’s Manual These items contain detailed system and equipment description and related information about the product which KYOCERA Corporation considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, KYOCERA Corporation also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, ____________________________ C. K. Li Director, Design Center Kyocera Corporation c/o Kyocera Communications, Inc. (KCI) 8611 Balboa Avenue San Diego, San Diego, CA 92123

Date: 7/16/10 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tina To, Account Representative CompTest Services, LLC

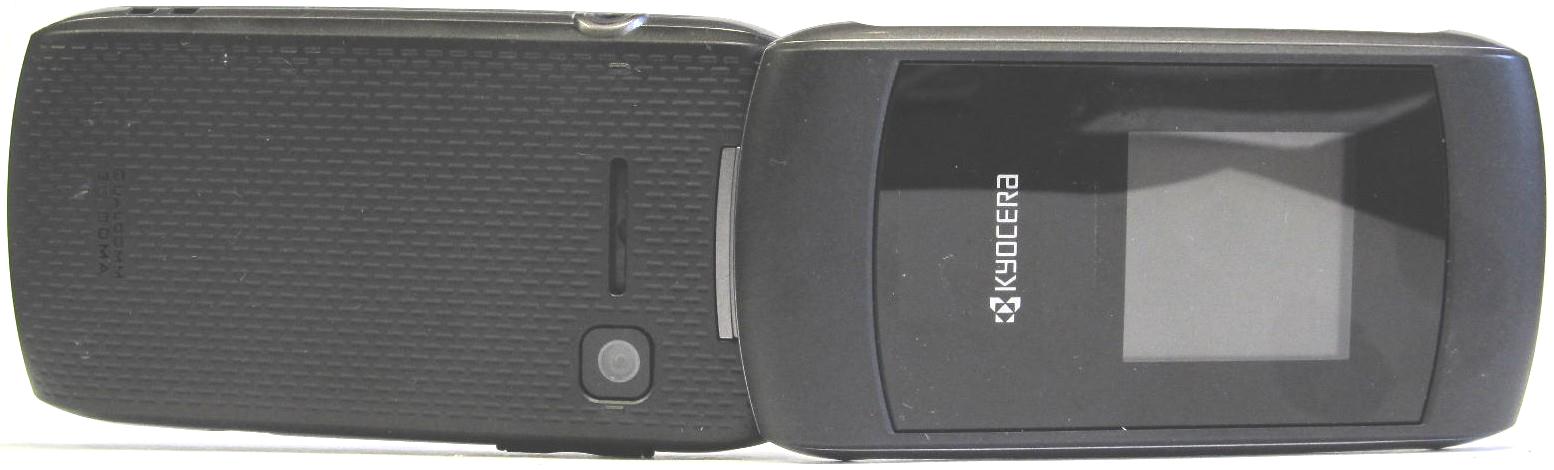

Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-7-1112-R0 © 2012 Comptest Services LLC Page 1 of 2 External Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 7: EXTERNAL PHOTOS Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-7-1112-R0 © 2012 Comptest Services LLC Page 2 of 2 External Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC.

S2151 Coast RATINGLABEL FCC ID: MADE IN MALAYSIA Model S2151 Coast FCC ID: MADE IN MALA YSIA Model S2151 Coast

Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-8-1112-R0 © 2012 Comptest Services LLC Page 1 of 4 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 8: INTERNAL PHOTOS CDMA Antenna Bluetooth Antenna Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-8-1112-R0 © 2012 Comptest Services LLC Page 2 of 4 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-8-1112-R0 © 2012 Comptest Services LLC Page 3 of 4 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-8-1112-R0 © 2012 Comptest Services LLC Page 4 of 4 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC.

Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-9-1112-R1 © 2012 Comptest Services LLC Page 1 of 31 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Specific Absorption Rate (SAR) FCC 47 CFR Part 2 Test Report For Kyocera Corporation c/o Kyocera Communication, Inc. Product: Dual-Band CDMA Mobile Phone Model: S2151 Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-9-1112-R1 © 2012 Comptest Services LLC Page 2 of 31 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. TABLE OF CONTENTS 1 SUMMARY OF TESTING ............................................................................................................. 4 2 EQUIPMENT UNDER TEST INFORMATION ............................................................................... 5 3 ACCESSORIES ............................................................................................................................ 5 3.1 BODY WORN ACCESSORIES ........................................................................................................ 5 3.2 BATTERIES ................................................................................................................................. 5 4 TEST CONDITIONS ..................................................................................................................... 6 4.1 TEST FACILITIES ......................................................................................................................... 6 4.2 AMBIENT CONDITIONS ................................................................................................................. 6 4.3 RF CHARACTERISTICS OF THE TEST SITE ...................................................................................... 6 4.4 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ....................................................................... 7 4.5 DEVICE TEST CONDITIONS........................................................................................................... 9 4.6 MULTIPLE TRANSMITTERS AND ANTENNAS SAR EVALUATIONS..................................................... 10 4.7 ROUTER SAR EVALUATIONS ...................................................................................................... 12 4.8 HAND SAR EVALUATIONS .......................................................................................................... 12 4.9 SAR TESTS IN MOUTH AND JAW REGIONS OF THE SAM PHANTOM .............................................. 13 5 DESCRIPTION OF THE TEST EQUIPMENT .............................................................................. 14 5.1 DOSIMETRIC SYSTEM ................................................................................................................ 14 5.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION.......................................................................... 16 5.3 TISSUE STIMULANTS ................................................................................................................. 16 5.4 PHANTOMS DESCRIPTION .......................................................................................................... 17 5.5 ISOTROPIC E-FIELD PROBE ....................................................................................................... 18 6 SYSTEM VALIDATION .............................................................................................................. 19 7 DESCRIPTION OF THE TEST PROCEDURE ............................................................................ 20 7.1 TEST POSITIONS ....................................................................................................................... 20 7.2 SCAN PROCEDURES .................................................................................................................. 23 7.3 SAR AVERAGING METHODS ...................................................................................................... 23 8 MEASUREMENT UNCERTAINTY .............................................................................................. 24 9 TEST DATA ................................................................................................................................ 25 9.1 HEAD SAR TEST RESULTS ........................................................................................................ 25 9.2 BODY-WORN SAR TEST RESULTS ............................................................................................. 28 10 SCALED SAR EVALUATION ..................................................................................................... 30 10.1 HIGHEST SCALED SAR VALUES ................................................................................................. 30 11 LIST OF APPENDIX ................................................................................................................... 31 Applicant: Kyocera FCC ID: V65S2151 Report #: CT-S2151-9-1112-R1 © 2012 Comptest Services LLC Page 3 of 31 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. ATTESTATION The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test equipment used was suitable for the tests performed and within manufacturer’s published specifications and operating parameters. The test methods were consistent with the methods described in the relevant standards. Product: Dual-Band CDMA Mobile Phone with Bluetooth Model #: S2151 FCC ID: V65S2151 Tested in accordance with: FCC §2.1093/OET-65 Supplement C IEEE P2528/D1.2 – 2003 FCC KDB 248227 D01 v01r02 FCC KDB 648474 D01 v01r05 FCC KDB 941225 v2 Test Requested by: KYOCERA Corporation C/o KYOCERA Communication Inc. 8611 Balboa Avenue San Diego, CA 92123 United States Test performed by: CompTest Services LL…

Text truncated - open the document above for the full version.

Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 1 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 9 APPENDIX A: SAR VALIDATION PLOTS Validation for HEAD Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 2 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 11/15/2012 835MHz Validation , Probe #3035, DAE #530, Dipole #467 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used (interpolated): f = 835 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.04, 6.04, 6.04), Calibrated: 2/22/2012 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 5/30/2012 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 835MHz/Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.09 mW/g 835MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.0 V/m; Power Drift = -0.178 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.992 mW/g; SAR(10 g) = 0.645 mW/g Maximum value of SAR (measured) = 1.08 mW/g 0 dB = 1.09mW/g Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 3 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 4 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 11/14/2012 1900Mhz Validation @ 20dBm Probe 1618, DAE 675 and Dipole 5d016 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1900,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.46 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1618, ConvF(5.17, 5.17, 5.17), Calibrated: 9/13/2012 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 5/23/2012 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 1900MHz Validation @20dBm/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.61 mW/g 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.9 V/m; Power Drift = -0.100 dB Peak SAR (extrapolated) = 6.27 W/kg SAR(1 g) = 3.75 mW/g; SAR(10 g) = 1.98 mW/g Maximum value of SAR (measured) = 4.20 mW/g 0 dB = 4.61mW/g Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 5 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 6 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Validation for BODY Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 7 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 11/16/2012 835MHz Validation(Muscle), Probe #3036, DAE #603, Dipole #5d016 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: M800,Medium parameters used: f = 835 MHz; σ = 0.95 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3036, ConvF(5.83, 5.83, 5.83), Calibrated: 5/29/2012 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn603,Calibrated: 9/27/2011 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 835MHz Validation @20dBm/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.06 mW/g 835MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.9 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.986 mW/g; SAR(10 g) = 0.653 mW/g Maximum value of SAR (measured) = 1.07 mW/g 0 dB = 1.06mW/g Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 8 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65S2151 Report #: CT- S2151-9A-1112-R0 © 2012 Comptest Services LLC Page 9 of 10 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 11/19/2012 1900Mhz Validation (Muscle) @ 20dBm Probe 1618, DAE 675 and Dipole 5d016 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.55 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1618, ConvF(4.42, 4.42, 4.42), Calibrated: 9/13/2012 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 5/23/2012 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: S…
