V65SA002Single-Band CDMA Phone

Operating Instructions Name & Function of Parts a Earpiece b Incoming indicator c Optical sensor d Display e Joystick key f Address book key g Answer/Pair key h Clear/Manner key i Quick key j Mail keys k Number key l Application key m Power/End key n Microphone o EZ key p External connection jack/cover q Camera lens r Speaker s Whip antenna t Strap hole u Flash/Camera start indicator/Pocket Light v Infrared port w Battery pack/cover x FeliCa mark y Built-in antenna z Pocket Light key A Camera/Memo key B Charging terminals - 1 - ■ Power saving during standby In order to minimize the power consumption, the SA002 display turns automatically to power saving mode when key operation is stopped for a while. The indication restores with key operation. ■key In this manual, the point at which to press the key is indicated as shown below. Example) Press or→ Getting Ready to Make a Call 1. Charging with the AC Adapter The battery charger can be charged by directly inserting the AC Adapter connector into the external connection terminal on the W63SA Main Unit. 2. Turning the power on Press and hold or more than one second. ◆Turning the power off Press and hold for more than one second. Switch to English 1. Presson the standby screen. 2. Select "機能設定" and press (選択). 3. Press . 4. Select "English" and press (設定). Displaying your own phone number 1. Presson the standby screen. 2. Select "Function" and press (Select) . 3 Press to display your au telephone number. Making a Call 1. Enter the phone number you want to call on the standby screen. Area code - Local code - Subscriber's number. <Example> 03-0001-XXXX Always include the area code, even when calling to a number in the same area you are in. If you enter a wrong number: ● Press briefly - the last dialed digit will be deleted. ● Press and hold - the entire phone number will be deleted. 2. Press to make a call. - 2 - Making an International Call 1. Enter the phone number you want to call using the following pattern on the standby screen. International dial code - Country code - Area code - Subscriber's number 2. Press to make a call. <Example> to call United States, number 212-123-XXXX in the USA. Operation Explanation 1 Pressing "005345" Access code 2 Pressing "1" Country code of United States: 1 3 Pressing "212" Area code ※ : 212 4 Pressing "123-XXXX" Subscriber's number: 123-XXXX 5 Press The following operation is the same as the normal telephone operation. ※ When the first number of the area code is "0", press the area code number without "0". Adjusting the receiver volume 1. During a call, press . : Volume level raised. : Volume level lowered. Answering a call 1. The ringer tone sounds/vibrator buzzes, and the incoming call lamp flashes. 2. Press to answer the call. An incoming call can also be answered by pressing any of the ～ ,,,,, keys. If you do not answer the call or the caller disconnects before the call is answered, " Missed Call X " will be displayed. (A number appears in the "X".) Entering characters This is the method of entering names for registering address book and writing mail. 1. Press (Char.Type). 2. Select the entry mode you want. 漢字 "Kanji", "Hiragana" entry mode (full size) 1234 "Number" entry mode (half size) カナ "Katakana" entry mode (full size) "Pictographs" entry mode ｶﾀｶﾅ "Katakana" entry mode (half size) Sym "Symbol" entry mode AB・ab "Alphanumeric" entry mode (full size) Face "Face marks" entry mode １２ "Number" entry mode (full size) ABCD・ abcd "Alphanumeric" entry mode (half size) - 3 - [Assignment of characters and key functions] Characters are assigned to each key as shown below. Press a key repeatedly to cycle through characters assigned to that key. Entry mode key Kanji・Hiragana 漢字 Katakana カナ・ｶﾀｶﾅ Alphanumeric ＡＢ・ABCD Alphanumeric ａｂ・abcd Number １２・1234 あいうえおぁぃぅぇぉ アイウエオァィゥェォ . @ - _ / : ～ 1 . @ - _ / : ～ 1 1 かきくけこ カキクケコ ABC2 abc2 2 さしすせそ サシスセソ DEF3 def3 3 たちつてとっ タチツテトッ GHI4 ghi4 4 なにぬねの ナニヌネノ JKL5 jkl5 5 はひふへほ ハヒフヘホ MNO6 mno6 6 まみむめも マミムメモ PQRS7 pqrs7 7 やゆよゃゅょ ヤユヨャュョ TUV8 tuv8 8 らりるれろ ラリルレロ WXYZ9 wxyz9 9 [カナ]ワヲンヮ､｡ー －･.！？（space）0 [ＡＢ] [ａｂ] 0（space）! ? ・ ， ’ ”＿ ．－ わをんゎ、。－・～！？ （space） [ｶﾀｶﾅ] ワヲン､｡ー －･.！？（space）0 [ABCD] [abcd] 0（space） ! " #$%& ' ( )＊ + , - . / : ; <=>?@[¥]^_` { | } ～ 0 (before confirm) ゙ (Voiced Sound symbol) ゚(Semi-voiced Sound symbol) Switches lowercase/uppercase (before confirm) Switcheslowercase/uppercase (after confirm) 、。－・～！？（スペース） (after confirm) ． ， － ！ ？ ． (before confirm)Reverse toggle of entered characters (after confirm)line change line change Remarks: ■ “～”can be inputted only when inputting full-sized characters.It changes to“ ～”when inputting helf-sized characters. ■ It is not likely to be able to change line on the input of part of character screen. ■ Inputting voiced sound symbol/semi-voiced sound symbol or switching uppercase/lowcase can be done by pressing after inputting the character. (A list of Pictographs, Face marks, and Characters is displayed if you press it after the inputted character is set.) < Example >つ→っ→づ→つ ハ→バ→パ→ハ a→A→a - 4 - Registering in the Address Book You can register frequently used phone numbers and E-mail addresses. Up to 1000 addresses can be registered in the address book. ■ Registering in the address book 1. Press and hold for more than one second on the standby screen. The screen to register a contact is displayed. 2. Enter the item you want. Select the icon of the item you want byand press(Select) to enter it. As for the items you can enter, see "Items to register in the address book". 3. Press (Reg) . ■ Items to register in the address book The following data can be put in the address book. Name Up to 12 full size (24 half size) characters. Reading Up to 24 half size characters. Registered automatically after "Name" is entered. Phone No.1～3 Up to 32 digits. Selecting from 7 Phone number types. E-mail Address 1～3 Up to 64 half size alphanumeric characters. Selecting from 6 E-mail address types. Group You can classify it into 20 classes for managing. Ima…

Text truncated - open the document above for the full version.

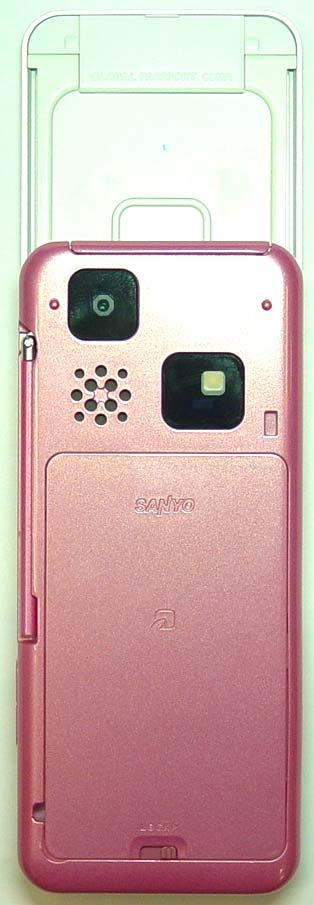

Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-7-0210-R0 © 2009 Comptest Services LLC Page 1 of 2 External Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 7: EXTERNAL PHOTOS Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-7-0210-R0 © 2009 Comptest Services LLC Page 2 of 2 External Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC.

Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 1 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. 1 EXHIBIT 8: INTERNAL PHOTOS Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 2 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 3 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 4 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 5 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 6 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 7 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 8 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 9 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 10 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant:Kyocera FCC ID:V65SA002 Report #:CT-SA002-8-0210-R0 © 2009 Comptest Services LLC Page 11 of 11 Internal Photos This report shall not be reproduced except in full, without the written consent of CompTest Services LLC.

Applicant: Kyocera FCC ID:V65SA002 Report #:CT-SA002-9-0210-R0 © 2009 Comptest Services LLC Page 1 of 1 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Specific Absorption Rate (SAR) FCC 47 CFR Part 2 Test Report For Kyocera Corporation c/o Kyocera Communication Inc. Product: CDMA Mobile Phone with Bluetooth Model: SA002 Applicant: Kyocera FCC ID:V65SA002 Report #:CT-SA002-9-0210-R0 © 2009 Comptest Services LLC Page 2 of 2 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. TABLE OF CONTENTS 1 SUMMARY OF TESTING................................................................................................................... 4 2 EQUIPMENT UNDER TEST INFORMATION .................................................................................... 4 3 ACCESSORIES.................................................................................................................................. 5 3.1 BODY WORN ACCESSORIES.......................................................................................................... 5 3.2 BATTERIES................................................................................................................................... 5 4 TEST CONDITIONS ........................................................................................................................... 5 4.1 TEST FACILITIES........................................................................................................................... 5 4.2 AMBIENT CONDITIONS................................................................................................................... 5 4.3 RF CHARACTERISTICS OF THE TEST SITE....................................................................................... 6 4.4 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER........................................................................ 6 4.5 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER........................................................................ 6 4.6 DEVICE TEST CONDITIONS............................................................................................................ 8 4.7 MULTIPLE TRANSMITTERS AND ANTENNAS SAR EVALUATIONS....................................................... 8 4.8 SAR TESTS IN MOUTH AND JAW REGIONS OF THE SAM PHANTOM................................................ 9 5 DESCRIPTION OF THE TEST EQUIPMENT................................................................................... 11 5.1 DOSIMETRIC SYSTEM.................................................................................................................. 11 5.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION.......................................................................... 12 5.3 TISSUE STIMULANTS................................................................................................................... 12 5.4 PHANTOMS DESCRIPTION............................................................................................................ 13 5.5 ISOTROPIC E-FIELD PROBE......................................................................................................... 14 6 SYSTEM VALIDATION .................................................................................................................... 15 7 DESCRIPTION OF THE TEST PROCEDURE ................................................................................. 16 7.1 TEST POSITIONS......................................................................................................................... 16 7.2 SCAN PROCEDURES................................................................................................................... 18 7.3 SAR AVERAGING METHODS........................................................................................................ 18 8 MEASUREMENT UNCERTAINTY ................................................................................................... 19 9 TEST DATA...................................................................................................................................... 20 9.1 CELLULAR BAND HEAD SAR TEST RESULTS............................................................................... 20 9.2 CELLULAR BAND BODY SAR TEST RESULTS............................................................................... 21 10 LIST OF APPENDIX..................................................................................................................... 22 Applicant: Kyocera FCC ID:V65SA002 Report #:CT-SA002-9-0210-R0 © 2009 Comptest Services LLC Page 3 of 3 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. ATTESTATION The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test equipment used was suitable for the tests performed and within manufacturer’s published specifications and operating parameters. The test methods were consistent with the methods described in the relevant standards. Product: CDMA Mobile Phone with Bluetooth Model #: SA002 FCC ID: V65SA002 Tested in accordance with: FCC §2.1093/OET-65 Supplement C IEEE P2528/D1.2 - 2003 Test Requested by: Kyocera Corporation c/o Kyocera Communication Inc 10300 Campus Point Drive San Diego, CA 92121 United States Test performed by: CompTest Services LLC Date of Test: Feb 02 – Feb 04, 2010 Responsible Engineer Reviewed and approved by: Benjamin Nguyen Benjamin Nguyen Tammy To Test Engineer Quality Manager Applicant: Kyocera FCC ID:V65SA002 Report #:CT-SA002-9-0210-R0 © 2009 Comptest Services LLC Page 4 of 4 SAR Report This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. 1 SUMMARY OF TESTING The equipment is deemed to fulfill the requirements…

Text truncated - open the document above for the full version.

Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9A-0210-R0 EXHIBIT 9 APPENDIX A: SAR VALIDATION PLOTS © 2010 Comptest Services LLC Page 1 of 3 SAR Validation Plots This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9A-0210-R0 © 2010 Comptest Services LLC Page 2 of 3 SAR Validation Plots Test Laboratory: Comptest/Kyocera Date: 2/2/2010 835MHz Validation @ 20dbm, Probe #3035, DAE#494, Dipole #4d019 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used (interpolated): f = 835 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.12, 6.12, 6.12), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 835MHz Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.0 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 0.969 mW/g; SAR(10 g) = 0.629 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9A-0210-R0 © 2010 Comptest Services LLC Page 3 of 3 SAR Validation Plots Test Laboratory: Comptest/Kyocera Date: 2/4/2010 835MHz Validation (in Muscle), Probe #3035, DAE #494, Dipole #4d019 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used: f = 835 MHz; σ = 0.95 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5.94, 5.94, 5.94), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 835MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.2 V/m; Power Drift = 0.085 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.966 mW/g; SAR(10 g) = 0.639 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g This report shall not be reproduced except in full, without the written consent of CompTest Services LLC.

Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 1 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 9 APPENDIX B1: SAR DISTRIBUTION PLOTS (HEAD) CELL Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 2 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 2/2/2010 FCC SA002 CDMA-800, Ch383 Left Cheek Phone Slide Closed Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used: f = 836.5 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.12, 6.12, 6.12), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8  1 deg C, Liquid T = 22.0  1 deg C CDMA-800 Ch383 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.63 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 0.110 W/kg SAR(1 g) = 0.069 mW/g; SAR(10 g) = 0.045 mW/g Maximum value of SAR (measured) = 0.075 mW/g CDMA-800 Ch383 LC/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.63 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 0.091 W/kg SAR(1 g) = 0.072 mW/g; SAR(10 g) = 0.053 mW/g Maximum value of SAR (measured) = 0.076 mW/g 0 dB = 0.080mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 3 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 2/2/2010 FCC SA002 CDMA-800, Ch383 Left Tilt Phone Slide Closed Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used: f = 836.5 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.12, 6.12, 6.12), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C CDMA-800 Ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.29 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 0.119 W/kg SAR(1 g) = 0.049 mW/g; SAR(10 g) = 0.033 mW/g Maximum value of SAR (measured) = 0.057 mW/g CDMA-800 Ch383 LT/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.29 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 0.082 W/kg SAR(1 g) = 0.065 mW/g; SAR(10 g) = 0.049 mW/g Maximum value of SAR (measured) = 0.068 mW/g 0 dB = 0.065mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 4 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 2/2/2010 FCC SA002 CDMA-800, Ch383 Left Cheek Phone Slide Open Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used: f = 836.5 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.12, 6.12, 6.12), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8  1 deg C, Liquid T = 22.0  1 deg C CDMA-800 Ch383 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.71 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 0.714 W/kg SAR(1 g) = 0.535 mW/g; SAR(10 g) = 0.377 mW/g Maximum value of SAR (measured) = 0.570 mW/g 0 dB = 0.578mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 5 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 6 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date: 2/2/2010 FCC SA002 CDMA-800, Ch383 Left Tilt Phone Slide Open Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: Head 835 MHz,Medium parameters used: f = 836.5 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(6.12, 6.12, 6.12), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8  1 deg C, Liquid T = 22.0  1 deg C CDMA-800 Ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.290 mW/g; SAR(10 g) = 0.216 mW/g Maximum value of SAR (measured) = 0.306 mW/g 0 dB = 0.302mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B1-0210-R0 © 2009 Comptest Services LLC Page 7 of 11 SAR Plots Head This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: Comptest/Kyocera Date…

Text truncated - open the document above for the full version.

Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 1 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 9 APPENDIX B2: SAR DISTRIBUTION PLOTS (BODY) CELL Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 2 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: COMPTEST/KYOCERA Date: 2/4/2010 FCC SA002 CDMA-800 Ch383 Flat with 15mm Air Space, Phone Slide Closed and faced down Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.95 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5.94, 5.94, 5.94), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C CDMA-800 FLAT Face-Down Ch383 F-SCH/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = -0.154 dB Peak SAR (extrapolated) = 0.382 W/kg SAR(1 g) = 0.301 mW/g; SAR(10 g) = 0.219 mW/g Maximum value of SAR (measured) = 0.319 mW/g 0 dB = 0.310mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 3 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: COMPTEST/KYOCERA Date: 2/4/2010 FCC SA002 CDMA-800 Ch383 Flat with 15mm Air Space, Phone Slide Closed and faced up Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.95 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5.94, 5.94, 5.94), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C CDMA-800 FLAT Face-Up Ch383 F-SCH/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.70 V/m; Power Drift = 0.160 dB Peak SAR (extrapolated) = 0.081 W/kg SAR(1 g) = 0.060 mW/g; SAR(10 g) = 0.044 mW/g Maximum value of SAR (measured) = 0.063 mW/g CDMA-800 FLAT Face-Up Ch383 F-SCH/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.70 V/m; Power Drift = 0.160 dB Peak SAR (extrapolated) = 0.068 W/kg SAR(1 g) = 0.054 mW/g; SAR(10 g) = 0.040 mW/g Maximum value of SAR (measured) = 0.057 mW/g 0 dB = 0.061mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 4 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: COMPTEST/KYOCERA Date: 2/4/2010 FCC SA002 CDMA-800 Ch383 Flat with 15mm Air Space, Phone Slide Open and faced down Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.95 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5.94, 5.94, 5.94), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C CDMA-800 FLAT Face-Down Ch383 F-SCH/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.9 V/m; Power Drift = 0.051 dB Peak SAR (extrapolated) = 0.716 W/kg SAR(1 g) = 0.549 mW/g; SAR(10 g) = 0.400 mW/g Maximum value of SAR (measured) = 0.579 mW/g 0 dB = 0.578mW/g Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 5 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9B2-0210-R0 © 2009 Comptest Services LLC Page 6 of 6 SAR Plots Body This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. Test Laboratory: COMPTEST/KYOCERA Date: 2/4/2010 FCC SA002 CDMA-800 Ch383 Flat with 15mm Air Space, Phone Slide Open and faced up Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.95 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5.94, 5.94, 5.94), Calibrated: 8/20/2009 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE3 Sn494,Calibrated: 4/22/2009 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature:Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C CDMA-800 FLAT Face-Up Ch383 F-SCH/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.5 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 0.727 W/kg SAR(1 g) = 0.566 mW/g; SAR(10 g) = 0.420 mW/g Maximum value of SAR (measured) = 0.599 mW/g 0 dB = 0.600mW/g

Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9C-0210-R0 © 2009 Comptest Services LLC Page 1 of 1 SAR Probe Cert This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 9 APPENDIX C: SAR PROBE CALIBRATION CERTIFICATE Total pages including cover page = 10

Applicant: Kyocera FCC ID: V65SA002 Report #: CT-SA002-9D-0210-R0 © 2009 Comptest Services LLC Page 1 of 1 SAR Dipole Cert This report shall not be reproduced except in full, without the written consent of CompTest Services LLC. EXHIBIT 9 APPENDIX D: SAR DIPOLE CALIBRATION CERTIFICATE Total pages including cover page = 10

Applicant: Kyocera FCC ID: V65SA002 COMPTEST Report #: …
