Manual ACM 9 ARE i9 Manual ACM 9 - ARE i9 release Version: 05 Page: 2 / 45 Manual ACM9_ARE i9 release V05.docx 1. Introduction ................................................................................................................................................... 5 2. ACM 9 ............................................................................................................................................................. 6 2.1 Hardware ............................................................................................................................................... 6 2.1.1 Dimensions ........................................................................................................................................ 6 2.1.2 Protection Class ................................................................................................................................ 6 2.1.3 Connectivity ...................................................................................................................................... 7 2.1.4 Grounding .......................................................................................................................................... 9 2.2 Firmware ............................................................................................................................................. 10 2.2.1 Industrial Ethernet description files ............................................................................................. 10 2.2.2 Output data telegram from Industrial Ethernet master ............................................................. 10 2.2.3 Input data telegram to Industrial Ethernet master ..................................................................... 10 2.2.4 ACM 9 error messages ..................................................................................................................... 11 2.2.5 Error messages coming through from ARE i9 .............................................................................. 12 3. ARE i9 ........................................................................................................................................................... 13 3.1 Hardware ............................................................................................................................................. 13 3.1.1 Dimensions ...................................................................................................................................... 13 3.1.2 Protection Class .............................................................................................................................. 13 3.1.3 Connectivity .................................................................................................................................... 14 3.1.4 Transponder orientation relative to ARE i9 ................................................................................. 15 3.1.5 Read range for SEMI application ................................................................................................... 16 3.1.6 Read range for miscellaneous applications .................................................................................. 17 3.2 Firmware ARE i9 LF hdx - SEMI Industry .......................................................................................... 18 3.2.1 Instruction Set ................................................................................................................................. 18 3.2.2 General format of instruction set .................................................................................................. 18 3.2.3 VER ................................................................................................................................................... 18 3.2.4 GT ..................................................................................................................................................... 19 3.2.5 TOR .................................................................................................................................................. 19 3.2.6 NID ....................................................................................................................................................20 3.2.7 CID ....................................................................................................................................................20 3.2.8 CN ..................................................................................................................................................... 21 3.2.9 RD ..................................................................................................................................................... 21 3.2.10 WD ................................................................................................................................................ 21 Manual ACM 9 - ARE i9 release Version: 05 Page: 3 / 45 Manual ACM9_ARE i9 release V05.docx 3.2.11 LD ................................................................................................................................................. 22 3.2.12 VSAVE ......................................................................................................................................... 22 3.2.13 INIT .............................................................................................................................................. 22 3.2.14 Error messages ........................................................................................................................... 23 3.3 Firmware ARE i9 LF ............................................................................................................................ 24 3.3.1 Instruction Set ................................................................................................................................. 24 3.3.2…

Text truncated - open the document above for the full version.

AEG Identifikationssysteme GmbH Hörvelsinger Weg 47, D-89081 Ulm | P: +49 (0)731 140088-0 | F: +49 (0)731 140088-9000 E-Mail: [email protected] | www.aegid.de AEG is a registered trademark used under license from AB Electrolux (publ). DATASHEET Industrial Reader ARE i9 HF Electrical Characteristics Reading System ISO 15693 Operational Frequency 13.56 MHz Interface RS232 (M12 – 5-Pin A coded male) Compatibility Communication module ACM 9 (Industrial Ethernet) Software Easy serial ASCII based control protocol Power supply ACM 9 (7V DC) Antenna Internal air core coil Environment Storage Temperature -20°C up to +85°C Operating Temperature -20°C up to +60°C Protection Class IP 67 Shock&Vibration IEC 68-2-6 / 29 Mounting Option 2 mounting holes for M4 cylinder head screw Length: min. 30mm Dimensions Weight Ca. 100 g Length 55.8 mm Width 40.8 mm Height 24 mm Material PC

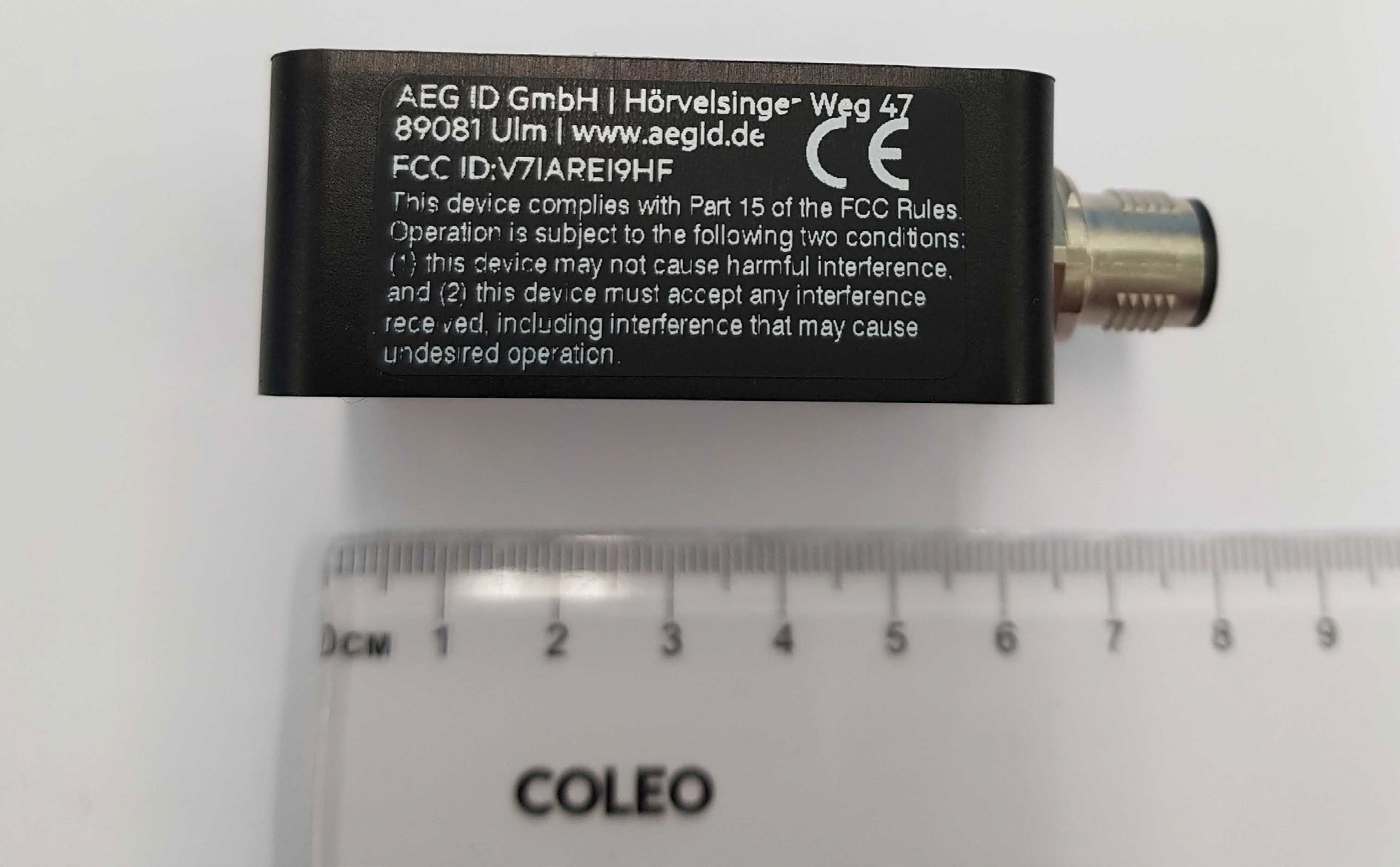

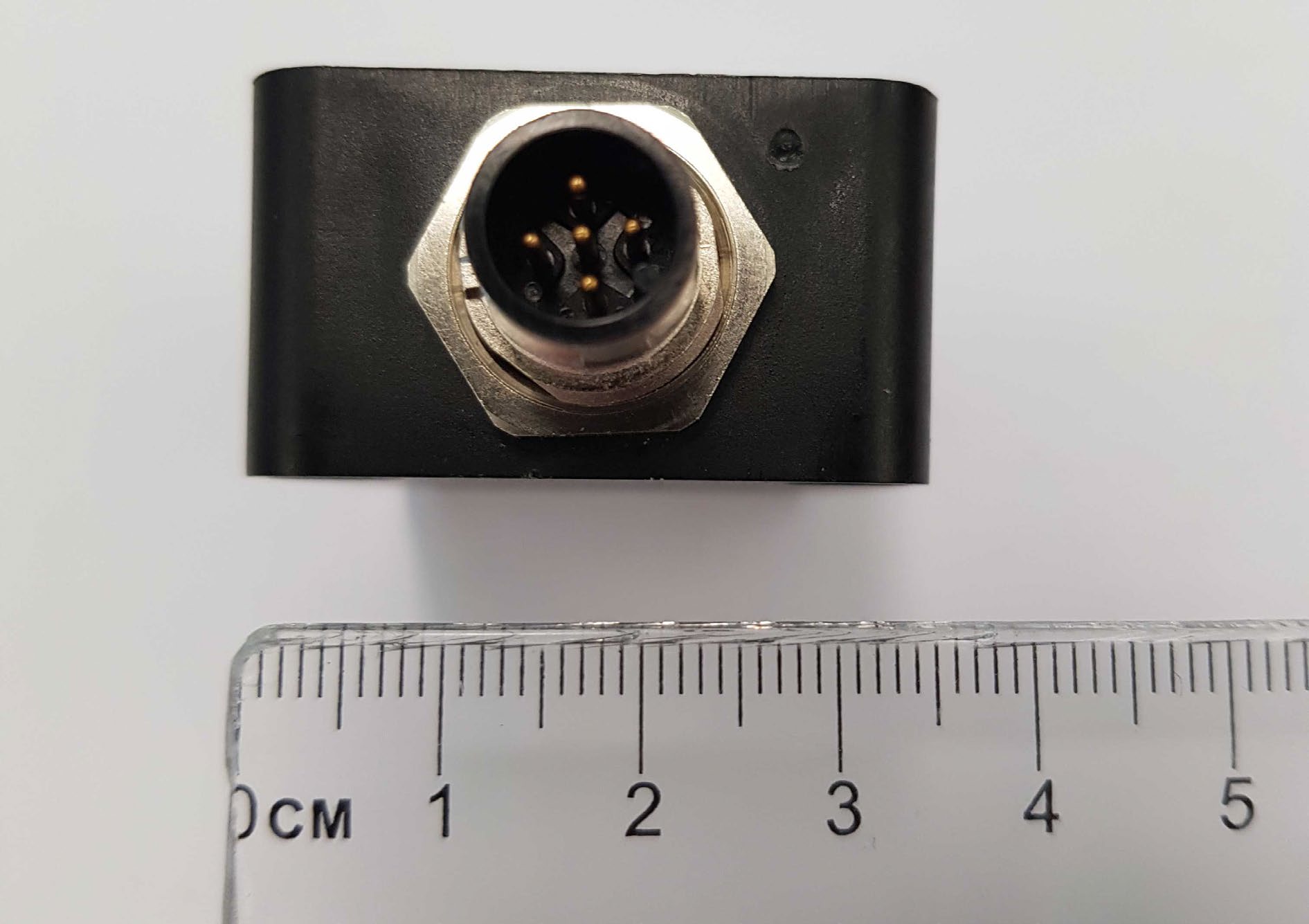

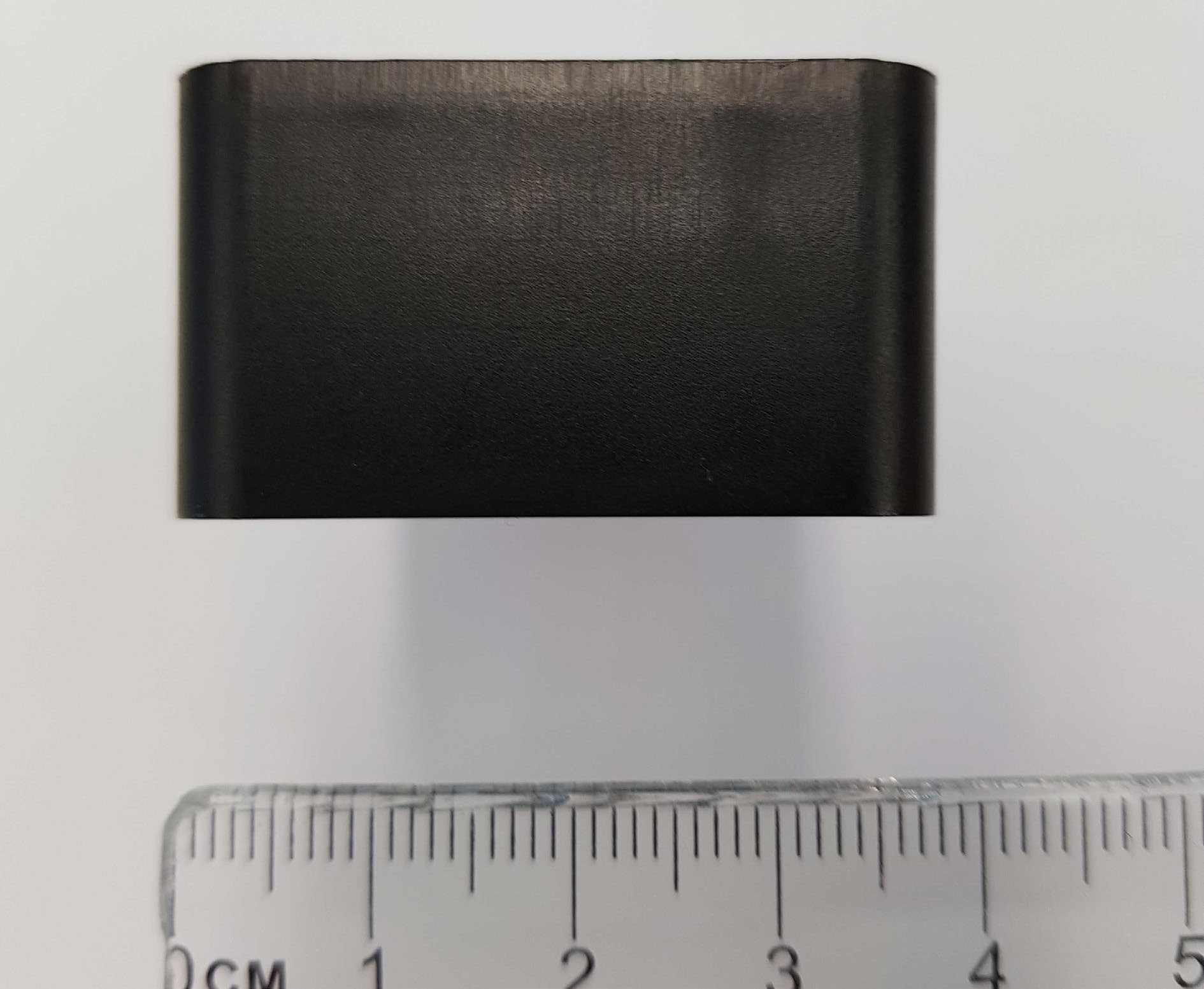

External Photos

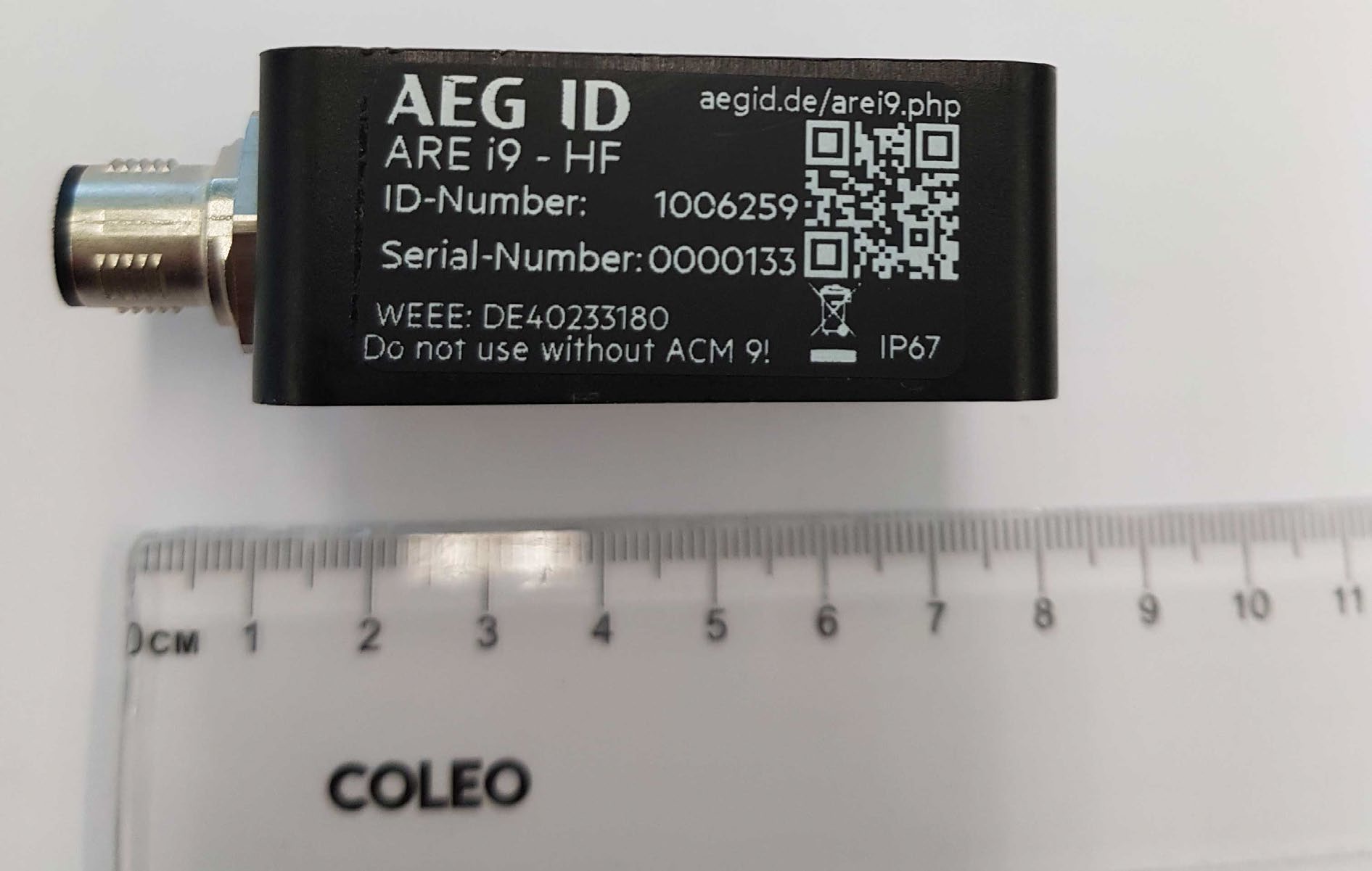

Lable Location Info

Operational Description - RFID Reader ARE i9-HFV7IAREI9HF 29.04.2021, FW, Rev 4 For reading a passive transponder, the RFID reader is generating an electromagnetic field. This happens, depending on the operation mode, permanently or when the reader is receiving a command. The electromagnetic field is powering the transponder which is modulating its UID on the exitation field. The reader receives the signal, demodulates the UID and transfers it via RS232. 29.04.2021, FW, Rev 2

Test report 21-0076RP23_002 Product / EUT: RFID Reader Type designation: ARE i9 HF Tested type: ARE i9 HF Production level: 04/2021 Firmware version: n/a S/N: Pilot series Manufacturer: AEG Identifikationssysteme GmbH Hörvelsinger Weg 47 89081 Ulm / Germany EUT authorization: Certification Declaration of Conformity Verification FCC ID: V7IAREI9HF Test remit: FCC Rules 47 CFR Part 15 – Subpart B – Unintentional radiators in accordance with the procedures given in §15.107; 15.109 Test procedure: ANSI C63.04-2014 The standards were: kept * not kept * *Remark: Validation covered by the accredited scope Validation not covered by the accredited scope according:__________ Validation of the EMC-requirements partly proceeded Remark: The test results effects only to the related items tested at the time of the test. The test report shall not be reproduced except in full without the written approval of the testing laboratory. Information provided by the customer are identified in italic letters. Test report 21-0076RP23_002 05/24/2021 Page 2 of 47 Test laboratory: EMCE GmbH Ingenieurbüro für EMV-Prüfungen und Schaltungsentwicklung Untere Wiesen 1 / 88483 Burgrieden DAkkS-Registration No: D-PL-12122-01-01 D-PL-12122-01-02 CAB-Registration No.: BnetzA-CAB-02/21-01/1 FCC-Registration No.: 239304 Accredited by: Bundesnetzagentur Deutsche Akkreditierungsstelle GmbH Applicant: AEG Identifikationssysteme GmbH Hörvelsinger Weg 47 89081 Ulm / Germany EUT- Date of arrival: 03/29/2021 Test ID: 21-0076PR13-007; 21-0076PR13-009 Date(s) of test: 05/06/2021 – 05/07/2021 Burgrieden, 05/26/2021 Released by: ______________________________________________ Principal engineer - Christian Vogelmann Test report 21-0076RP23_002 05/24/2021 Page 3 of 47 Responsible inspector: Mr. S. Vogelmann EMCE GmbH Ingenieurbüro für EMV-Prüfungen und Schaltungsentwicklung Contact person: Mr. Waitzinger / AEG Identifikationssysteme GmbH EUT Sampling: The device was selected and provided by the customer. Description: RFID Reader operating in the frequency range 13.56 MHz Voltage supply: 120 V / 60 Hz Frequency list: 32.768 kHz, 13.56 MHz, 27.12 MHz, 84 MHz Temperature range: n/a Size: (LxWxH) / mm - 70 x 40 x 25 Supplied / used equipment: Designation Type Manufacturer S/N Laptop W25CSW Terra n/a Power supply – Laptop A12-065N2A Chicony F134091506009041 Power supply APS 1612 T Ansmann n/a USB A Converter 151801 Manhatten n/a Test report 21-0076RP23_002 05/24/2021 Page 4 of 47 Configuration: As-delivered condition* Modified* *21-0076PR13-009 is the same hardware level as 21-0076PR13-007 but with a modified firmware for a higher duty-cycle 66 % used for radiated emissions. Cable designation Type Length Remarks Interconnection cable Shielded 3.0 m Mains cord extension 3-core 1.0 m DC cable 2-core 1.6 m USB Cable Shielded 0.4 m Remarks: n/a Test report 21-0076RP23_002 05/24/2021 Page 5 of 47 External photos EUT Test report 21-0076RP23_002 05/24/2021 Page 6 of 47 State of revision: Source document New Document Date / Reviser Modifications Test report 21-0076RP23_002 05/24/2021 Page 7 of 47 Test equipment list of EMCE GmbH: Inv.- No. Designation Type Manufacturer S/N Calibration: Interval /valid until 001 Test receiver ESS 5Hz - 1000MHz Rohde & Schwarz 833776/008 Firmware: Main: 1.21 OTP: 02.01 GRA: 02.03 1 Year(s)/ 2021-11-26 003 LISN 1 ESH3-Z5 Rohde & Schwarz 835268/007 1 Year(s)/ 2022-01-31 004 LISN 2 ESH3-Z5 Rohde & Schwarz 835268/003 1 Year(s)/ 2022-01-31 006 LISN NNBM 8125 Schwarzbeck 8125371 2 Year(s)/ 2022-02-28 007 Absorbing clamp MDS 21 Schwarzbeck 942436 1 Year(s)/ 2022-03-04 008 Loop antenna 9kHz-30MHz HFH2-Z2 Rohde & Schwarz 835776/0002 3 Year(s)/ 2022-11-20 009 Antenna 30-300MHz VHBA9123 / BBA9106 Schwarzbeck 435 3 Year(s)/ 2021-12-05 010 Antenna 250-1200MHz UHALP 9108A Schwarzbeck 108 3 Year(s)/ 2022-11-25 011 Antenna 30-300MHz VHBA9123 / BBA9106 Schwarzbeck 0403/94 3 Year(s)/ 2022-11-25 012 Antenna 250-1200MHz UHALP 9108A Schwarzbeck 166 3 Year(s)/ 2021-12-05 013 Antenna 9 kHz-30 MHz Ø 1.5 m EMCE GmbH 1 Year(s)/ 2021-10-31 014 OATS Test site 3 m referred to ANSI C63.4-2014 EMCE GmbH 3 Year(s)/ 2024-04-23 015 OATS Test site 10 m referred to ANSI C63.4-2014 EMCE GmbH 3 Year(s)/ 2024-04-26 020 Coupling clamp IP4A Haefely 082672-13 1 Year(s)/ 2021-10-31 022 ESD-Gun NSG 435 Schaffner 577 1 Year(s)/ 2022-03-16 024 RF-Generator SMY01 Rohde & Schwarz 844146/046 2 Year(s)/ 2022-08-21 025 Current clamp BCI F-120-2 FCC 47 1 Year(s)/ 2021-08-31 Test report 21-0076RP23_002 05/24/2021 Page 8 of 47 Inv.- No. Designation Type Manufacturer S/N Calibration: Interval /valid until 026 Coupling-/ Decoupling Network M3 CDN 801-M3-25 FCC 92 1 Year(s)/ 2021-07-31 030 Coupling-/ Decoupling Network S1 - 9-pol. D-Sub CDN 801-S1/ 9pol. DSUB EMCE GmbH 1 Year(s)/ 2021-07-31 031 Coupling-/ Decoupling Network S1 - 9-pol. D-Sub CDN 801-S1/ 9pol. DSUB EMCE GmbH 1 Year(s)/ 2021-07-31 032 RF Power Amplifier 75A250 Amplifier Research 22789 2 Year(s)/ 2023-08-31 034 Coupling-/ Decoupling Network AF2 CDN-AF2 EMCE GmbH 1 Year(s)/ 2021-07-31 038 Helmholtz coil 1 m x 1 m EMCE GmbH 1 Year(s)/ 2021-09-30 039 Helmholtz coil 1 m x 1 m EMCE GmbH 1 Year(s)/ 2021-09-30 040 Current transformer EMCE GmbH 1 Year(s)/ 2021-09-30 041 Loop antenna shielded HZ-10 0816.2511.02 Rohde & Schwarz 849788/0020 3 Year(s)/ 2022-12-02 042-2 AC-Source EMV D 5000/PAS/SyCore Spitzenberger & Spies A274700 / 00501 3 Year(s)/ 2022-10-30 042-1 Analyzer Reference System ARS 16/3 Spitzenberger & Spies A274707 / 00501 3 Year(s)/ 2021-11-07 043 Receiver 3DH/E Fieldmeter ESM-100 Maschek 971521 3 Year(s)/ 2023-08-13 044 CDN CN-U EMC-Partner 86 1 Year(s)/ 2021-09-30 045 CDN DN-HF EMC-Partner 86 1 Year(s)/ 2021-09-30 046 CDN DN-LF2 EMC-Partner 86 1 Year(s)/ 2021-09-30 047 CDN DN-LF1 EMC-Partner 86 1 Year(s)/ 2021-09-30 050 Data Acquisition/ Switch Unit Agilent 34970A Agilent Technologies MY41019453 3 Year(s)/ 2023-02-06 051 20 Channel Multiplexer Agilent 34901A Agilent Technologies MY41013531 3 Year(s)/ 2023-02-…

Text truncated - open the document above for the full version.

Test report 21-0076RP23_002 05/24/2021 Page 18 of 47 1.2.1 Test set up According ANSI C63.04-2014 Test report 21-0076RP23_002 05/24/2021 Page 34 of 47 1.3.1 Test set up According ANSI C63.04-2014 Photo(s) showing the interconnection of the major function units Final test setup Test report 21-0076RP23_002 05/24/2021 Page 35 of 47 Test report 21-0076RP23_002 05/24/2021 Page 36 of 47 Precompliance test setup
