V8YFW181RG30015WWiMAX 802.16e Indoor Gateway

USER GUIDE WIMAX 802.16e INDOOR GATEWAY RG300 USER GUIDE RG300 WiMAX IEEE 802.16e Indoor Gateway with 3.5 and 3.7 GHz Frequency Band Support, Up to Two LAN (RJ-45) Ports, One VoIP (RJ-11) Port, and 802.11n Wi-Fi RG300 E082012-AP-R02 149100000170W – 3 – COMPLIANCES FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ◆Reorient or relocate the receiving antenna ◆Increase the separation between the equipment and receiver ◆Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ◆Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC R ADIATION EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Due to the essential high output power nature of WiMAX devices, use of this device with other transmitters at the same time may exceed the FCC RF exposure limit and such usage must be prohibited (unless such co- transmission has been approved by FCC in the future). COMPLIANCES – 4 – EC CONFORMANCE DECLARATION Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: ◆EN 60950-1 (IEC/UL 60950-1) - Product Safety ◆EN 302 326, EN 300 328, EN 301 489-1/-4/-17 - EMC requirements for radio equipment This device is intended for use in all European Community countries. – 5 – ABOUT THIS GUIDE PURPOSEThis guide details the hardware features of the RG300 WiMAX 802.16e Indoor Gateway, including its physical and performance-related characteristics, and how to install the device and use its configuration software. AUDIENCEThis guide is for PC users with a working knowledge of computers. You should be familiar with Windows operating system concepts. CONVENTIONSThe following conventions are used throughout this guide to show information: NOTE: Emphasizes important information or calls your attention to related features or instructions. CAUTION: Alerts you to a potential hazard that could cause loss of data, or damage the system or equipment. WARNING: Alerts you to a potential hazard that could cause personal injury. RELATED PUBLICATIONSThe following publication gives basic information on how to install and use the WiMAX 802.16e Indoor Gateway. Quick Installation Guide Also, as part of the WiMAX 802.16e Indoor Gateway’s configuration software, there is online help that describes all management features. REVISION HISTORYThis section summarizes the changes in each revision of this guide. AUGUST 2012 REVISION This is the second revision of this guide. This guide is valid for software version 1.3.0.3. It includes the following changes: ◆Updated hardware specification. ABOUT THIS GUIDE – 6 – SEPTEMBER 2011 REVISION This is the first revision of this guide. This guide is valid for software version 1.1.0.6. – 7 – CONTENTS COMPLIANCES 3 A BOUT THIS GUIDE 5 C ONTENTS 7 F IGURES 11 T ABLES 13 SECTION IGETTINGSTARTED 14 1INTRODUCTION 15 RG300 Hardware Description 16 Wi-Fi Option 16 Power Status LED 17 Wi-Fi Status LED 17 WiMAX Signal LEDs 18 LAN Ports 18 VoIP Phone Port 19 Power Adapter Socket 19 Reset Button 19 2INSTALLING THE RG300 20 Package Checklist 20 Installation Overview 20 Select a Location 20 Cable Connections 21 3INITIAL CONFIGURATION 23 Accessing the Web Management Interface 23 Home Page 24 Using the Basic Setup Wizard 25 The Advanced Setup Menu 27 CONTENTS – 8 – Common Web Page Buttons 28 SECTION IIWEBCONFIGURATION 29 4SYSTEM SETTINGS 30 System Status 31 Administrator Settings 32 Firmware Upgrade 33 Configuration Tools 34 System Time 35 System Log 36 Reset 37 5 WAN CONFIGURATION 38 WAN Settings 39 Dynamic IP Address 40 Static IP Settings 40 L2TP Settings 41 PPTP Settings 41 DNS 42 DDNS 43 6 LAN CONFIGURATION 44 LAN Settings 45 DHCP Client List 46 7 NAT CONFIGURATION 47 NAT Settings 48 Port Mapping 48 DMZ 49 ALG 50 8FIREWALL CONFIGURATION 51 Firewall Settings 52 Client Filtering 52 Port Filtering 53 MAC Filtering 54 URL Filtering 55 CONTENTS – 9 – Host Filtering 55 9ROUTING CONFIGURATION 57 Routing Table 58 Static Route 59 10 UPNP CONFIGURATION 60 UPnP 61 11 VOIP SETTINGS 62 Connection Type 63 SIP Account 63 SIP Settings 65 Speed Dial 66 Dial Plan 66 Call Feature 68 Phone Settings 70 Codecs 71 12 WI-FI SETTINGS 73 Basic Wireless Settings 74 Advanced Wireless Settings 76 Wireless Security 77 Wired Equivalent Privacy (WEP) 78 WPA Pre-Shared Key 79 ACL Settings 81 13 QOS CONFIGURATION 82 QoS Settings 83 14 VLAN SETTINGS 84 V…

Text truncated - open the document above for the full version.

Accton Wireless Broadband Corp. 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. Date: 2012/9/25 GENERAL DECLARATION We, Accton Wireless Broadband Corp. declares that device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the follow product. FCC ID: V8YFW181RG30015W If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ____________________ Abby Wei / Compliance Manager Accton Wireless Broadband Corp. TEL: 886-3-505-3780 FAX: 886-3-578-3821 Email: [email protected]

Accton Wireless Broadband Corp. 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. 2012/9/25 To whom it may concern, We Accton Wireless Broadband Corp. declare that Product name：WiMAX 802.16e Indoor Gateway Brand name：AWB FCC ID: V8YFW181RG30015W By V8YFW181RG30015W hardware configuration, the maximum ratio of DL:UL is 29:18. That means it can not support the higher ratio than 29:18, for example, 26:21. The ratio can not be modified to higher ratio than 29:18 by any method. ____________________ Abby Wei / Compliance Manager Accton Wireless Broadband Corp. TEL: 886-3-505-3780 FAX: 886-3-578-3821 Email: [email protected]

Accton Wireless Broadband Corp. 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. 2012/9/25 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: V8YFW181RG30015W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description Parts list Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ____________________ Abby Wei / Compliance Manager Accton Wireless Broadband Corp. TEL: 886-3-505-3780 FAX: 886-3-578-3821 Email: [email protected]

Accton Wireless Broadband Corp. 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. Power of Attorney 2012/9/25 To whom it may concern: We, the undersigned Accton Wireless Broadband Corp. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+ Part 90Z approval and any communication needed with the national authority. Any and all acts carried out by BVCPS Taoyuan on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products： FCC ID: V8YFW181RG30015W If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ____________________ Abby Wei / Compliance Manager Accton Wireless Broadband Corp. TEL: 886-3-505-3780 FAX: 886-3-578-3821 Email: [email protected]

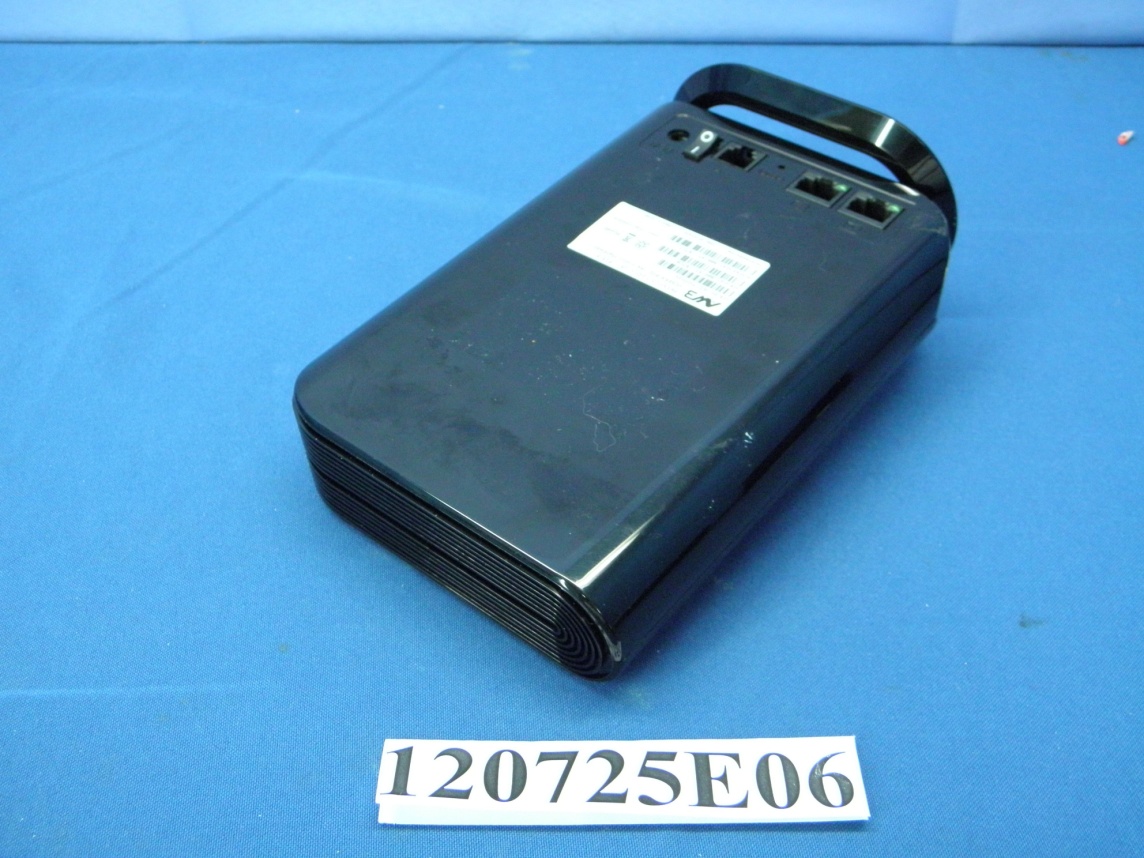

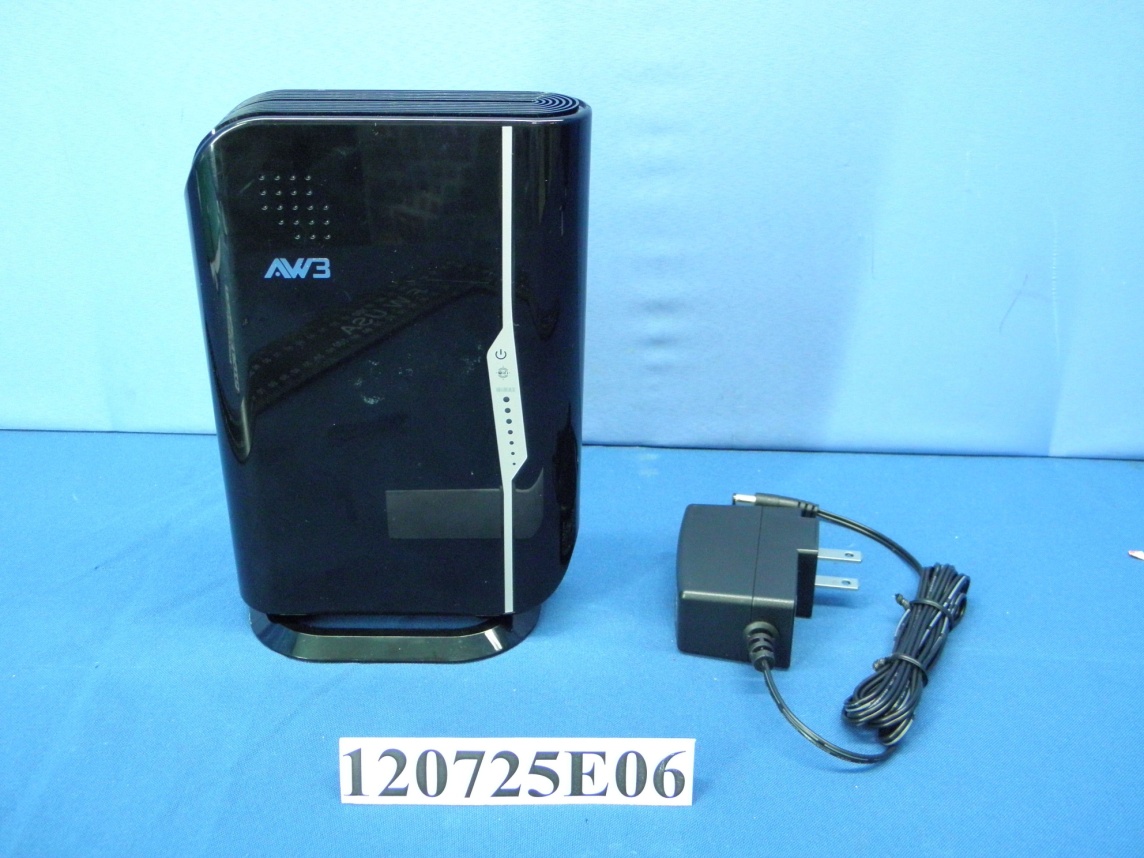

Report No.: 120725E06 1 of 8 CONSTRUCTION PHOTOS OF EUT Report No.: 120725E06 2 of 8

Report No.: 120725E06 3 of 8 Report No.: 120725E06 4 of 8 Report No.: 120725E06 5 of 8 Report No.: 120725E06 6 of 8 Report No.: 120725E06 7 of 8 Report No.: 120725E06 8 of 8

Report No.: SA120725E06 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA120725E06 MODEL NO.: RG300-3.7-FLF-81, RG300-3.7-1D-FLF-81, RG300-3.7-1D1V-FLF-81, RG300-3.7-1D1V1W-FLF-81, RG300-3.7 2D1V-FLF-81, RG300-3.7-2D1V1W-FLF-81, RG300-3.7-2D1V1W-FLF-81 FCC ID: V8YFW181RG30015W RECEIVED: July 24, 2012 TESTED: Aug. 11 to 21, 2012 ISSUED: Sep. 25, 2012 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA120725E06 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA120725E06 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120725E06 Original release Sep. 25, 2012 Report No.: SA120725E06 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: WiMAX 802.16e Indoor Gateway BRAND NAME: AWB MODEL NO.: RG300-3.7-FLF-81, RG300-3.7-1D-FLF-81, RG300-3.7-1D1V-FLF-81, RG300-3.7-1D1V1W-FLF-81, RG300-3.7 2D1V-FLF-81, RG300-3.7-2D1V1W-FLF-81, RG300-3.7-2D1V1W-FLF-81 TEST SAMPLE: R&D SAMPLE APPLICANT: Accton Wireless Broadband Corp. TESTED DATE: Aug. 11 to 21, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: RG300-3.7-FLF-81) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Sep. 25, 2012 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Sep. 25, 2012 ( May Chen, Deputy Manager ) Report No.: SA120725E06 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120725E06 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WiFi: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 234.423 4.96 20 0.14613 1.00 For WiMAX: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 3652.5-3697.5 380.190 9.90 20 0.73915 1.00 CONCLUSION: Both of the WiMAX and WiFi device can transmit simultaneously, the formula of calculated the exposure is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.14613 / 1 + 0.73915 / 1= 0.885, which is less than the “1” limit. --- END ---

Report No.: RF120725E06A 1 of 49 Report Format Version 5.0.0 Reference No.: 120816E03 FCC TEST REPORT REPORT NO.: RF120725E06A MODEL NO.: RG300-3.7 FLF-81, RG300-3.7-1D FLF-81, RG300-3.7-1D1V FLF-81, RG300-3.7-1D1V1W FLF-81, RG300-3.7 2D1V FLF-81, RG300-3.7-2D1V1W FLF-81, RG300-3.7-2D1V1W FLF-81 FCC ID: V8YFW181RG30015W RECEIVED: July 30, 2012 TESTED: July 30 to Aug. 11, 2012 ISSUED: Sep. 25, 2012 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120725E06A 2 of 49 Report Format Version 5.0.0 Reference No.: 120816E03 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 16 4. TEST TYPES AND RESULTS ................................................................................ 17 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 17 4.1.2 TEST INSTRUMENTS ........................................................................................... 17 4.1.3 TEST PROCEDURES ............................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 18 4.1.5 TEST SETUP ......................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 19 4.1.7 TEST RESULTS ..................................................................................................... 20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 22 4.2.2 TEST INSTRUMENTS ........................................................................................... 23 4.2.3 TEST PROCEDURES ............................................................................................ 24 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 24 4.2.5 TEST SETUP ......................................................................................................... 25 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 25 4.2.7 TEST RESULTS ..................................................................................................... 26 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 36 4.3.2 TEST INSTRUMENTS ........................................................................................... 36 4.3.3 TEST PROCEDURE .............................................................................................. 36 4.3.4 DEVIATION FROM TEST STANDARD ............…

Text truncated - open the document above for the full version.

Report No.: RF120725E06 1 of 81 Report Format Version 5.0.0 FCC TEST REPORT (Part 90 Subpart Z) REPORT NO.: RF120725E06 MODEL NO.: RG300-3.7-FLF-81, RG300-3.7-1D-FLF-81, RG300-3.7-1D1V-FLF-81, RG300-3.7-1D1V1W-FLF-81, RG300-3.7 2D1V-FLF-81, RG300-3.7-2D1V1W-FLF-81, RG300-3.7-2D1V1W-FLF-81 FCC ID: V8YFW181RG30015W RECEIVED: July 24, 2012 TESTED: Aug. 17 to 23, 2012 ISSUED: Sep. 25, 2012 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF120725E06 2 of 81 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 4 1 CERTIFICATION .............................................................................................. 5 2 SUMMARY OF TEST RESULTS ...................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................... 6 3 GENERAL INFORMATION .............................................................................. 7 3.1 GENERAL DESCRIPTION OF EUT ................................................................ 7 3.2 DESCRIPTION OF TEST MODES .................................................................. 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................ 13 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................... 14 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ............................................ 15 4 TEST TYPES AND RESULTS ........................................................................ 16 4.1 OUTPUT POWER AND POWER DENSITY MEASUREMENT ...................... 16 4.1.1 LIMITS OF OUTPUT POWER AND POWER DENSITY ................................ 16 4.1.2 TEST INSTRUMENTS ................................................................................... 16 4.1.3 TEST PROCEDURES .................................................................................... 17 4.1.4 TEST SETUP ................................................................................................. 18 4.1.5 EUT OPERATING CONDITIONS ................................................................... 18 4.1.6 TEST RESULTS ............................................................................................. 19 4.2 FREQUENCY STABILITY MEASUREMENT ................................................. 31 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT .............................. 31 4.2.2 TEST INSTRUMENTS ................................................................................... 31 4.2.3 TEST PROCEDURE ...................................................................................... 32 4.2.4 TEST SETUP ................................................................................................. 32 4.2.5 EUT OPERATING CONDITIONS ................................................................... 32 4.2.6 TEST RESULTS ............................................................................................. 33 4.3 EMISSION BANDWIDTH MEASUREMENT .................................................. 34 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT ................................ 34 4.3.2 TEST INSTRUMENTS ................................................................................... 34 4.3.3 TEST PROCEDURE ...................................................................................... 34 4.3.4 TEST SETUP ................................................................................................. 34 4.3.5 EUT OPERATING CONDITIONS ................................................................... 34 4.3.6 TEST RESULTS ............................................................................................. 35 4.4 EMISSION MASKS ........................................................................................ 39 4.4.1 LIMITS OF EMISSION MASKS ..................................................................... 39 4.4.2 TEST INSTRUMENTS ................................................................................... 39 4.4.3 TEST SETUP ................................................................................................. 39 …

Text truncated - open the document above for the full version.

Report No.: 120725E06A 1 of 2 Reference No.: 120816E03 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120725E06A 2 of 2 Reference No.: 120816E03 RADIATED EMISSION TEST
