V9Q-36665F27HEAVY DUTY 27MHz TX

RADIO CONTROL OWNER’S MANUAL BATTERY REQUIREMENTS: 3 “AAA” Batteries (for Controller) 8 “AA”Batteries (for Machine) PROBLEM! CA T ® MACHINE RUNSSLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by . • The antenna of controller is not screwed in tight. • The antenna is not fully extended. • Are the batteries weak or out of power? PROBLEM?PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check and replace batteries, if necessary, in CAT Machine and controller with new alkaline batteries. Call 1-877-473-8015 for help! MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 1 PEKING ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 Have Fun - Play Games @ www.toystate.com HEAVY DUTY R/C Call for Help! If you have questions about this toy Call Toll-Free: 1-877-473-8015 Between 9:00 a.m. – 5:00 p.m. E.S.T. Monday thru Friday Contact via e-mail: [email protected] www.toystate.com © 2011 Caterpillar CAT, CATERPILLAR, their respective logos, EQUIPPED TO PLAY, and "Caterpillar Yellow" and the “Power Edge” trade dress as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission. www.cat.com Toy State, a licensee of Caterpillar Inc. 61 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the device.” CAUTION Important Battery Information •Dispose of batteries properly. •Do not dispose of batteries in fire. •Use only batteries of the type recommended. •Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. •Do not mix old and new batteries. •Remove batteries from CAT ® Machine and controller if vehicle will not be used for a long period. PROBLEM! CA T ® MACHINE DOES NOT MOVE PROBLEM! CA T ® MACHINE MOVES BY ITSELF TROUBLESHOOTING AND CARE FOR R/C TRUCKS • Are the + and –‘s contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by . • The antenna of controller is not screwed in tight. • The antenna is not fully extended. ATTENTIONPARENTS This Toy and all Accessories need to be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced. MANUFACTURERSNOTETIPS & TRICKS STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turni ng off vehicle when not in use. LIMITED RADIO CONTROL RANGE While CAT ® Machine may be visible at a dist ance, full operational control may be lost. Hold controller high in the air and direct truck back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of int erference. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1). This device may not cause harmful interference. 2). This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the use r’s authority to operate the equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try and correct the interference by one or more of the fol lowing measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. 25 TREAT YOUR CA T ® MACHINE WELL Radio waves control and drive the CAT ® Machine. Care for your CAT Machine and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! Off road vehicles may run on grassy dry areas. Store in safe place.No direct sunlight. No rain or water. teprac no kcuts teg yam enihcaMTAC.snoisilloC oN.tsud ro dnas oN or grass. CLEANING AND MAINTAINING Brush areas where dirt and dust get trapped. Wipe body off with a soft rag or tact cloth. Do notclean vehicle with chemicals or water. GETTING ST ARTED BA TTERY AND ANTENNA INSTALLATION IN CONTROLLER 2. For best perf ormance, replace 3 “AA batteries with 3 new “AAA” batteries. Be sure the + and are properly matched. 1. To remove battery cover, loosen screw to open. NOTE: For best performance, always use alkaline batteries only. BA TTERY INSTALLATION IN ROAD RIPPERS R/C VEHICLE TO REPLACE THE BATTERIES 2. Insert 4 “AA” batteries into the Vehicle. Be sure the + and – are properly matched. 1. To remove battery cover, loosen screw to open. Remove the Road Rippers R/C vehicle and controller from the box. For best perf ormance, replace the 3 “AAA” batteries in the controller with 3 new “AAA” batteries. Add 8 “AA” batteries into the R/C vehicle to begin full function…

Text truncated - open the document above for the full version.

Toy State International Ltd. 19/F, One Peking, No1 Peking Road Tsimshatsui,, Kowloon, Hong Kong POWER OF ATTORNEY FCC ID: V9Q-36665F27 Date: May 10, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on May 5, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Wayne Lee (Senior Project Engineer)

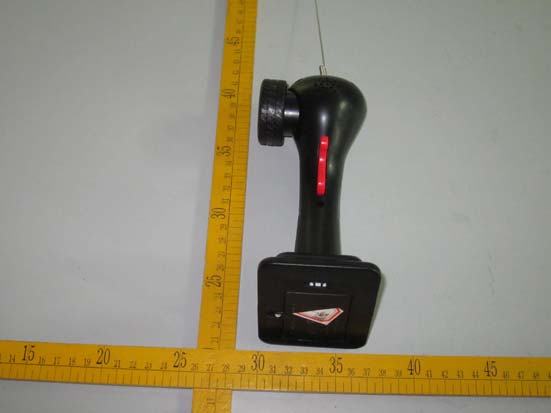

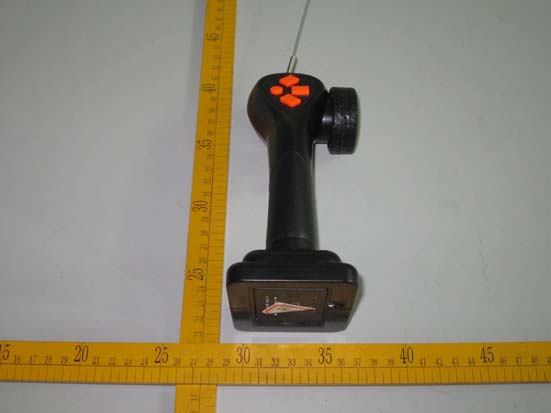

6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: Toy State International Ltd. Model: 36665 FCC ID: V9Q-36665F27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Operation Description Q2、Y1、L2、R1、R3、C4、C5 constitute 27.145MHz oscillator，Q1 is a modulator and RF amplifier. the modulation signal provided by IC1. The output of Q1 has the matching network consisting of L1、L4、L5、C9、C10、C11 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna length is 38cm. There is no external ground connection. The ground is only that of the printed circuit board.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DRAWN BY: CHECK BY: DATE: 36665 TX(27MHz) APP. BY: DATE: 36665 TX 27MHz 原理图 ID2 ID1 P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40 VSS VDD VO1 VO OSCO OSCI U1 PM1464 FW BW LEFT START C5 104 R1 68K±1% SPK1 R8 270R RIGHT R2 2K2 +- 4V5 BATT Q4 8050C R7 820R C10 150p L1 220UH ANT1 C13 103 R4 10K C11 100p Q1 8050C C7 100UF D1 IN4148 ZD1 9V1 L3 2.2UH Q3 2SC3356 R6 4R7 L2 0.75uH L5 6.8uH C4 103 L4 2.2UH Y1 27.145MHz R3 100K Q2 2SC1815GR C3 47P R5 220R C9 332 C14 75P C12 100P SELECT C1 220uF UP/DOWN VOA MUSIC VOA0INT) 123 J1 Try Me VCC

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.227 Report Reference No......................: CTL11058262-S-WF Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: May 17, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Toy State International Ltd. Address.............................................: 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC Part 15.227: Operation within the band 26.96–27.28 MHz. TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Heavy Duty Trade Mark .......................................: / Model/Type reference.......................: 36665 Modulation .......................................: AM Work Frequency...........................: 27.145 MHz Antenna Type..............................: Undetachable Power Suplly...............................: DC 4.5V from battery FCC ID .............................................: V9Q-36665F27 Result................................................: Positive V1.0 Page 2 of 17 Report No.: CTL11058262-S-WF T E S T R E P O R T Test Report No. : CTL11058262S-WF May 17, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Heavy Duty Model /Type : 36665 Applicant : Toy State International Ltd. Address : 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Manufacturer Shen Zhen Nan Ling Toys Products Co, Ltd Address 132 Busha Road,Nanling Village, Buji Town Longgang Shenzhen, Canton, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 17 Report No.: CTL11058262-S-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 10 4.3. Occupied Bandwidth 13 4.4. Antenna Requirement 14 5. TEST SETUP PHOTOS OF THE EUT .......................................... 15 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 16 V1.0 Page 4 of 17 Report No.: CTL11058262-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.227: Operation within the band 26.96–27.28 MHz. ANSI C63.4-2003 V1.0 Page 5 of 17 Report No.: CTL11058262-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : May 8, 2011 Testing commenced on : May 9, 2011 Testing concluded on : May 12, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 4.5V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless toy controller work at 27.145 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Length (m) : / Shield : / Detachable : / o Manufacturer : Model No. : V1.0 Page 6 of 17 Report No.: CTL11058262-S-WF 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: V9Q-36665F27 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 7 of 17 Report No.: CTL11058262-S-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Sh…

Text truncated - open the document above for the full version.

5. Test Setup Photos of the EUT
