V9Q-37015F27AStreet Nitro TM R/C - Super Car

COMPANY: DATED: APP.BY: 1 1 REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 37015 TX 27M BLOCK DIAGRAM 1.0 1 1 ZUO 2013/7/9 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz MODEL NO:- 37015 Filter L1/C3 TX ANTENNA 27.145MC RF POWER OUTPUT & Modulator Q1 Fundanmental FrequencyOscillator Q2/Y1 27.145MHz Signal 1 Signal 2 FORWARD Control /BACKWARD 3X1.5VDC Battery. Temperature Control Resistor F1 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAMROMWDTLVR I/O Ports LEFT/RIGHT TURBO

TOY STATE INTERNATIONAL LIMITED Unit 905, 9/F, West Wing, Tsim Sha Tsui Centre,66 Mody Road, TST East, Kowloon, H.K. Phone: (852) 2757-8281Fax: (852) 2318-1884E-mail: [email protected] Letter of Agency 〝I, an officer ofToy State International Ltd.do hereby authorize lntertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.〞 l further certify that no party(as defined in§ §§ § 1.2002(b)of 1.2002(b)of1.2002(b)of 1.2002(b)of CFR CFRCFR CFR 47.2004)to 47.2004)to47.2004)to 47.2004)to this thisthis this application, application,application, application, including includingincluding including myself, myself,myself, myself, is isis is subject subjectsubject subject to toto to a aa a denial denialdenial denial of ofof of federal federalfederal federal benefits, benefits,benefits, benefits, that thatthat that includes includesincludes includes FCC FCCFCC FCC benefits, benefits,benefits, benefits, pursuant pursuantpursuant pursuant to toto to Section SectionSection Section 5301 53015301 5301 of ofof of the thethe the Anti-Drug Anti-DrugAnti-Drug Anti-Drug Abuse AbuseAbuse Abuse Act ActAct Act of ofof of 1988,21 1988,211988,21 1988,21 U.S.C.,862. U.S.C.,862.U.S.C.,862. U.S.C.,862. Dated this20 th dayJunof 2013 By Signature Jason Ng Printed Name Quality Assurance Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Nov 2011

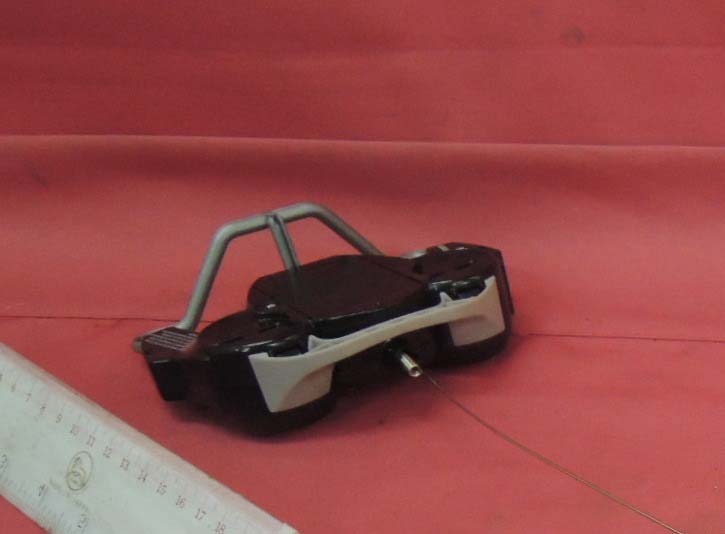

INTERTEK TESTING SERVICE Report No.: 13070300HKG-001 FCC ID: V9Q-37015F27A Equipment Photographs Model : 37016 (External)

Label Size: 28mm x 8mm Label Size: 40mm x 18mm

INTERTEK TESTING SERVICE Report No.: 13070300HKG-001 FCC ID: V9Q-37015F27A Equipment Photographs Model : 37016 (Internal) INTERTEK TESTING SERVICE Report No.: 13070300HKG-001 FCC ID: V9Q-37015F27A Equipment Photographs Model : 37016 (Internal) INTERTEK TESTING SERVICE Report No.: 13070300HKG-001 FCC ID: V9Q-37015F27A Equipment Photographs Model : 37016 (Internal)

Model: 37016 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move left, right, forward, backward or turbo. The circuit of the transmitter comprises of, 1. An Encoding keys consisting: LEFT, RIGHT, FORWARD, BACKWARD, TURBO 2. An RF Oscillator consisting: Y1 (27.145MHz crystal), Q2 3. Filter consisting: C1, C2, C3, L2 4. An Encoder, Mixer and Amplifier consisting: U1 (ICC-531) 5. A Power Supply consisting: Three 1.5V AAA batteries The transmitter uses an external, integral and non-detachable antenna. The nominal rated field strength is 75.0dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13070300HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 4.5 V DC source (3x 1.5V “AAA” batteries). The EUT has 5 control buttons to control the RC Car moving left, right, forward, backward and turbo. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left, right or turbo. Antenna Type: External, integral Antenna Gain: 0dBi Nominal rated field strength: 75.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 78.0dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.019mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.019mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: 2013-7-9 DRAWN BY: zuo CHECK BY: DATE: #37015 TX APP. BY: DATE: 37015 TX 27MHz SCHEMATIC IDAIDB A B ICC-531 IDA R00=0R R01=NC IDB R00=NC R01=0R P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40 VSS VDD VO1 VO OSCO OSCI VCC U1 PM1457 1 2 FW 1 2 BW 1 2 RIGHT 1 2 TURBO C11 104 R1 68K±1% 1 2 LEFT +- 4V5 BATT C2 39p ANT1 C6 104 R8 20k C1 NC L3A/L3 2.2UH Q1 2SC3356 R9 22 L5 5.6uH C9 103 L4A/L4 2.2UH Y1 27.145MHz R6 100K Q2 2SC1815GR C10 47p R7 470 C3 100p C8 47p C7 120p ID select C12 47uF/10V 4*7 C4 NC R11 10R J3 0R J5 0R J4 0R J2 0R R01 0R R00 0R L2 NC C13 NC P1 P1 P2 P2 SIGNAL SIGNAL

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070300HKG-001 i FCC ID: V9Q-37015F27A Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 37016 37017, 37018, 37019 FCC ID: V9Q-37015F27A Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Jason Ng Tel: 0755-3680 6243 Fax: 0755-2870 0487 e-mail: [email protected] Manufacturer: ShenZhen Nanling Toys Products Co., Ltd. Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Shenzhen, China Brand Name: N/A Model: 37016, 37017, 37018, 37019 Asst. No.: 37015 Type of EUT: Transmitter Description of EUT: Street Nitro™ R/C - Super Car (37016), Street Nitro™ R/C - Truck (37017), Street Nitro™ R/C - Rally Car (37018), Street Nitro™ R/C - Muscle Car (37019) Serial Number: N/A FCC ID: V9Q-37015F27A Date of Sample Submitted: July 09, 2013 Date of Test: July 19, 2013 Report No.: 13070300HKG-001 Report Date: Sep 10, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070300HKG-001 ii FCC ID: V9Q-37015F27A Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 37016 37017, 37018, 37019 FCC ID: V9Q-37015F27A TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13070300HKG-001 iii FCC ID: V9Q-37015F27A Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling........................................................................................... 6 6.0 Technical Specifications ................................................................................ 6 7.0 Instruction Manual ..................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13070300HKG-001 FCC ID: V9Q-37015F27A Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 37016 Radiated Emission 37016 13070300HKG-001 Side A INTERTEK TESTING SERVICE Report No: 13070300HKG-001 FCC ID: V9Q-37015F27A Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 37016 Radiated Emission 37016 13070300HKG-001 Side B
