V9Q-37015R49STREET NITRO 49MHz RX

RADIO CONTROL STREET NITRO OWNER’S MANUAL MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 1 PEKING ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. Call for Help! If you have questions about this toy Call Toll-Free: 1-877-473-8015 Between 9:00 a.m. – 5:00 p.m. E.S.T. Monday thru Friday Contact via e-mail: [email protected] www.toystate.com For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 PROBLEM! ROAD RIPPERS R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by . • Are the batteries weak or out of power? PROBLEM?PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the Road Rippers R/C vehicle and controller with new alkaline batteries. Call 1-877-473-8015 for help! Have Fun - Play Games @ www.toystate.com BATTERY REQUIREMENTS: 3 “AAA” Batteries (for Controller) 4 “AA” Batteries (for Vehicle) TM 61 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the device.” CAUTION Important Battery Information •Dispose of batteries properly. •Do not dispose of batteries in fire. •Use only batteries of the type recommended. •Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. •Do not mix old and new batteries. •Remove batteries from Road Rippers R/C Vehicle and Controller if vehicle will not be used for a long period of time. PROBLEM! ROAD RIPPERS R/C VEHICLE DOES NOT MOVE PROBLEM! ROAD RIPPERS R/C VEHICLE MOVES BY ITSELF TROUBLESHOOTING AND CARE FOR R/C VEHICLES • Are the + and –’ s contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by . ATTENTION PARENTS This toy and all accessories need to be periodically examined for potential hazards and any potentially hazardous parts be repaired or replaced. MANUFACTURERS NOTETIPS & TRICKS STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. LIMITED RADIO CONTROL RANGE While Road Rippers R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interf erence. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1). This device may not cause harmful interference. 2). This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the use r’s authority to operate the equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try and correct the interference by one or more of the fol lowing measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. 25 Remove the Road Rippers R/C vehicle and controller from the box. For best perf ormance, replace the 3 “AAA” batteries in the controller with 3 new “AAA” batteries. Add 4 “AA” batteries into the Road Rippers R/C vehicle to begin full function play (see “Battery Installation” section for further details). TREAT YOUR ROAD RIPPERS R/C VEHICLE WELL Radio waves control the Road Rippers R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! Store in safe place.No direct sunlight. No rain or water. No sand or dust.No Collisions.Road Rippers R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. CLEANING AND MAINTAINING Brush areas where dirt and dust get trapped. Wipe body off with a soft rag or tact cloth. Do notclean vehicle with chemicals or water. GETTING ST ARTED BA TTERY INSTALLATION IN CONTROLLER NOTE: For best performance, always use alkaline batteries only. BA TTERY INSTALLATION IN ROAD RIPPERS R/C VEHICLE 4 "AA" BATTERIES REQUIRED (NOT INCLUDED) TO REPLACE THE BATTERIES LOOSEN SCREW TO OPEN 2. For best performance, replace 3 “AAA” batteries with 3 new “AAA” batteries. Be sure the + and – are properly matched. 2. Insert 4 “AA” batteries into the Vehicle. Be sure the + and – are properly matched. 1. To remove battery cover, loosen screw to open. 1. To remove battery cover, loosen screw to open. 43 OPERATING ROAD RIPPERS R/C VEHICLE Turn ON/OFF switch (on bottom of Road Rippers R/C vehicle) to the ON position (as shown.) Adjust Trim Switch (on the bottom of Road Rippers R/C vehicle) to ensure precision driving After play, alway…

Text truncated - open the document above for the full version.

Toy State International Ltd. 19/F, One Peking, No1 Peking Road Tsimshatsui,, Kowloon, Hong Kong POWER OF ATTORNEY FCC ID: V9Q-37015R49 Date: May 06, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on May 5, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Wayne Lee (Senior Project Engineer)

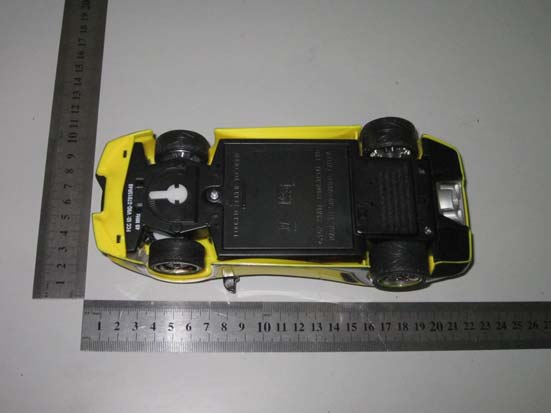

6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: Toy State International Ltd. Model: 37015 FCC ID: V9Q-37015R49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Operation Description C1、C2、C3、C23、C5、C4、R1、R2、R4、L1and Q1constitute 49.860MHz Superregenerative Detector，IC1 is used for the signal amp and IC2 used for decoder,IC3 is Motor Driver. Antenna, Ground, and Power Source The antenna consists of a 52cm long electronic wire. There is no external ground connection. The ground is only that of the printed circuit board.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DRAWN BY: CHECK BY: DATE: #37015 RX(49MHz) APP. BY: DATE: 37015 RX 原理图 ID1 ID2 C4 473 R4 4K7 C3 20p C2 20P C1 100P R3 2K2 C10 104 C5 332 L1 0.35uH ANT C6 104 R6 1M R2 560R Q1 1815GR R1 180k C23 4u7 1 VO2 2 GND 3 SI 4 OSCI 5 OSCO 6 R 7 L 8 RDB 9 LDB 10 B 11 F 12 TURBO 13 VDD13 14 VI1 15 VO1 16 VI2 IC1 LOGRX2 C9 470pF R5 2K2 C8 104 R8 2M2 R7 2K2 C7 222 C11 104 L2 6.8UH 1 IN2B 2 IN2A 3 OUT2B 4 GND 5 OUT2A 6 VM2 7 VCC 8 DIA 9 VM1 10 OUT1A 11 GND1 12 OUT1B 13 IN1A 14 IN1E IC2 MX215S L6 22UH M + - M2 L5 22UH L3 22UH M + - M1 L4 22UH C19 104 C17 104 C18 104 C20104 P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40VSSVDDVO1 VO OSCO OSCI PM1458 C13 104 R10 20K±1% C21104 C22 104 +- 6V BATT 21 D2 IN4148 2 1 D3 IN4148 C14 220uF R9 120R C16 100uF C15 100uF R20 1M R14 120R SELECT PTC 750MA R21 1M 123 J1 Try Me 21 D1 IN5819 2 1 D4 IN5819 2 1 D5 IN5819 R22 10K Q2 8050C R19 390R R16 2K2 R18 390R KA LED1 KA LED2 Q3 8050C R12 270R R13 2K2 R11 270R KA LED3 KA LED4 Q4 8050C R17 270R R15 2K2 KA LED5 R23 1M C12 104 FW BW LEFT RIGHT TRY-ME TURBO-LEDHEAD-LED TAIL-LED LEFT RIGHT FWBW TRY-ME HEAD-LED TAIL-LED TURBO-LED MOTOR-POWER VDD VDD MOTOR-POWER

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART B TEST REPORT FCC Part 15B Report Reference No......................: CTL11048234-S-WFR Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: May 10, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Toy State International Ltd. Address.............................................: 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC Part 15B: Unintentional Radiators TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Street Nitro Trade Mark .......................................: / Model/Type reference.......................: 37015 Work Frequency...........................: 49.860 MHz Antenna Type..............................: Undetachable Power Suplly...............................: DC 6V from battery FCC ID .............................................: V9Q-37015R49 Result................................................: Positive V1.0 Page 2 of 16 Report No.: CTL11048234-S-WFR T E S T R E P O R T Test Report No. : CTL11048234-S-WFR May 10, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Street Nitro Model /Type : 37015 Applicant : Toy State International Ltd. Address : 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Manufacturer Shen Zhen Nan Ling Toys Products Co, Ltd Address 132 Busha Road,Nanling Village, Buji Town Longgang Shenzhen, Canton, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 16 Report No.: CTL11048234-S-WFR Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 10 5. TEST SETUP PHOTOS OF THE EUT .......................................... 14 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 15 V1.0 Page 4 of 16 Report No.: CTL11048234-S-WFR 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15B: Unintentional Radiators ANSI C63.4-2003 V1.0 Page 5 of 16 Report No.: CTL11048234-S-WFR 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : April 28, 2011 Testing commenced on : April 29, 2011 Testing concluded on : May 3, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC Other (specified in blank below) DC 6V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless toy receiver work at 49.860 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Length (m) : / Shield : / Detachable : / o Manufacturer : Model No. : V1.0 Page 6 of 16 Report No.: CTL11048234-S-WFR 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: V9Q-37015R49 filing to comply with FCC Part 15, Subpart B Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 7 of 16 Report No.: CTL11048234-S-WFR 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2003) and CISPR Publication 22. 3.2. Test Facility The test facil…

Text truncated - open the document above for the full version.

5. Test Setup Photos of the EUT
