V9Q-37020F27SPHINX 27MHz TX

Toy State International Ltd. 19/F, One Peking, No1 Peking Road Tsimshatsui,, Kowloon, Hong Kong POWER OF ATTORNEY FCC ID: V9Q-37020F27 Date: May 10, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on May 5, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Wayne Lee (Senior Project Engineer)

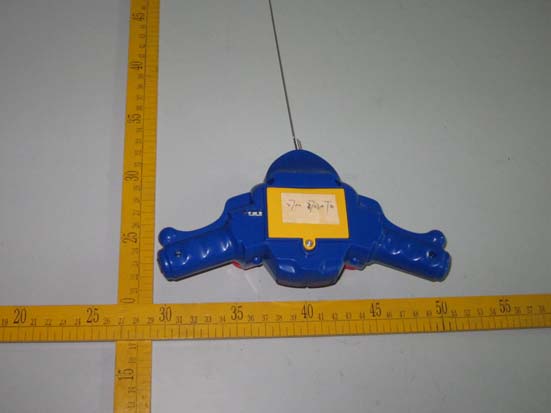

6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: Toy State International Ltd. Model: 37020 FCC ID: V9Q-37020F27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Operation Description Q2、Y1、L2、R1、R3、C5、C6 constitute 27.145MHz oscillator，Q1 is a modulator and RF amplifier. the modulation signal provided by IC1. The output of Q1 has the matching network consisting of L1、L4、L5、C7、C2、C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna length is 38cm. There is no external ground connection. The ground is only that of the printed circuit board.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DRAWN BY: CHECK BY: 2011/05/06 DATE: 27M 37020TX APP. BY: DATE: ID2(B CODE) ID1(A CODE) 8R/0.25W DIA=29MM BAT- TRY-ME R8 R9 P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40VSS VDD VO1 VO OSCO OSCI VCC IC1PM1316 1 2 FRONT 1 2 LEFT 1 2 LGNITION 1 2 BURNOUT C15 104 C12 220UF R9 68K +/-1% SPK1 1 2 BACK 1 2 RIGHL C2 150PF C1 100PF C6 103 L2 2.2UH C8 NC C7 332 L3 220UH Y1 27.145MHz ANT C4 103 R3 100K R5 10K C3 100PF Q2 2SC1815GR C5 47P R1 220R R7 2.2K Q38050C C10 220UF D1 IN4148 Z19V1 L1 2.2UH Q1 2SC3356/R25 R2 47R L4 0.75uH C9 47PF 1 2 HORN 1 23 S3 L5 6.8UH PTC1 250MA 1 VDD 2 DATA 3 GND CN1 R6 0R C16 220UF 1 2 MUSIC RF-DATA DC-DC DC-DC +4.5V RF-DATA 4.5V 4.5V +4.5V

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.227 Report Reference No......................: CTL11058261-S-WF Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: May 16, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Toy State International Ltd. Address.............................................: 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC Part 15.227: Operation within the band 26.96–27.28 MHz. TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Sphinx Trade Mark .......................................: / Model/Type reference.......................: 37020 Modulation .......................................: AM Work Frequency...........................: 27.145 MHz Antenna Type..............................: Undetachable Power Suplly...............................: DC 4.5V from battery FCC ID .............................................: V9Q-37020F27 Result................................................: Positive V1.0 Page 2 of 17 Report No.: CTL11058261-S-WF T E S T R E P O R T Test Report No. : CTL11058261S-WF May 16, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Sphinx Model /Type : 37020 Applicant : Toy State International Ltd. Address : 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Manufacturer Shen Zhen Nan Ling Toys Products Co, Ltd Address 132 Busha Road,Nanling Village, Buji Town Longgang Shenzhen, Canton, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 17 Report No.: CTL11058261-S-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 10 4.3. Occupied Bandwidth 13 4.4. Antenna Requirement 14 5. TEST SETUP PHOTOS OF THE EUT .......................................... 15 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 16 V1.0 Page 4 of 17 Report No.: CTL11058261-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.227: Operation within the band 26.96–27.28 MHz. ANSI C63.4-2003 V1.0 Page 5 of 17 Report No.: CTL11058261-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : May 8, 2011 Testing commenced on : May 9, 2011 Testing concluded on : May 12, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 4.5V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless toy controller work at 27.145 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Length (m) : / Shield : / Detachable : / o Manufacturer : Model No. : V1.0 Page 6 of 17 Report No.: CTL11058261-S-WF 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: V9Q-37020F27 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 7 of 17 Report No.: CTL11058261-S-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, …
