V9Q-37040R49MOBILE COMMAND (CHALLENGER) RX

RADIO CONTROL MOBILE COMMAND OWNER’S MANUAL MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 1 PEKING ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. Call for Help! If you have questions about this toy Call Toll-Free: 1-877-473-8015 Between 9:00 a.m. – 5:00 p.m. E.S.T. Monday thru Friday Contact via e-mail: [email protected] www.toystate.com Dodge is a trademark of Chrysler Group LLC. Dodge Viper, Dodge Challenger and their trade dress are used under license by Toy State Industrial LTD. © Chrysler Group LLC 2010 For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 PROBLEM! ROAD RIPPERS R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PROBLEM?PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the Road Rippers R/C vehicle and controller with new alkaline batteries. Call 1-877-473-8015 for help! Have Fun - Play Games @ www.toystate.com BATTERY REQUIREMENTS: 3 “AA” Batteries (for Controller) 4 “AA” Batteries (for Vehicle) 61 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the device.” CAUTION Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove batteries from Road Rippers R/C Vehicle and Controller if vehicle will not be used for a long period of time. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. PROBLEM! ROAD RIPPERS R/C VEHICLE DOES NOT MOVE PROBLEM! ROAD RIPPERS R/C VEHICLE MOVES BY ITSELF TROUBLESHOOTING AND CARE FOR R/C VEHICLES • Are the + and –’s contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. ATTENTION PARENTS This toy and all accessories need to be periodically examined for potential hazards and any potentially hazardous parts be repaired or replaced. MANUFACTURERS NOTETIPS & TRICKS STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. LIMITED RADIO CONTROL RANGE While Road Rippers R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. 25 Remove the Road Rippers R/C vehicle and controller from the box. For best performance, replace the 3 “AA” batteries in the controller with 3 new “AA” batteries. Add 4 “AA” batteries into the Road Rippers R/C vehicle to begin full function play (see “Battery Installation” section for further details). TREAT YOUR ROAD RIPPERS R/C VEHICLE WELL Radio waves control the Road Rippers R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! Store in safe place.No direct sunlight. No rain or water. No sand or dust.No Collisions.Road Rippers R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. CLEANING AND MAINTAINING Brush areas where dirt and dust get trapped. Wipe body off with a soft rag or tact cloth. Do notclean vehicle with chemicals or water. GETTING STARTED BATTERY INSTALLATION IN CONTROLLER LOOSEN SCREW TO OPEN 3 "AA" BATTERIES REQUIRED (INCLUDED) TO REPLACE THE BATTERIES NOTE: For best performance, always use alkaline batteries only. BATTERY INSTALLATION IN ROAD RIPPERS R/C VEHICLE 4 "AA" BATTERIES REQUIRED (NOT INCLUDED) TO REPLACE THE BATTERIES LOOSEN SCREW TO OPEN 2. For best performance, replace 3 “AA” batteries with 3 new “AA” batteries. Be sure the + and – are properly matched. 2. Insert 4 “AA” batteries into the Vehicle. Be sure the + and – are properly matched. 1. To remove battery cover, loosen screw to open. 1. To remove battery cover, turn belt clip clockwise and loosen screw to open. 43 OPERATING ROAD RIPPERS R/C VEHICLE Turn ON/OFF switch (on bottom of Road Rippers R/C vehicle) to the ON position (as shown.) Adjust Trim Switch (on the bottom of Road Rippers R/C vehicle) to ensure precision driving After play, always turn vehicle off. Remove batteries from controller and Road Rippers R/C vehicle when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. • Install batteries in Road Rippers R/C vehicle and controller. • Learn functi…

Text truncated - open the document above for the full version.

Toy State International Ltd. FCC ID: V9Q-37040R49 POWER OF ATTORNEY April 23, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen CCE Test Electronic Co., Ltd. ( Tom Yao) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CCE Test Electronic Co., Ltd. ( Tom Yao) on our behalf shall have the same effect as acts of our own. This authorization expires on May 14, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Toy State International Ltd. ........................................................................ gineer) ...... Wayne Lee (Senior Project En

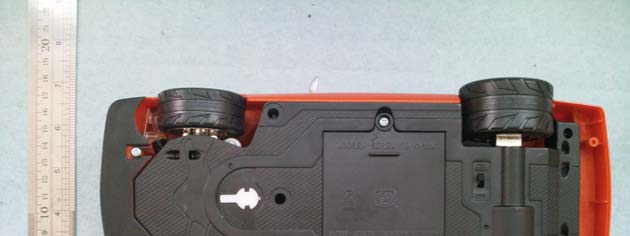

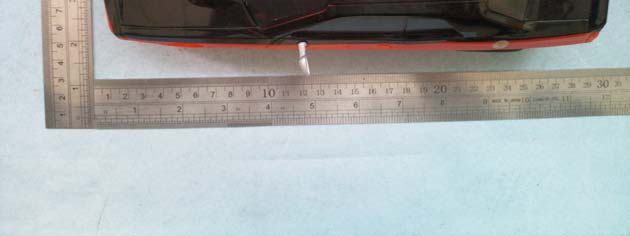

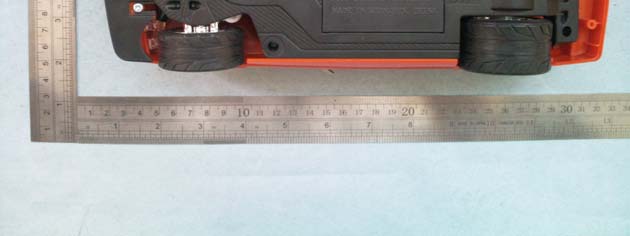

Toy State International Ltd. FCC ID: V9Q-37040R49 10 EUT Photos 10.1 Appearance View of EUT 10.2 Appearance View of EUT Page 12 of 15

Toy State International Ltd. FCC ID: V9Q-37040R49 Page 15 of 15 11 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed FCC ID Label Location on the EUT FCC ID:V9Q-37040R49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model: 37042 FCC ID: V9Q-37040R49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

Toy State International Ltd. FCC ID: V9Q-37040R49 10.3 Front View of PCB 10.4 Rear View of PCB Page 13 of 15

Circuit Description for Model 37042(Receiver) RECEIVER: Q1 IS THE Superregenerative detector IC1 IS THE SIGNAL DECODER AND the signal amplifier IC2 is the motor driver. ENERGRY IS SUPPLIED BY 4pcs of 1.5VDC AA Battery. GROUND CIRCUITRY: The unit relies on the ground trace of the printed circuit board. No external ground is provided. REFERENCE OSCILLATOR: RX: The PCB not included oscillator. ANTENNA: RX antenna is a 520MM copper wire linked to PCB which is not extendable.

37042 RX 49M 2010-04-02 Toy State 2010-03-22 2010-03-22 Sunny Zhou Wayne Leo Sunny Zhou <Scale>1 1 REV:SIZE:CODE: DRAWN:DATED: DATED:CHECKED: QUALITY CONTROL:DATED: DATED:RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OFSCALE: REVISION RECORD APPROVED:ECO NO: A B D DATE: 123456 D C A B C LTR 1 IN2B 2 IN2A 3 OUT2B 4 GND 5 OUT2A 6 VM2 7 VCC 8 DIA 9 VM1 10 OUT1A 11 GND1 12 OUT1B 13 IN1A 14 IN1E IC2 MX 215S C4 473 R34.7K C3 20p C2 20P C1 100P R4 2.2K C10 104 C5 332 L1 0.55uH ANT C7 0.1uF R6 1M R2 560R Q1 1815GR R1 180k C6 4.7uF 1 VO2 2 GND 3 SI 4 OSCI 5 OSCO 6 R 7 L 8 RDB 9 LDB 10 B 11 F 12 TURBO 13 VDD13 14 VI1 15 VO1 16 VI2 IC1 LOGRX2 C11 470pF R7 2.2K C12 104 R8 2M2 R9 2.2K R13 200k +/-1% C14 222 C13 0.1uF L2 6.8UH C8 100uF R5 270R C17 220uF C18 104 1 2 3 S1 PTC 750MA L6 22UH -+ M M2 L5 22UH C15 103 L3 22UH -+ M M1 L4 22UH C9 103 K A LED3 LED K A LED2 LED K A LED1 LED R11 330R R12 330R Q2 9014 R10 2.2k VCC VCC VCC VDD VDD BAT+6V VCC VDD

Toy State International Ltd. FCC ID: V9Q-37040R49 FCC TEST REPORT For Mobile Command (Challenger)RX Model Number: 37042 Reference No. : CT10042063-S-F FCC ID : V9Q-37040R49 Applicant : Toy State International Ltd. Address : 19/F., One Peking, No.1 Peking Road, Tsimshatsui, Kowloon, Hong Kong Date of Test : April 22, 2010 Date of Issue : April 23, 2010 Prepared By : Shenzhen CCE Test Electronic Co., Ltd. Test Result : Pass Page 1 of 15 Toy State International Ltd. FCC ID: V9Q-37040R49 Page 2 of 15 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................3 4 TEST REPORT DECLARATION .........................................................................................................................4 5 TEST LABORATORY AND FACILITY INFROMATION................................................................................5 5.1 TEST LOCATION......................................................................................................................................................5 6 TEST EQUIPMENT USED.....................................................................................................................................6 7 RADIATION EMISSION TEST.............................................................................................................................7 7.1 TEST EQUIPMENT....................................................................................................................................................7 7.2 MEASUREMENT UNCERTAINTY...............................................................................................................................7 7.3 TEST PROCEDURE...................................................................................................................................................7 7.4 SPECTRUM ANALYZER SETUP.................................................................................................................................8 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 7.6 TEST ARRANGEMENT..............................................................................................................................................8 7.7 RADIATED EMISSIONS LIMIT...................................................................................................................................8 7.8 RADIATED EMISSION DATA....................................................................................................................................9 8 ANTENNA REQUIREMENT...............................................................................................................................10 9 TEST SETUP PHOTOS ........................................................................................................................................11 10 EUT PHOTOS ........................................................................................................................................................12 10.1 APPEARANCE VIEW OF EUT ............................................................................................................................12 10.2 APPEARANCE VIEW OF EUT ............................................................................................................................12 10.3 FRONT VIEW OF PCB .......................................................................................................................................13 10.4 REAR VIEW OF PCB.........................................................................................................................................13 10.5 OPEN VIEW OF EUT.........................................................................................................................................14 11 FCC ID LABEL ......................................................................................................................................................15 Toy State International Ltd. FCC ID: V9Q-37040R49 3 Test Summary Test Items Test RequirementTest Method Limit / Severity Result Mains Terminal Disturbance Voltage, 150kHz to 30MHz FCC Part 15 ANSI C63.4: 2009 N/A N/A Radiation Emission, 30MHz to 1GHz FCC Part 15 ANSI C63.4: 2009 N/A PASS Note : denote that for more details of the EUT, please refer to the relating test items as below . Page 3 of 15 Toy State International Ltd. FCC ID: V9Q-37040R49 4 Test Report Declaration Applicant : Toy State International Ltd. Address : 19/F., One Peking, No.1 Peking Road, Tsim shatsui, Kowloon, Hong Kong Manufacturer : Shen Zhen Nan Ling Toys Products Co., Ltd. Address : 132 Busha Road, Nanling Village, Buji Town, Longgang, Shenzhen, Canton 518114, China Product Name : Mobile Command (Challenger)RX Model No. : 37042 Power Supply : DC 6V(4 pcs 1.5V AA Battery) Standard : FCC Part 15.109 Temperature : 25.5 °C Humidity : 51 % RH Barometric Pressure : 1012 mbar Test Engineer : Reviewed By : Page 4 of 15 Toy State International Ltd. FCC ID: V9Q-37040R49 5 Test Laboratory and Facility Infromation The test facility is recognized, certified, or accredited by the following organizations:  FCC – Registration No.: 880581 Waltek Services(Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 880581,June 24， 2008. 5.1 Test Location All Emissions testswer…

Text truncated - open the document above for the full version.

Toy State International Ltd. FCC ID: V9Q-37040R49 9 Test Setup Photos Radiation Emission Test View Page 11 of 15
