V9Q-37050F27AMOTOR MUSCLE 27MHz TX

RADIO CONTROL MOTOR MUSCLE OWNER’S MANUAL MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 1 PEKING ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. Call for Help! If you have questions about this toy Call Toll-Free: 1-877-473-8015 Between 9:00 a.m. – 5:00 p.m. E.S.T. Monday thru Friday Contact via e-mail: [email protected] www.toystate.com Dodge and HEMI are trademarks of Chrysler Group LLC. Dodge Charger Super Bee, Dodge Charger Daytona and their trade dress are used under license by Toy State Industrial LTD. © Chrysler Group LLC 2011 Ford Oval and nameplates are registered trademarks owned and licensed by Ford Motor Company. Manufactured by Toy State Industrial Ltd. www.ford.com Dodge and HEMI aretrade d o e d o G a wwwfordcom Dodge Charger Super Be andtheir trad under license by To © Chrysler G Oval and nameplates are registered tradema owned and licensed by Ford Motor Company. Manufactured by Toy State Industrial Ltd. fd General Motors Trademarks used under license to Toy State Industrial. For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 PROBLEM! ROAD RIPPERS R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PROBLEM?PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the Road Rippers R/C vehicle and controller with new alkaline batteries. Call 1-877-473-8015 for help! Have Fun - Play Games @ www.toystate.com BATTERY REQUIREMENTS: 3 “AAA” Batteries (for Controller) 4 “AA” Batteries (for Vehicle) TM 61 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the device.” CAUTION Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove batteries from Road Rippers R/C Vehicle and Controller if vehicle will not be used for a long period of time. PROBLEM! ROAD RIPPERS R/C VEHICLE DOES NOT MOVE PROBLEM! ROAD RIPPERS R/C VEHICLE MOVES BY ITSELF TROUBLESHOOTING AND CARE FOR R/C VEHICLES • Are the + and –’s contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. ATTENTION PARENTS This toy and all accessories need to be periodically examined for potential hazards and any potentially hazardous parts be repaired or replaced. MANUFACTURERS NOTETIPS & TRICKS STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. L I M I T E D R A D I O C O N T R O L R A N G E W h i l e R o a d R i p p e r s R / C v e h i c l e m a y b e v i s i b l e a t a d i s t a n c e , f u l l o p e r a t i o n a l c o n t r o l m a y b e l o s t . H o l d c o n t r o l l e r h i g h i n t h e a i r a n d d i r e c t v e h i c l e b a c k . INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1). This device may not cause harmful interference. 2). This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. 25 Remove the Road Rippers R/C vehicle and controller from the box. For best performance, replace the 3 “AAA” batteries in the controller with 3 new “AAA” batteries. Add 4 “AA” batteries into the Road Rippers R/C vehicle to begin full function play (see “Battery Installation” section for further details). TREAT YOUR ROAD RIPPERS R/C VEHICLE WELL Radio waves control the Road Rippers R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! Store in safe place.No direct sunlight. No rain or water. No sand or dust.No Collisions.Road Rippers R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. CLEANING AND MAINTAINING Brush areas where dirt and dust get trapped. Wipe body off with a soft rag or tact cloth. Do notclean vehicle with chemicals or water. GETTING ST…

Text truncated - open the document above for the full version.

Toy State International Ltd. 19/F, One Peking, No1 Peking Road Tsimshatsui,, Kowloon, Hong Kong POWER OF ATTORNEY FCC ID: V9Q-37050F27A Date: May 06, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on May 5, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Wayne Lee (Senior Project Engineer)

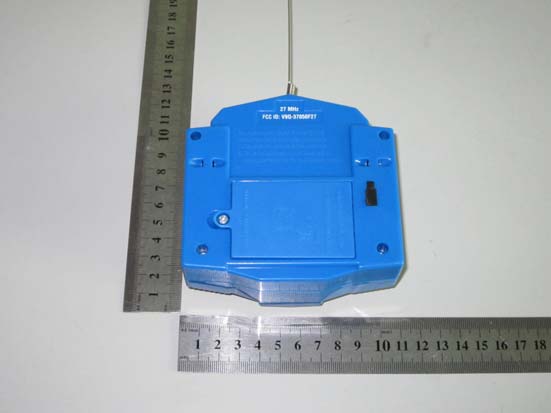

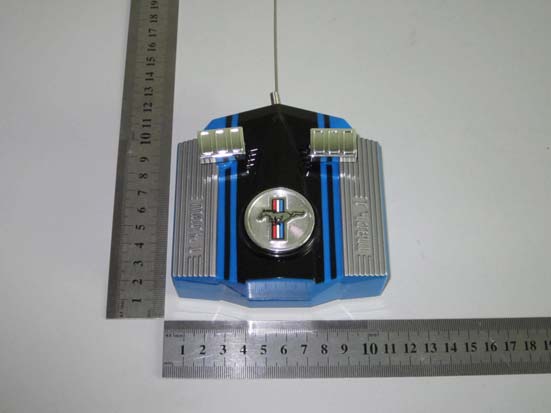

External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: Toy State International Ltd. Model: 37050 37055 FCC ID: V9Q-37050F27A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Operation Description Q3、Y1、L5、R3、R4、C5、C21 constitute 27.145MHz oscillator，Q1 is the modulator and RF amplifier. the modulation signal provided by U2, The output of Q1has the matching network consisting of L2、L1、L3、C4、C2、C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna length is 37cm. There is no external ground connection. The ground is only that of the printed circuit board.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DWN: CHK: DATE: APP: DATE: PM4156 27M 37050TX L1 0.75UH C1 100P L2 2.2uH 1 C2 150P Q1 2SC3356/R25 C3 100P C5 47PF R3 220R C7 47P C4 100p R1 47R R5 2K2 C8 0.01uF BAT DC4.5V R4 100K C21 103 C10 100UF/25V Z1 9V1 D1 IN4148 L3 6.8uH R6 10K Y1 27.145MHz Q2 8050C L4 220uH Q3 2SC1815GR L5 2.2uH + C11 220uF SPK P10P11P12P13 P20P21P22P23P30P31P32P33 VDD VO1 VSSC VO VCCVSSD OSC1 1234 56789101112 13 14 15 16 17 18 19 U2 BURNINGLOVE MUSTANGSALLY C15 0.1uF R10 330R R16 100K R17 10R KA LED3 LEFT FW Q4 8050C R18 390R R19 680R C12 100UF/25V RIGHT BW Q5 8050C R9 1K R12 0R TX-PWN TX-DATA VDD RFCONTROLTX-PWNTX-DATA RFCONTROL VDD BAT+ BAT+ BAT+

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.227 Report Reference No......................: CTL11048230-S-WF Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: May 9, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Toy State International Ltd. Address.............................................: 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC Part 15.227: Operation within the band 26.96–27.28 MHz. TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Motor Muscle Trade Mark .......................................: / Model/Type reference.......................: 37050, 37055 Modulation .......................................: AM Work Frequency...........................: 27.145 MHz Antenna Type..............................: Undetachable Power Suplly...............................: DC 4.5V from battery FCC ID .............................................: V9Q-37050F27A Result................................................: Positive V1.0 Page 2 of 17 Report No.: CTL11048230-S-WF T E S T R E P O R T Test Report No. : CTL11048230-S-WF May 9, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Motor Muscle Model /Type : 37050, 37055 Applicant : Toy State International Ltd. Address : 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Manufacturer Shen Zhen Nan Ling Toys Products Co, Ltd Address 132 Busha Road,Nanling Village, Buji Town Longgang Shenzhen, Canton, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 17 Report No.: CTL11048230-S-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 10 4.3. Occupied Bandwidth 13 4.4. Antenna Requirement 14 5. TEST SETUP PHOTOS OF THE EUT .......................................... 15 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 16 V1.0 Page 4 of 17 Report No.: CTL11048230-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.227: Operation within the band 26.96–27.28 MHz. ANSI C63.4-2003 V1.0 Page 5 of 17 Report No.: CTL11048230-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : April 28, 2011 Testing commenced on : April 29, 2011 Testing concluded on : May 3, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC Other (specified in blank below) DC 4.5V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless toy controller work at 27.145 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Length (m) : / Shield : / Detachable : / o Manufacturer : Model No. : V1.0 Page 6 of 17 Report No.: CTL11048230-S-WF 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: V9Q-37050F27A filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 7 of 17 Report No.: CTL11048230-S-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng …
