V9Q-37100F27Blaze CrazeTM R/C � 3 Asstd

R C RCR C RC RADIO CONTROL BLAZE CRAZE R/C OWNER’S MANUAL TM CONTROLLERVEHICLE Batteries Not IncludedIncluded AAA/R3 AA/LR6 x3x4 4+ #37100 1 R C RCR C RC MUTE SWITCH NOTE:For best performance, always use alkaline batteries only. CAUTION Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove batteries from R/C vehicle and controller if vehicle will not be used for a long period of time. BATTERY INSTALLATION This unit is equipped with a mute switch. Use the mute switch when “Quiet Time” is needed. It is located on either the controller or the vehicle. GETTING STARTED Remove the R/C vehicle and controller from the package. Insert batteries into the R/C vehicle and controller to begin full function play (see “Battery Installation” section for further details). ENG CONTROLLER 1.5v 1.5v 1.5v 1. To remove battery cover, loosen screw to open. 2. Insert 3 “AAA” batteries into the controller. Be sure the + and – are properly matched. R/C VEHICLE 1.5v1.5v 1.5v1.5v 1. To remove battery cover, loosen screw to open. 2. Insert 4 “AA” batteries into the vehicle. Be sure the + and – are properly matched. STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. PLAYDEMOOFF 6 7 • Press button 6 on the vehicle to drive forward with lights and sounds • Press button 7 on the vehicle for lights and sounds • Press button 8 on the vehicle for lights and sounds 2 OPERATING R/C VEHICLE ENG PLAYDEMOOFF T oggle DEMO/OFF/PLAY switch located on bottom of R/C vehicle to the PLAY position Full-Function Radio Control Amazing Light Show After play, always turn vehicle off. Remove batteries from controller and R/C vehicle when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. P L A Y ! T O W A Y S P L A Y ! T O W A Y S W A YS P L A Y ! T O W A Y S R/C OR PUSH BUT T ON • Hold button 1 and 2 on the controller to drive forward • Hold 3 and 4 to drive in reverse • Hold 1 to turn right while going forward • Hold 2 to turn left while going forward • Hold 3 to turn right going in reverse • Hold 4 to turn left going in reverse • Press button 5 for lights and sounds 8 1 2 3 4 5 3 R C RCR C RC R/C VEHICLE DOES NOT MOVE • Are the + and – contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? R/C VEHICLE MOVES BY ITSELF • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the R/C vehicle and controller with new alkaline batteries. TROUBLESHOOTING AND CARE FOR R/C VEHICLE Radio waves control the R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! TREAT YOUR R/C VEHICLE WELL Store in safe place.No direct sunlight.No rain or water.No sand or dust. No Collisions. R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. LIMITED RADIO CONTROL RANGE While R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. ENG www.toystate.com Ford Motor Company Trademarks and Trade Dress used under license to Toy State Industrial Ltd. www.fordmotorcompany.com Dodge, SRT, HEMI, vehicle nameplates and trade dress are trademarks of Chrysler Group LLC and used under license by Toy State Industrial LTD. © Chrysler Group LLC 2012.

COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 37102 TX 27M BLOCK DIAGRAM 1.0 1 1 Luganqiu 25-Apr-2012 APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-37102 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIONG 26-Apr-2012 XIONG PAGE NO:- 1 OF 1 MODEL NO:- 37102 Filter L3/C3 TX ANTENNA 27.145MHz RF POWER OUTPUT & Modulator Q1 Fundanmental Frequency Oscillator Q2/Y1 27.145MHz Signal 1 Signal 2 LFW/LBW/ Control RFW/RBW/ 3X1.5VDC Battery. Temperature Control Resistor R6 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAM ROM WDT LVR I/O Ports MUSIC 26-Apr-2012 R4 300K

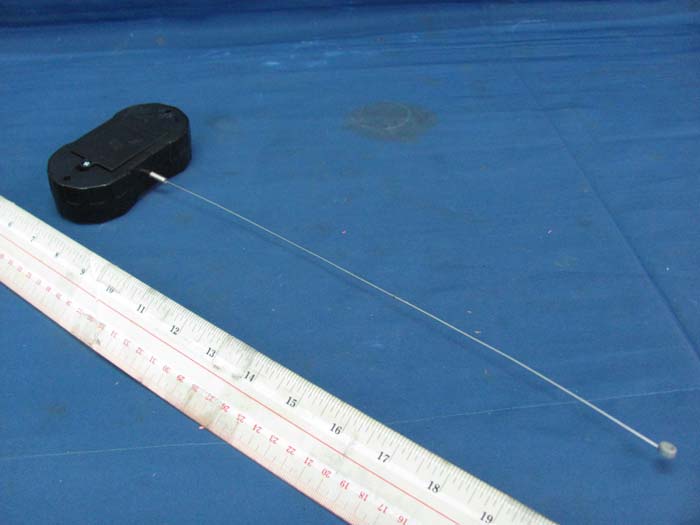

INTERTEK TESTING SERVICE Report No.: HK12050529-1 FCC ID: V9Q-37100F27 Equipment Photographs Model : 37102 (External)

INTERTEK TESTING SERVICE Report No.: HK12050529-1 FCC ID: V9Q-37100F27 Equipment Photographs Model: 37102 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050529-1 FCC ID: V9Q-37100F27 Equipment Photographs Model: 37102 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050529-1 FCC ID: V9Q-37100F27 Equipment Photographs Model: 37102 (Internal)

FCC ID: LU9513049 Model: 37102 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left, right and playing music. The circuit of the transmitter comprises of, 1. An control circuit consisting: K1-K5 2. An RF Oscillator and RF Power Output Stage consisting: Y1,Q1,Q2 3. An Antenna Matching Network consisting: C3, L3 4. An Encoder consisting: U1 (SN5536) 5. A Power Supply consisting: three 1.5V AAA batteries The transmitter uses an external, integral and non-detachable antenna.

SHEET: 1 OF 1 COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: TOY STATE INDUSTRIAL LTD 37102 TX 27.145MHZ 1.0 Angelo 25-Apr-2012 J2:PRODUCT J1:ID TX SCHEMATIC FOR MODEL NO 37102- 27.145MHz APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-37102 PAGE NO:- 1 OF 1 NC NC XIONG XIONG 26-Apr-2012 26-Apr-2012 Q2 2SC1815GR Q1 2SC3356 C4 103 R1 100K C5 47P R3 220R C15 NC C12 47P R5 10R C10 103 C8 100P R2 10K C1 200P C3 10P C9 NC C2 103 R4 300K J1 R6 2.2R B1 4.5V R7 NC C6 NC C7 0.1uF C11 100uF/10V R8 NC L4 2.2uH L5 2.2uH T1 NC L3 8.2uH Y1 27.145MHz LFW K1 LBW K2 R9 NC J2 RFW K3 RBW K4 MUSIC K5 1 PWM+ 2 VDD-SPK 3 PWM- 4 VSS-SPK 5 BP23 6 BP22 7 BP21 8 BP20 9 BP13 10 BP12 11 BP11 12 BP10 13 BP03 14 BP02 15 BP01 16 BP00 17 VSS 18 /RESET 19 VDD 20 OSCI U1 SN5536

INTERTEK TESTING SERVICES Report No.: HK12050529-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12050529-1 Toy State International Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-37100F27) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Jun 23, 2012 INTERTEK TESTING SERVICES Report No.: HK12050529-1 FCC ID: V9Q-37100F27 i GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 37102 FCC ID: V9Q-37100F27 Grantee: Toy State International Ltd. Grantee Address: 19/F., One Peking, No. 1 Peking Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Jason Ng Tel: (0755) 28700378 Fax: (0755) 28700487 e-mail: [email protected]; [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 37102 Additional Model: 37101 Asst. No.: 37100 Type of EUT: Transmitter Description of EUT: Blaze Craze TM R/C – 3 Asstd Serial Number: N/A FCC ID : V9Q-37100F27 Date of Sample Submitted: May 09, 2012 Date of Test: May 09, 2012 to May 17, 2012 Report No.: HK12050529-1 Report Date: Jun 23, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12050529-1 FCC ID: V9Q-37100F27 ii SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 37102 FCC ID: V9Q-37100F27 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12050529-1 FCC ID: V9Q-37100F27 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ...........................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12050529-1 FCC ID: V9Q-37100F27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 37102 INTERTEK TESTING SERVICE Report No: HK12050529-1 FCC ID: V9Q-37100F27 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 37102
