V9Q-37100T49Blaze CrazeTM R/C - F250

Signal 2 BLOCK DIAGRAM OF VERSION:- TX 49.860MHz MODEL NO:- 37100 Fundanmental TX ANTENNA Frequency 49.860MC Oscillator R4 300K 49.860MHz Y1 Clock Timing Generator CPU Generator B+1 RAM LFW/LBW/ RFW/RBW/ ROM Amplifier MUSIC WDT Signal 1 & Filter Control LVR I/O Ports Modulator L3, C3 Q1,Q2 B+1 AAAX3PCS Control Resistor Batteries Temperature B+1 R6 APPLICANT:-TOY STATE INDUSTRIAL LTD DRAWN BY: Angelo DATED: 25-Apr-2012 COMPANY: TOY STATE INDUSTRIAL LTD CHECK BY: XIONG DATED: 26-Apr-2012 MODEL: 37100 TX 49M BLOCK DIAGRAM MODEL NO:-37100 PAGE NO:- 1 OF 1 APP.BY: XIONG DATED: 26-Apr-2012 REV: 1.0 DRAWING NO: SHEET: 1 OF 1 49.860MHz U1

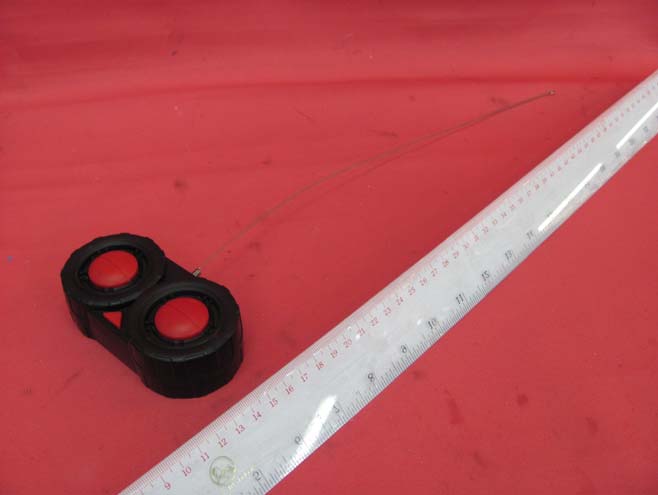

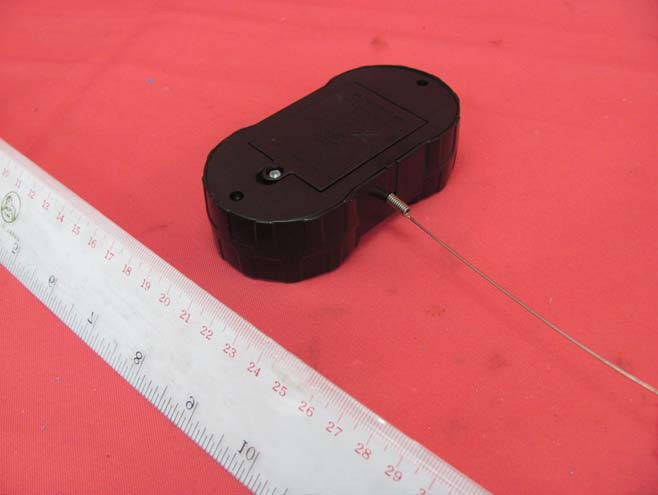

INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (External) INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (External)

FCC ID : V9Q-37100T49 Location This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Information A Label Information B 34MM 11MM 44MM 3MM A B

INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060618-1 FCC ID: V9Q-37100T49 Equipment Photographs Model : 37101 (Internal)

FCC ID : V9Q-37100T49 Model: 37101 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860MHz, and controls the corresponding receiver to move forward, backward, left, right , playing music and lighting up. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: LFW, LBW, RFW, RBW, MUSIC, U1 2. A RF Oscillator (49.680MHz) consisting: Y1 3. A Filter Network consisting: C3, L3 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 3 x AAA size batteries The transmitter uses an external, integral and non-detachable antenna.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12060618-1 Toy State International Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-37100T49) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: June 25, 2012 INTERTEK TESTING SERVICES Report No.: HK12060618-1 FCC ID: V9Q-37100T49 i GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 37101 FCC ID: V9Q-37100T49 Grantee: Toy State International Ltd. Grantee Address: 19/F., One Peking, No. 1 Peking Road, Tsimshatsui, Kowloon, Hong Kong. Contact Person: Jason Ng Tel: (0755) 28700378 Fax: (0755) 28700487 e-mail: [email protected]; [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 37101 Additional Model: 37102, 37103 Asst. No.: 37100 Type of EUT: Transmitter Description of EUT: Blaze Craze TM R/C – F250 (37101) Blaze Craze TM R/C – Mustang (37102) Blaze Craze TM R/C – Dodge Viper (37103) Serial Number: N/A FCC ID : V9Q-37100T49 Date of Sample Submitted: June 11, 2012 Date of Test: June 11, 2012 to June 22, 2012 Report No.: HK12060618-1 Report Date: June 25, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12060618-1 FCC ID: V9Q-37100T49 ii SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 37101 FCC ID: V9Q-37100T49 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12060618-1 FCC ID: V9Q-37100T49 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12060618-1 FCC ID: V9Q-37100T49 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 37101 INTERTEK TESTING SERVICE Report No: HK12060618-1 FCC ID: V9Q-37100T49 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 37101
