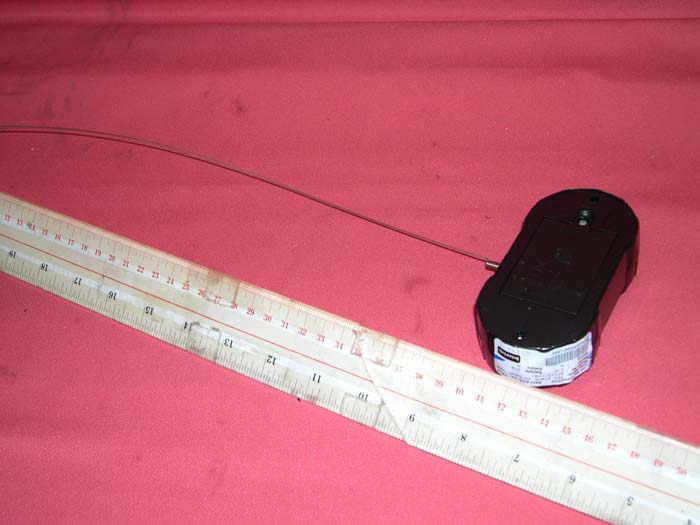

INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (External) INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (External)

FCC ID: V9Q-37110F27 FCC Label and Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: V9Q-37110F27 Label Size 34 x 11 mm Word Size 10 x 3 mm

INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040940-1 FCC ID: V9Q-37110F27 Equipment Photographs Model : 37111 (Internal)

Technical Description: The brief circuit description is listed as the follows: - Q1 and associated circuit act as RF Modulator. - Y1, Q2 and associated circuit act as 27.145 MHz Oscillator. - U1 SN5536 acts as Encoder. - LFW, LBW, RFW, RBW and MUSIC act as Control Keys. Antenna Used: An external antenna (non-extendable) has been used.

SHEET: 1 OF 1 COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: TOY STATE INDUSTRIAL LTD 37110 TX 27.145MHZ 1.0 Jiang Zhan 2012/4/11 J2:PRODUCT J1:ID TX SCHEMATIC FOR MODEL NO 80350- 27.145MHz APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-37110 PAGE NO:- 1 OF 1 NC NC XIONG XIONG 2012/4/11 2012/4/11 Q2 2SC1815GR Q1 2SC3356 C4 103 R1 100K C5 47P R3 220R C15 NC C12 47P R5 10R C10 103 C8 100P R2 10K C1 200P C3 10P C9 NC C2 103 R4 300K J1 R6 2.2R B1 4.5V R7 100K C6 104 C7 103 C11 100uF/10V R8 100K L4 2.2uH L5 2.2uH T1 NC L3 8.2uH Y1 27.145MHz LFW LBW R9 NC J2 RFW RBW MUSIC 1 PWM+ 2 VDD-SPK 3 PWM- 4 VSS-SPK 5 BP23 6 BP22 7 BP21 8 BP20 9 BP13 10 BP12 11 BP11 12 BP10 13 BP03 14 BP02 15 BP01 16 BP00 17 VSS 18 /RESET 19 VDD 20 OSCI U1 SN5536
