SHEET: OF COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: TOY STATE INDUSTRIAL LTD 60320 TX BLOCK DIAGRAM 1.0 1 1 JIANG 2012/4/25 APPLICANT:-TOY STATE INDUSTRIAL LTDMODEL NO.:-60320 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIONG 2012/4/25 XIONG 2012/4/25 PAGE NO.:- 1 OF 1 MODEL NO.:- 60320 Filter L3 TX ANTENNA .14586MC RF POWER OUTPUT & Modulator Q 2 Fundanmental FrequencyOscillator Q2/Y1 27.145MHz Signal 1 Signal 2 FORWARDControl/BACKWARD 2X1.5VDC Battery. Temperature Control Resistor R2 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAMROMWDTLVR I/O Ports LEFT&RIGHT Signal Y1 455 kHz

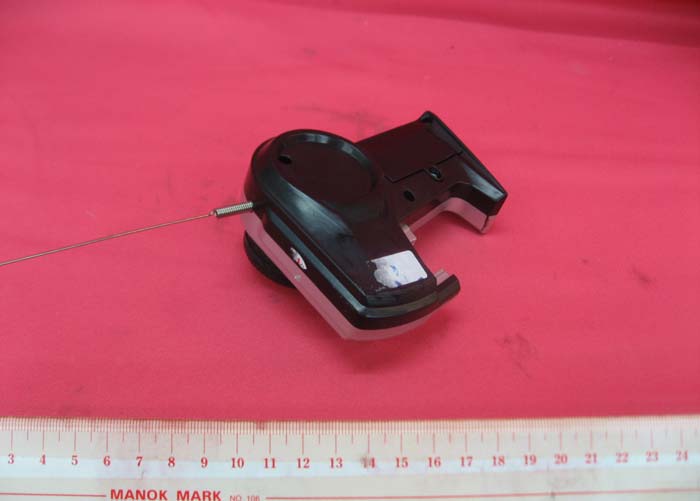

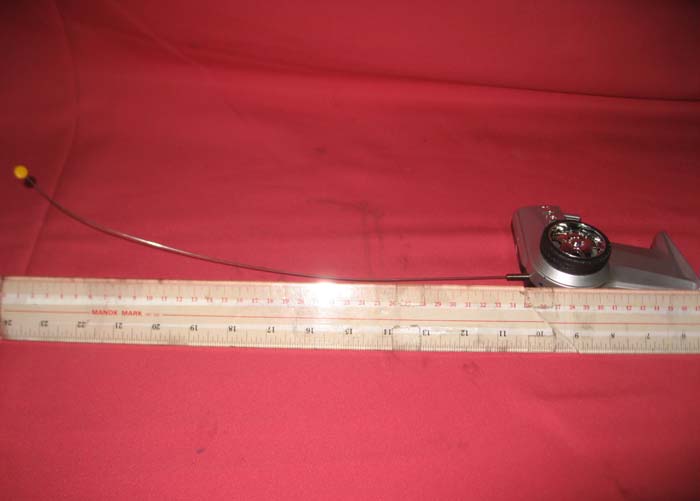

INTERTEK TESTING SERVICE Report No.: HK12050533-1 FCC ID: V9Q-60320F27 Equipment Photographs Model : 60323 (External) INTERTEK TESTING SERVICE Report No.: HK12050533-1 FCC ID: V9Q-60320F27 Equipment Photographs Model : 60323 (External)

INTERTEK TESTING SERVICE Report No.: HK12050533-1 FCC ID: V9Q-60320F27 Equipment Photographs Model: 60323 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050533-1 FCC ID: V9Q-60320F27 Equipment Photographs Model: 60323 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050533-1 FCC ID: V9Q-60320F27 Equipment Photographs Model: 60323 (Internal)

FCC ID: LU9513049 Model: 60323 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An control circuit (control buttons) consisting: Forward, Backward, Left, Right control Keys 2. An RF Oscillator, RF Modulator and RF Output Stage consisting: Y1,Q1,Q2 3. An Antenna Matching Network consisting: C12, T1 4. An Encoder consisting: U1 (TT10S), X1 (455kHz crystal, generates clock for U1) 5. A Power Supply consisting: two 1.5V AAA batteries The transmitter uses an external, integral and non-detachable antenna.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DWN: CHK: DATE: APP: DATE: 60320 TX 27.145MHZ TX SCHEMATIC FOR MODEL NO. 60320- 27MHz jp 2012/04/25 APPLICANT:-TOY STATE INDUSTRIAL LTDMODEL NO:-60320 TX PAGE NO:- 1 OF 1 T1 0.47UH C12 7P L2 2.2uH 1 ANT 27.145MHz C11 NC Q22SC3356 C9 100P C5 47P R6 1K C7 47P C10 100p R7 220R C1 NC BAT DC3V R5 100K L5 8.2uH R4 47K Y1 27.145MHz Q1 2SC1815GR L1 2.2uH TUR C3 0.1uF R3 NC R2 2.7R LEFT FW J1 0R R1 NC C13 100UF/10V RIGHT BW 1 NC 2 R 3 A0 4 GND 5 BW 6 TUR 7 FW 8 A1 16 NC 15 L 14 NC 13 OSCI 12 OSCO 11 PC 10 VDD 9 SO/SC U1 TT10S X1 455 kHz C2 102 C6 NC C8 103 TX-DATA PC VDD PC TX/DATA VDD VDD VDD

INTERTEK TESTING SERVICES Report No.: HK12050533-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)
